CP-RC-00000005 - DJI RC - Remote control with screen CP-RC-00000005

Features

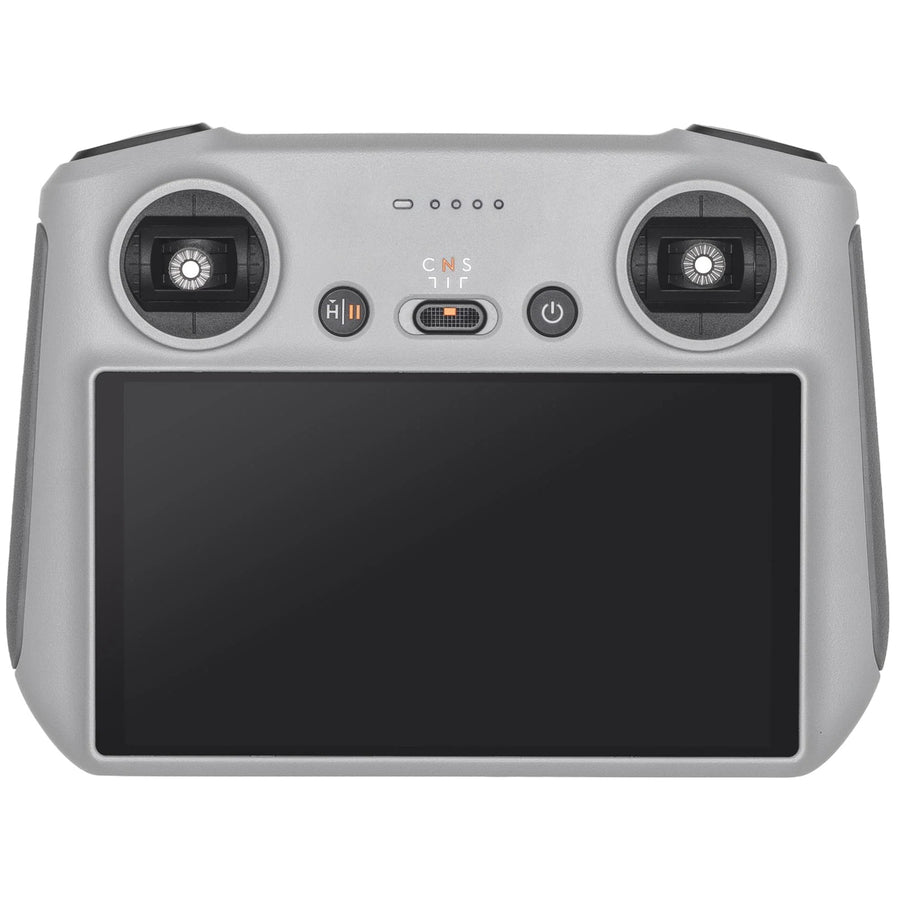

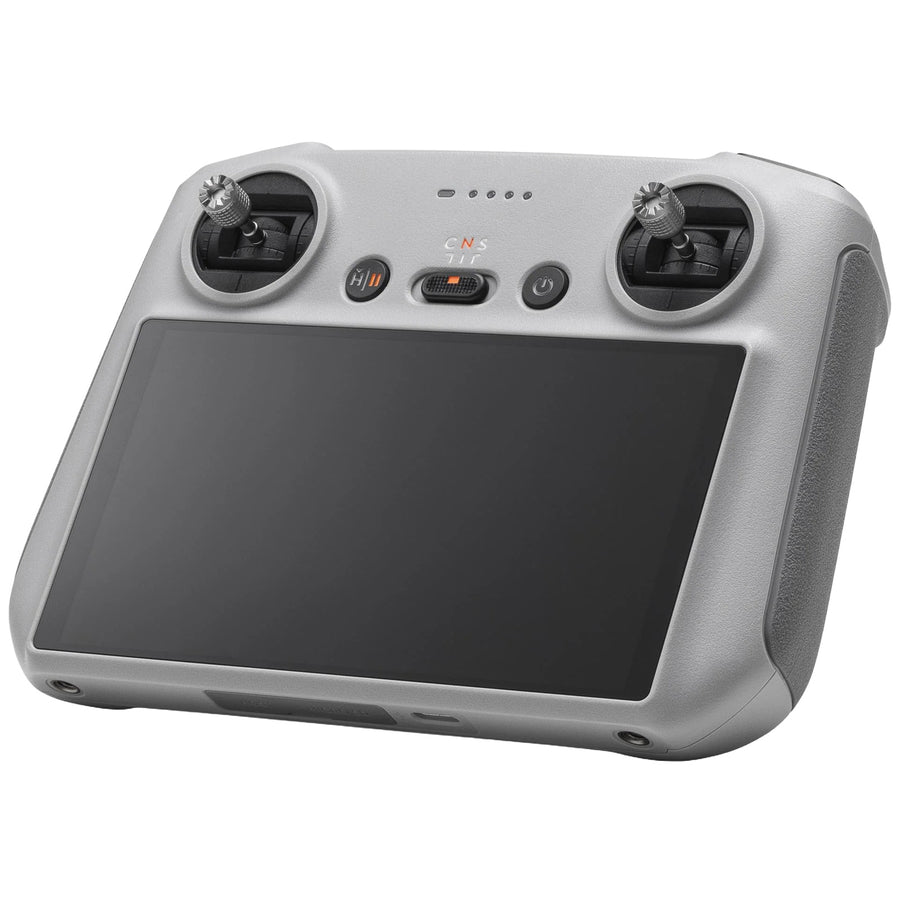

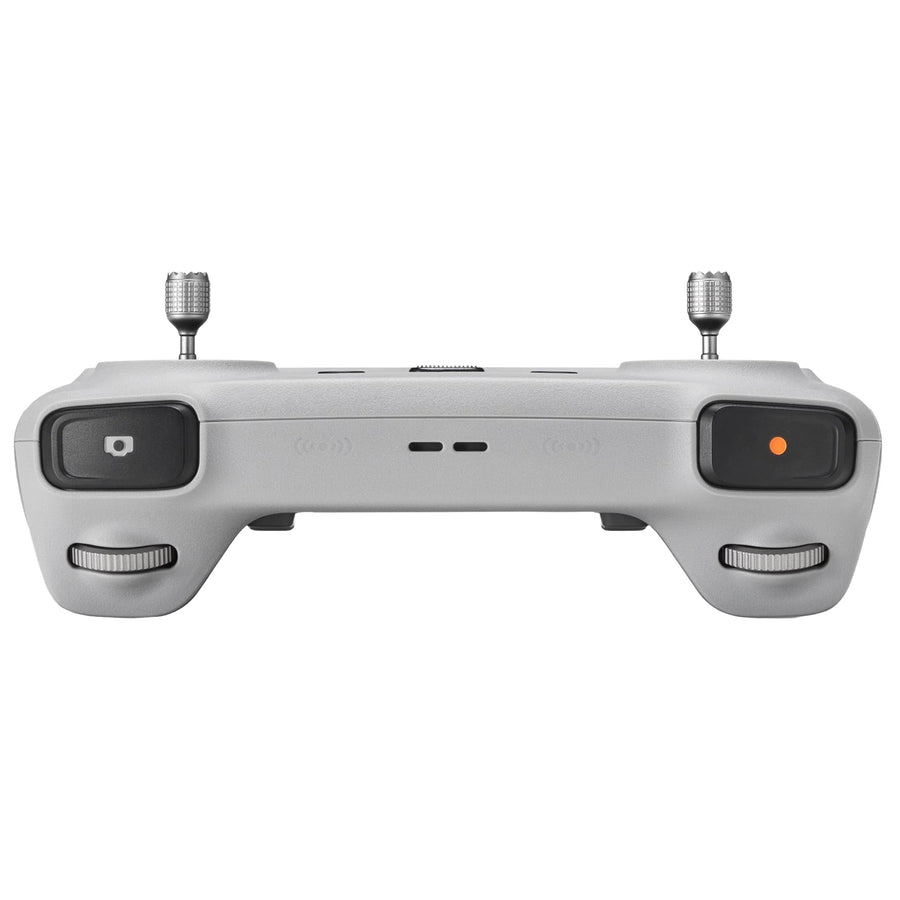

DJI RC - Remote Control with Screen

DJI RC is a remote controller that delivers an exceptional operating experience for DJI drones. With a lightweight body, FHD display, and ultra-long battery life, it also features new dual-spring control sticks for more comfortable flying and supports the advanced DJI O3+ video transmission technology. [1] With its powerful functionality, aerial creation is more convenient than ever.

Video Transmission Technology

When used with drones that support O3+ transmission, like DJI Mavic 3, [1] DJI RC can provide low-latency HD 1080p/60fps live feeds with a max transmission range of 15 km [2] for smoother control and safer flight.

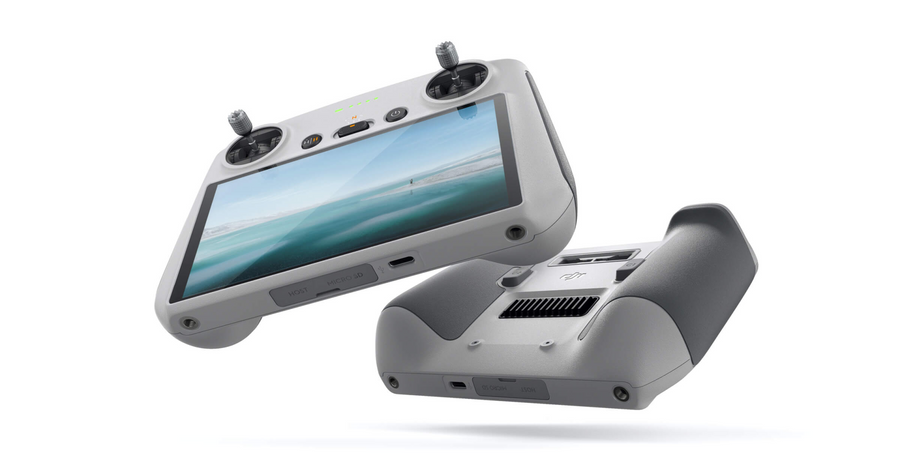

Light, Compact, Powerful

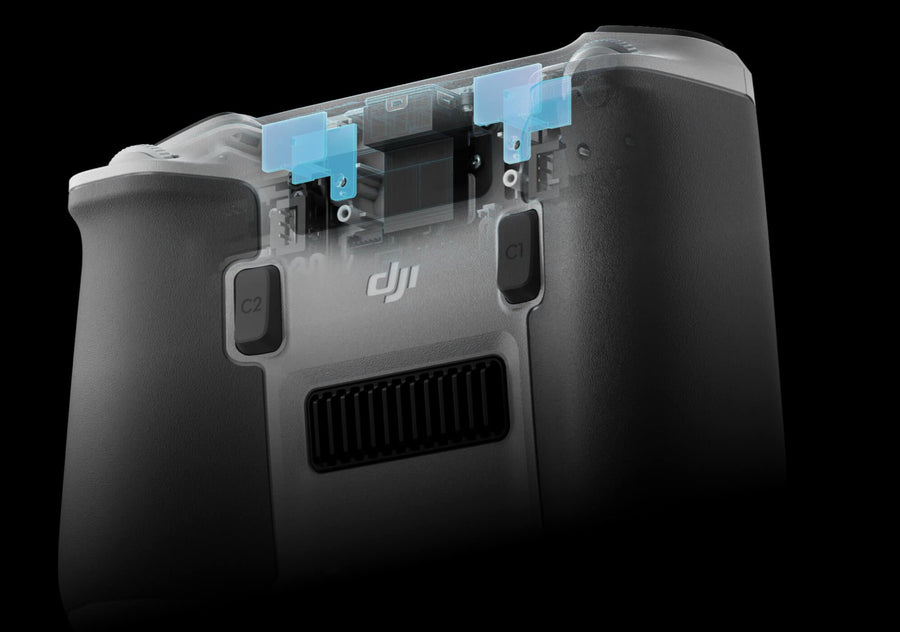

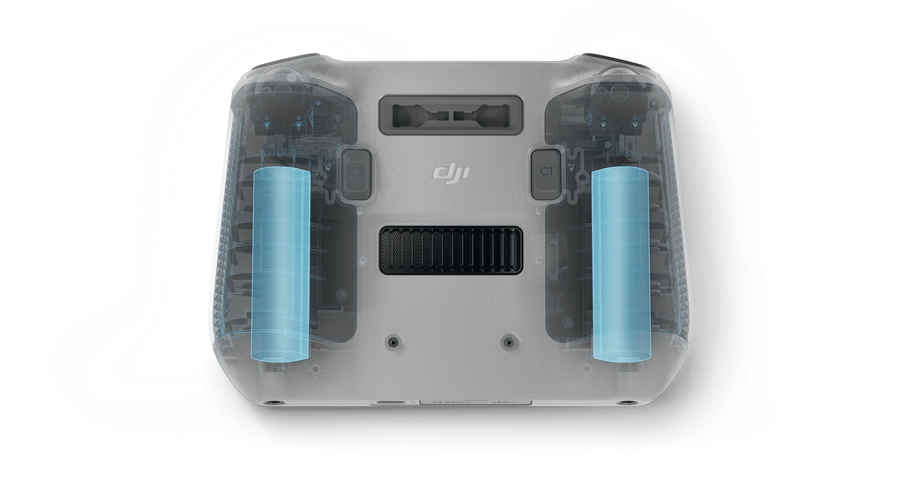

Thanks to its innovative design, the antennas of DJI RC pack excellent performance in a smaller body that is built into the RC itself. The new hardware design further reduces the size of DJI RC, resulting in a weight of just 390 grams. [3]

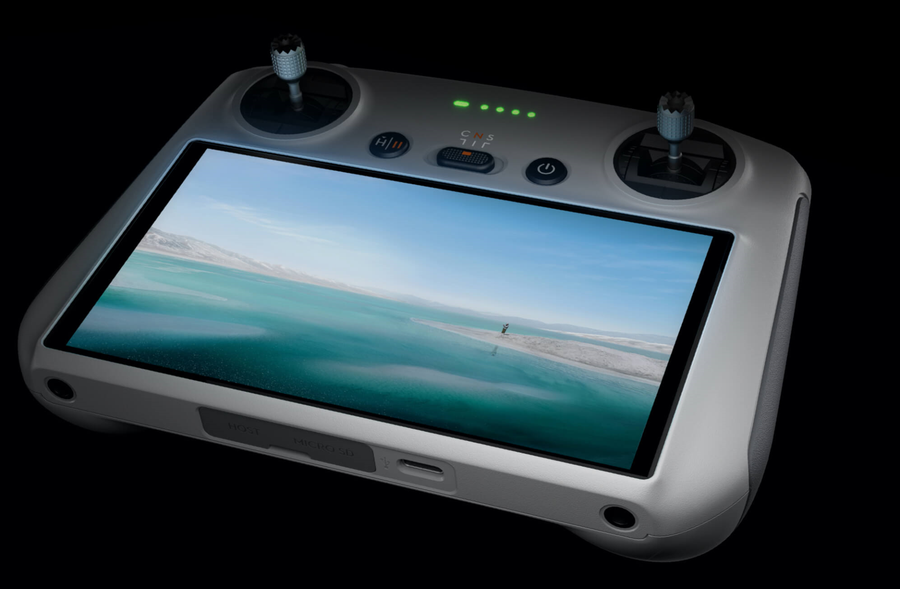

The built-in 5.5-inch FHD screen supports long-lasting brightness of up to 700 nits.

4-Hour Ultra-Long Runtime

DJI RC's new design enables use for up to four hours on a full charge. [4]

That gives you enough battery to shoot at multiple locations on a single charge.

Highlights in Detail

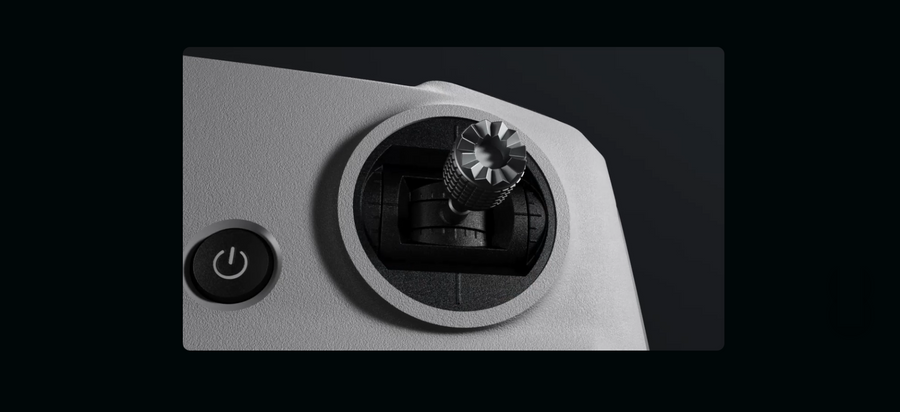

DJI RC is equipped with dual-spring control sticks for a smoother and more precise control experience.

Get Started Fast to Seize Any Moment

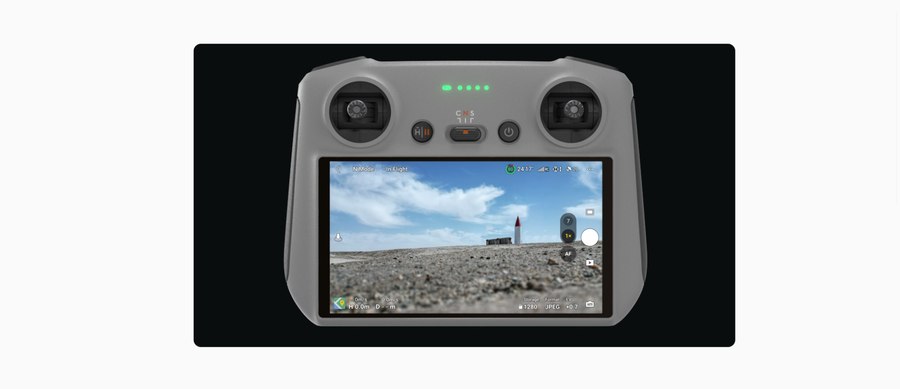

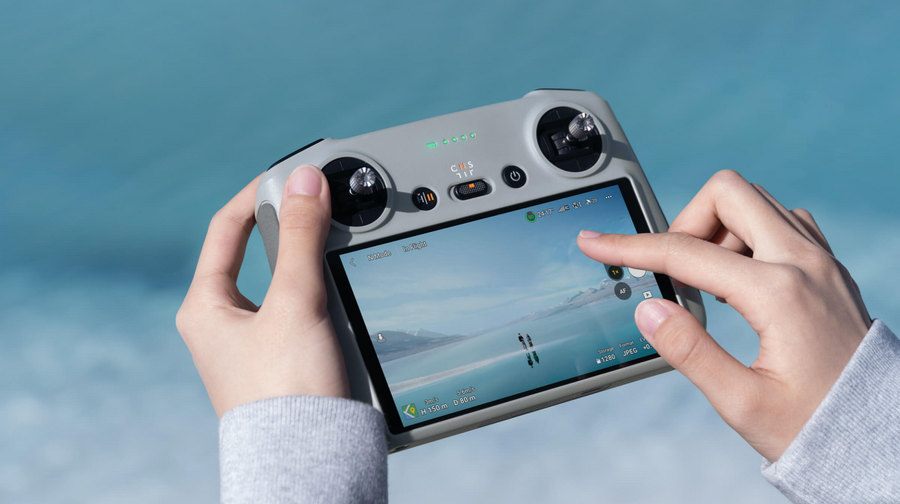

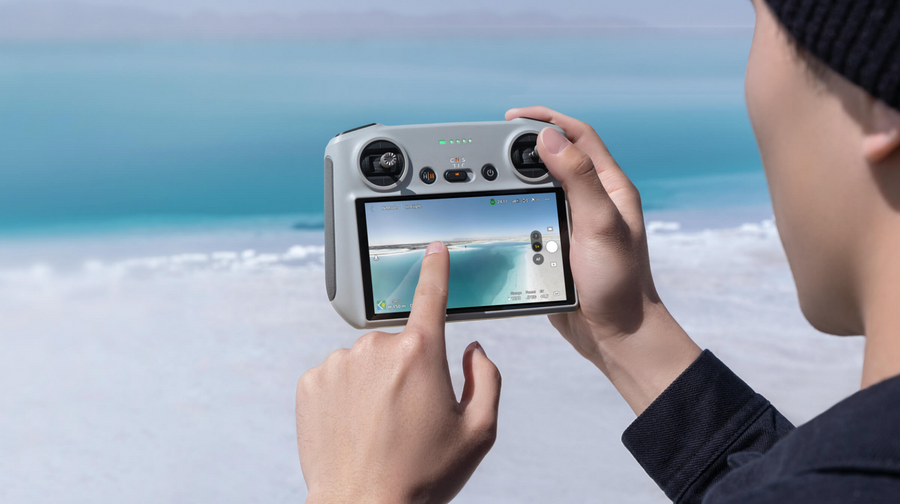

With a built-in screen, DJI RC can directly link with your drone after powering on without connecting to a smartphone, allowing you to start shooting right away.



Footnotes

1. Once connected to a compatible drone, DJI RC will automatically switch to the corresponding video transmission technology.
2. Measured in an unobstructed environment free of interference and with a maximum flight range of 15 km with FCC compliance. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders on the DJI Fly app.
3. Weight measured using a production model of DJI RC in a controlled test environment and should be used for reference only.
4. Tested at room temperature (77° F/25° C) and should be used for reference only.


DJI Warranty Information

Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.

Specifications

Technical Specifications

Battery Li-ion (5,200 mAh @ 3.6 V)
Charging Type It is recommended to use a charger rated 5 V/2 A or above.
Rated Power 4.5 W
Storage Capacity Expandable (with microSD card)
Charging Time 1.5 hours (with 5 V/3 A charger)
Operating Time 4 hours
Video Output Port N/A
Operating Temperature -10° to 40° C (14° to 104° F)
Storage Temperature Within one month: -30° to 60° C (-22° to 140° F)One to three months: -30° to 45° C (-22° to 113° F)Three to six months: -30° to 35° C (-22° to 95° F)More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature 5° to 40° C (41° to 104° F)
Supported Aircraft Models** DJI Mini 3 ProDJI Air 2SDJI Mavic 3 ClassicDJI Mavic 3DJI Mavic 3 Cine
GNSS GPS + BeiDou + Galileo
Dimensions (L×W×H) Without control sticks: 168.4×123.7×46.2 mmWith control sticks: 168.4×123.7×62.7 mm
Weight Approx. 390 g
Model RM330
Video Transmission System DJI RC adopts OcuSync HD video transmission technology. When connected to other compatible drone models, DJI RC will switch to the corresponding video transmission technology.With different aircraft hardware, the corresponding video transmission specifications are as follows:DJI Mini 3 Pro: O3DJI Mavic 3 Classic: O3+DJI Mavic 3: O3+DJI Mavic 3 Cine: O3+DJI Air 2S: O3
Max. Transmission Distance (unobstructed, free of interference) DJI Mini 3 Pro: 12 km (FCC); 8 km (CE/SRRC/MIC)DJI Mavic 3 Classic: 15 km (FCC); 8 km (CE/SRRC/MIC)DJI Mavic 3: 15 km (FCC); 8 km (CE/SRRC/MIC)DJI Mavic 3 Cine: 15 km (FCC); 8 km (CE/SRRC/MIC)DJI Air 2S: 12 km (FCC); 8 km (CE/SRRC/MIC)
Operating Frequency* 2.400-2.4835 GHz; 5.725-5.850 GHz
Antennas 2 antennas, 1T2R
Transmitter Power (EIRP) 2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)
Protocol 802.11 a/b/g/n
Operating Frequency* 2.400-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz
Transmitter Power (EIRP) 2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC)5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC)5.725-5.850 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)
Protocol Bluetooth 4.2
Operating Frequency 2.400-2.4835 GHz
Transmitter Power (EIRP) < 10 dBm
Resolution 1920×1080
Size 5.5 inches
Frame Rate 60fps
Brightness 700 nits
Touch Control 10-point multi-touch
Supported SD Cards UHS-I Speed Grade 3 rating microSD card or above
Recommended microSD Cards SanDisk Extreme PRO 64GB V30 A2 microSDXCSanDisk High Endurance 64GB V30 microSDXCSanDisk Extreme 128GB V30 A2 microSDXCSanDisk Extreme 256GB V30 A2 microSDXCSanDisk Extreme 512GB V30 A2 microSDXCLexar 667x 64GB V30 A2 microSDXCLexar High-Endurance 64GB V30 microSDXCLexar High-Endurance 128GB V30 microSDXCLexar 667x 256GB V30 A2 microSDXCLexar 512GB V30 A2 microSDXCSamsung EVO 64GB V30 microSDXCSamsung EVO Plus 128GB V30 microSDXCSamsung EVO Plus 256GB V30 microSDXCSamsung EVO Plus 512GB V30 microSDXCKingston 128GB V30 microSDXC
In the box DJI RC × 1DJI RC Spare Control Sticks (pair) × 1Type-C to Type-C PD Cable × 1
