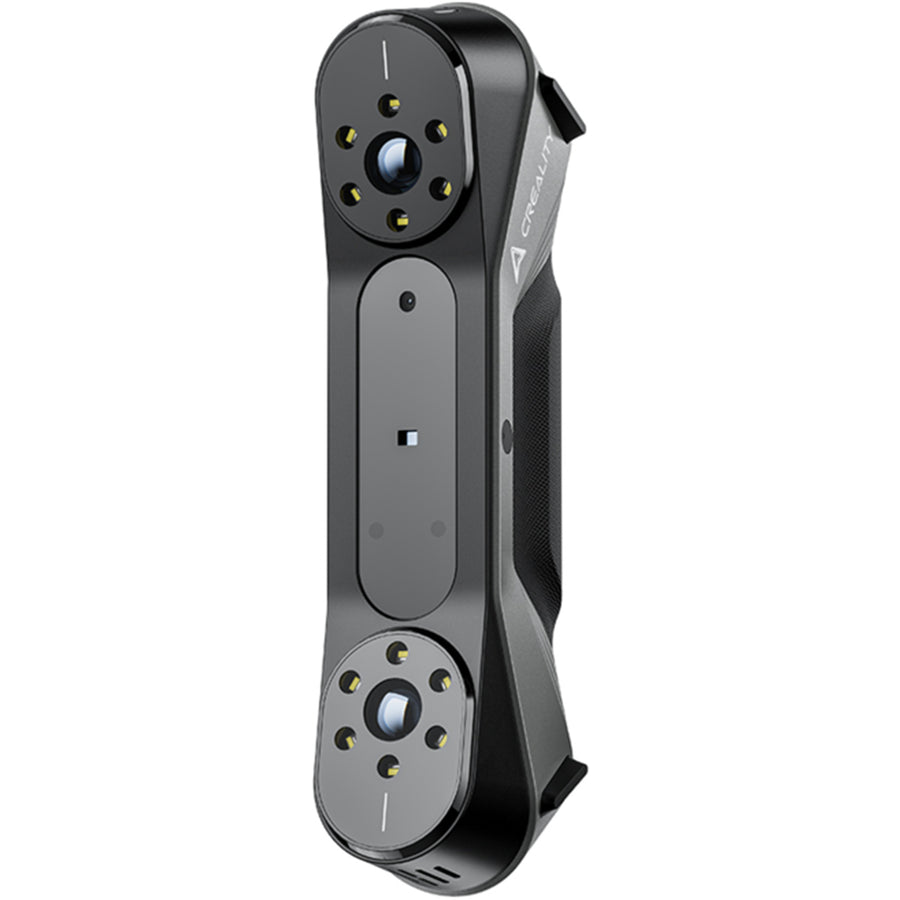

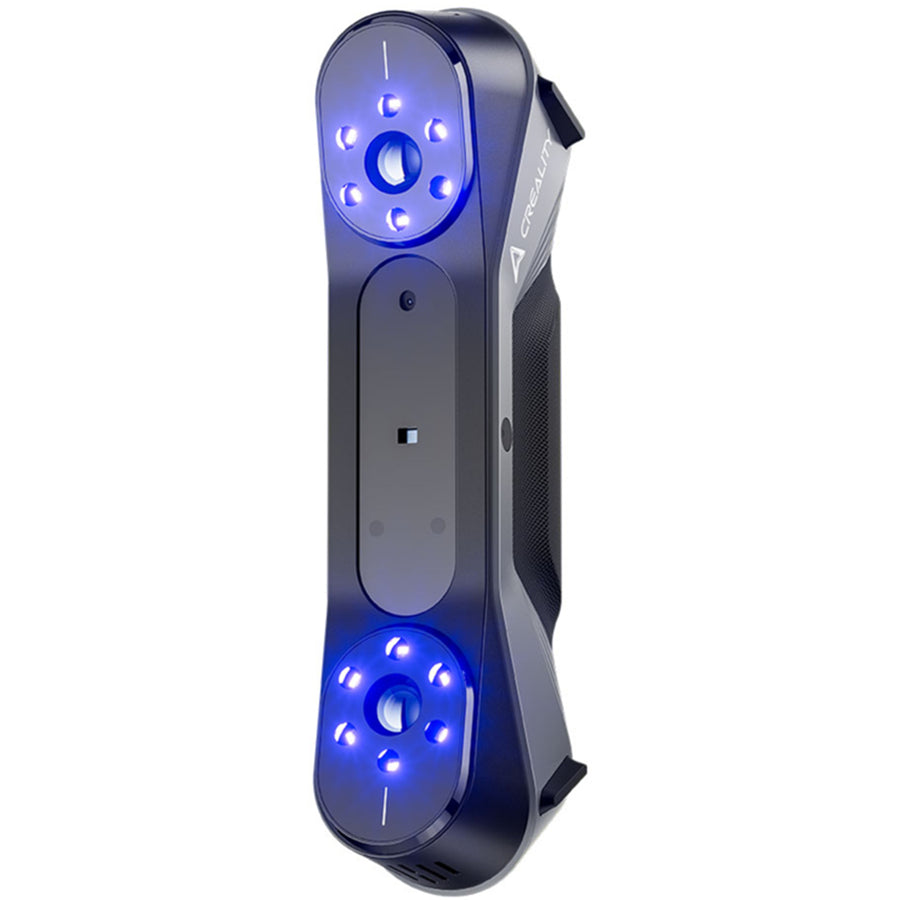

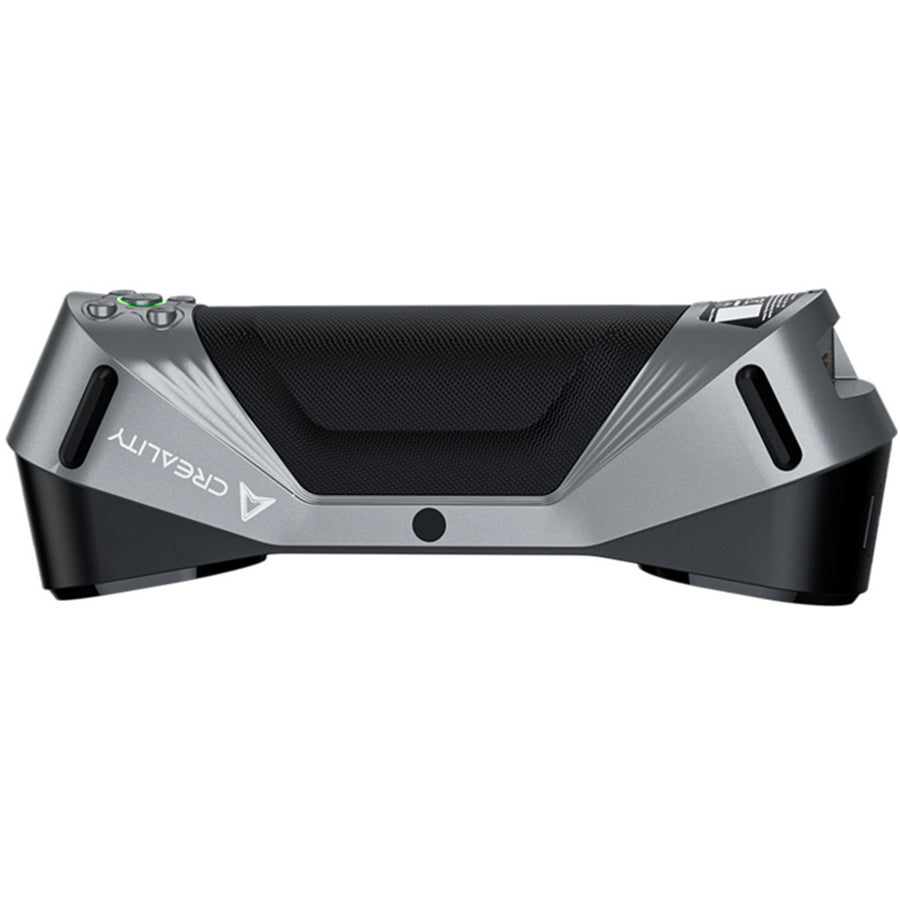

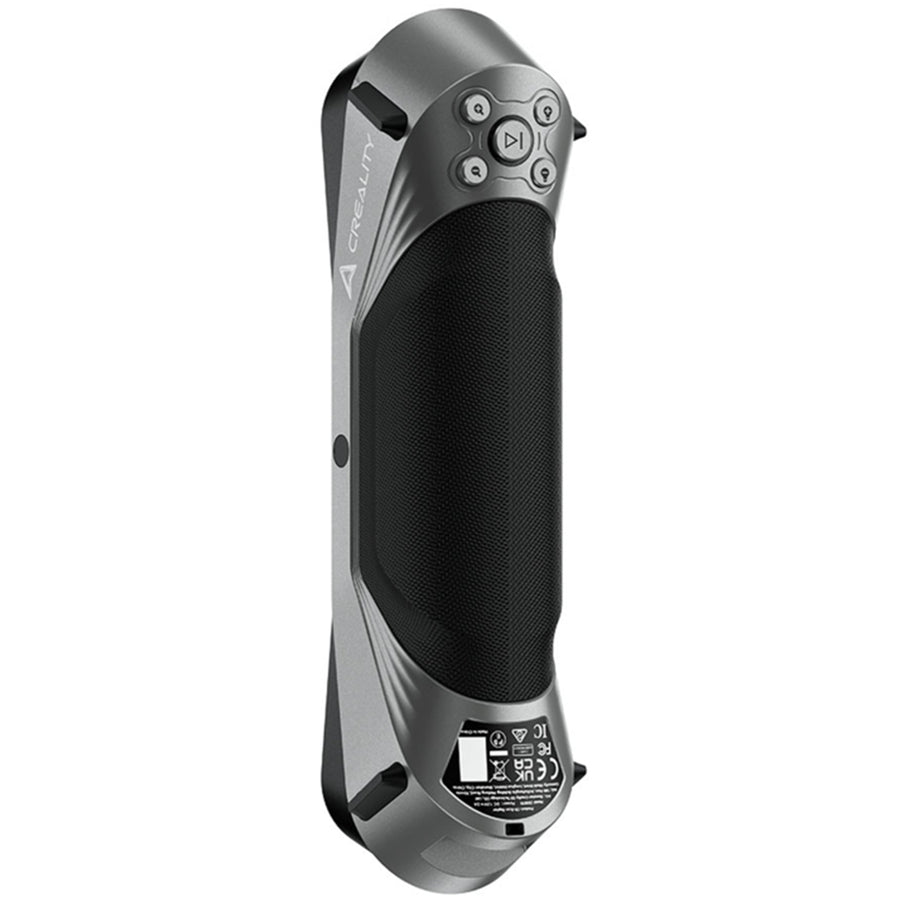

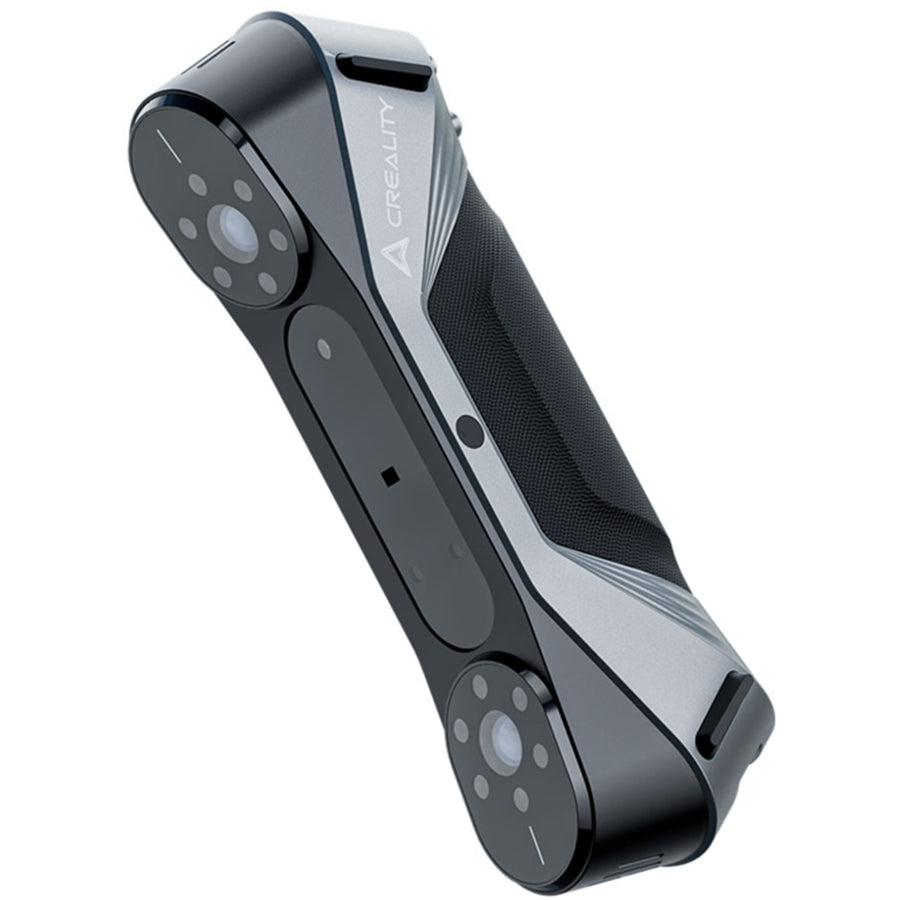

Creality CR-Scan Raptor 3D Scanner

Name: Creality CR-Scan Raptor 3D Scanner
Brand: Creality
SKU: 4008050049
Price: 2190.32 NZD
Availability: InStock

SKU: 4008050049 ● In Stock

$2,190.32 ~~$2,489.00~~

Free shipping over $299 Genuine product 7-day returns

Features

CR-Scan Raptor is a 3D scanner with metrology-grade accuracy, with a maximum accuracy of 0.02mm. Using a blue parallel 7-line laser and infrared structured light for scanning. It produces richer details, sharper edges, and restores the 3D shape of the object accurately.

Specifications

Technical Specifications

Scanning Mode:	Blue Light(Blue 7-line laser)
Accuracy:	Up to 0.02mm @ 100mm [1]
3D Resolution:	0.02-2mm
Scanning Speed:	Up to 60fps
Min. scanvolume:	5mm x 5mm x 5mm
Single Capture Range:	270mmx170mm @300mm
Working distance:	150mm-400mm
Color Mapping:	Yes
Alignment mode:	Marker
3D imaging camera resolution:	1920x1200
Color Supplemental Light:	12 white LEDs
Marker Recognition Enhancement:	12 blue LEDs
Laser Safety:	Class I (eye safe)
Button:	Mechanical
IMU:	Yes
Output format:	OBJ/STL/PLY
Input Power:	12V 2A
Data interface:	TypeC/USB3.0
Device Dimensions:	215mmx50mmx74mm
Device Weight:	372g
Calibration board:	High-precision glass calibration board
System Support:	Windows 10/11 (64 bit): i7-Gen7, Nvidia graphics card (6GB video memory), 160B memory or highermacOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB or higher
Wireless Scanning:	Supported in conjunction with future wireless scanning accessories
Operating temperature:	-10C to 40C
Operating humidity:	0-90%RH
Note	[1] Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
