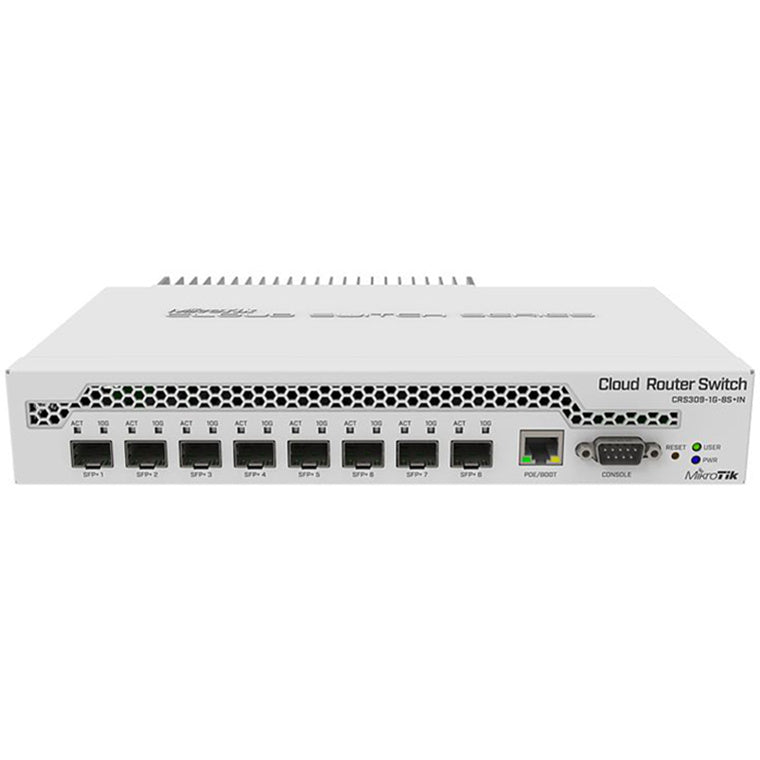

CRS309-1G-8S+IN - MikroTik Cloud Router Fibre Switch CRS309-1G-8S+IN
CRS309-1G-8S+IN - MikroTik Cloud Router Fibre Switch CRS309-1G-8S+IN
Features
The MikroTik CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS). The compact and sleek metallic enclosure also acts as a heatsink, making this device passively cooled - no fan noise and no dust accumulation inside. Special rackmount ears for installing unit into the standard rack are provided.
- Very Compact
- Passive Cooling
- Can run RouterOS or SwOS
Specifications
Technical Specifications
| Architecture | ARM 32bit |
|---|---|
| CPU | Dual Core 98DX8208 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| 10/100/1000 Ethernet ports | 1 |
| 10G SFP+ ports | 8 |
| Serial port | RS232 |
| Dimensions | 141 x 115 x 28 mm |
| License level | 5 |
| Operating System | SwOS / RouterOS (Dual boot) |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| PoE in | Yes |
| Supported input voltage | 12 - 57 V (DC jack), 18 - 57 V (PoE in) |
| Max power consumption | 23 W / 17 W without attachements |
| Tested ambient temperature | -40°C to 70°C |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | MikroTik |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
