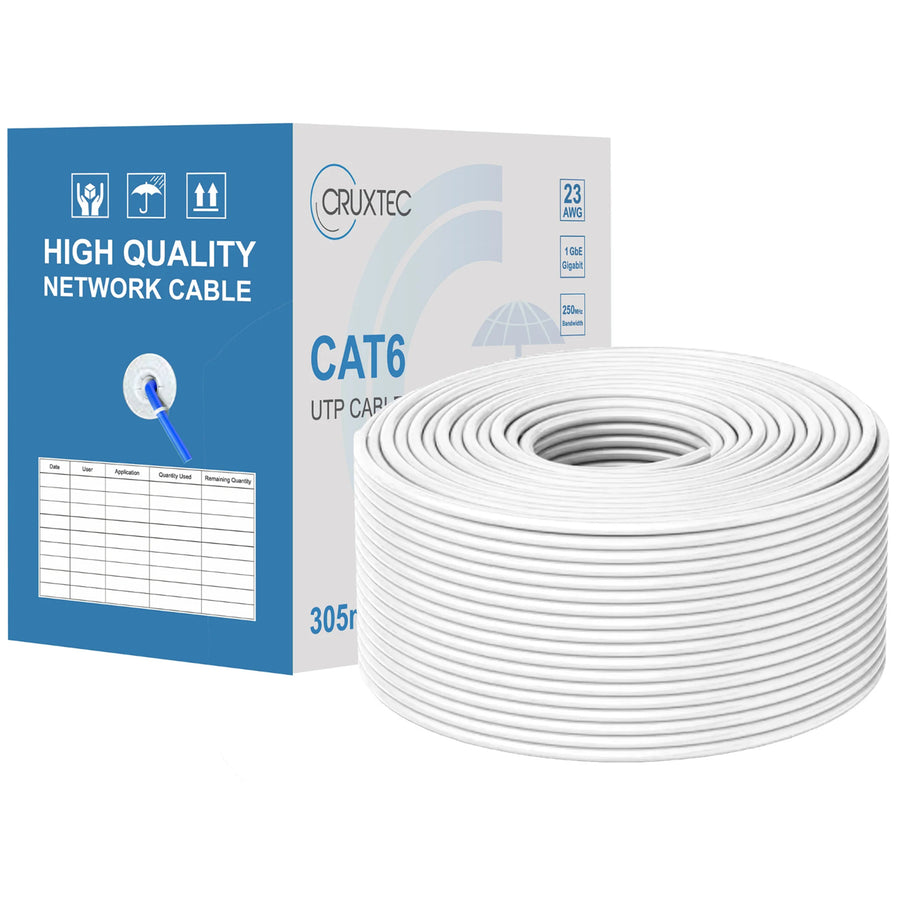

Cruxtec Cat6 UTP Networking Cable Roll - 305m - White - 23AWG Solid - O.D 6.2mm - Fluke Tested
Features
Cruxtec CAT6 UTP Ethernet Cable Reel Box with Solid Conductor 305m
- Pure Copper Supremacy: 100% Solid Bare Copper (23AWG) for maximum signal strength.
- Beyond Standards: Rated at 600MHz to future-proof your network for years to come.
- Heavy-Duty Power: Full support for PoE++ applications.
- Hassle-Free Pulling: Reelex Pull Box prevents kinks and tangles.
- Project Ready: Fully TAA & NEC Compliant for government and commercial use.
Beyond Standards
Rated at 600MHz to future-proof your network for years to come.
Pure Copper Supremacy
100% Solid Bare Copper (23AWG) for maximum signal strength.
Fluke Test Passed
The standard of quality guarantees for ethernet cable.
Oxygen Free Copper Conductor
Provides stable signal transmission, more durable and long-lasting, and is far less likely to corrode, due to the reduced oxygen content.
Hassle-Free Pulling
Reelex Pull Box prevents kinks and tangles.
Specifications
Technical Specifications
| Conductor Material | 100% Oxygen-Free Copper (OFC) |
|---|---|
| Conductor Gauge | 23 AWG Solid |
| Insulation Material | HDPE (High-Density Polyethylene) |
| Jacket Material | Flame-Retardant PVC |
| Overall Diameter (OD) | 6.2 mm±0.2 mm |
| Cable Length | 305m (1000ft) / Reelex Pull Box |
| Transmission Frequency | Up to 600 MHz |
| Performance Testing | Fluke Passed (100m Channel Test) |
| PoE Support | PoE / PoE+ / PoE++ (IEEE 802.3bt) |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801, EN 50288, NEC Compliant, TAA |
| Brand | Cruxtec |
|---|---|
| Product Type | PC Peripherals |
| Weight | 12.2 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
