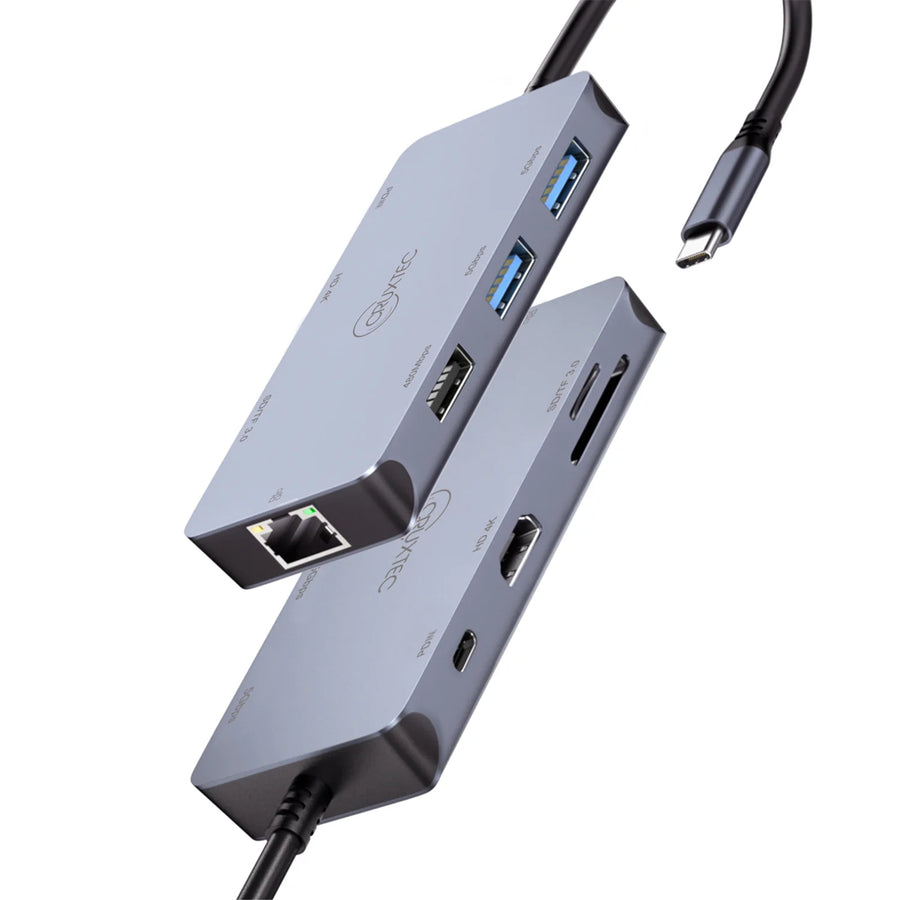

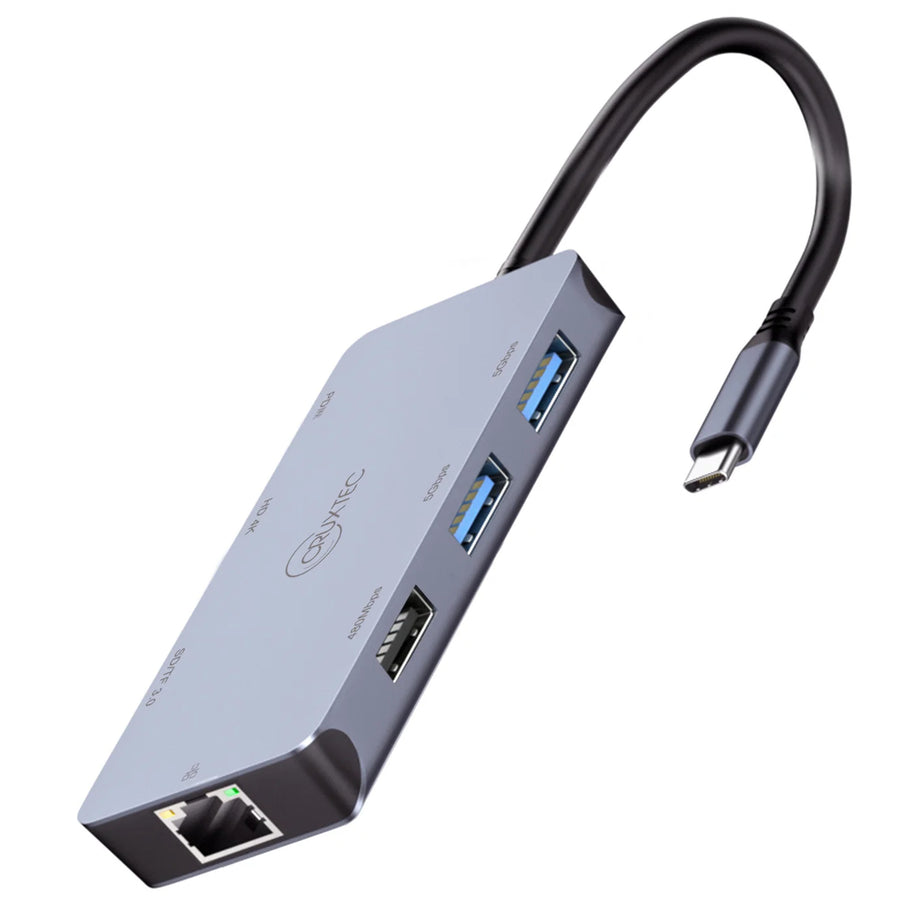

Cruxtec CMH08-SG USB-C 8-in-1 Hub
You May Also Like
StarTech.com 14LM-PRIVACY-SCREEN Magnetic Privacy Screen For 14IN Laptop
mbeat H3 USB 3.2 Gen2x2 20Gbps Dual M.2 NVMe SSD Dock with Clone Duplicator - Black
Features
The Cruxtec CMH08-SG is an 8-in-1 USB-C hub for connecting a compatible computer to a 4K display, wired Gigabit Ethernet, USB-A peripherals, SD and microSD cards, and USB-C PD power through one compact hub.

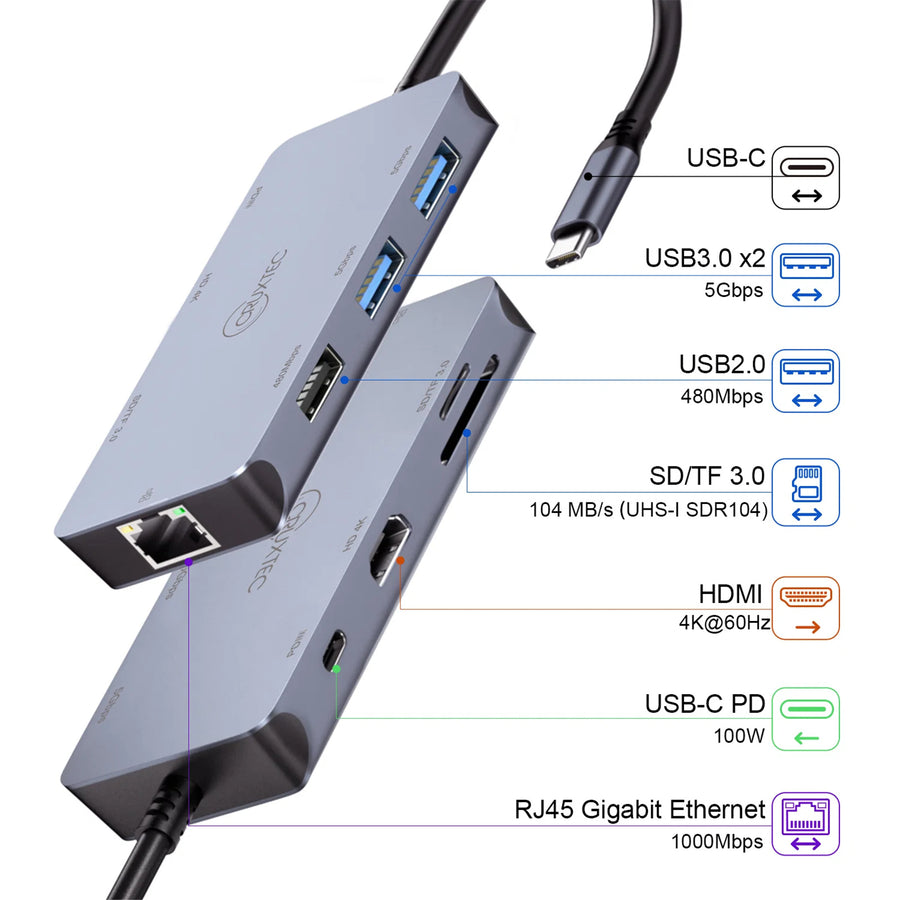

- 8-in-1 connectivity: 1 x HDMI, 1 x Gigabit Ethernet, 2 x USB-A 5Gbps, 1 x USB-A 480Mbps, 1 x SD card slot, 1 x microSD card slot and 1 x USB-C PD input.
- HDMI output up to 4K at 60Hz with a compatible USB-C host that supports DisplayPort Alt Mode.
- USB-C PD 3.0 input supporting up to 100W; actual charging power depends on the charger, host device and hub power use.
- Gigabit Ethernet connection up to 1000Mbps.
- Two USB-A 5Gbps ports for compatible storage and peripherals.
- SD 3.0 and microSD card readers with theoretical transfer speeds up to 104MB/s under supported UHS-I SDR104 conditions.
- Integrated USB-C host cable and compact space grey aluminium and ABS housing.
- No additional driver required on compatible Windows and macOS systems.
Portable USB-C Expansion
Compact 100 x 48 x 15mm space grey design
- Integrated 15cm USB-C host cable
- Host capabilities determine available functions
Flexible Workspaces
For compatible desk setups, mobile workstations and meeting spaces
- Connect display, wired network, USB peripherals and memory cards
- One compact USB-C hub
4K Display Output
HDMI output up to 4K at 60Hz
- Host USB-C port must support DisplayPort Alt Mode
- Display, OS and cable must support the selected resolution
Specifications
Technical Specifications
| Product Type | 8-in-1 USB-C Hub |
|---|---|
| Material | Aluminium + ABS |
| Colour | Space Grey |
| Host Connector | Integrated USB-C male connector |
| Host Interface | USB 3.2 Gen 2 10Gbps |
| HDMI Output | 1 x HDMI, up to 4K at 60Hz |
| USB-A Data Ports | 2 x USB-A 5Gbps; backward compatible with USB 2.0 and USB 1.1 |
| USB-A Auxiliary Port | 1 x USB-A 480Mbps |
| Ethernet | 1 x RJ45 Gigabit Ethernet, up to 1000Mbps |
| Card Readers | 1 x SD and 1 x microSD (TF) |
| Card Standard | SD 3.0 / UHS-I; theoretical speed up to 104MB/s in SDR104 mode |
| Power Input | 1 x USB-C PD 3.0 input, up to 100W |
| USB-A Output Current | Up to 900mA per USB 5Gbps port; up to 500mA for the USB 480Mbps port, subject to host power availability |
| Chipset | Genesys Logic |
| Product Dimensions | 100 x 48 x 15mm |
| Integrated Cable Length | 15cm |
| Cable Jacket | Black PVC |
| Cable Shielding | Aluminium foil |
| System Support | Compatible Windows and macOS systems |
| Driver | No additional driver required on supported systems |
| HDMI Requirement | Host USB-C port must support DisplayPort Alt Mode; available resolution depends on the host, operating system, display and cable |
| Packaging Dimensions | 135 x 82 x 17mm |
| Brand | Cruxtec |
|---|---|
| Weight | 0.08 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
