CSB

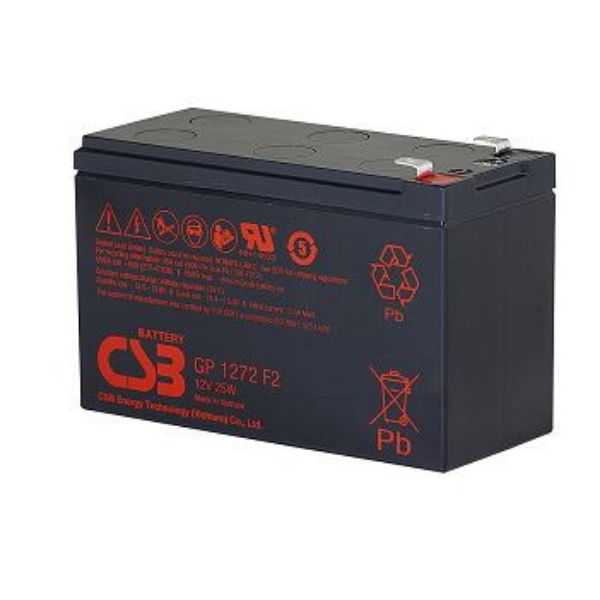

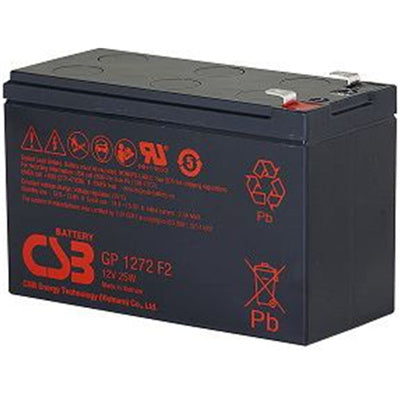

CSB BAT12V7A 12v 7.2Ah 25W General Purpose Security Battery for Alarm Systems Up to 5 years in Standby Service or more than 260 Cycles at 100% Discharge in Cycle Service, F1 Terminal - Not Suitable for UPS
$36.27$39.95
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
CSB 12v 7.2Ah 25W General Purpose Security Battery for Alarm Systems, Up to 5 years in Standby Service or more than 260 Cycles at 100% Discharge in Cycle Service, F1 Terminal.* Not recommended for UPS*
BAT12V7A is a general-purpose battery up to 5 years in standby service.
As with all CSB batteries, all are rechargeable, highly efficient, leakproof and maintenance-free.
This battery has F1 terminals which is not recommended for UPSes
please consider the alternate product: BATSLT1207
MORE INFO:
https://cdlnz.com/content/images/PDF/bat12v7a.pdf
Specifications
Technical Specifications
| Cells Per Unit | 6 |
|---|---|
| Voltage Per Unit | 12 V |
| Capacity | 24.5W @15Min-rate to 1.67V per cell @ 25°C (77°F) |
| Weight | Approx. 1.84 Kg (4.06 lbs) |
| Maximum Discharge current | 100/130A (5 Sec) |
| Internal Resistance | Approx. 25.8 mO |
| Operating Temperature Range | Discharge:-15~50C(5°F~122°F)Charge:-15~40C(5°F~104°F)Storage:-15~40C(5°F~104°F) |
| Nominal Operating Temperature Range | 25±3C(77°F±5°F) |
| Float charging voltage | 13.5 to 13.8 VDC/Unit Average at 25C (77°F) |
| Recommended Maximum Charging current limit | 2.5A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/Unit Average at 25C(77°F) |
| Self Discharge | It should be more than 75% of the capacity before storage after stocked for 6 months at ambient temp. 25C |
| Terminal | F1/F2-Faston Tab187/250 |
| Container Material | ABS(UL94-HB) & Flame retardant(UL94-V0) available upon request. |
| Brand | CSB |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS Batteries |
| Weight | 0.834 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
