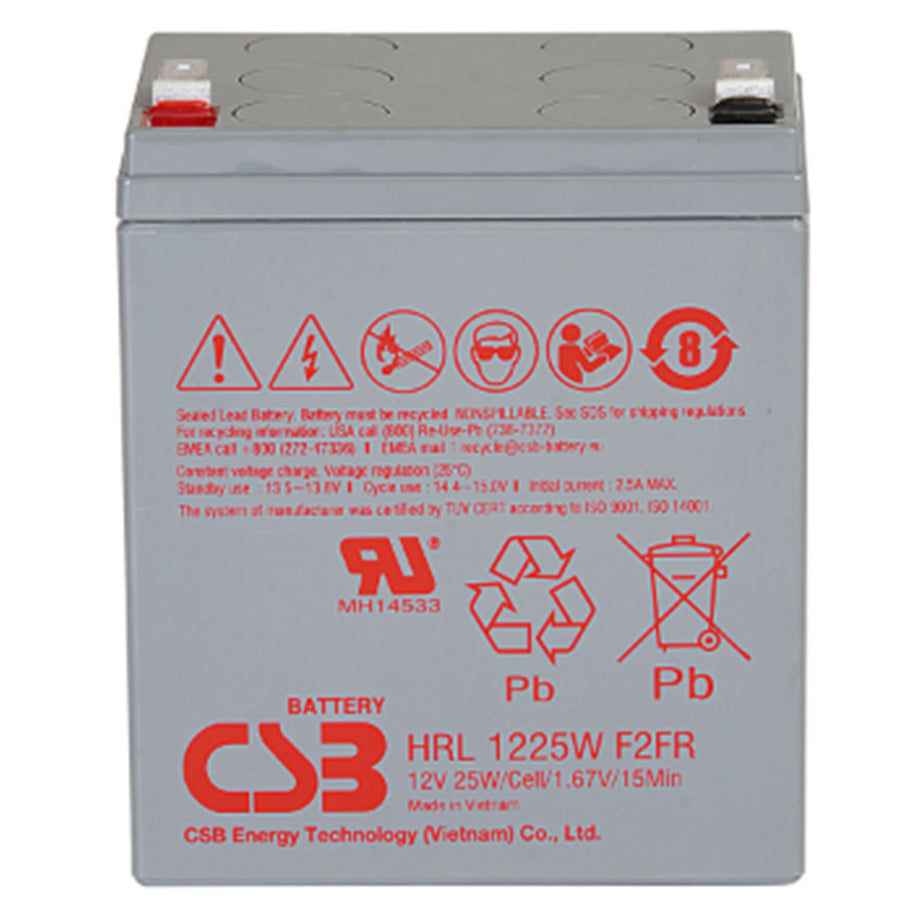

CSB HRL1225W - 12V 25W/5AH Replacement Battery. To suit 3S550AU (1) 9SX/9PX 5kVA/6kVA (15) 9SX/9PX
Features
CSB HRL1225W 12V 25W SEALED LEAD ACID RECHARGEABLE BATTERY
-Specially designed for high rate discharge applications
-High quality sealed lead acid battery with maintenance free design
-Fire retardant PP design casing
-Rated for 8-10 years life in standby or 260 cycles at 100% discharge
Can be used to replace following batteries
BB Battery HR5.8-12 BP5-12
CSB HR1221W
CSB HRL1223W
Fiamm FGHL20502
GS Portalac PX12050SHR
Huanyu HYS1250
Panasonic LCR12V5P LC-R125PU1
Powersonic PS-1250
Union MX-12050
Universal Power UB1250
Yuasa NPX-25
Yuasa NPX-25FR
Yuasa NPH5-12
Yuasa RE5-12
SBH19012
SBH190-12
Specifications
Technical Specifications
| Voltage | 12v |
|---|---|
| Weight | 2.1Kg |
| Length | 90mm |
| Width | 70mm |
| Height | 106mm |
| Voltage | 12V |
| Capacity Rating | 25Wh |
| Dimensions | 90mm x 70mm x 106mm |
| Weight | 2.70Kg |
| Terminal | F2 Faston terminals |
| Brand | CSB |
|---|---|
| Product Type | Power & Charging > Batteries & Chargers |
| Weight | 0.898 kg |
