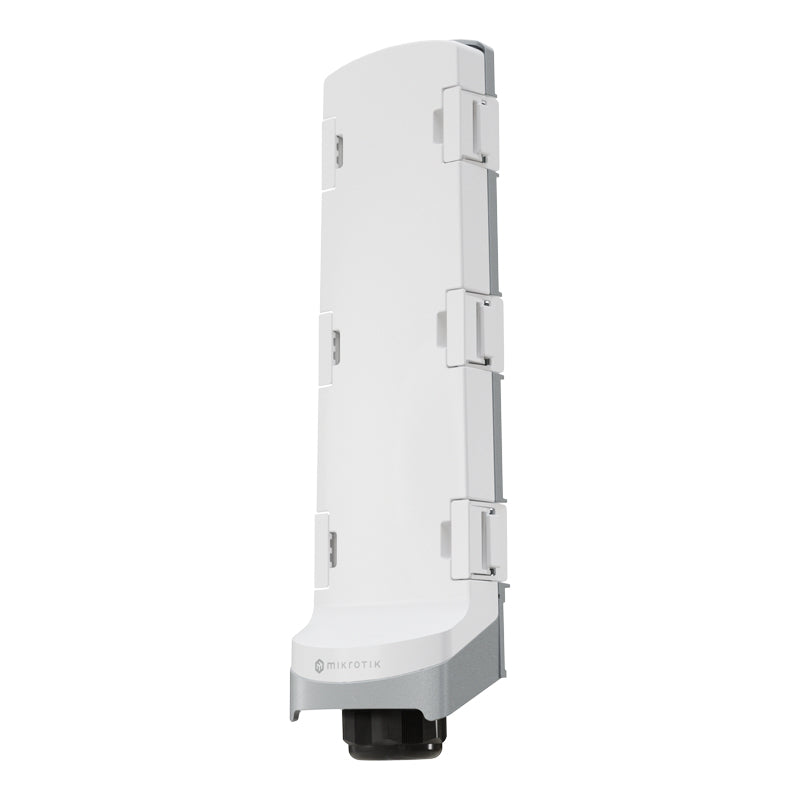

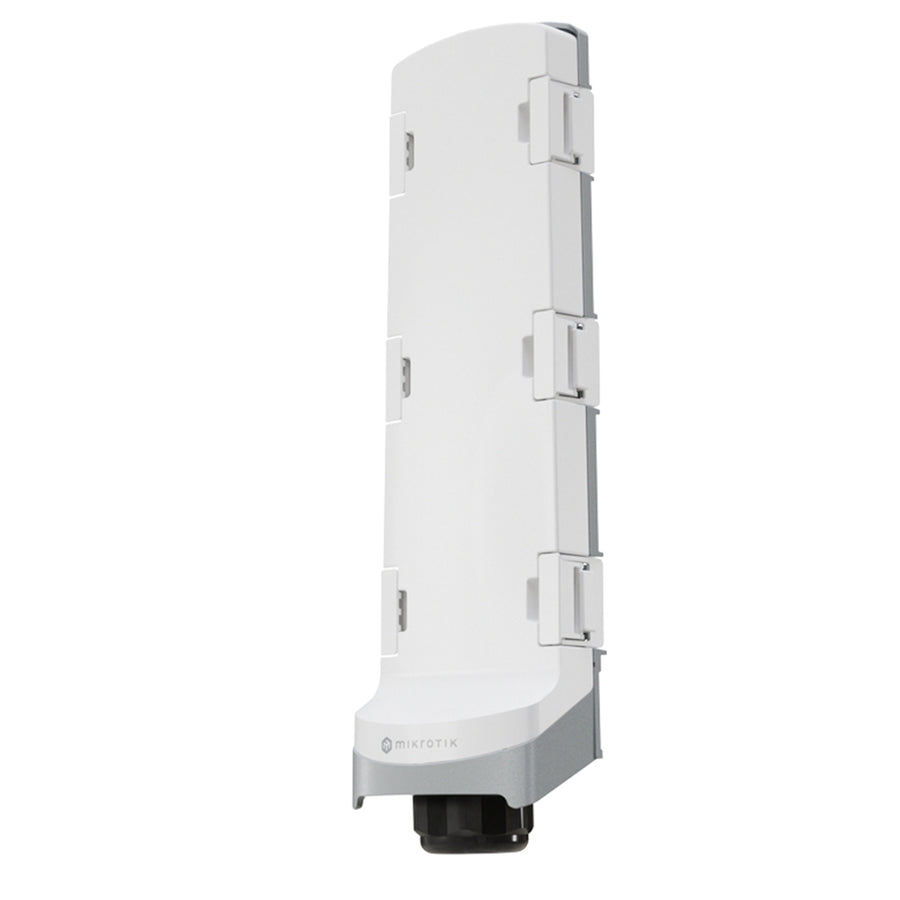

CSS606-1G-2Gi-3S+OUT - MikroTik GPERx6 Outdoor Gigabit Passive Ethernet Repeater with 1x PoE-In, 2x PoE-Out and 3x SFP+ Ports
Features
GPERx6
Cut the cable clutter - extend power and fiber together, anywhere - with a single hybrid cable. At the far end, the GPERx6 splits it all neatly: SFP+ for further long-distance uplinks, PoE-out for powering other switches or access points, and DC outputs for IoT gear or specialized devices.
- 3x 10G SFP+ Ports
- 3x Gigabit Ethernet Ports (1x PoE-in, 2x PoE-out)
- Heavy-duty IP66 enclosure
- Flexible powering, PoE-in, 2x PoE-out, DC jack, 3x DC-out
- A dedicated 10G switch chip

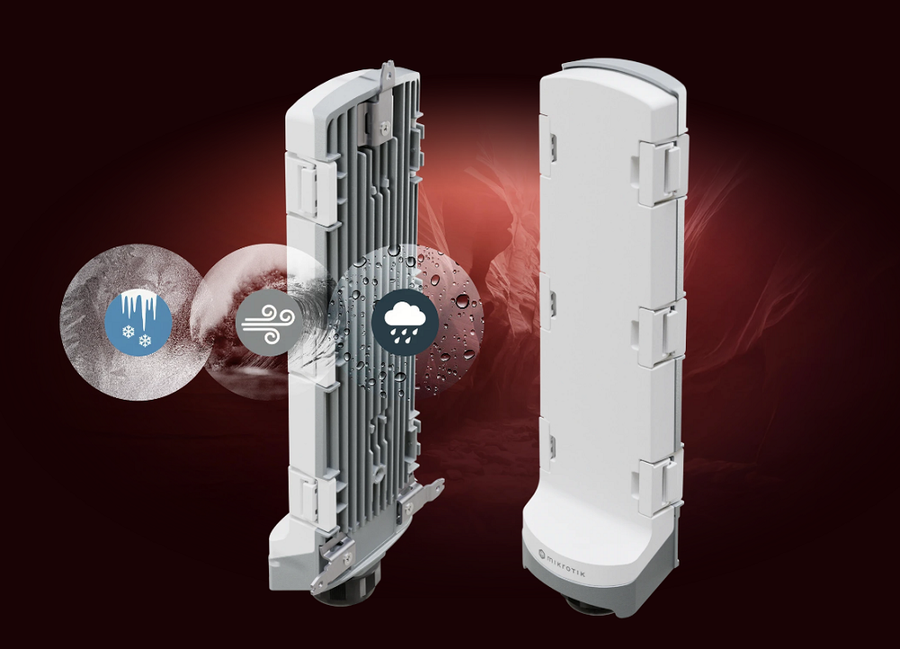

Built for the toughest deployments
The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems - a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple

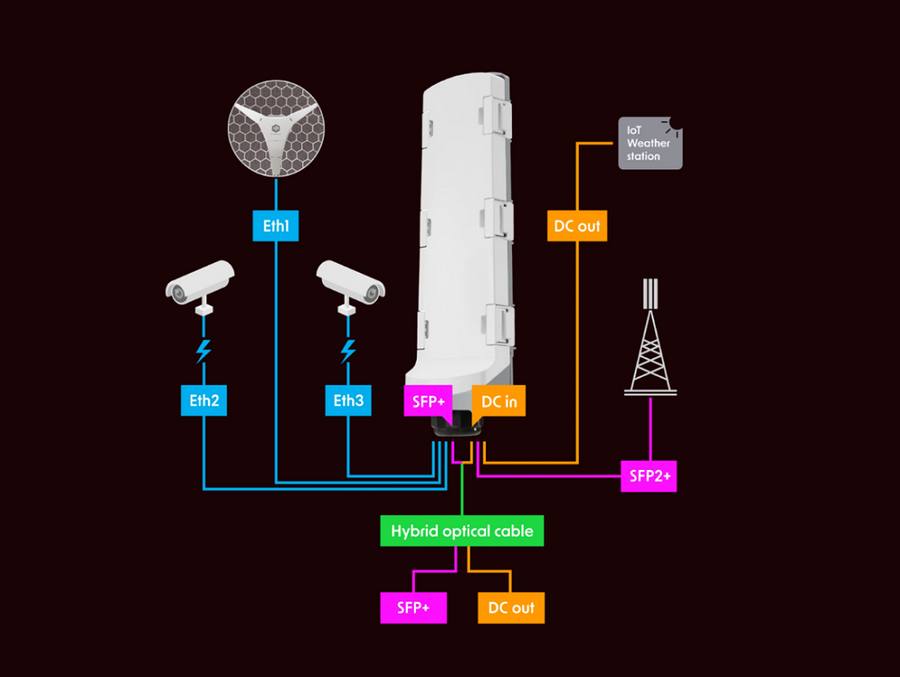

Hybrid cable advantage
With hybrid fiber + copper cables, the GPERx6 becomes a power-and-data lifeline:
- Fiber strands carry your high-speed uplink;
- Copper conductors deliver DC power;
- At the far end, the GPERx6 splits it all:
SFP+ uplinks for data;
PoE-out for cameras or access points;
DC-out for IoT devices or special hardware.

Specifications
Technical Specifications
| Product code | CSS606-1G-2Gi-3S+OUT |
|---|---|
| Number of 1G Ethernet ports | 3 |
| Number of 10G SFP+ ports | 3 |
| Switch chip model | 88E6193X |
| Certification | IP66 |
| Dimensions | 406 x 116 x 76 mm |
| Operating system | SwOS |
| Operating temparature | -40°C to +70°C |
| Number of DC inputs | 2 (2-pin screw terminal, PoE-In) |
| 2-pin screw terminal input Voltage | 12-57 V |
| PoE-In input Voltage | 42-57 V |
| PoE-In | 802.3 bt |
| PoE-Out | Passive PoE up to 57V (Ether2- Ether3) |
| Max out per port output (input < 30 V) | 1.2 A |
| Max out per port output (input > 30 V) | 0.625 A |
| Max total out | 2.4 A |
| Number of DC-out ports | 3, DC1-DC3 Max total out 3.6 A |
| Max power consumption (without attachments) | 6 W |
| Max power consumption | 160 W |
| Brand | MikroTik |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 1.75 kg |
