Features

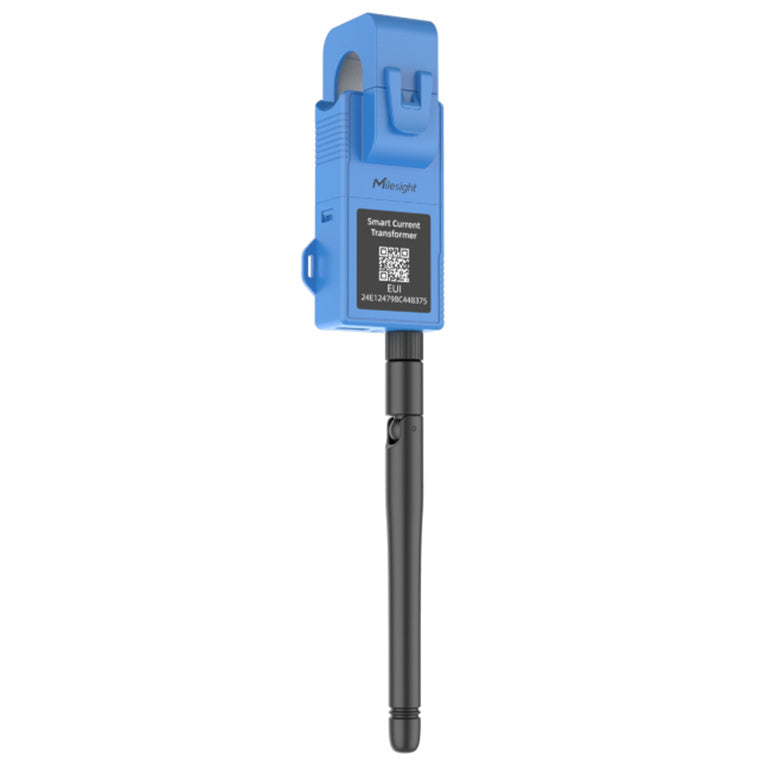

Milesight CT101-915M LoRaWAN AS923/AU915 Smart Current Transformer CT103 With 300A Current Capacity
CT10x provides multiple current options to suit energy monitoring and support sending threshold alarms. CT10x is detachable, the compact size and clamp design allow it to be installed in any indoor space quickly and safely without de-energizing a facility, simplifying the installation and saving the cost. Compliant with Milesight LoRaWAN® gateways and Milesights IoT Cloud solution, CT10x can be monitored via webpage or mobile App remotely. CT10x is widely used for energy motoring of smart buildings, machine failure detection and prevention, etc. Perfect for smart buildings, smart city deployments or industrial use-cases.
- Self-Powered Operation
- Superior Accuracy with Up to 3.3kHz Frequency
- Real-time Accumulated Ampere Hour Calculation
- Non-invasive Installation
- Irregular Current Status Alert
- External Wire Temperature Sensor
- Detachable and Cable-Free Design
- LoRaWAN® Wireless Technology

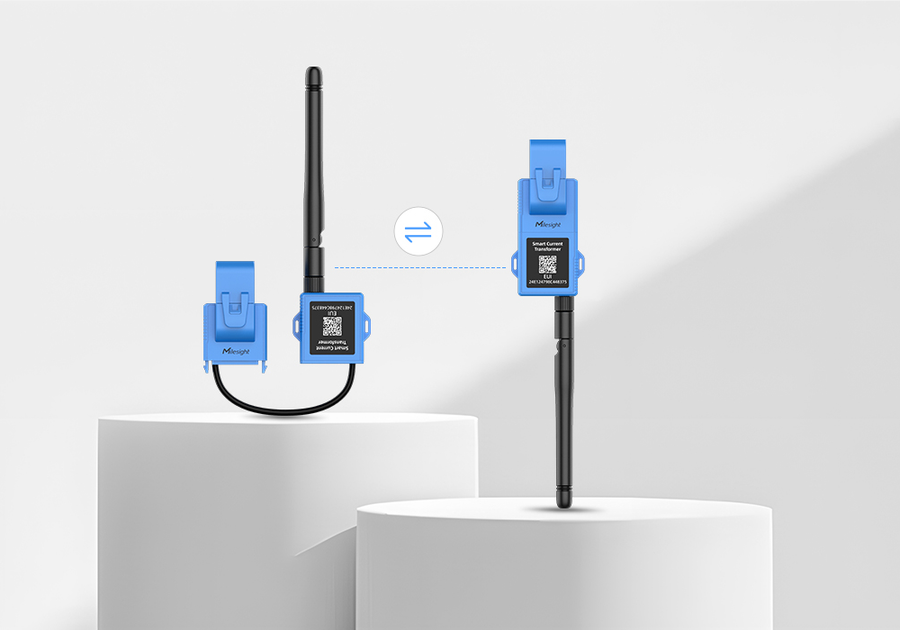

Detachable Design
It can be easily disassembled to adapt to a variety of installation environments, particularly those constrained by limited space.

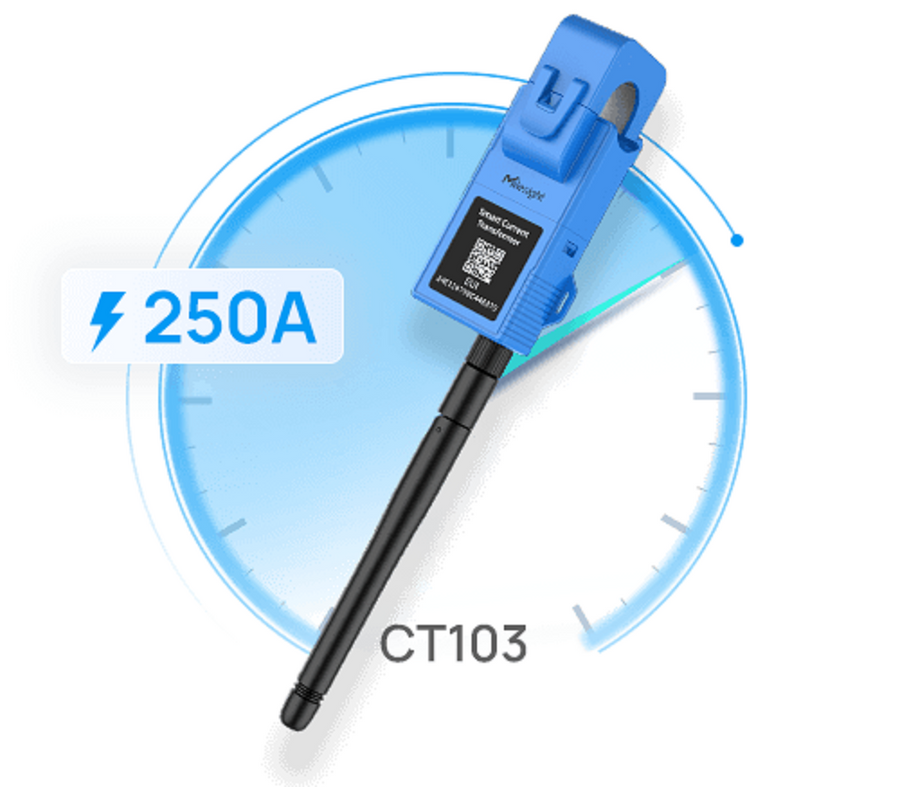

CT103 With 250A Current Capacity
For typical applications where currents of up to 250 amperes are needed.

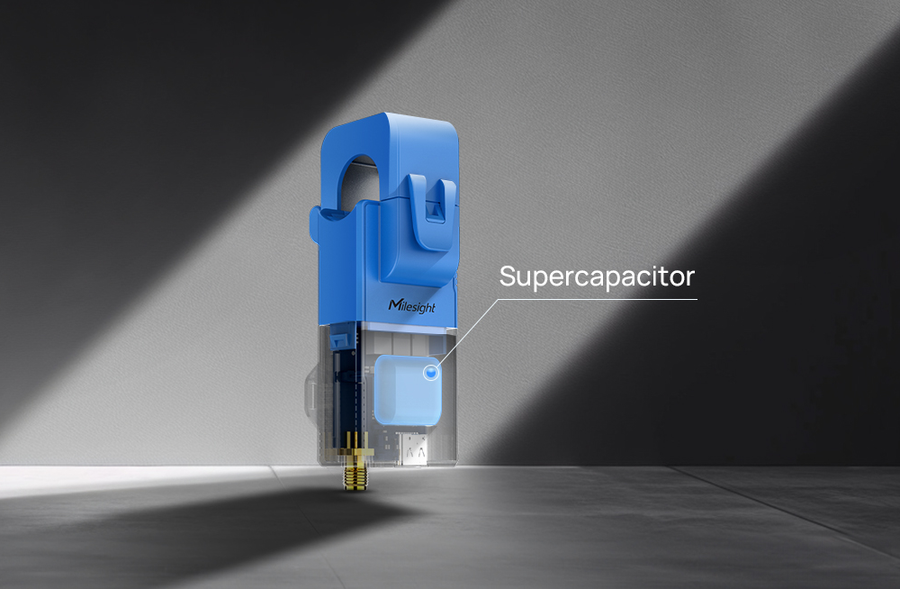

Self-Powered: No Batteries, No Limits
The CT10x is designed to derive power directly from the measured circuit, eliminating the constraints of batteries while ensuring seamless operation.

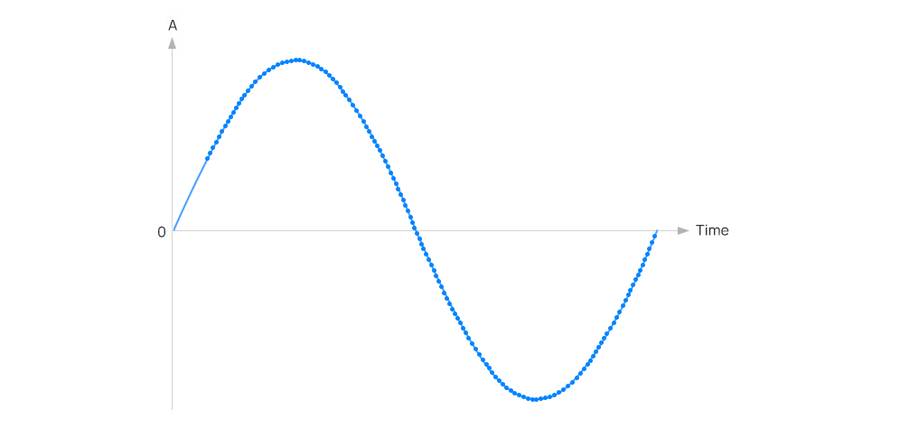

Superior Accuracy
Outperform other competitors on the market, CT10x boasts an impressive high sampling frequency of up to 3.3kHz, guaranteeing unparalleled accuracy and detail.

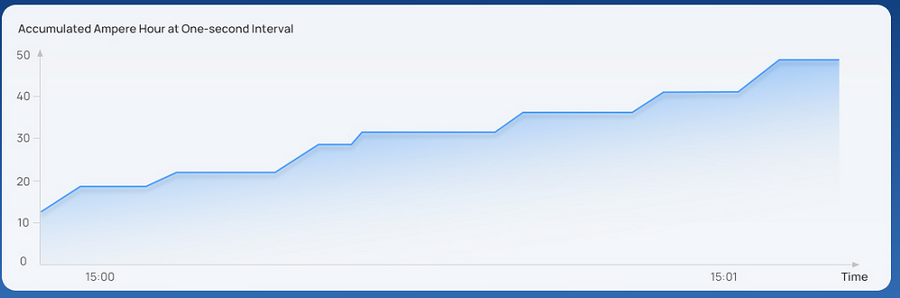

Efficient Energy Tracking At One-Second Interval
Calculate accumulated ampere hour in real-time at a one-second interval. This enables precise current consumption monitoring and analysis, achieving goals such as energy conservation and reduced operational costs.

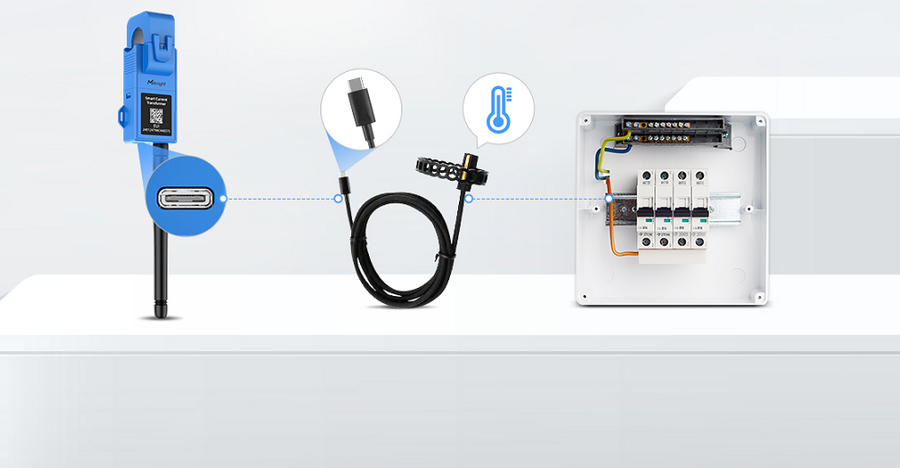

External Wire Temperature Sensor
An external wire temperature sensor is available, triggering alerts when the wire temperature reaches a set threshold.

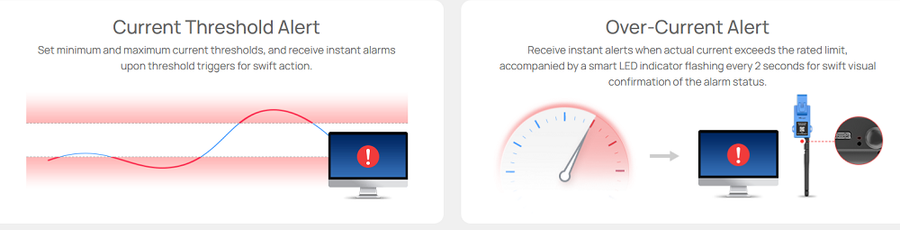

Irregular Current Status Alert
Typical Applications
Specifications
Technical Specifications
| Brand | Milesight |
|---|---|
| Manufacturer Part Number | CT103-915M |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm(470 MHz) |
| Sensitivity | -137dBm |
| Detection Parameter | RMS Current |
| Sampling Frequency | 3.3 kHz |
| Working Frequency | 50~60Hz |
| Rated Primary Current | 250 Arms |
| Start Current | 2 Arms |
| Accuracy | ±1 % (>5Arms), ±3 % (= 5Arms) |
| Resolution | 1 mA |
| Temperature Sensor | Sensor type: NTCMeasuring range: -20°C ~ 100°CMeasuring accuracy: ±1 % |
| Antenna Connector | 1 × 50 Ohm SMA Connector (Center PIN: SMA Female) |
| Dimensions | 86.5 × 31 × 37.4 mm (5.7 × 3.54 × 1.47 in) |
| Wire Hole | 16 mm (diameter) |
| Insulation Voltage | 2.5kVac(r.m.s)(1mA/1min) |
| Extension Cable Length | 1m |
| Operating Temperature | -20°C~70°C |
