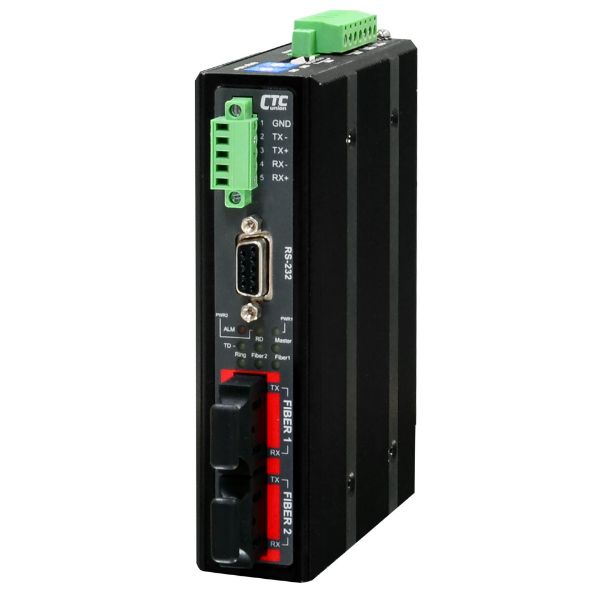

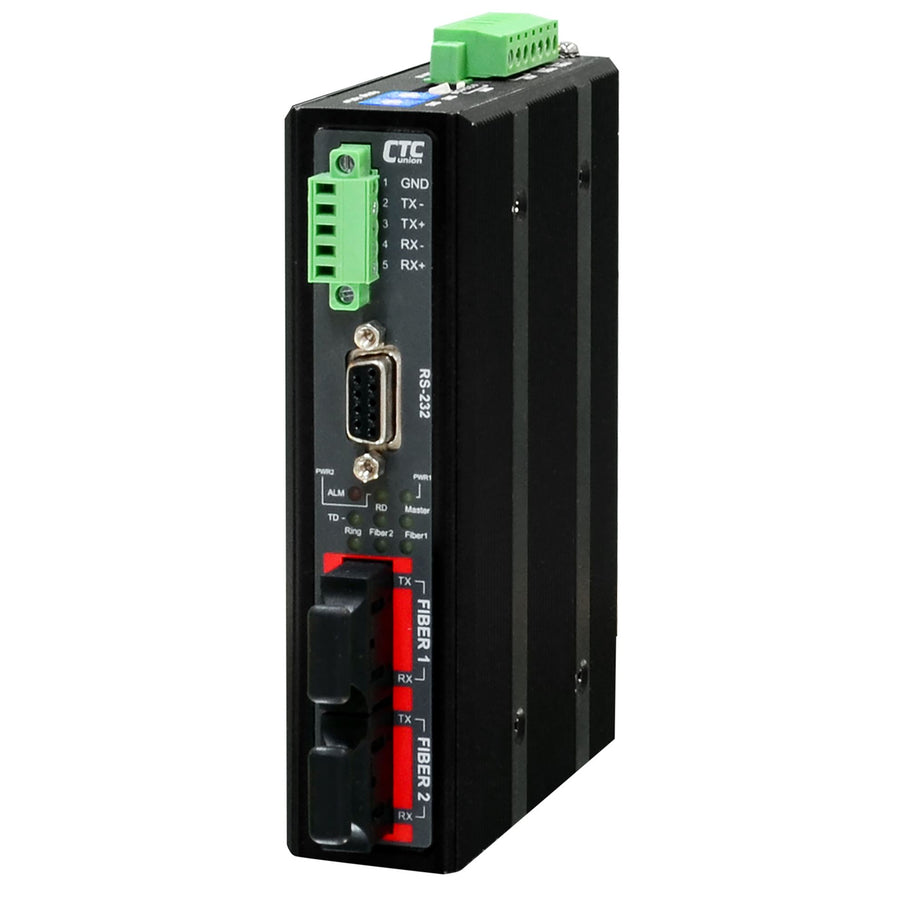

CTCUNION IFC-FDC-SC002 - Serial To Fibre Daisy Chain Media Converter 2km.
Features
CTC UNION Serial To Fibre Daisy Chain Media Converter. 2km. Serial RS485/422/232 to SC/ST fibre 2km. TX1310nm/RX1550nm. -10C ~60C. Power consumption 12V/11W. Dinmount kit included.
IFC Series converters are capable of selecting interface modes for connection to RS-232 (3 wire), RS-485 (2 wire, half duplex) or RS-422/485 (4 wire, full duplex) and feature a three-way communication plus a second independent RS-232 communication channel. Additionally, the terminal block offers an alarm relay contact and two redundant DC power inputs. IFC Series converters are also available in two operating temperature ranges, a standard -10°C to 60°C commercial temperature range and an extended -40° to 75°C range. With all these specifically designed features, IFC Series are reliable and ideal solutions for keeping your industrial automation applications running smoothly and continuously even in harsh environments.
- Supports 2 fibre link (IFC-FDC)
- Supports dual channel communication, including Triple-Way communication, and Two-Way communication
- Extend serial transmission distance up to 2km
- Supports several topologies , cable redundancy, ring redundancy, daisy chain, point to point (IFC-FDC)
- Redundant dual power inputs (12/24/48VDC)
- Supports RS-232, RS-422, RS-485 (2/4 wire) transmission to dual fibre connection
- Enhanced serial baud rate up to 1024kpbs
- 2.5KV isolation for serial signal
- Supports relay output for power or link failure warning
- Hardened housing with IP30 protection
- Fanless and DIN-Rail design for harsh industrial environment
- Adjustable pull high/low resistor and terminator for RS-422/485 transmission
- Industrial power supply purchased separately - MDR-40-24
IFC-FDC
IFC-Serial
Specifications
Technical Specifications
| Dual Channel Communication | Both of Triple-Way and Two-Way |
|---|---|
| Connector | SC, ST |
| Fiber Optical rate | 36.864Mbps |
| Fiber Port | 2 fiber ports (IFC-FDC) with WDM option1 fiber port (IFC-Serial) |
| Fiber Type | MM 2km, SM 30km, 60kmBidi 20KM |
| Wavelength | MM 1310nm, SM 1310Bidi: Mode A : TX1310nm/RX1550nmMode B : TX1550nm/RX1310nm |
| Point to Point Transmission | Full duplex |
| Ring Transmission | Full duplex, self-healing operation |
| Serial Port Connector | RS-232(DB9), RS-422/RS-485(5 pin terminal block)RS-485 : 4, 2 wires, RS-422 : 4 wires |
| RS-485 direction | Automatically detection |
| Copper Baud | rate 50 up to 1024Kbps |
| Serial Isolation | 2.5KV for serial signals |
| Surge Protection | 8KV ESD for serial signals |
| Pull High | Selected by 10 position rotary switch |
| Pull Low | Selected by 10 position rotary switch |
| 120 ohm terminator | Built-in 120 ohm terminator (Option by Dip Switch) |
| Operating Temperature | -10 ~ 60°C (IFC-FDC, IFC-Serial)-40 ~ 75°C (IFC-FDC-E, IFC-Serial-E) |
| Storage Temperature | -40 ~ 85°C |
| Humidity | 5 ~ 95% RH |
| Power Input | Redundant Dual Power 12, 24, 48 VDC(9.6 ~ 58VDC) |
| Power Consumption | 6W (IFC-FDC)5W (IFC-Serial) |
| Power Reversal Protection | Yes |
| Over Current Protection | Signal Short Together Protected |
| Water & Dust Proof | IP30 Protection, Fanless |

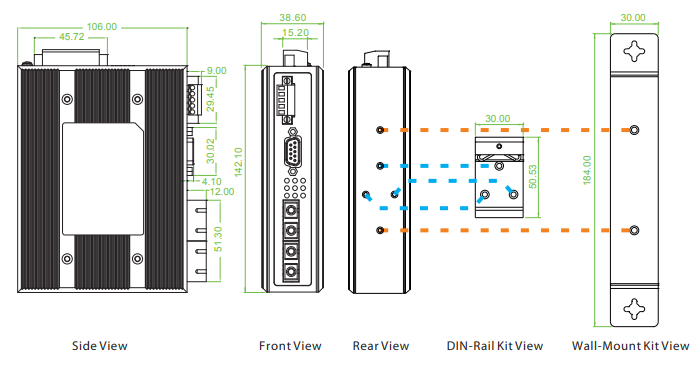

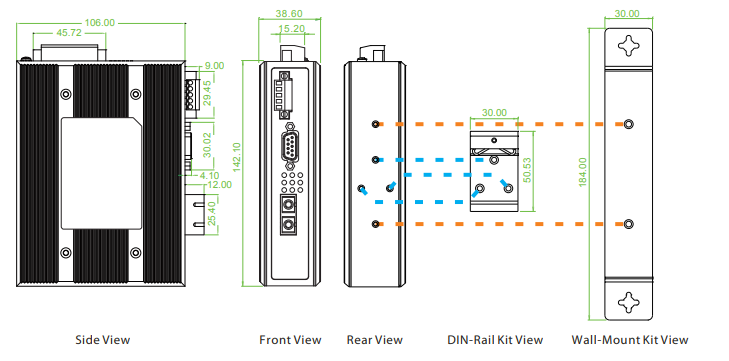

| Dimensions | 106 x 38.6 x 142.1mm (D x W x H) |
| Mounting | DIN-Rail, wall mount |
| Weight | 0.64kg (IFC-FDC) 0.63kg (IFC-Serial) |
| Safety | UL60950-1 |
| EMC | CE, FCC |
| EMI | EN55022 Class AEN61000-6-4 - Emission for heavyindustrial environment |
| EMS | EN61000-6-2 - Immunity for heavyindustrial environmentEN61000-4-2 ESD Level 3EN61000-4-3 RS Level 3EN61000-4-4 EFT Level 3EN61000-4-5 Surge Level 3EN61000-4-6 CS Level 3 |
| Free Fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Green | RoHS |
| MTBF | 687,418 Hrs (IFC-FDC)797,101 Hrs (IFC-Serial)(MIL-HDBK-217) |
| Brand | CTCUNION |
|---|---|
| Product Type | Networking > Fiber Connectivity > Fiber Patch Leads |
| Weight | 4.308 kg |
| Warranty |
|---|
