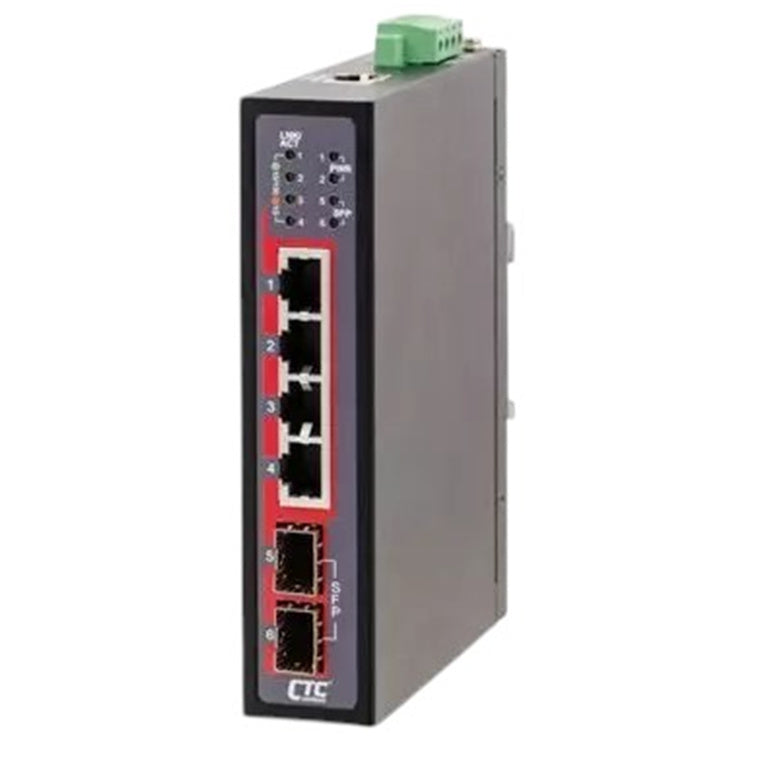

CTCUNION IGS402CS - 4 Port Gigabit Unmanaged Compact Switch. -10C +60C. 4x 10/100/1000Base-T plus 2x
Features
The industrial compact size Gigabit Ethernet switch IGS-402CS, plug and play easy to use, features 4 ports Gigabit UTP and equipped with 2 100/1000Base-X SFP slots for fiber optic connections to meet the requirements for extended transmission distance, fanless design, high MTBF, supports wide operating temperature, and redundant 12/24/48VDC power input, it is suitable for heavy-duty applications in harsh environments such as industrial factory automation and data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.
- 12/24/48VDC (9.6~60VDC) redundant dual power input
- Supports DIP switch to set broadcast storm protection, SFP Auto/Force Mode, SFP 100M/1000M ; RJ45 Auto/force mode, 10M/100M, Full/half.
- Supports flow control
- Provides broadcast storm protection
- DIN Rail mounting or wall mounting
Specifications
Technical Specifications
| Model Name | IGS-402CS |
|---|---|
| Total Port | 6 |
| RJ45 | 10/100/1000 Temperature Base-T: 4 |
| SFP | 100/1000 Base-X: 2 |
| Input Power | Redundant: 12/24/48VDC |
| Standard | IEEE 802.3 10Base-T EthernetIEEE 802.3u 100Base-TX and 100Base-FX Fast EthernetIEEE 802.3ab 1000Base-T Gbit/s Ethernet over twisted pairIEEE 802.3z 1000Base-X Gigabit Ethernet over fiber-opticIEEE 802.3x Flow Control and Back Pressure |
| Operating Humidity | 5% to 95% (Non-condensing) |
| Storage Temperature | -40 ~ 85°C |
| Operating Temperature | -10~60°C |
| Housing | Rugged metal, IP30 Protection and fanless |
| Dimensions | 106 x 31.6 x 142mm (D x W x H) |
| Weight | 420g |
| Installation | Mounting DIN Rail mounting or wall mounting |
| MTBF | 862,267Hours (MIL-HDBK-217) |
| Certification | EN62368-1EN50121-4EN61000-6-2EN61000-6-4CEFCC |
| Brand | CTCUNION |
|---|---|
| Product Type | Networking > Switches |
| Weight | 4.018 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
