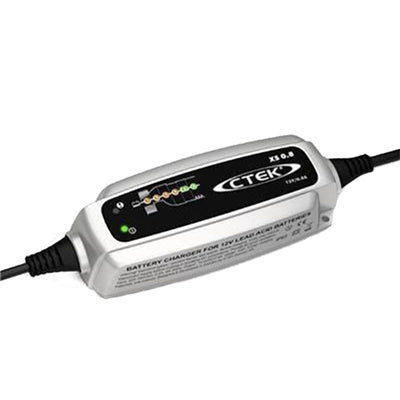

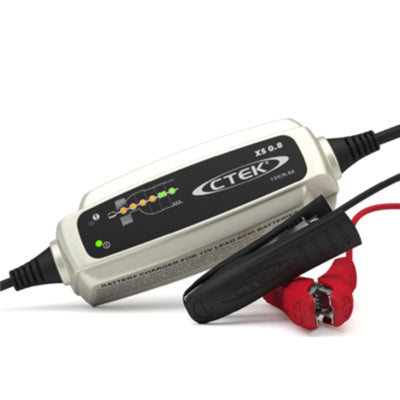

CTEK 56-825 XS 0.8 12V 0.8AMP Lead Acid Battery Charger 5 Year Warranty
Features

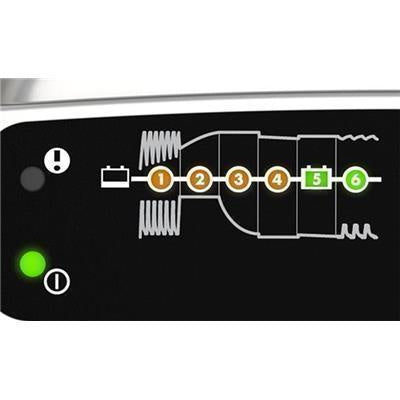

The XS 0.8 is CTEK's smallest 12V charger. It offers state of the art technology and is perfect for charging smaller 12V batteries that can be found in motorcycles, jet skis, ATVs and lawnmowers. It is also suitable for maintenance charging "normal- sized" batteries such as car batteries. The unique display allows the user to follow the entire charging process. The XS 0.8 is a compact and fully automatic 6-step charger for 12V batteries from 1.2-32Ah and is suitable for maintenance charging up to 100Ah. The XS 0.8 is IP 65 classified (splash and dust proof), delivers 0.8A and is designed to protect vehicle electronics. It is non-sparking, reverse polarity protected and short-circuit proof.
Product Highlights:
- Maintains: Ideal for carefree long-term maintenance charging
- Simple to connect and easy to use: Fully automatic, spark free, reverse polarity protected
- Tough and reliable: Designed for outdoor use in even the most extreme temperatures. Developed and tested in Sweden
- Flexible: Compatible with many different types of lead-acid vehicle batteries
- Up to three times more battery life if you charge with CTEK.
The CTEK XS 0.8 maintainer
Simplicity - Easy to use, simply attach to the battery and leave the charger to do the rest.
Practicality - Suitable for all batteries. Portable and easy to use.
Speed - Conditions and recharges the battery in the shortest possible time.

XS 0.8 conditions and cares for the battery
Reliability - Suitable for outdoor use. Shockproof and dustproof.
Recond - Restores battery life and reconditions flat batteries.
Saves battery life - Up to three times more battery life if you charge with CTEK.
Specifications
Technical Specifications
| Model number | 1047 |
|---|---|
| Volt | 12V |
| Rated Voltage AC | 220-240VAC, 50-60Hz |
| Charging voltage | 14.4V |
| Min. battery voltage | 3.7V |
| Charging current | 0.8A max |
| Current, mains | 0.2A rms (at full charging current) |
| Back current drain | <1Ah/month |
| Ripple | <4% |
| Ambient temperature | -20°C to +50°C, output power is reduced automatically at high temperatures |
| Charger type | Six step, fully automatic charging cycle |
| Battery types | All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL) |
| Battery capacity | 1.2-32Ah up to 100Ah for maintenance |
| Dimensions | 145 x 55 x 38mm (L x W x H) |
| Insulation class | IP65 |
| Weight | 0.4kg |
| Brand | CTEK |
|---|---|
| Product Type | Power & Lighting |
| Weight | 0.625 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
