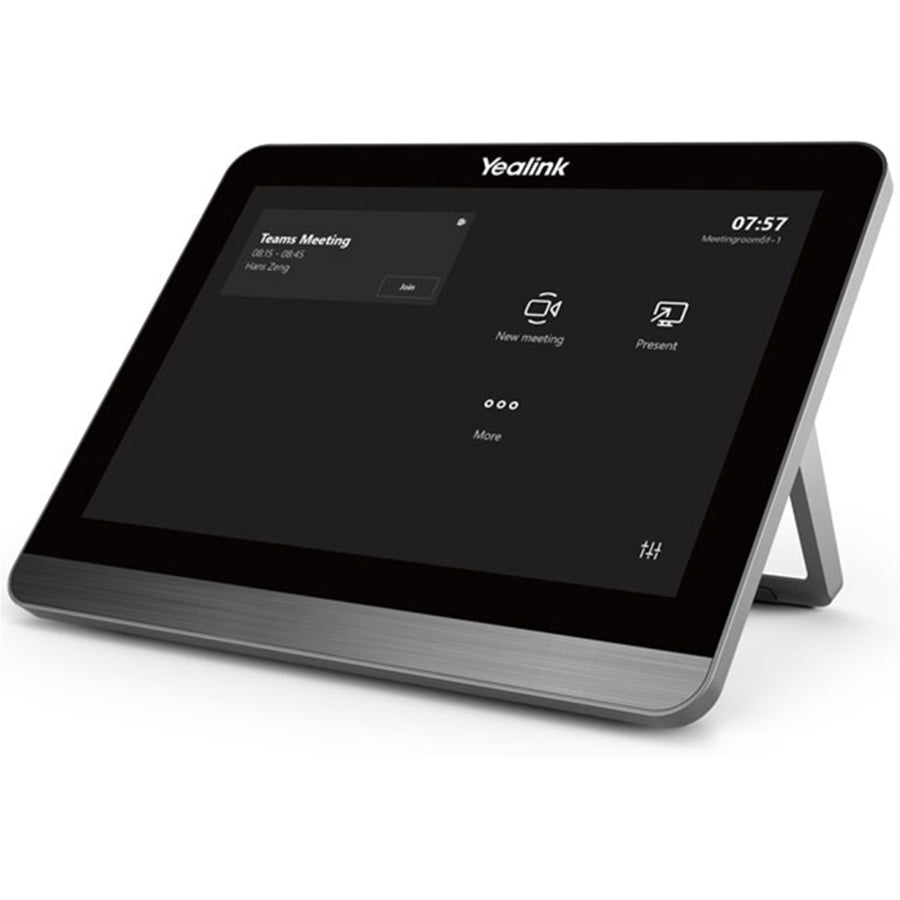

Yealink CTP18 Touch Console
Features
- Compatible with A10, A20 and A30 MeetingBar
- Start or Join a Meeting
- Navigate All Meeting Controls
- Annotate on Shared Content
Efficient Collaboration at Your Fingertips
CTP18 can be used to obtain the projection screen and annotate it. With Yealink Wireless Presentation Pod WPP20, you can gain reverse control from CTP18 over computer, getting a multi-screen interaction to achieve more. A single video conferencing device can be connected to up to 4 CTP18, which can be used for simultaneous annotation to improve efficiency.
Richer and Easier Meeting Control Features
Just by one-touch, you can start or join a meeting, and all meeting controls can be navigated on CTP18 with just a touch or a swipe of your finger, including previewing and adjusting the camera, changing the participant layouts, recording, etc.
Clutter-Free Meeting Space Deployment
CTP18 supports PoE where one cable carries both data and power for the device. Data transmission between CTP18 and the video conferencing device is realized either by cable or by Wi-Fi, which eliminates the tricky wiring connections between the TV area and the conference table, saving you from remodeling the conference room set up.
Specifications
Technical Specifications
| MeetingEye 400/MeetingEye 600 | 44 or later versionsUp to 4 CTP18 units can be used in one system |
|---|---|
| VC880/VC800/VC500 | Supported by later versionsUp to 4 CTP18 units can be used in one system |
| VC200/VC210 | Supported by later versionsUp to 1 CTP18 unit can be used in one system |
| Wireless Network | Wi-Fi2.4G/5G Wi-FiIEEE 802.11n/acSupport connecting to the Wi-Fi generated by Yealink VCS endpoints only |
| Screen | 8-inch IPS FHD capacitive touch screen |
| Resolution | 1280*800 (16:10) |
| Touch | 10 points multi-touch |
| USB | 1 x USB-C for device debugging |
| RJ45 | 1 x RJ45 Ethernet for power and data connection |
| Reset slot | 1 x Reset slot |
| Wall Mount Bracket | 1 x wall mount bracket |
| Security lock slot | 1 x security lock slot for anti-theft |
| Power supply | Power over Ethernet (IEEE 802.3af) |
| Power input | PoE 48V 0.27A |
| Power consumption | 7W at most |

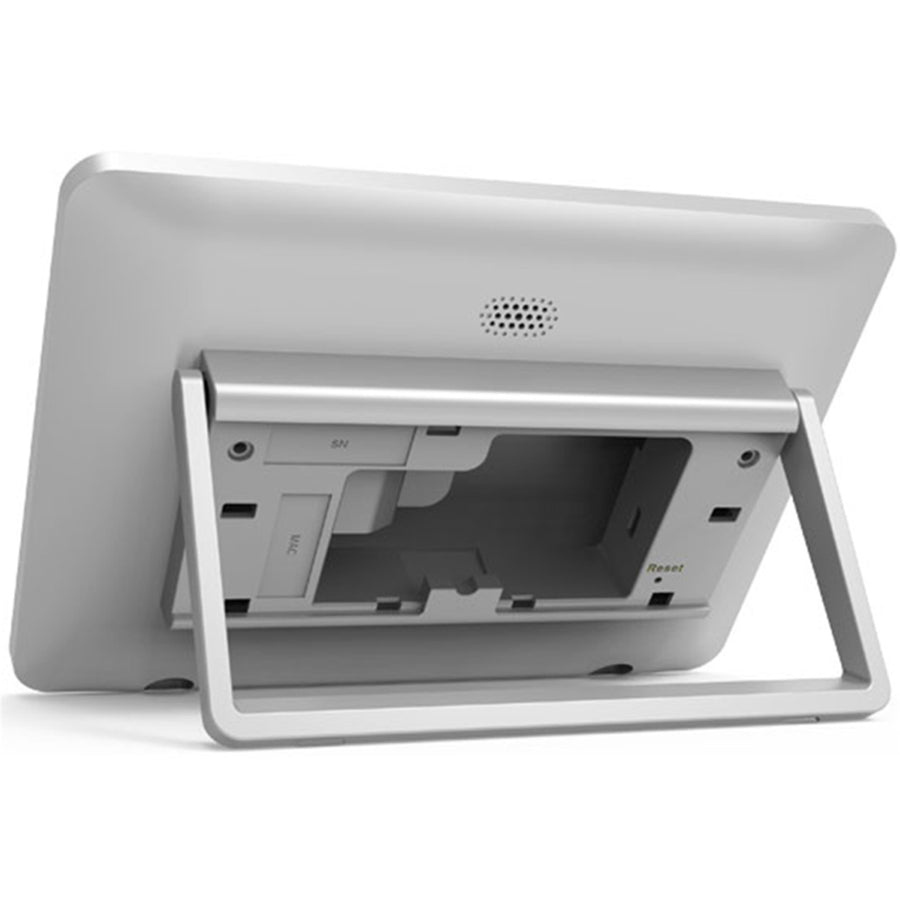

| Stand | Adjustable angle (28°~50°) |
| Dimension (W*D*H) | 202mm x 151mm x 100mm |
| Connection | Connect to VCS endpoint via cablePair with the VCS endpoint in the same LAN (supported by later versions)Connect to VCS endpoint via Wi-Fi |
| Brand | Yealink |
|---|---|
| Product Type | UC & Video Conferencing > Video Conferencing |
| Weight | 0.794 kg |
| Warranty |
|---|
