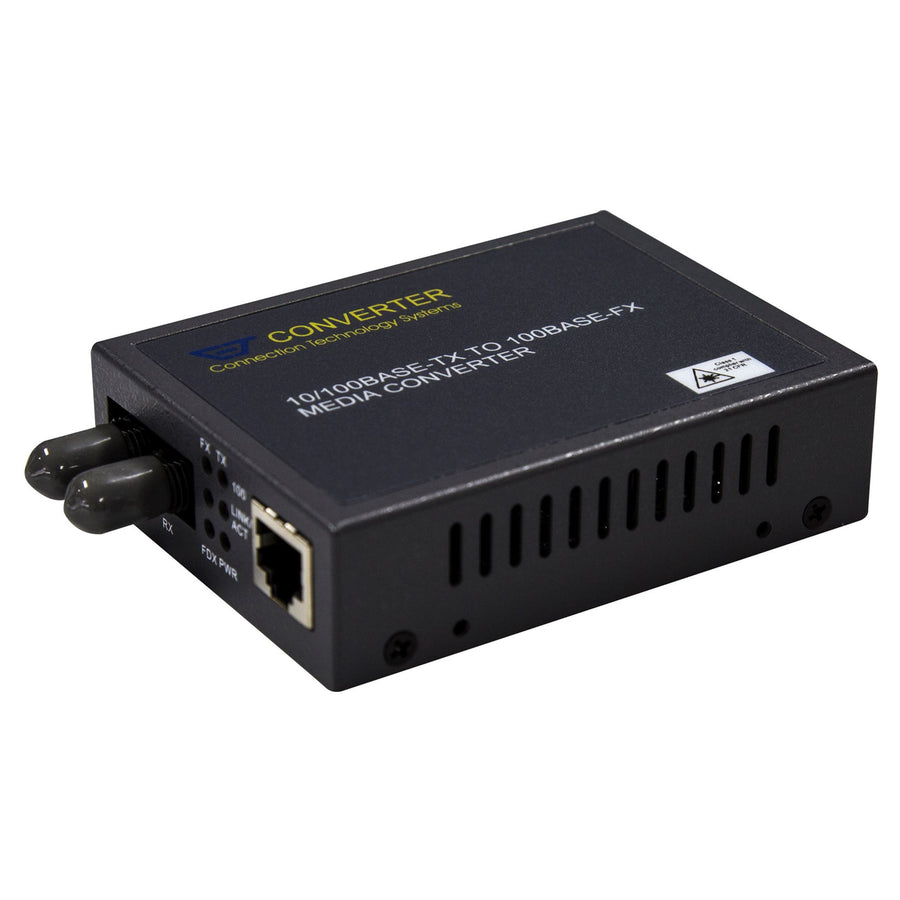

CTS LAN-100BTFT - 10/100Base-TX to 100Base-FX ST Multi-Mode Media Converter. Fast Ethernet
CTS LAN-100BTFT - 10/100Base-TX to 100Base-FX ST Multi-Mode Media Converter. Fast Ethernet
CTS

CTS LAN-100BTFT - 10/100Base-TX to 100Base-FX ST Multi-Mode Media Converter. Fast Ethernet

SKU: LAN-100BTFT ● In Stock
$145.21
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

CTS 10/100Base-TX to 100Base-FX ST Multi-Mode Media Converter. Fast Ethernet Media Converter. 10/100Base-TX to 100Base-FX ST Multi-Mode Fibre.

Features

  • The Worldwide Effortless and Reliable Media Converter
  • The almost "set-it-and-forget-it" media converter is for minimising network implementation and maintenance efforts
  • 9K Bytes Jumbo Frame Size
  • Support jumbo frame size 9K bytes to ease the network traffic loading and facilitate IPTV service
  • Link Alarm
  • When UTP or fibre port is down during operation, the other port will be automatically turned off to alert the user
  • Fully Compatible with CVT-RACK-16
  • The budget limited solution for CVT-Rack-16 to mix installation with CTS's non-managed converter



Target Applications

FTTx implementations. Point-to-point fibre connection for long distance.

Specifications

Technical Specifications

Interface TP Port 10/100Base-TX RJ45 x 1
LED Power, FDX, Status, Speed,F/O Link/Act, TX Link/Act
Environmental Condition Operation: 0°C~50°CStorage Temperature: -20°C~60°CHumidity: 5%~90%, non-condensing
F/O Port 100Base-FX x 1
Ethernet Features Support 9K Bytes jumbo frameSupport Flow Control
Dimension & Weight Size: 71 x 94 x 26mm (WxDxH)Shipping Weight: 0.6KG
Standards IEEE 802.3 10Base-TIEEE 802.3u 100Base-TX/FXIEEE 802.3x Flow Control
Other Features Rare Panel DIP SwitchSupport slide-in Converter Center
EMC/Safety FCC Class A, CE* For further reports, please contact us for the update
H/W Specification Store and forward switching mechanismAuto-Cross over for MDI/MDI-X in TP portAuto-Negotiation in TP portFull/Half Duplex Mode Operation1K MAC address table48K bytes memory bufferLink Alarm
Power Requirement Power adaptorAC input: 100V~240V ACFrequency range: 50~60HzDC output: 5V, 1.6APower Consumption: 2.5W
