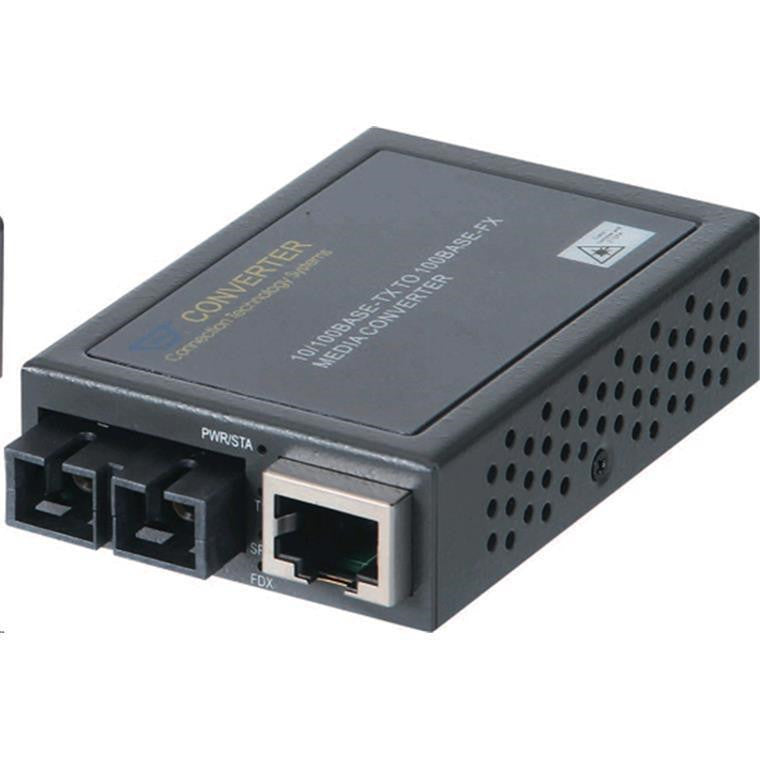

CTS MCT-100BTFCSM30 - 10/100Base-TX to 100Base-FX SC Singlemode Media Converter Compact Fast Ethernet 30Km

Fast Ethernet 10/100Base-TX to 100Base-FX

Connection Technology Systems (CTS) MCT-100 series media converter are the Fast Ethernet 10/100Base-T to 100Base-X media converter. The MCT-100 series media converter converts traditional twisted-pair RJ-45 cable into various ber media including multi-mode, single-mode,
SC/ST/MR connector, or bi-directional wdm, extending transmission distance for the deployment to the household, apartment or campus.

MCT-100 series media converter is fully compliant with IEEE 802.3, 802.3u standards. Besides, it is equipped with some switching features including store and forward. With the built-in switch ASIC chip, it has turned MCT-100 series to become more like a two-port switch rather than like an ordinary converter. User can get many switch benets such as segmentation, frame checking and error ltering. Additionally, Link Alarm feature enables administrator to monitor the ber link more easily. The installation and operation are simple and straightforward.

The operation status can be monitored through a set of diagnostic LED indicators on the front panel. It is especially designed for network operators, metro Ethernet providers, enterprises, SMB, who have the need of implementing
ber optical Ethernet networks over long distance, for FTTX solutions, and are looking for an eortless and reliable 100Mbps media converter.

9K Bytes Jumbo Frame Size
Support Jumbo Frame size 9K bytes to ease the network traffic loading and facilitate IPTV service

Fully Compatible with MCT-RACK-18 Series
Space-saving and budget-limited solution for MCT-RACK- 18 series to mix installation with MCT series converter.

Link Alarm
When UTP or fiber port is down during operation, the other port will be automatically turned off to alert the user
