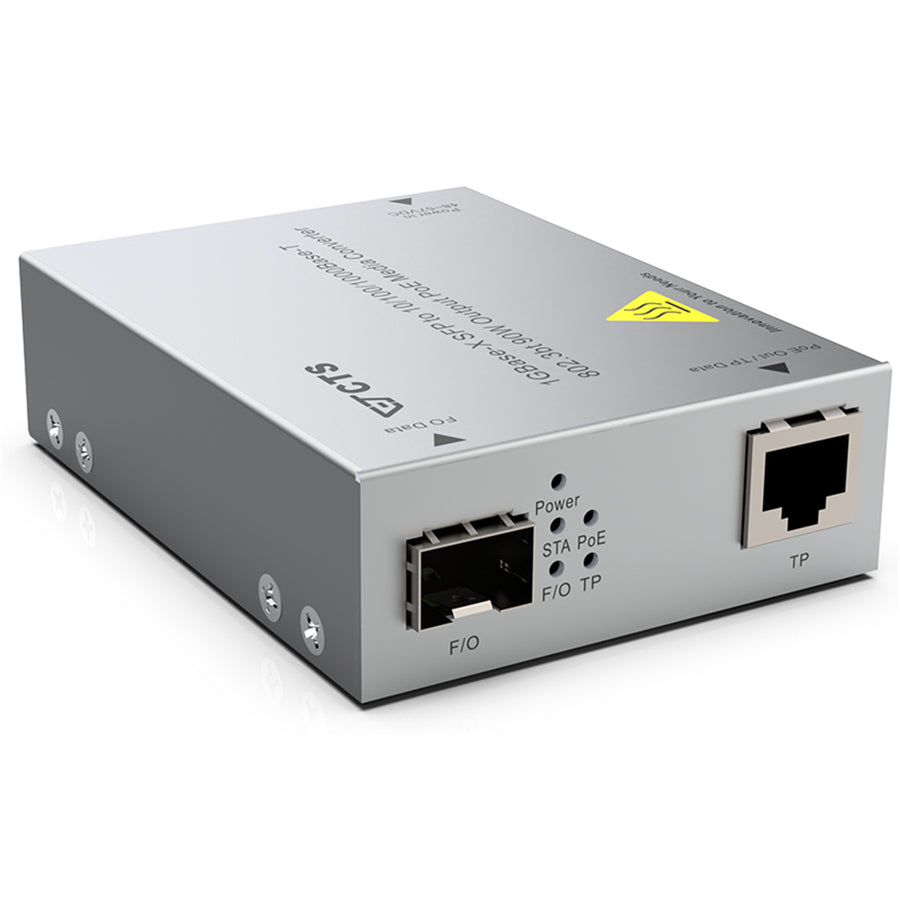

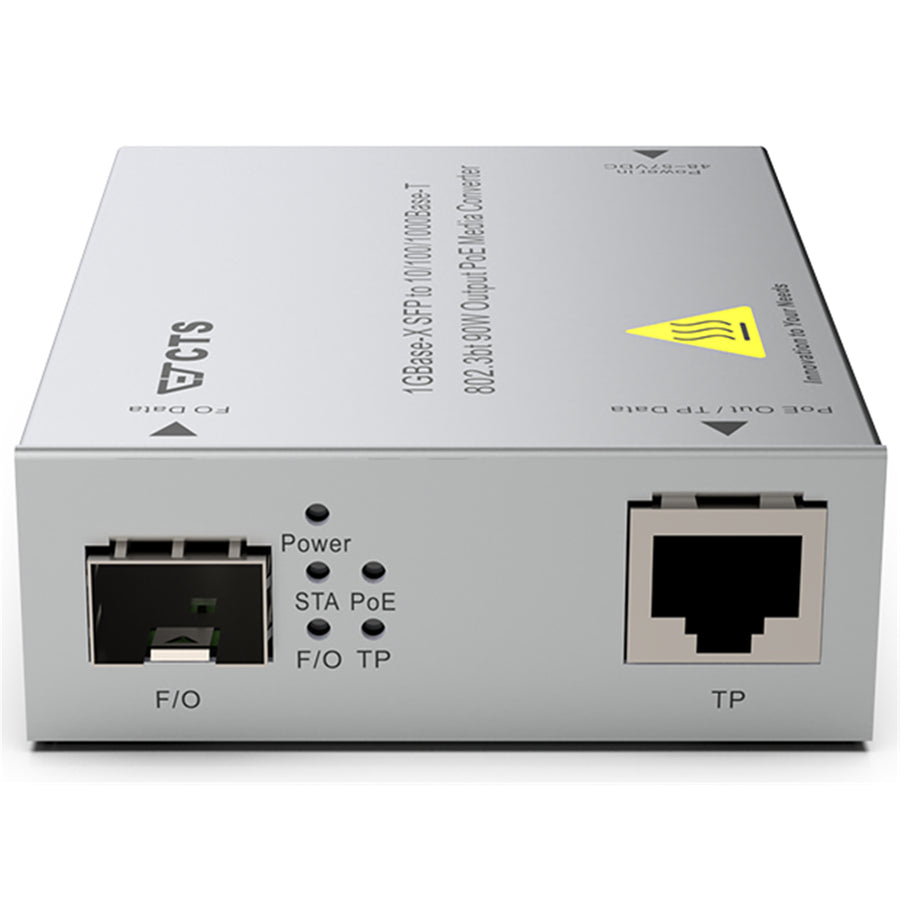

CTS SRC-3002SFP-BT - 1GBase-X SFP to 10/100/1000 Base-T 802.3BT 90W Output POE Rugged Media Converter
Features
Connection Technology System (CTS) SRC-3002SFP-BT functions as a robust media converter designed to operate in temperatures ranging from -20 to 60°C. It facilitates the conversion from 100/1000Base-X SFP to a 10/100/1000Base-T RJ-45 port, fully compliant with the IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
The SRC-3002SFP-BT is compatible with the IEEE 802.3af/at/btstandard, allowing it to deliver a maximum of 90 watts of Power over Ethernet (PoE) output to powered devices (PDs) through a Cat5/5E cable in the RJ-45 port. This capability significantly simplifies wiring configurations.
While functioning as an unmanaged media converter, the SRC-3002SFP-BT offers user-friendly configuration and monitoring through a DIP switch and LED indicator on its panel. The DIP switch allows control over various functions, such as Alarm, PSE Auto Power Off, Data-diode, and more.
With these features, SRC-3002SFP-BT not only become a user-friendly product, but also a comprehensive solution.
Link Alarm
Alert users to connectivity issues as copper and fibre optic interfaces are designed to be link-interdependent. Link down on either side will result in the other's disconnection
Adjustable Fiber Speed
Adjust the fibre speed manually and compatible with more network applications
DIN-rail Installation
Supports DIN-rail installation method
Wall-mounting Installation
Supports wall-mounting installation method
-20°C ~ 60°C
To boasts an extended temperature range, enabling operation from -20°C~60°C
Auto PoE Power Off
It automatically deactivates PoE output in the event of a fibre link disruption
Power over Ethernet
Data flows and the electrical current is carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations
Data-diode
The Data-Diode function is tailored for this scenario, allowing users to customise it for single or bi-directional transmission, along with the specified direction

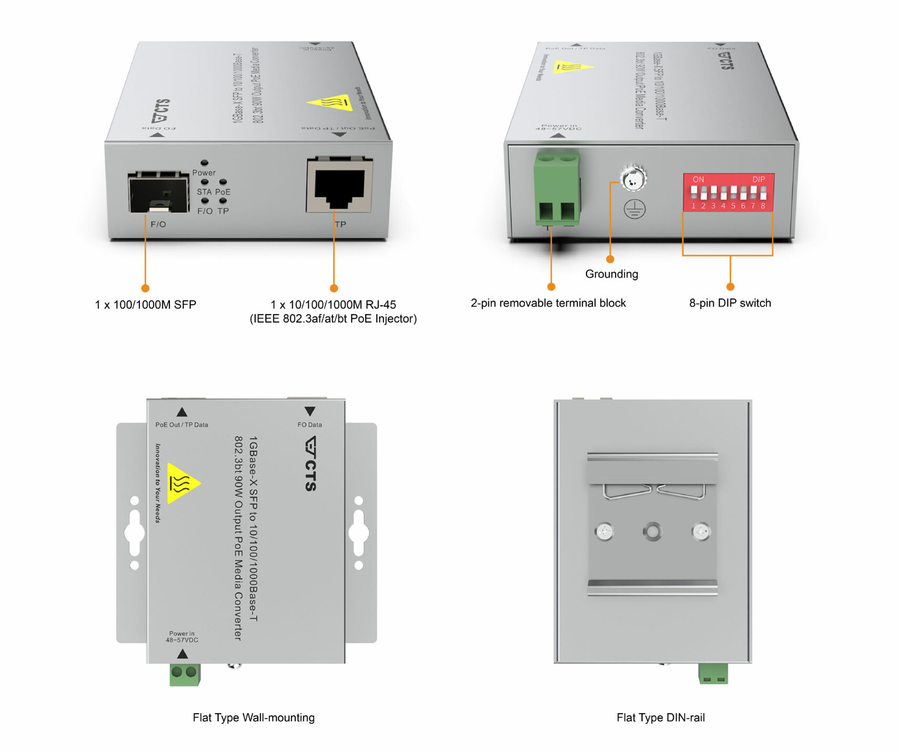

Hardware Overview
Specifications
Technical Specifications
| Model | SRC-3002SFP-BT |
|---|---|
| Fiber Slot | Speed(Mbps): 100/1000????: SFPSlot: 1 |
| TP Port | Speed(Mbps): 10/100/1000Port: 1 |

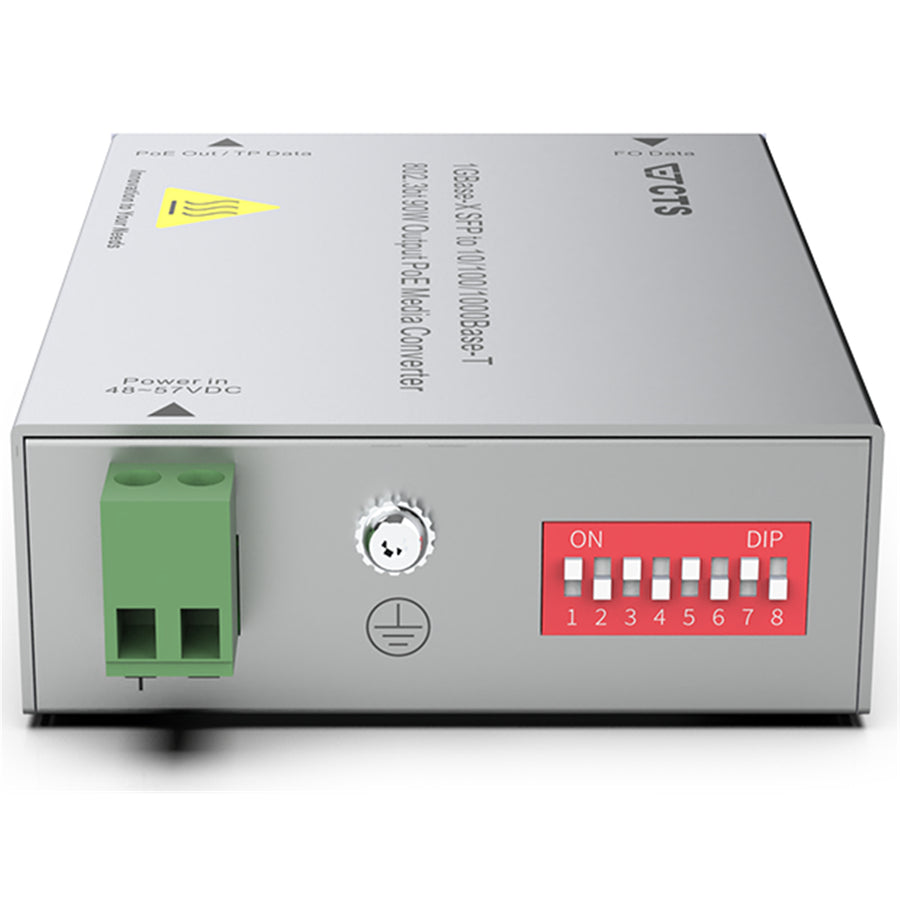

| Support Power Source | 1 x 48~57V DC with 2-pin removable terminal block |
| Interface | 1 x 100/1000Base-X SFP Slot1 x 10/100/1000Base-T RJ-45 withIEEE 802.3af/at/bt injector, up to 90W PoE power output |
| LED | Power, Status,TP Link/Act/Speed, F/O Link/Act/SpeedPoE |
| Power Requirement | DC Input: 48~57V (2-pin removable terminal block)Max. Power Consumption: 102W (348 BTU/h) |
| Hardware | MAC Address Table: 2KNon-blocking Switching Fabric: 4GbpsThroughput @ 64Bytes: 2.9MppsJumbo Frame: 9K BytesPacket Buffer: 1MbitStore and Forward Switching MechanismAuto-Cross over for MDI/MDI-X in TP portAuto-Negotiation in TP PortFull/Half Duplex Mode Operation |
| Operation | -20°C~60°C |
| Storage Temperature | -40°C~85°C |
| Humidity | 5%~95% RH, Non-Condensing |
| Size | 71 x 94 x 26mm (W x D x H) |
| Weight | 220 g |
| Housing | Aluminum(Upper), Iron(Bottom), IP30 |
| EMC/Safety | FCC Class A, CEESD- Air Discharge: +/-8kV- Contact Discharge: +/-4kVEFT- DC Power: +/-0.5kVSurge Protection: +/-3kV |
| Brand | CTS |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.136 kg |
