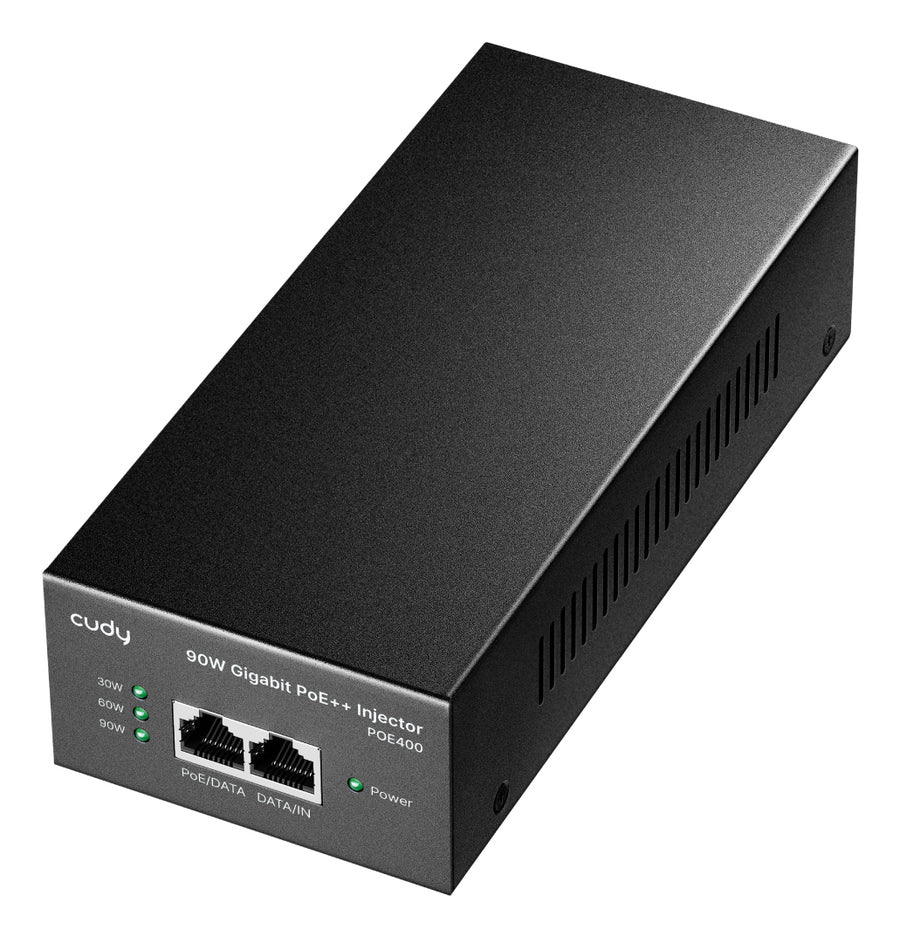

CUDY 90W Gigabit PoE+ Injector 100m Transmission, Power LED, 802.3at/af.
CUDY 90W Gigabit PoE+ Injector 100m Transmission, Power LED, 802.3at/af.
Overview
<b>Reliable PoE for 24/7 Consistent Operation</b><br><br><b>IEEE 802.3at/af/bt. Max 90W Output.</b><br>The generous 90W power budget easily supports a wide range of devices, including high-power clients like PTZ cameras with heaters, multi-screen kiosks, and advanced access control terminals.<br><br><b>10/100/1000 Mbps Speeds</b><br>Stream data at full speed for bandwidth-intensive clients such as access points and AV encorders/decoders with no performance loss.<br><br><b>Exceptional Built-Quality for Stable Operation</b><br><br><b>Protect Clients with Outstanding EMC</b><br>Robust EMC design protects itself and clients from power surges and ESD.<br><br>ESD: Contact 6kV; Air 8kV<br>Surge: Power DM 4kV, CM 4kV; RJ45 CM 4kV<br><br><b>Built to Last Longer with High-Quality Capacitors</b><br>Equipped with high-quality capacitors rated for 1.6× longer lifespan than the industry average, making the PoE adapter more resistant to aging and wear.<br><br><b>Easy to Use. Plug and Play.</b><br><br><b>Auto Negotiating the Power Needed</b><br>Connect the power, switches/routers, and clients—the adapter will automatically detect the required power wattage and deliver it accordingly.<br><br><b>Wallmount Ready</b><br>Featuring two mounting holes on the back to allow you mount it on the walls.
- GbE In, GbE Out
- 100 m (328 ft)Transmission Distance
- 802.3bt/at/af, Max 90W, 4-Pair
- Power, PoE Wattage LED
- Surge/ESD Protection
Technical Specifications
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Y |
| Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| Cable types supported | Cat5e |
| Product colour | Black |
| Wall mountable | Y |
| Plug and Play | Y |
| Surge protection | Y |
| Maximum operating distance | 100 |
| LED indicators | PoE,Power |
| Pin assignment & polarity | 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-) |
| Power protection features | Over current,Over voltage,Overload |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power over Ethernet (PoE) voltage | 56 |
| Output power | 90 |
| AC adapter input voltage | 100 - 240 |
| AC adapter frequency | 50 - 60 |
| Input current | 1 |
| Operating temperature (T-T) | -10 - 45 |
| Operating temperature (T-T) | 14 - 113 |
| Operating relative humidity (H-H) | 10 - 80 |
| Storage temperature (T-T) | -20 - 70 |
| Storage relative humidity (H-H) | 5 - 80 |
| Width | 178.5 |
| Depth | 80 |
| Height | 46 |
| Number of products included | 1 |
| Power cord included | Y |
| Package width | 195 |
| Package depth | 138 |
| Package height | 57 |
