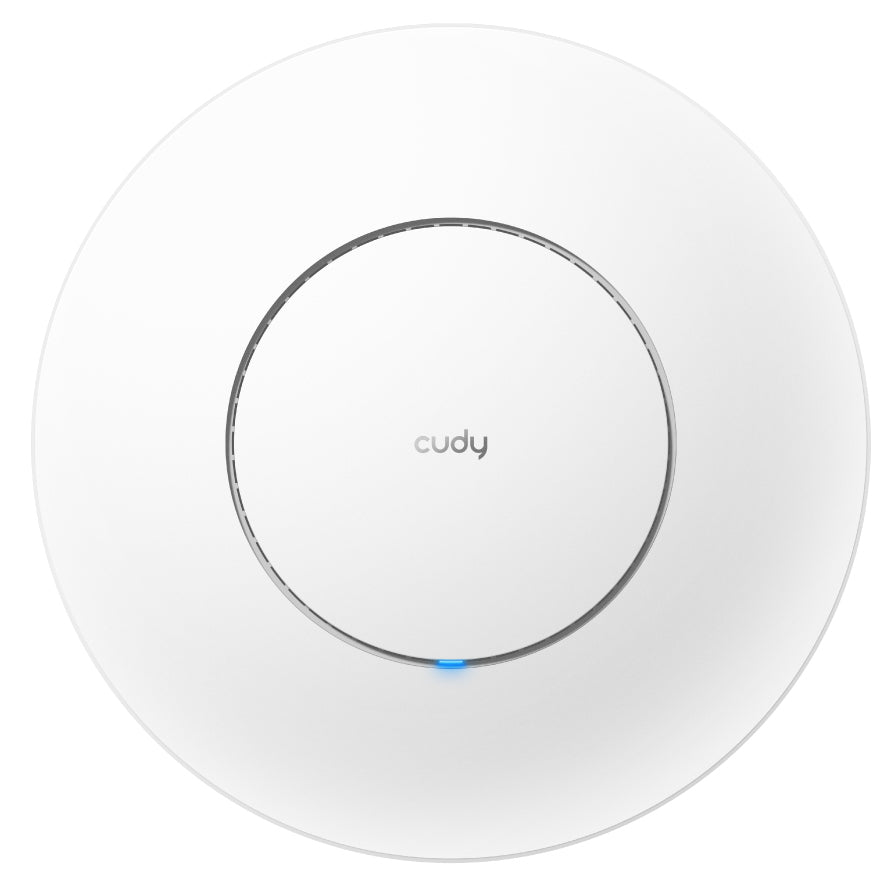

CUDY BE11000 Tri-Band Wi-Fi 7 2.5G Ceiling Mount Access Point with 10G SFP+,
CUDY BE11000 Tri-Band Wi-Fi 7 2.5G Ceiling Mount Access Point with 10G SFP+,
Overview
<b>Pristine 6 GHz for Business-Grade Connectivity</b><br>The expanded 6 GHz band offers up to 2.4× more channels than 5 GHz, allowing the AP11000 to deliver unprecedented speeds and handle more client devices in interference-free environments. Perfect for high-density business environments.<br><br><b>Ultra-Performance 10G SFP+ Fiber Uplink</b><br>With 10G SFP+ uplink support, AP11000 goes beyond the limits of standard Gigabit connections, ensuring high-throughput, low-latency fiber connectivity and offering a reliable, future-proof solution for enterprise and commercial networks.<br><br><b>Seamless Wi-Fi for Everywhere</b><br><br><b>Campus</b><br><br><b>Hospitality</b><br><br><b>Conference Center</b><br><br><b>Shopping Mall</b><br>Advanced Business Features<br><br><b>Captive Portal</b><br>Improve your brand awareness by displaying a customized login page for new clients.<br><br><b>Band Steering</b><br>Assign devices to less congested bands.<br><br><b>Auto Channel Selection</b><br>Avoid signal interruptions with nearby access points.<br><br><b>Auto Mesh Optimization</b><br>Form mesh backhaul via less congested routes automatically.<br><br><b>Versatile Powering and Installation</b><br><br><b>Flexible PoE/DC Power Options</b><br>12V/2A DC<br>802.3at<br>48-57V Passive PoE<br>Please note: DC adapter is not included in the package.<br><br><b>Versatile Mounting</b><br>Ceiling Mounting<br>Wall Mounting<br>Mounting kits are included in the box.<br><br><b>Centralized AP Management</b><br>Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.
- Qualcomm 1.5 GHz Quad-Core CPU
- 6-Stream Tri-Band Wi-Fi 7
- 5.7 Gbps + 4.3 Gbps + 688 Mbps
- 1× 10G SFP, 1× 2.5GbE PoE IN
- 802.3at, Passive PoE, DC
- Multi-AP Management
- Captive Portal, Multi-SSID
- Watchdog, Schedule Reboot
- Covers 140 m² (1,500 ft²)
- 300 Connected Devices
Technical Specifications
| 2.4 GHz | Y |
|---|---|
| 5 GHz | Y |
| 6 GHz | Y |
| Maximum data transfer rate | 10777 |
| Maximum data transfer rate (2.4 GHz) | 688 |
| Maximum data transfer rate (5 GHz) | 4320 |
| Maximum data transfer rate (6 GHz) | 5760 |
| Ethernet LAN data rates | 2500 |
| Networking standards | IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11be,IEEE 802.11g,IEEE 802.11n,IEEE 802.11b |
| MIMO | Y |
| MIMO type | Multi User MIMO |
| VLAN support | Y |
| Virtual LAN features | Tagged VLAN |
| BeamForming | Y |
| Maximum outdoor range | 260 |
| Security algorithms | WPA,WPA2,WPA3 |
| MAC address filtering | Y |
| IGMP snooping | Y |
| DHCP client | Y |
| Syslog | Y |
| Cloud-managed | Y |
| Interface | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| SFP/SFP+ slots quantity | 1 |
| WAN connection | SFP+,Ethernet (RJ-45) |
| DC-in jack | Y |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 48-57 |
| Output voltage | 12 |
| Output current | 2 |
| Power consumption (typical) | 12 |
| Power consumption (max) | 20 |
| Placement | Ceiling,Wall |
| Product colour | White |
| Reset button | Y |
| LED indicators | System |
| Antenna type | Internal |
| Antennas quantity | 6 |
| Antenna gain level (max) | 5.8 |
| Processor frequency | 1500 |
| Flash memory | 128 |
| Internal memory | 512 |
| Products per shipping (inner) case | 10 |
| Compliance certificates | CE,Federal Communications Commission (FCC) |
| Width | 231.9 |
| Depth | 57.1 |
| Height | 231.9 |
| Weight | 578.2 |
| Package width | 310 |
| Package depth | 238 |
| Package height | 73 |
| Package weight | 944 |
| AC adapter included | N |
| PoE adapter included | N |
| Cables included | LAN (RJ-45) |
| Mounting kit | Y |
| Quick start guide | Y |
| Bundled software | 1 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
| Warranty period | 1 |
| Country of origin | China |
