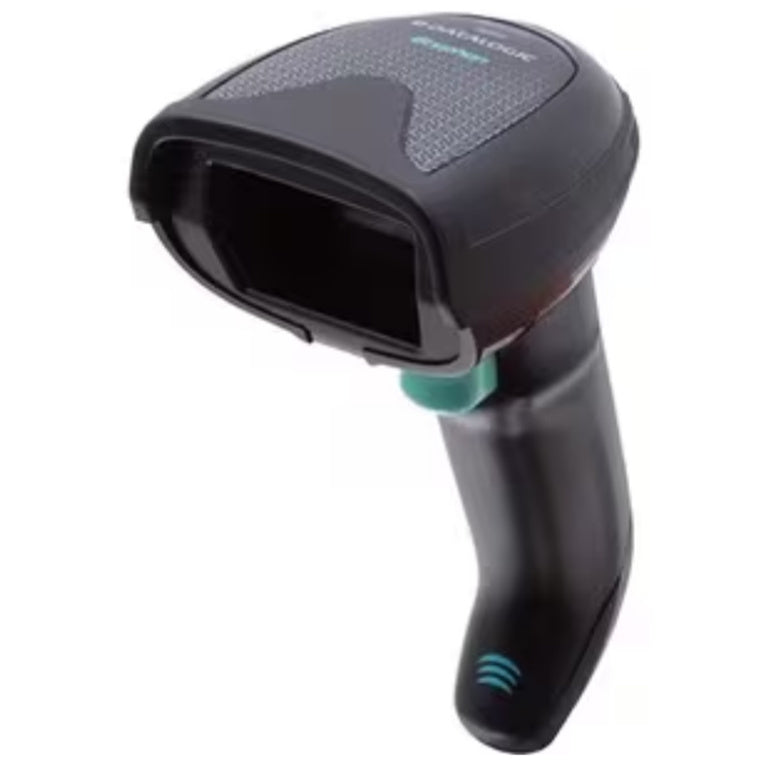

DATALOGIC AUSTRALIA PTY LTD DATALOGIC GRYPHON GBT4500 BT USB/BASE BLK KIT
Features
The Gryphon 4500 series of wireless scanners represent the premium range of 2D hand held scanners from Datalogic for general purpose applications. Wireless times two means that on top of the wireless communication, this new product line introduces for the very first time in the hand held reader market an innovative contactless wireless charging system able to definitely solve the #1 failure of all cordless scanners in field: the contacts! It enhances the reliability of the entire solution while lowering the total cost of ownership because it eliminates the need for the contact's cleaning and maintenance procedures. Featuring either Bluetooth® wireless technology (GBT model) or the narrow band radio with Datalogic's STAR Cordless System™ (GM model), the Gryphon 4500 wireless readers provide maximum flexibility for any end user application. The Gryphon 4500 series WIRELESS2 stands out with its elegant and cutting edge design, the user friendly ergonomics, and features the most advanced Megapixel sensor with warm-white illumination 2D technology for outstanding scanning performance.
- Wireless battery charging system (no contacts means no need for contact cleaning or maintenance procedures)
- Choice of Bluetooth wireless technology v4.0 with BLE or Datalogic STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
- Adjustable position cradle with Scan-While-Charging capability allows desk, wall and presentation options
- Powerful long-lasting Lithium-Ion battery allows up to 80,000 reads per charge and up to more than 80 hour of continuous operating time
- Smart battery management with different profiles to select the requested performances based on application needs
- Megapixel performance and distinctive white-illumination technology for superior scanning and depth of field up to 2.5x as compared to the Gryphon 4400 scanner
- Cutting edge design and accurate textures in every detail, with pure black and pure white options to match the latest in POS checkout systems
- Exploits Datalogic' s patented 3GL™ (3 Green Lights) and 'Green Spot' technology for visible good-read confirmation as well as the new vibration feedback
- Durable and reliable, 1.8 m / 6.0 ft drops to concrete resistant and IP52 sealed
- Dedicated models for Healthcare have been specifically developed with Disinfectant-Ready enclosures treated with anti-microbial additives
IMAGING TECHNOLOGY
The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
IMAGING TECHNOLOGY
The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
WIRELESS CHARGING
One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
SIMPLE TO USE AND DEPLOY
The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking. Datalogic's Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it's charging.
INDUSTRIAL APPLICATIONS
- Retail - Point of Sale
- Light Manufacturing
- Healthcare: in laboratories, pharmacies and in-room patient care
- Access Control, Transportation and Entertainment
- Commercial Services: Postal, Banks, Public Administration, Utilities
Specifications
Technical Specifications
| DATALOGIC STAR CORDLESS SYSTEM™ | Effective Radiated Power: 433.92 MHz: < 6.3 mW;910 MHz: < 50 mWMulti-Point Configuration: Max. Readers perRadio Receiver: 16; Point-to-Point Configuration;Radio Frequency: 433.92 MHz; 910 MHz;Two Way CommunicationsRadio Range (Open Air): 50.0 m / 164.0 ft |
|---|---|
| BLUETOOTH WIRELESS TECHNOLOGY | Piconet: Max. Readers per Radio Receiver: 7Profiles: SPP (Serial Port Profile)Protocol: Bluetooth 4.0 with BLE Certified Class 1, Class 2 and Class 3; Radio Frequency: 2.4 GHzRadio Range (Open Air): 100.0 m / 328.0 ft; Range distances are measured using the base station.Range with connection to other Bluetooth peripherals may show different results.Security: Data Encryption; Scanner Authentication |
| 1D / LINEAR CODES | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D CODES | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code |
| POSTAL CODES | Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| STACKED CODES | EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| DIGITAL WATERMARKING | Digimarc Barcodes |
| BATTERY | Battery Type: Lithium-Ion: 3250 mAhCharge Time: External Power: 4 Hours @ 12 VDC;Reads per Charge: 80,000 |
| CRADLE INDICATOR LEDS | Battery Charging (flashing orange); Charge Completed (steady green) |
| CURRENT | Charging (Typical): < 6 W;Scanner only: 330 mA @ 3.7 V (Operative)Cradle only: 80 mA @ 5 V (Operative) |
| INPUT VOLTAGE | 4.5 - 14 VDC +/- 5% |
| AMBIENT LIGHT | 0 - 100,000 lux |
| DROP RESISTANCE | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| ESD PROTECTION (AIR DISCHARGE) | 16 kV |
| HUMIDITY (NON-CONDENSING) | 0 - 95% |
| PARTICULATE AND WATER SEALING | IP52 |
| TEMPERATURE | Operating: 0 to 50 °C / 32 to 122 °FStorage/Transport: -40 to 70 °C / -40 to 158 °F |
| INTERFACES | RS-232 / USB / Keyboard Wedge Multi-Interface |
| COLOUR | Black |
| DIMENSIONS | 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in |
| WEIGHT | 235 g / 8.29 oz |
| IMAGE CAPTURE | Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
| IMAGER SENSOR | 1 Megapixel: 1280 x 800 pixels |
| LIGHT SOURCE | Aiming: Red Laser 650 nmIllumination: Warm White; Hyper Red LED for Digimarc |
| MOTION TOLERANCE | 35 IPS |
| PRINT CONTRAST RATIO (MINIMUM) | 15% |
| READING ANGLE | Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65° |
| READING INDICATORS | Beeper (adjustable tone); Vibration feedback option available for quiet places; Datalogic Three Green Lights (3GL) Good Read Feedback: Datalogic 'Green Spot' on the Code, Dual Good Read LEDs |
| RESOLUTION (MAXIMUM) | High Density (HD): 1D Linear: 0.077 mm / 3 mils;PDF417: 0.077 mm / 3 mils;Data Matrix: 0.102 mm / 4 milsStandard Range (SR): 1D Linear: 0.102 mm / 4 mils;PDF417: 0.127 mm / 5 mils;Data Matrix: 0.195 mm / 7.5 mils |
| AGENCY APPROVALS | The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| ENVIRONMENTAL COMPLIANCE | Complies to China RoHS; Complies to EU RoHS |
| LASER CLASSIFICATION | Caution Laser Radiation - Do not stare into beam; IEC 60825 Class 2 |
| DATALOGIC ALADDIN™ | Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JAVAPOS | JavaPOS and OPOS Utilities are available for download at no charge. |
| REMOTE HOST DOWNLOAD | Lowers service costs and improves operations |
| Brand | DATALOGIC AUSTRALIA PTY LTD |
|---|---|
| Product Type | Printers & Office > POS & Barcode Scanners |
| Weight | 0.5 kg |
