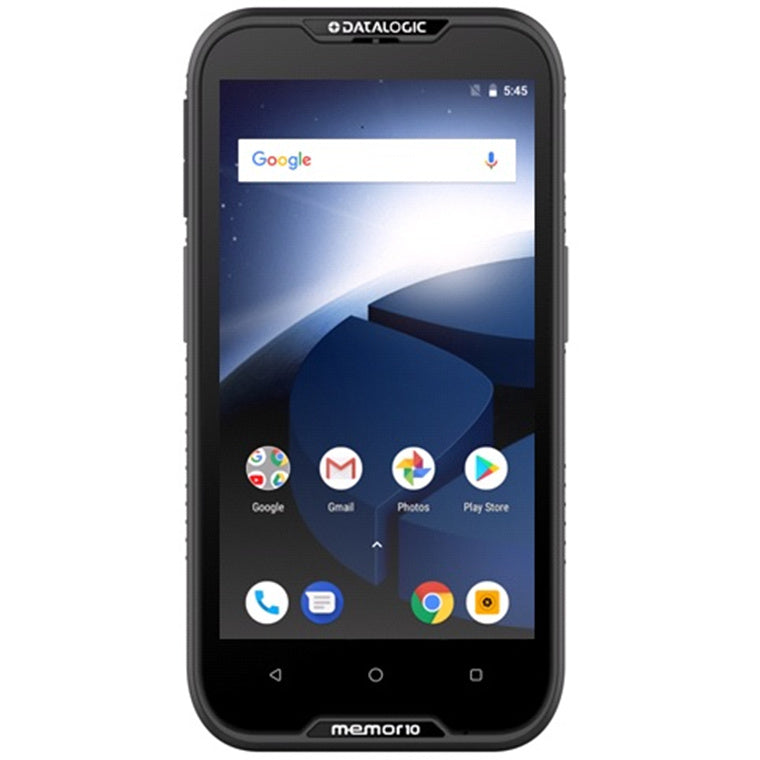

DATALOGIC AUSTRALIA PTY LTD DATALOGIC PDT MEMOR 10 2D 4G BLK AD8.1/GMS
Features
The Memor 10 PDA brings the power and the performance of a smartphone and the user friendly experience of Android™ in a slim and compact device, fully-featured and Enterprise ready. It incorporates Datalogic's industry-first wireless charging system for ultra-reliable contactless charging, paired with a 1-pc swappable battery for the best operational advantage.
The Memor 10 PDA is provided with a state of the art octa-core platform, featuring Android 8.1 (Oreo) with GMS; such exciting specs led to the endorsement by Google, who validated the Memor 10 PDA as one of the first mobile computers within their 'Android Enterprise Recommended' program for rugged devices.
- Wireless charging for best in class reliability together with one pc swappable battery (unique)
- Fully state of the art platform: octa core processor with Android 8.1 and Google Mobile Services
- Advanced 2D ultra-slim imager with Datalogic's patented 'Green Spot' technology for visual good-read feedback
- Full suite of voice and data connectivity, features the latest 802.11ac and LTE-Advanced/4G+ for cellular
- Endorsed by Google for the 'Android Enterprise Recommended' program (one of the few devices to join this program from start)
- Secured by Datalogic Shield™ : regular/recurring security patches
MEMOR™ 10 - THE POWER OF A SMARTPHONE, DESIGNED FOR ENTERPRISE
If you are looking for the power and the performance of a smartphone but are concerned about the typical Enterprise challenges, the new Datalogic Memor 10 PDA is the perfect rugged device for you!
Memor 10 incorporates the latest smartphone technologies and the user friendly experience of Android™ in a slim and compact design, combined with high performance 1D/2D bar code scanning and industrial robustness for almost any indoor or outdoor environment.
TOP PERFORMANCE
The Memor 10 is powered by a superior octa-core platform clocked at 2 GHz for top performance with the most demanding applications, and features Android 8.1 (Oreo) with Google Mobile Services (GMS).
Moreover, the Memor 10 is one of the first rugged mobile computers to be validated by Google for the 'Android Enterprise Recommended' program for rugged devices.
WIRELESS CHARGING MEETS SWAPPABLE BATTERY
The Memor 10 incorporates Datalogic's industry-first wireless charging system for ultra-reliable contactless charging, thus eliminating the need for cleaning contacts on the device and docks. Moreover, Memor 10 offers a 1-piece swappable battery for the best operational advantage.
COMMUNICATIONS
The Memor 10 leverages a complete set of embedded wireless technologies for both indoor and outdoor applications: dual band Wi-Fi including the latest 802.11ac standard, Bluetooth® v4.2 with BLE for fast and ultra-low power connections, NFC for easy pairing, and particularly the cellular area voice and data connectivity, already leveraging the next generation of LTEAdvanced/4G+.
NOTE: The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.
Specifications
Technical Specifications
| Dimensions | 15.5 x 7.8 x 1.87 cm / 6.1 x 3.07 x 0.73 in |
|---|---|
| Display | 5 inch IPS HD resolution 720 x 1280;LED backlight; Touch Screen: 5 points multi-touch capacitive panel with Dragontrail hardened glass |
| Keys | Physical Keys: 2 side scan keys; Power On/Off; Volume Up/Down; 3 user programmable Android™ keys |
| Weight | With Battery: 285.0 g / 10.0 oz |
| Camera | Resolution: 13 megapixel; Illumination: User controllableLED flash; Lens: Auto focus |
| Scan Engine | 2D Ultra slim area imager (supports 1D / 2D codes);Datalogic's 'Green Spot' for good-read feedback;Depth of Field: 8.5 to 50 cm / 3.3 to 19.7 in depending onbar code density and type;Resolution: VGA (640 x 480 pixels);Illumination: White LEDs; Aiming: 650nm VLD;Field of View: 48°H x 34°V |
| Print Contrast (Minimum) | 25% |
| Minimum Element Width | 1D Linear: 0.0762 mm / 4 milsPDF: 0.127 mm / 6.6 milsData Matrix: 0.195 mm / 7.5 mils |
| Local Area Network (WLAN) | IEEE 802.11 a/b/g/n/ac and 802.11 k/r/v; Frequency range:Country dependent, typically 2.4 GHz and 5 GHz bands |
| Personal Area Network (WPAN) | Bluetooth wireless technology v4.2 (Classic Bluetooth wireless technology and BLE) |
| NFC Communication | Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica |
| WWAN / Cellular | LTE-Advanced / 4G+; Cat 6EMEA and ROW Configuration: GSM: Quad band;CDMA: BC0; WCDMA: B1/5/8; FDD_LTE:B1/3/5/7/8/20/28;TDD_LTE:B38/39/40/41North America Configuration (PTCRB certified):GSM: Quad band; CDMA: BC0/1; WCDMA: B1/2/4/5/8;FDD_LTE:B2/4/5/7/12/13/17/25/26;TDD_LTE:B38/39/40/41 |
| Global Positioning System (GPS) | Integrated Assisted-GPS (A-GPS)Supported Types: GPS, GLONASS, BeiDou |
| 1D / Linear Codes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Codes | Aztec Code, Data Matrix, HanXin Code, MaxiCode, MicroQR Code, QR Code, UPU FICS, USPS Intelligent Mail |
| Postal Codes | Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC) |
| Stacked Codes | Micro-PDF417, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional |
| Battery | Replaceable battery pack with rechargeable Li-Ion batteries; 3.8v; 4,100 mAh (15.6 Watt-hours) |
| Wireless Charging | Qi Compliant; 10 Watt fast charging |
| Drop Resistance | Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot); Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot). Tested onto steel/concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test. |
| Tumbles | Withstands 1000 hits from 0.5 m / 1.6 ft and 250 hits from 1.0 m / 3.2 ft per IEC 600-2-32 with rubber boot; Withstands 600 hits from 0.5 m / 1.6 ft per IEC 600-2-32 without rubber boot |
| Particulate and Water Sealing | IP65 |
| Chemical Resistance | Chemical cleanser and industrial oil resistant (both Standard and Healthcare models) |
| Healthcare Cleanable | Isopropyl Alcohol, Hydrogen Peroxide, Clorox® Bleach; applicable for both the device and cradles |
| Temperature | Operating: -20 to 50 ºC / -4 to 122 ºFStorage/Transport: -30 to 70 ºC / -22 to 158 ºF |
| Interfaces | High Speed USB 2.0 Host and Client with USB Type C connector |
| Vibration | Software programmable for duration and intensity |
| Accellerometer | 3-Axis accelerometer to detect orientation |
| Gyroscope | Senses angular velocity |
| Ambient Light | Auto adjusts display backlight |
| Proximity | Auto deactivates display when close to face |
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. |
| Environmental Compliance | Complies to EU RoHS |
| Applications | Datalogic's SoftSpot technology for configurable soft triggers; Supports Datalogic's Queue Busting app; Pre-licensed device and browser lockdown powered by 42Gears; Enterprise class PTT offered by Zello |
| Provisioning | Android Zero Touch enrollment and QR Code or NFC Bump provisioning |
| Configuration and Maintenance | Datalogic DXU for device configuration and firmware upgrade from PC |
| Development | Java and Xamarin SDK available |
| MDM | SOTI MobiControl, VMWare AirWatch, Wavelink Avalanche, 42Gears SureMDM |
| Terminal Emulation | StayLinked SmartTE, Wavelink Velocity |
| Expansion Slots | Micro-SD card slot: Compatible with Micro SD-HC cards; Data transfer up to 48 Mbps; User-accessible; SIM SLOT MicroSIM Standard size |
| Memory | System RAM: 3 GB; eMMC Flash: 32 GB |
| Microprocessor | 2 GHz Octa-core |
| Operating System | Android v8.1 with GMS |
| Real-Time Clock | Time and date stamping under software control |
| Brand | DATALOGIC AUSTRALIA PTY LTD |
|---|---|
| Product Type | Printers & Office > POS & Barcode Scanners |
| Weight | 0.5 kg |
