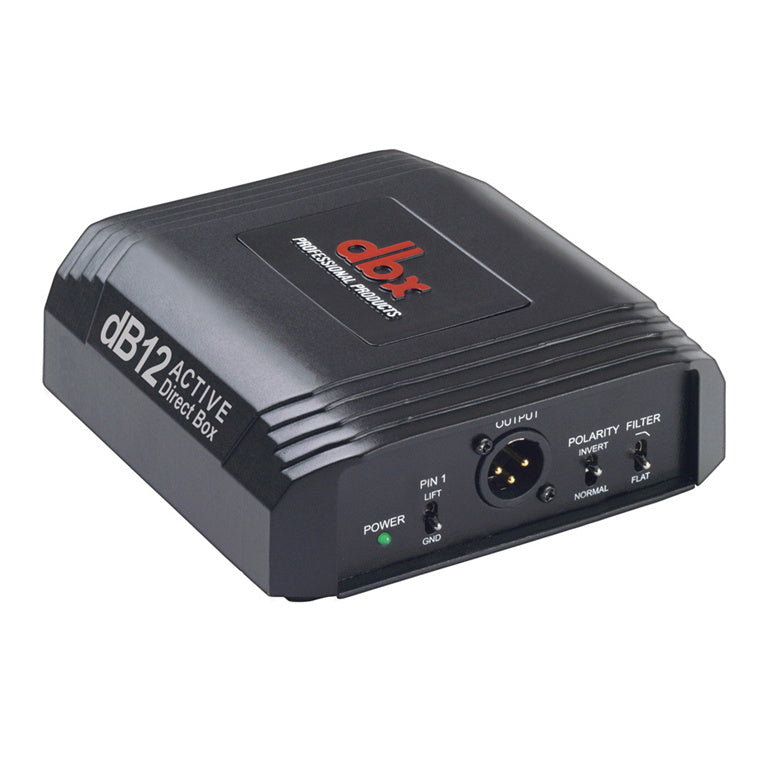

DBX DB12 - PROFESSIONAL GRADE ACTIVE DI BOX
DBX DB12 - PROFESSIONAL GRADE ACTIVE DI BOX
Features
High performance, professional grade active direct injection box housed in an industrial strength enclosure to withstand the rigors of stage performance and heavy-duty portable use.
Utilising custom dbx mu-metal-shielded audio transformers, high-quality Neutrik connectors and low-noise circuitry to preserve the sonic integrity and true characteristics of the signal source, delivering pristine, high-quality audio for professional performances and studio recordings.
DB12 includes a pad switch that accomodates instrument, line and speaker level signals. Take even more control of your sound by using the polarity invert switch to set the phase relationship between the direct and mic'd sound.
- Phantom Powered+48V Phantom Powered Operation
- Green LED Phantom Power Indicator
- Low-Noise Active Circuitry
- Premium Performance
- Rugged Design
- Stackable Chassis with Durable Rubber Foot
- Gold-plated Neutrik® XLR Connector
- Premium Chrome Toggle Switches
- Hi-Z 1/4" Input Jack
- Parallel 1/4" Thru Jack
- Transformer Isolated
- Premium Shielded Custom dbx Transformer
- Balanced XLR Lo-Z Output
- 3-Way 0/20/40 dB Pad Switch
- Flat/High-Cut Filter Switch
- Output Polarity Invert Switch
- Ground Lift Switch
Specifications
Technical Specifications
| Input | 1 instrument/line/speaker level |
|---|---|
| Connector | 1/4" jack |
| Type | Unbalanced, RF filtered |
| Impedance | 1Mohm (0dB pad)47kohm (20dB pad)47kohm (40dB pad) |
| Max Input Level | +10dBu (0dB pad)+30dBu (20dB pad)+50dBu (40dB pad) |
| Thru Output | 1 parallel connection from input jack |
| Connector | 1/4" jack |
| Type | Unbalanced, RF filtered |
| Main Output | 1 line level |
| Connector | XLR male jack |
| Type | Balanced |
| Impedance | 150ohm typical |
| Max Output Level | +8dBu into 600ohm |
| Transformer | Custom dbx mu-metal-shielded |
| Frequency Response | 20Hz to 20kHz, +/-3dB30Hz to 20kHz, +0/-1dB |
| Noise | <-105dB unweighted, 22kHz BW |
| THD | < 0.01%, 20Hz to 20kHz< 0.005%, 1kHz, 0dBu output |
| Current Drain Phantom | < 8mA |
| Phantom Power Range | +20 to +48 volts DC |
| Dimensions (L x W x H) | 5.82" x 5.44" x 2.20" (148 x 138 x 56 mm) |
| Weight | 1.4 lbs / 0.65 kg |
