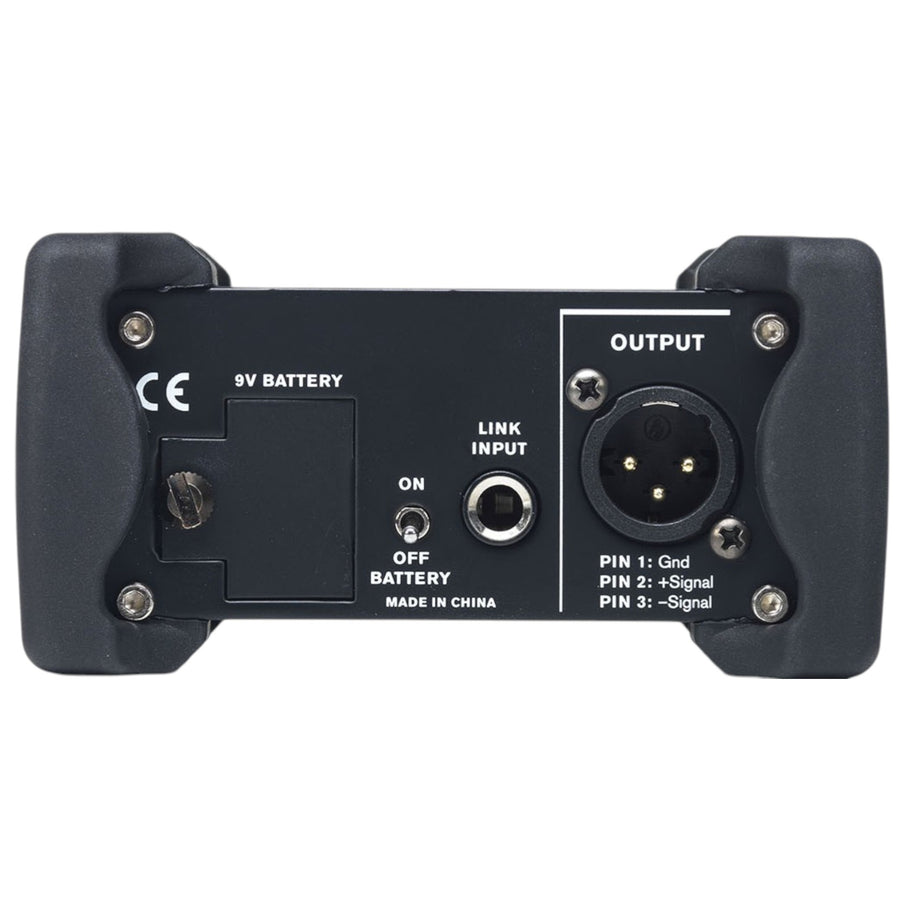

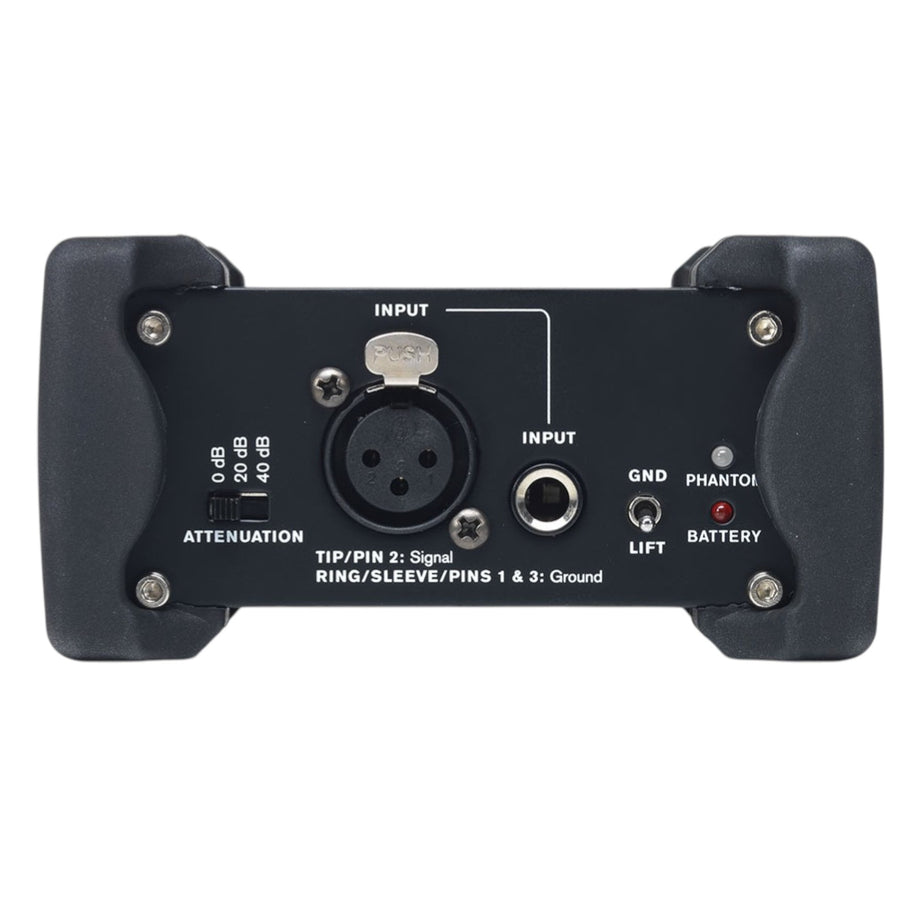

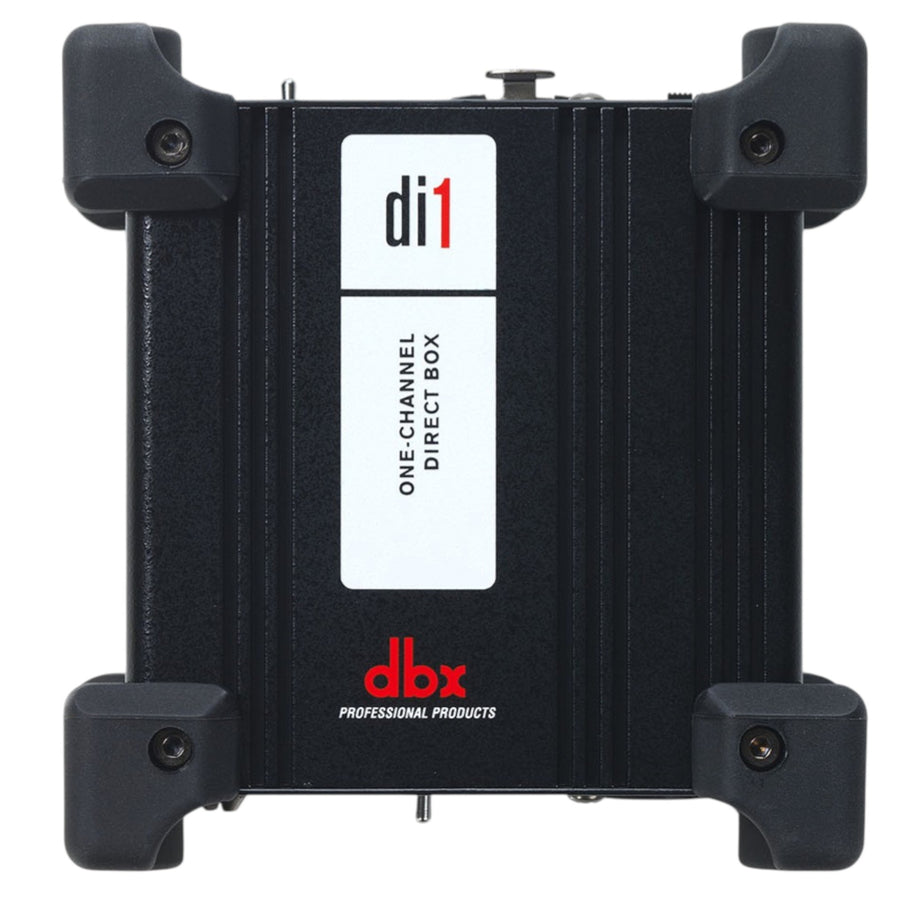

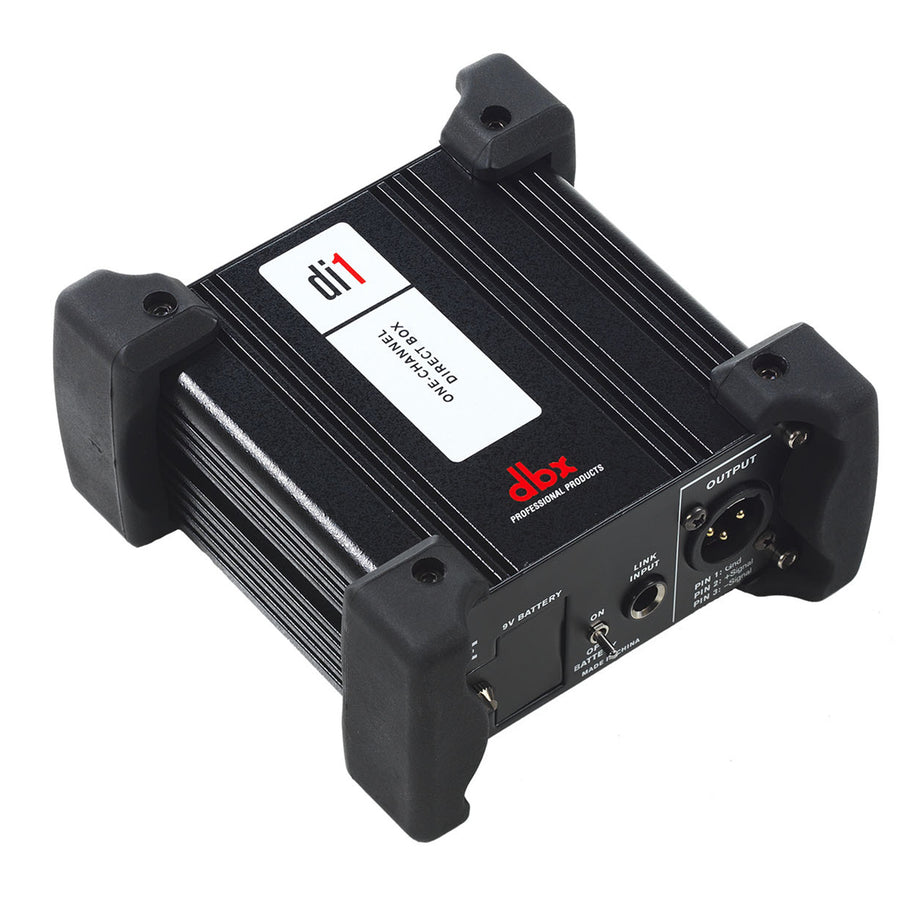

DBX DI1 - PERFORMANCE GRADE ACTIVE DI BOX
DBX DI1 - PERFORMANCE GRADE ACTIVE DI BOX
Features
The dbx DI1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the DI1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.
Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.
Built for toughness and reliability, the DI1 has all the features of a fully featured gig-ready workhorse DI unit.
- Robust build, ideal for both studios and on the road
- Accepts Phantom Power or 9 Volt battery
- Phantom/Battery LED indicator
- Matches unbalanced line level signals to balanced mic level
Specifications
Technical Specifications
| Function | Level and impedance matching |
|---|---|
| Input Connectors | TS and XLR |
| Output Connector | XLR balanced |
| Signal Pass-Through | Yes |
| Attenuation Control | Included |
| Input Impedance | >250kohm |
| Output Impedance | >600ohm |
| Maximum Input Levels | +12 dBu (at 0 dB)+32 dBu (at -20 dB)+52 dBu (at -40 dB) |
| Frequency Response | 10 Hz - 70 kHz, +0 dB / -3 dB |
| Distortion (THD) | <0.005% at 1 kHz, 0 dBu |
| Output Noise | < -100 dB (unweighted) |
| Phantom Power Range | +18 V DC to +48 V DC |
| Power Supply | 9V battery (Main/Standby) |
| Indicators | Battery status LEDPhantom power LED |
| Ground Lift Switch | Yes |
| Construction | Durable metal chassis |
