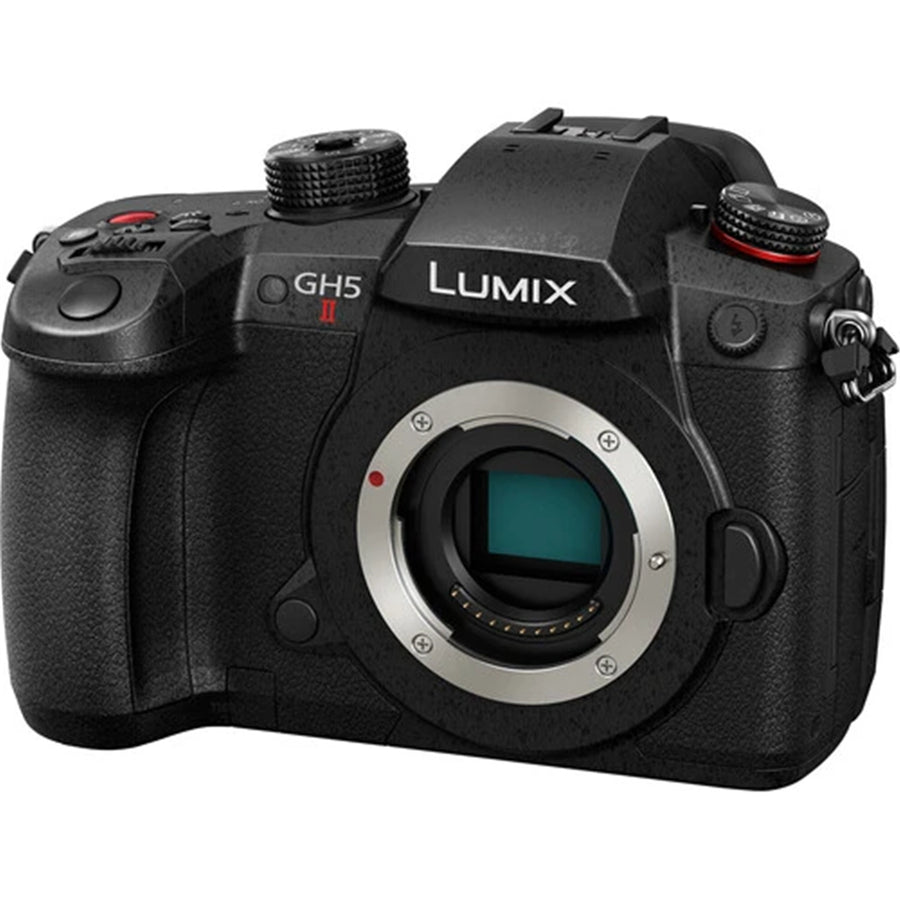

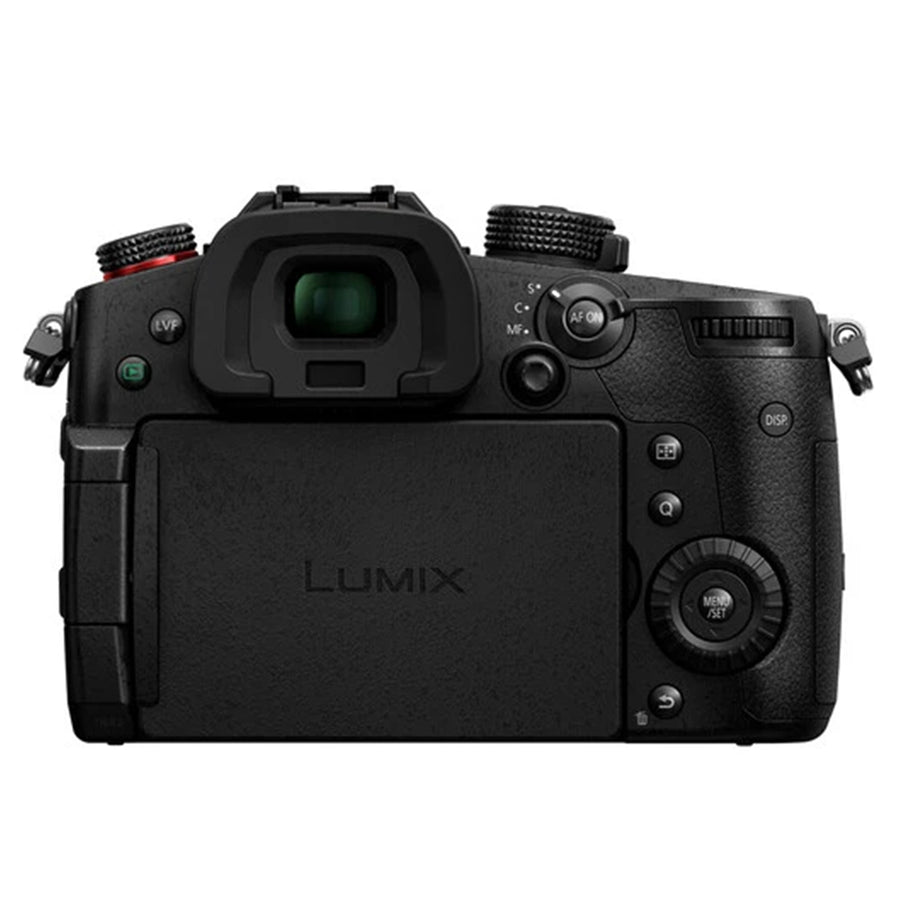

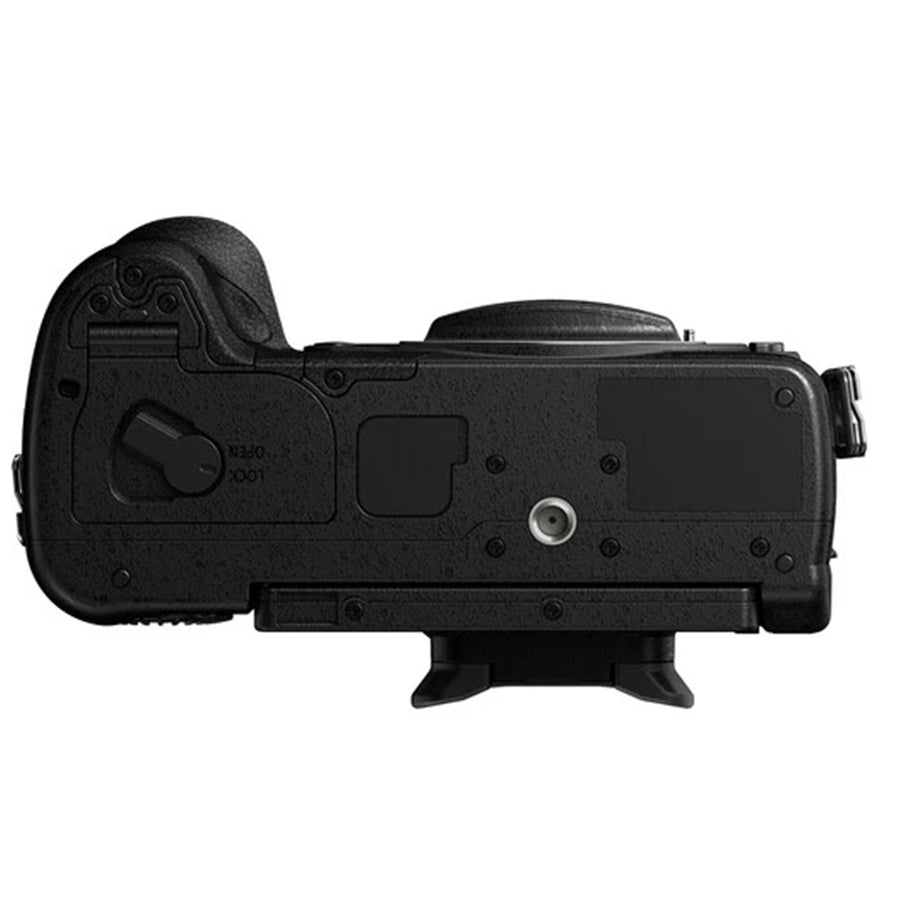

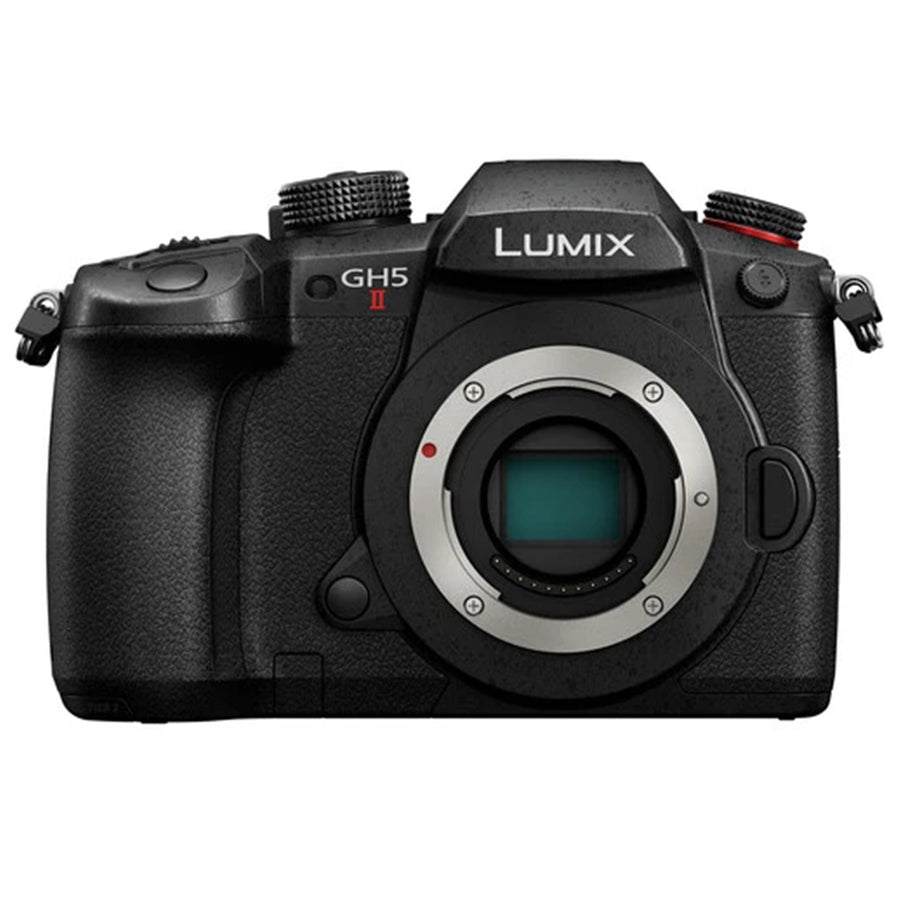

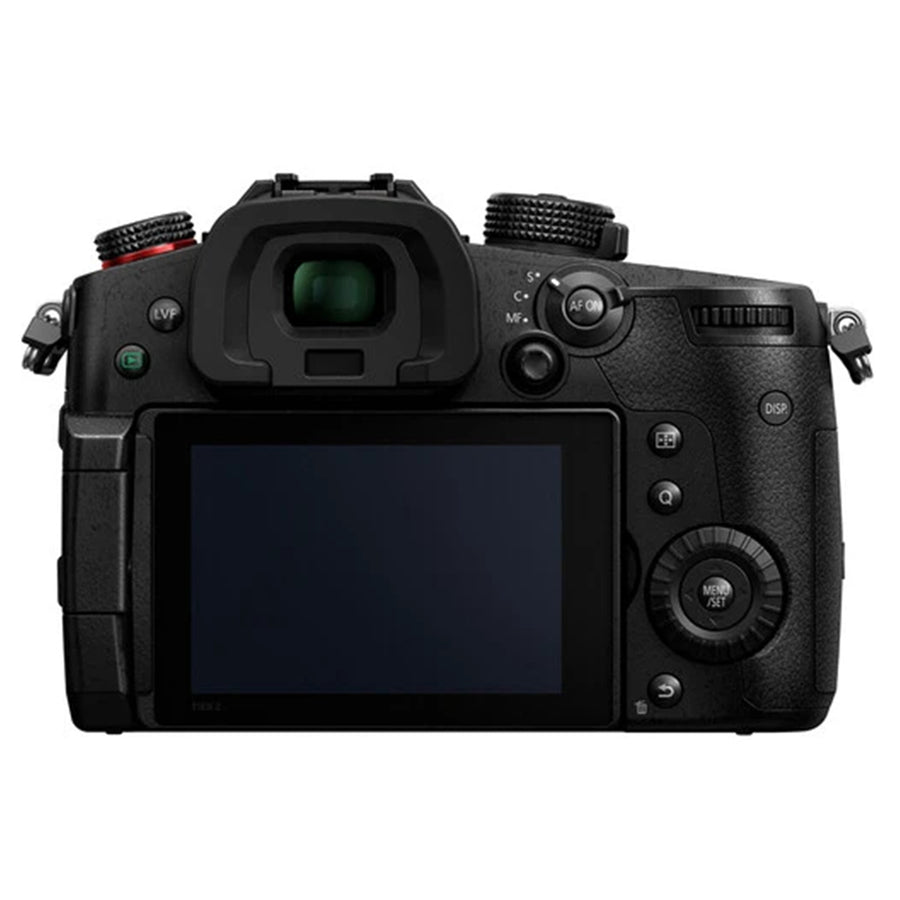

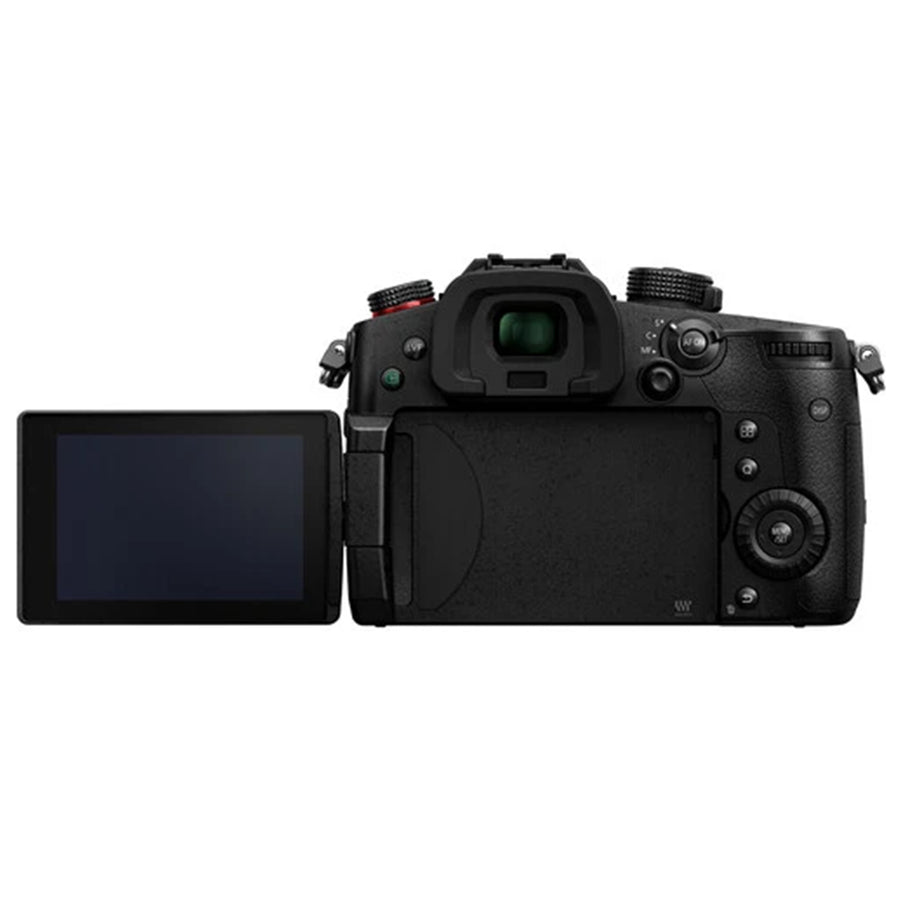

DC-GH5M2GN - LUMIX GH5 MK2 BODY

SKU: DC-GH5M2GN ● In Stock
$2,299.00
Free shipping over $299 Genuine product 7-day returns

DC-GH5M2GN - LUMIX GH5 MK2 BODY

Features

Free Your Creativity. Go Live.

Hybrid mirrorless camera featuring live streaming capability and C4K 60p/50p 10-bit video recording.



An ideal video creation tool

From streaming and delivery-ready shooting to uncompressed log recording suitable for advanced post-production. A hybrid mirrorless camera that meets the needs of all creators.



C4K/4K 60p/50p 10-bit internal/external recording

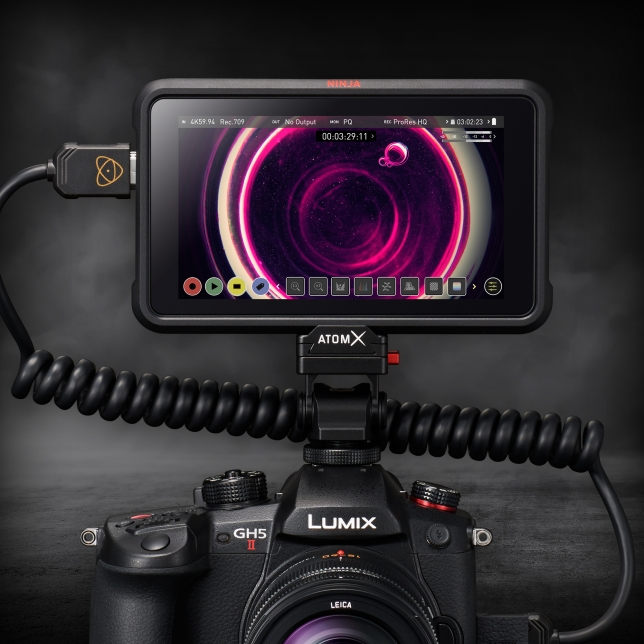

Simultaneous C4K/4K 60p/50p 4:2:0 10-bit internal recording and C4K/4K 60p/50p 4:2:2 10-bit HDMI live output external recording are supported.


・HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.



Unlimited video recording, multiple modes

The LUMIX GH5M2 offers the multiple recording modes utilized for cinema, broadcasting, and other professional applications. In addition to C4K/4K 60p/50p 4:2:0 10-bit and C4K/4K 30p/25p/24p 4:2:2 10-bit ALL-Intra 400Mbps recording, unlimited recording is offered on all settings.*


* On condition that the camera is under the environment where the operation is guaranteed and is running on the battery. Recording time depends on the capacity of the battery and the SD Memory Card. Recording may stop in C4K/4K 60p/50p 10-bit and Anamorphic mode automatically to protect the camera.



Pre-installed V-Log L

The LUMIX GH5M2 features a dynamic range of 12 stops with pre-installed V-Log L, while color graders can utilize the same LUTs they use with V-Log.



USB power supply / power charging

Convenient during long shoots in the studio and elsewhere, this feature allows you to supply power to the camera. When used in combination with the separately sold battery charger DMW-BTC15 (USB Power Delivery standard compliant), it can be charged while supplying power.*


* Battery must be installed in camera and retain some charge for feature to work.

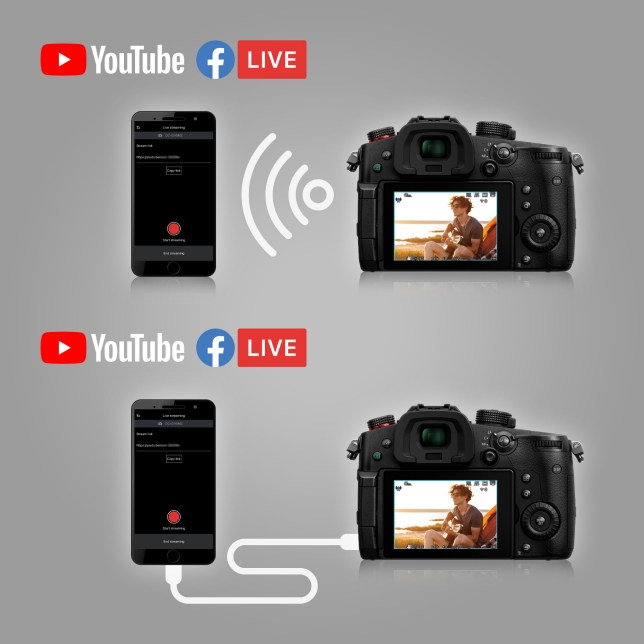

Selectable live stream methods

Wireless live streaming / USB-tethering (RTMP/RTMPS)
Easy wireless live streaming (RTMP/RTMPS protocol) by simply setting it up with the LUMIX Sync app (Android/iOS). Firmware version 1.1 adds the USB tethering function, which allows you to connect the camera to your smartphone via USB cable for live streaming. This makes it easier to ensure stable communication speed even in environments with a lot of radio interference and will enable streaming in 4K 30p/25p.

・Live streaming to the platforms that comply with RTMP/RTMPS is basically possible (Compatibility with all the platforms is not guaranteed.) There may be the cases where the live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform.
・Since the transmission speed of live streaming varies depending on the Internet environment, smartphone performance, etc., we recommend that you conduct a transmission test in advance.

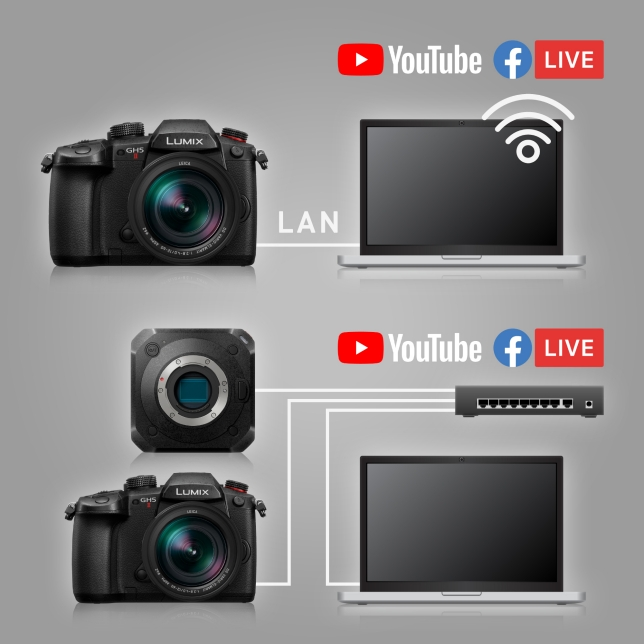

Wired live streaming (RTP/RTSP)

With Firmware version 1.1, IP streaming via wired LAN connection can be selected, increasing the convenience in indoor environments where highly stable communication is possible. By connecting the camera to a PC with a wired LAN cable, it is possible to control multiple cameras or stream high quality video and audio up to 4K 60p/50p. H.264 and H.265 codecs can be selected.


*A commercially available USB ethernet adaptor is required to convert the DC-GH5M2's USB Type C terminal to a LAN terminal. Compatibilities of USB ethernet adapter: https://panasonic.jp/support/global/cs/dsc/connect/ethernet_adp/index.html



Enhanced 20.3MP MOS sensor with AR coating

An AR (Anti Reflection) coating effectively suppresses flare to capture the expression of light as it is, even in a harsh shooting environment surrounded by strong light such as backlight, achieving high-quality visual beauty for both videos and still images.



Autofocus featuring AI technology

Features high-speed, high-precision AF, and deep learning technology for recognition of human faces, eyes, heads, and bodies, as well as animals.

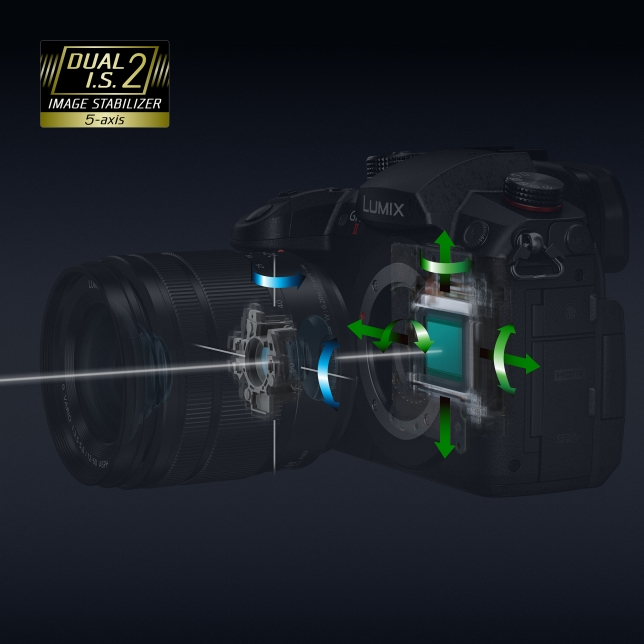

6.5-stop Dual I.S. 2 (Image Stabilizer)

5-axis Dual I.S. 2 (Image Stabilizer) combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops' worth of correction.*


* Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

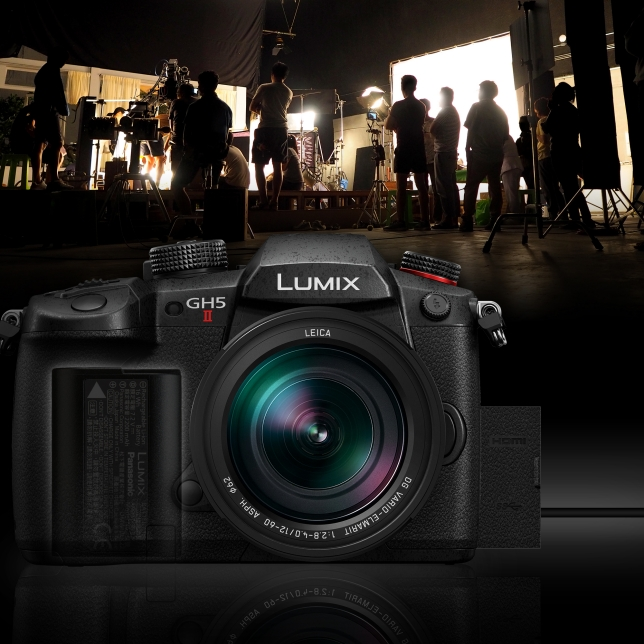

Supports a wide range of production needs

With video performance suited to a wide range of creative needs, plus flexible, high-quality fundamental performance, the LUMIX GH5M2 offers professional-level video recording and still image shooting.

Specifications

Technical Specifications

Type Digital Single Lens Mirrorless camera
Recording media SD Memory Card / SDHC Memory Card* / SDXC Memory Card**Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount Micro Four Thirds mount
Type Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels 20.33 megapixels / 21.77 megapixels
AR (Anti Reflection) coating Yes
Aspect ratio / Color filter 4:3 / Primary color filter
Dust reduction system Image sensor shift type
Latitude 12 stops (V-Log L)
Recording file format Still imageJPEG (DCF, Exif 2.31), RAW
6K PHOTO (*¹) / 4K PHOTO (*¹) 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))Extracted still images: JPEG (DCF, Exif 2.31)
Aspect ratio 4:3 / 3:2 / 16:9 / 1:1
File size (Pixels) 4:35184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)3:25184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)16:95184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)1:13888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)
Image quality RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color space sRGB, AdobeRGB
Wi-Fi ProtocolRTMP / RTMPSNTSC (59.94Hz) [FHD] 1920x108059.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.29.97p, 6Mbps / 3Mbps (H.264)NTSC (59.94Hz) [HD] 1280x72059.94p, 6Mbps (H.264)29.97p, 4Mbps (H.264)PAL (50.00Hz) [FHD] 1920x108050.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.25.00p, 6Mbps / 3Mbps (H.264)PAL (50.00Hz) [HD] 1280x72050.00p, 6Mbps (H.264)25.00p, 4Mbps (H.264)
USB Tethering (*⁴) ProtocolRTMP / RTMPSNTSC (59.94Hz) [4K] 3840x216029.97p, 12.5Mbps (H.264)NTSC (59.94Hz) [FHD] 1920x108059.94p, 16Mbps / 8Mbps (H.264)29.97p, 6Mbps / 3Mbps (H.264)NTSC (59.94Hz) [HD] 1280x72059.94p, 6Mbps (H.264)29.97p, 4Mbps (H.264)PAL (50.00Hz) [4K] 3840x216025.00, 12.5Mbps (H.264)PAL (50.00Hz) [FHD] 1920x108050.00p, 16Mbps / 8Mbps (H.264)25.00p, 6Mbps / 3Mbps (H.264)PAL (50.00Hz) [HD] 1280x72050.00p, 6Mbps (H.264)25.00p, 4Mbps (H.264)
Wired LAN (*⁴) ProtocolRTMP / RTMPSNTSC (59.94Hz) [4K] 3840x216059.94p, 50Mbps / 25Mbps (H.265)59.94p, 50Mbps / 25Mbps (H.264)29.97p, 25Mbps / 12.5Mbps (H.265)29.97p, 25Mbps / 12.5Mbps (H.264)NTSC (59.94Hz) [FHD] 1920x108059.94p, 20Mbps / 16Mbps (H.265)59.94p, 16Mbps / 8Mbps (H.264)29.97p, 12Mbps / 6Mbps (H.265)29.97p, 6Mbps / 3Mbps (H.264)NTSC (59.94Hz) [HD] 1280x72059.94p, 6Mbps (H.264)29.97p, 4Mbps (H.264)PAL (50.00Hz) [4K] 3840x216050.00p, 50Mbps / 25Mbps (H.265)50.00p, 50Mbps / 25Mbps (H.264)25.00p, 25Mbps / 12.5Mbps (H.265)25.00p, 25Mbps / 12.5Mbps (H.264)PAL (50.00Hz) [FHD] 1920x108050.00p, 20Mbps / 16Mbps (H.265)50.00p, 16Mbps / 8Mbps (H.264)25.00p, 12Mbps / 6Mbps (H.265)25.00p, 6Mbps / 3Mbps (H.264)PAL (50.00Hz) [HD] 1280x72050.00p, 6Mbps (H.264)25.00p, 4Mbps (H.264)
Type OLED Live View Finder
Pixels Approx. 3.68 million dots
Field of view / Magnification Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
Eye point / Diopter adjustment Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
Eye sensor Yes
Display speed 120fps / 60fps
Type TFT LCD monitor with static touch control
Monitor size Free-angle, 3.0-inch (7.5cm), 3:2 aspect
Pixels Approx. 1.84 million dots
Field of view Approx. 100%
Type Contrast AF system
DFD technology Yes
Focus mode AFS (Single) / AFC (Continuous) / MF
AF mode Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3(Full area touch is available) (Scalable AF frame size and flexible AF position)
AF detective range EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light Yes
AF lock Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking Yes / Yes
Focus Ring Control Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720° (*⁴) / 1080°/ Maximum (*⁴)) *When a compatible lens is attached.
Others Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume
Light metering system 1,728-zone multi-pattern sensing system
Light metering mode Multiple / Center Weighted / Spot / Highlight Weighted
Metering range EV0-18 (F2.0 lens, ISO100 equivalent)
Recording mode Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto
ISO sensitivity (Standard output sensitivity) Still image: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture)
AE lock Set the Fn button in custom menu to AE lock
White balance AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment Blue/Amber bias, Magenta/Green bias
Color temperature setting 2500-10000K in 100K
Type Focal-plane shutter
Shutter speed Still image: Bulb (Max. 30 minutes), 1/8,000 - 60Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60Motion picture: 1/16,000 - 1/25Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
AE bracket 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket 3, 5 or all positions
Focus bracket 1 to 999 images, focus steps can be set in 10 levels
White balance bracket 3 images in blue/amber axis or in magenta/green axis, color temperature setting
Burst speed Mechanical shutter / Electronic front curtain shutterAFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)Electronic shutterAFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)AFC: H: 7 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images RAW / RAW+JPEG: More than 108 imagesJPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.)*When recording is performed under the test conditions specified by Panasonic.
6K PHOTO (*¹) / 4K PHOTO (*¹) Burst speed6K PHOTO: 30 frames/sec4K PHOTO: 60 frames/sec, 30 frames/secExif informationYes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
LIVE VIEW COMPOSITE (*⁴) Yes
TIME LAPSE SHOT Yes
STOP MOTION ANIMATION Yes
Flash type TTL External Flash (sold separately)
Flash mode Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment 1/3EV step ±3EV
Synchronization speed Less than 1/250 second
Wireless control Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket Yes
EXTRA TELE CONVERSION 2.0x (EX S), 1.4x (EX M) *Only for still image recording.
Photo Style Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10
Picture adjustment Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB*Adjustable settings vary depending on the Photo Style mode.
FILTER Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine**For photos only.
Master pedestal level 31 steps
Luminance level 8-bit: 0-255 / 16-235 / 16-25510-bit: 0‒1023 / 64‒940 / 64‒1023
Wave form monitor / Vectorscope Selectable
LUT view assist Monitor / HDMI
HLG view assist Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Synchro scan Yes
Time code Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)
SS/Gain operation Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Color bars / 1kHz test tone Yes (SMPTE / EBU / ARIB) / Yes
Knee control Yes (in Like709 mode)
Other functions Red REC Frame Indicator, Streaming Blue Frame Indicator,
VERTICAL POSITION INFORMATION Still image / Motion picture (ON/OFF)
LEVEL GAUGE Yes
REC Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Motion Pic. Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / Off (Disable Press and Hold) / Restore to Default
PLAY Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default
PRINT PictBridge compatible

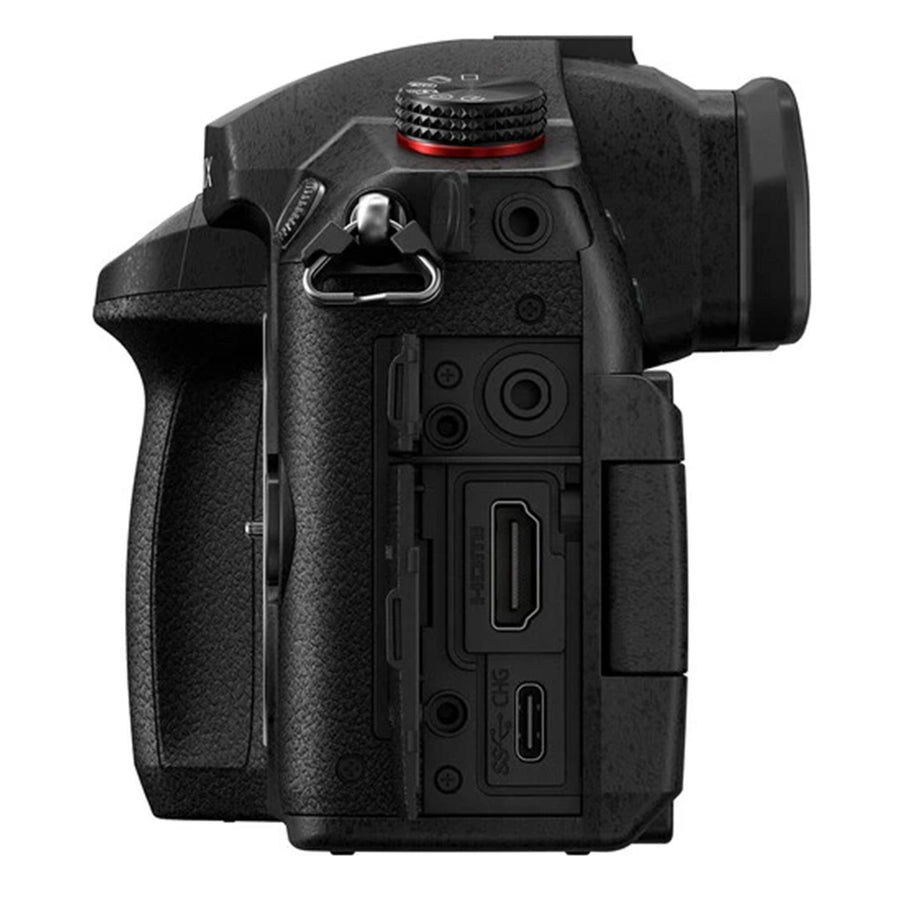

USB SuperSpeed USB 3.1 Gen1 Type-C
HDMI (*²) HDMIHDMI TypeAAudio: StereoMonitor-through4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)Down Convert: Auto / 4K / 1080p / 1080i / OFFPlayback59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p24.00Hz: Auto / C4K/24p / 4K/24p / 1080p
Remote input φ2.5mm
Microphone Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
External microphone / external audio device input φ3.5mm for external microphone / external audio deviceMIC (Plug-in Power) / MIC / LINE is selectable.Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
XLR microphone Yes with DMW-XLR1 (sold separately)
Speaker Monaural
Headphone output φ3.5mm

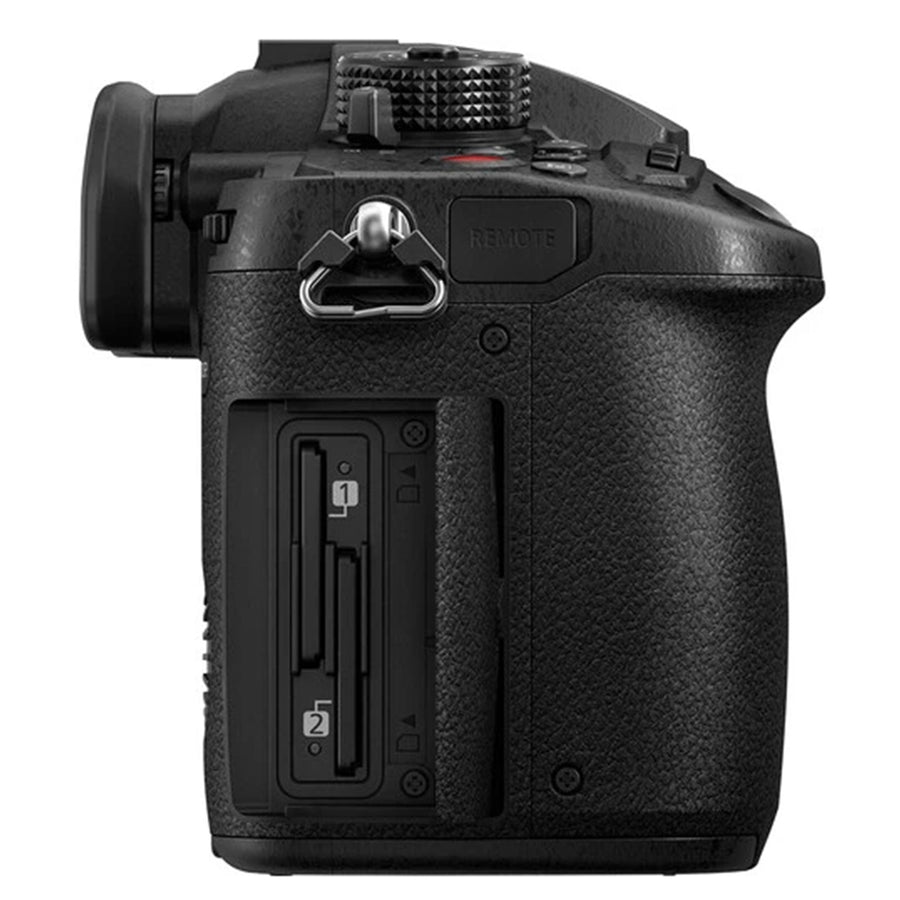

SD card slot Slot 1, Slot 2
Wi-Fi 2.4GHz (STA/AP) (IEEE802.11b/g/n)5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
Bluetooth Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT* Yes.*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
Battery Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery Battery life (CIPA standard)Approx. 400 images, 1200 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22Approx. 410 images, 1200 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture) (*¹) MP4 [4K/60p]: Approx. 120 min with H-ES12060 / H-FS12060MP4 [FHD/60p]: Approx. 140 min with H-ES12060 / H-FS12060
Actual recordable time (Motion picture) (*¹) MP4 [4K/60p]: Approx. 60 min with H-ES12060 / H-FS12060MP4 [FHD/60p]: Approx. 70 min with H-ES12060 / H-FS12060
Battery grip DMW-BGGH5 (sold separately)
Dimensions (W x H x D) Approx. 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions)
Weight Approx. 727g / 1.60 lb (SD Memory Card x 1, Battery, Body)Approx. 647g / 1.43 lb (Body only)
Operating temperature (*³) -10oC to 40oC (14oF to 104oF)
Operating humidity 10%RH to 80%RH
