DEEPCOOL CG530U 4F Tempered Glass ATX Mid Tower Case With Curved Glass Panel - Black
You May Also Like
ADATA XPG CORE REACTOR II VE 750W 80 Plus Gold ATX 3.1 Full Modular Power Supply
Plaud AI Note Taker NotePin S - Silver The most wearable AI note taker with lanyard, wristband, magnetic pin & clip
Features

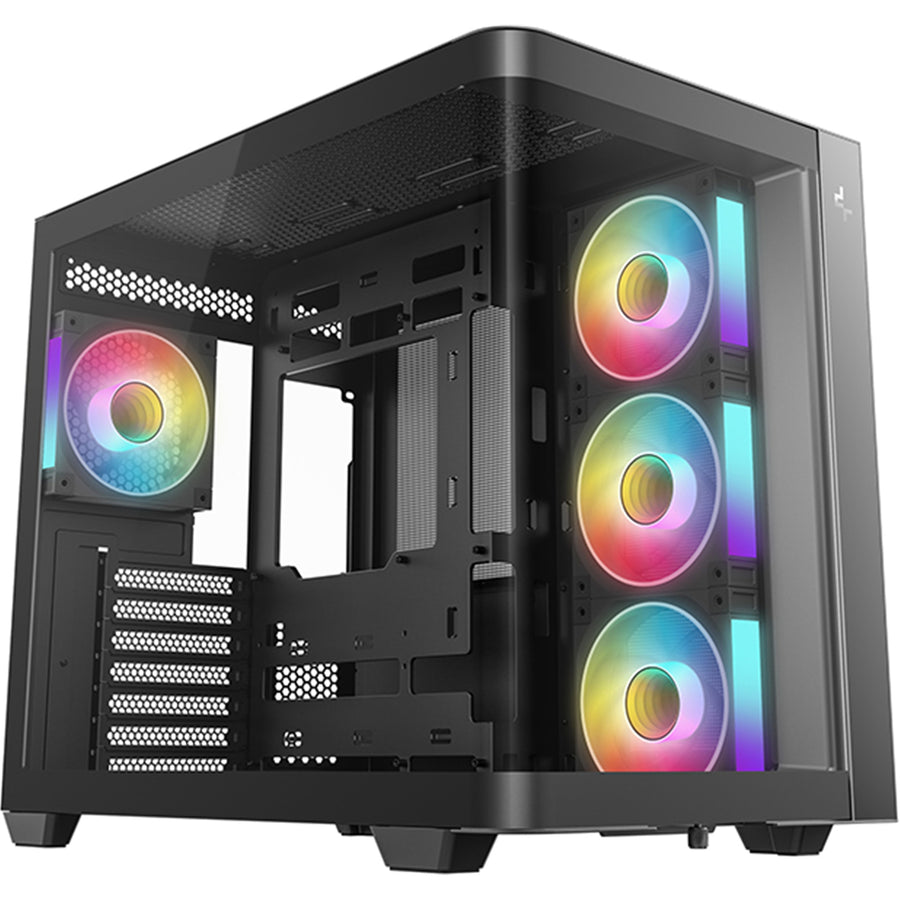

CG530U 4F - CURVED GLASS SHOWCASE
The CG530U 4F is a curved-glass panoramic case built on a dual-chamber design. Pre-installed with four ARGB fans, it comes ready for effective airflow and lighting.
SEAMLESS PANORAMIC VIEW
The CG530U 4F features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within.
READY TO FLOW

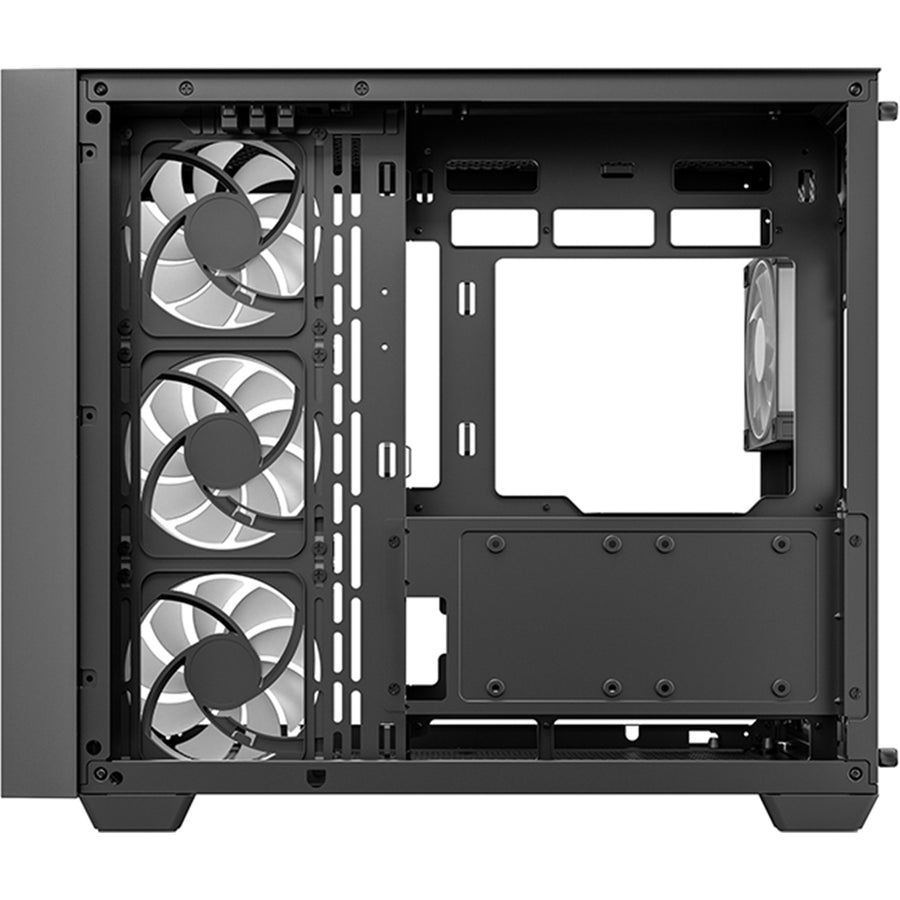

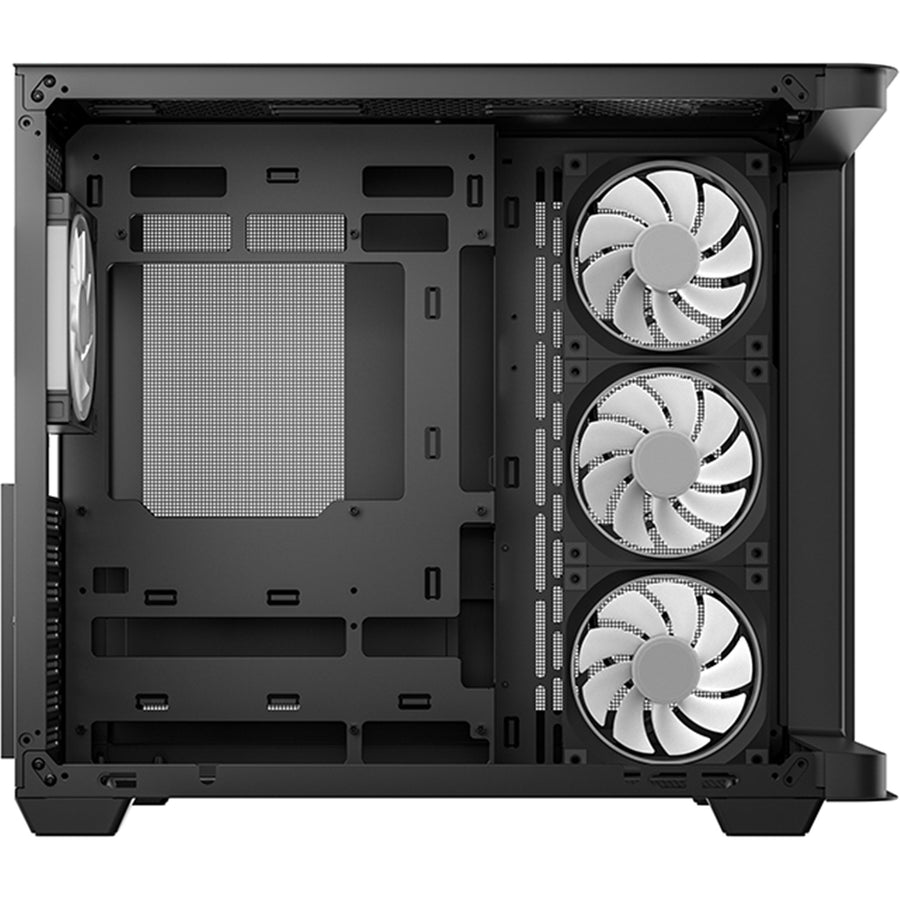

Four ARGB fans come pre-installed with three reverse-blade units on the side and one standard fan at the rear. The balanced intake and exhaust setup provides strong airflow and reliable cooling from the start.
EFFICIENT VENTILATION
A dual-chamber layout isolates the power supply and storage drives from the main airflow. Large mesh panels maximize ventilation, with side-mounted reverse intake fans drawing in fresh air and the rear fan exhausting heat, creating a direct horizontal airflow path across the case.
MAXIMUM COOLING CAPABILITIES
Never fear the heat with CG530U 4F's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.
Radiator Support:
Top: 120/140/240/280/360mm
Side: 120/140/240/280mm
Bottom: 120/240/360mm
Fan Support:
Top: 3x120mm / 2x140mm
Side: 3x120mm / 2x140mm
Rear: 1x120mm
Bottom: 3x120mm / 3.5 HDD+2x120mm / 2.5 SSD+2x120mm
BROAD HARDWARE SUPPORT
Built to handle demanding hardware, the CG530U 4F supports CPU coolers up to 160mm tall, GPUs up to 410mm long, and PSUs up to 210mm, offering broad compatibility for high-performance builds.
DETAILS THAT MATTER
Supports M-ATX and ATX reverse connector motherboards
45mm clearance for cable management
Top and bottom dust filters included

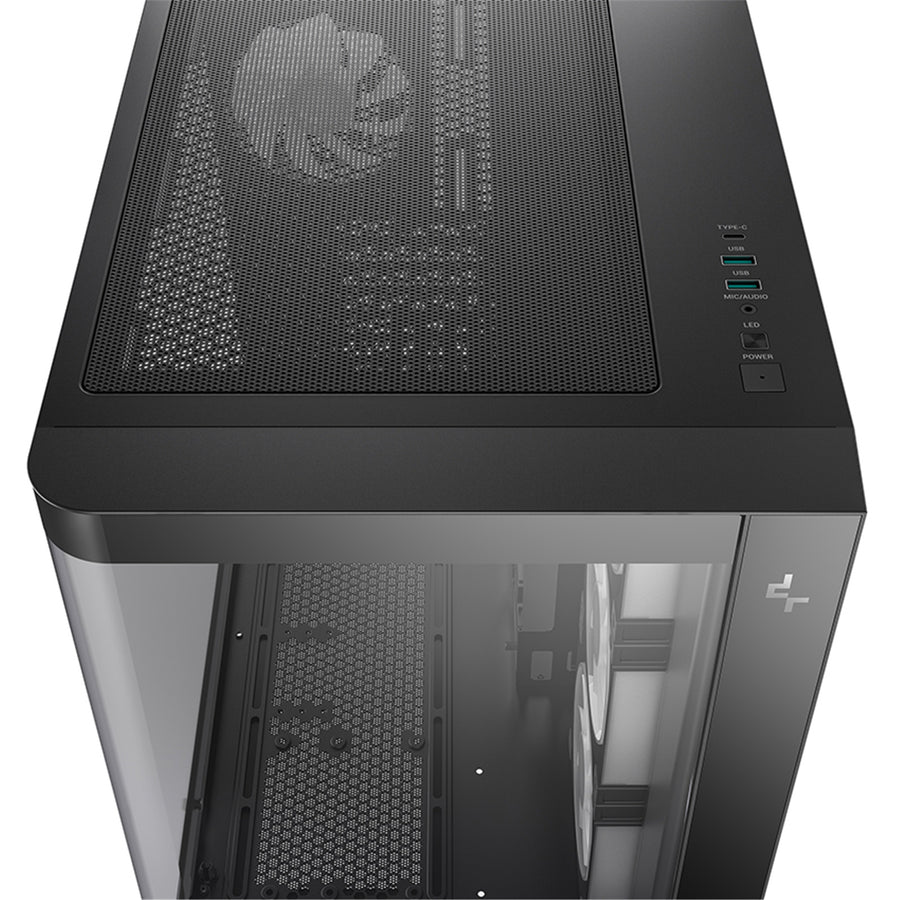

EASY I/O ACCESS
The top I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.
Specifications
Technical Specifications
| Product Dimensions | 475×285×380mm(L×W×H) |
|---|---|
| Net Weight | 7.3kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX/Micro-ATX/ATXATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0 x2,Gen2 Type-C x1,Audio/Mic x1,LED |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Side: 3×120mmRear: 1×120mm |
| Fan Support | Front: NATop: 3×120mm/2x140mmSide: 3×120mm/2x140mmRear: 1×120mmBottom: 3×120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mm |
| Radiator Support | Front: NATop: 120/140/240/280/360mmSide: 120/140/240/280mmBottom: 120/240/360mm |
| CPU Cooler Height Limit | 160mm |
| GPU Size Limit | 410mm |
| Power Supply Type | ATX PS2 (maximum length: 210mm)/SFX/SFX-L |
| P/N | R-CG530U-BKAGA4-G |
| Brand | DEEPCOOL |
|---|---|
| Weight | 8.8 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
