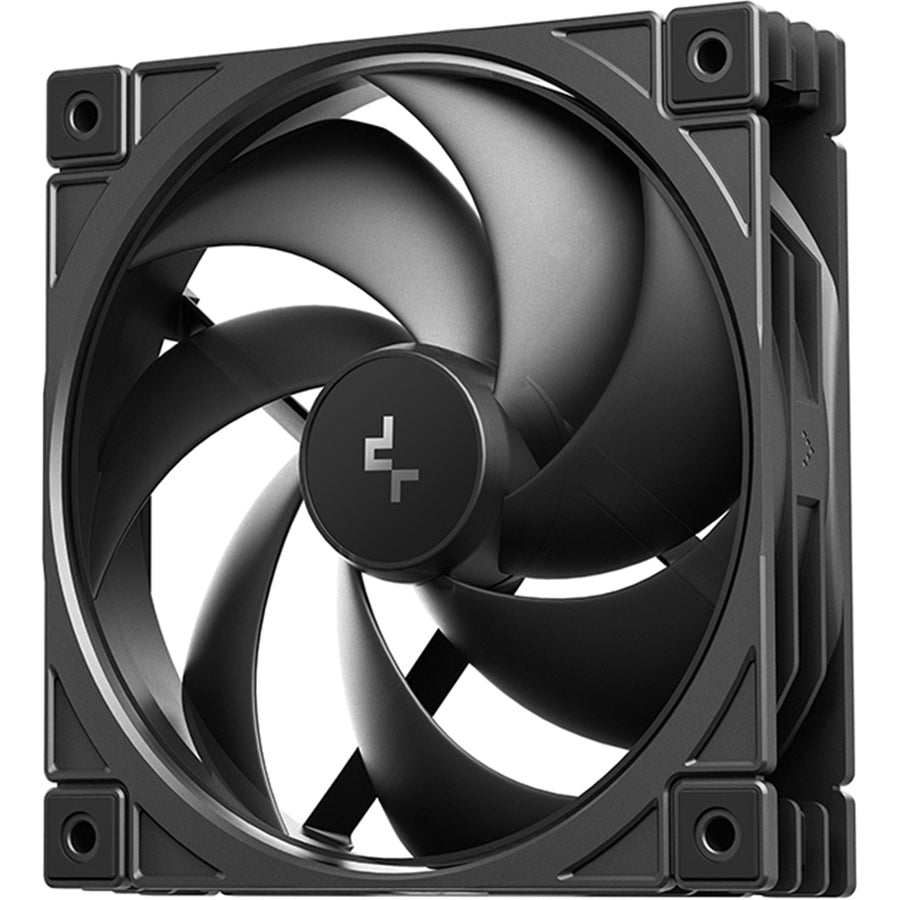

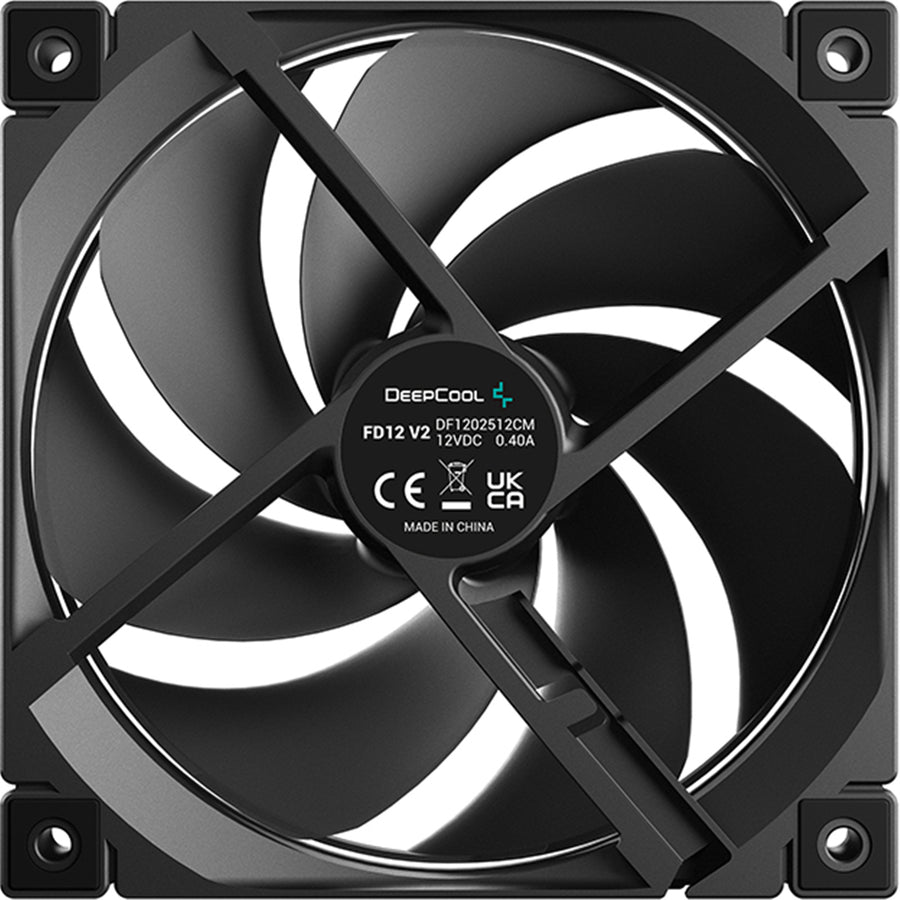

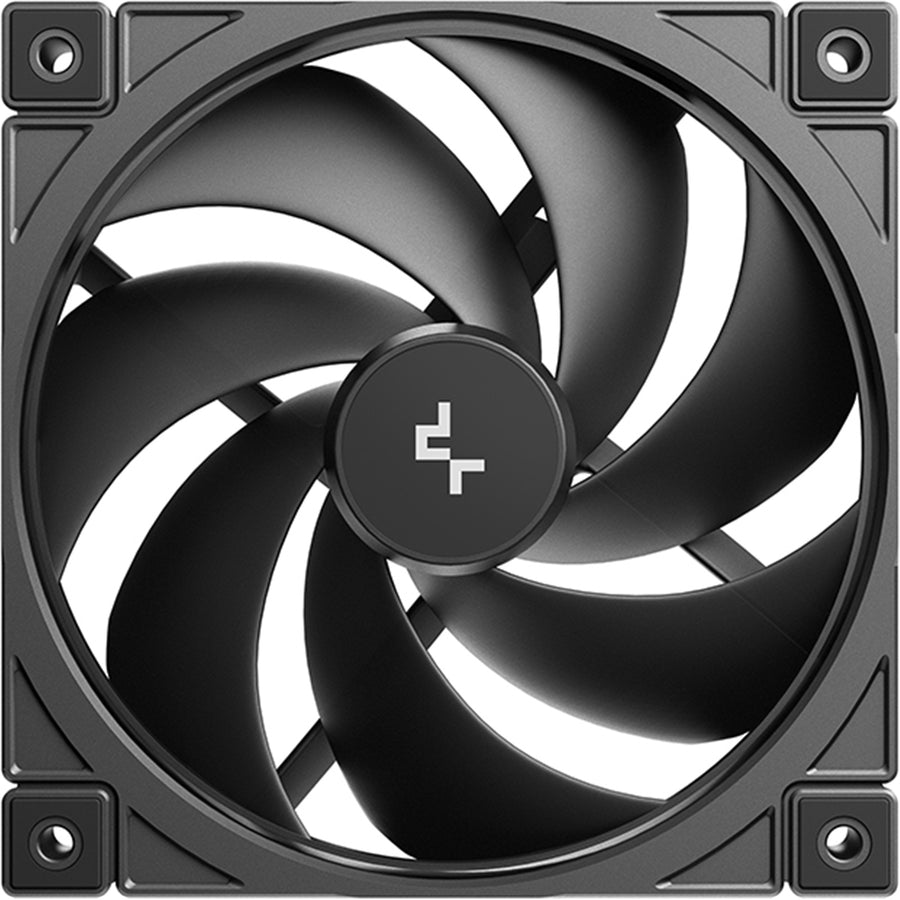

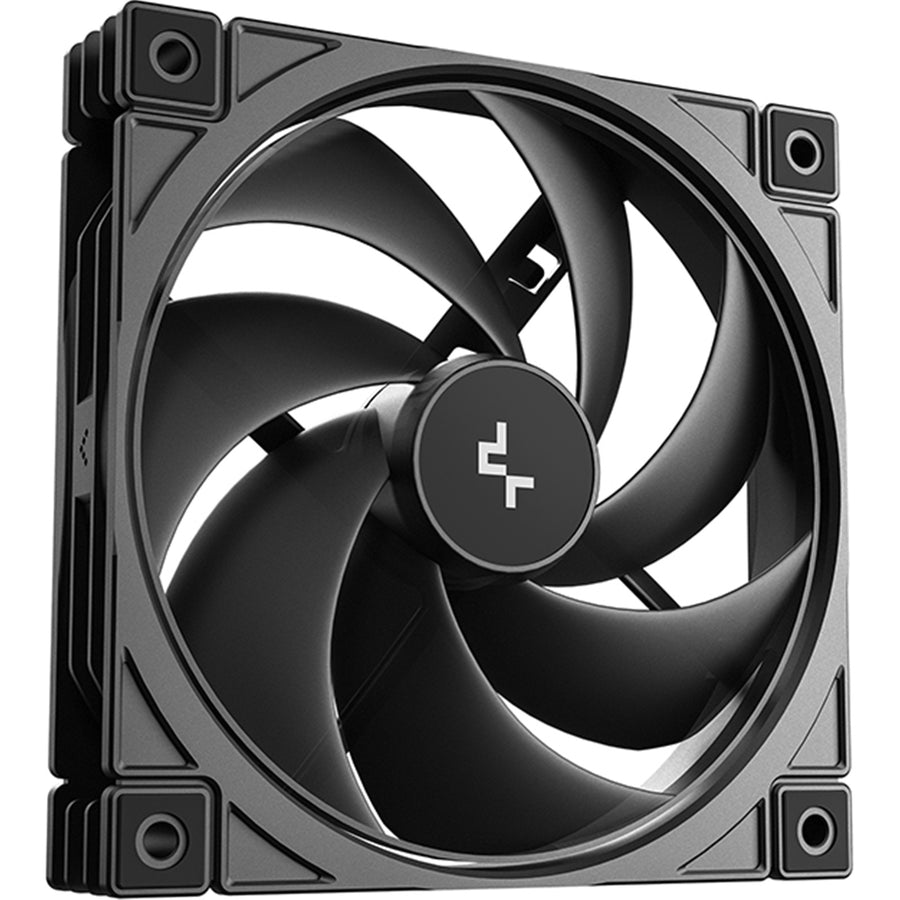

DEEPCOOL FD12 V2 Black 120mm PWM Case Cooling Fan,

FD12 V2 - SILENT STRENGTH

The new DeepCool FD12 V2 performance fans are the next evolution of the popular FD12 cooling fans. Revamped with a performance semi-integral fan blade design and tuned aerodynamic engineering ensuring power without the din.

NEXT WAVE OF SEMI-INTEGRAL COOLING

Optimized for performance and acoustics, the semi-integral blade structure for each of the FD V2 fans closes the blade-frame gap to reduce noise, boosts air pressure, and provides reinforced blade strength for better durability and less vibration.

ENGINEERED FOR ELITE PERFORMANCE

The FD12 V2 delivers extraordinary air pressure by reducing the central control area's dead zone, and significant increases in the system's performance. Its enlarged fan blades enhance airflow and static pressure, enabling the system to handle even the most demanding applications with ease.

COOLING YOU CAN TRUST

Equipped with a 3-Phase, 4-Pole, and 6-Slot motor and a long-life hydro bearing. The FD12 V2 PWM fans boast exceptional cooling specs while remaining relatively quiet.

500-2500 RPM ±10%
<5% PWM (PWM Stop Duty Cycle)
>10% PWM (PWM Start Duty Cycle)
Fan Speed

79.89 CFM
Fan Airflow

4.15 mmAq
Fan Air Pressure

≤35.66 dB(A)
Noise Level In Front

≤32.32 dB(A)
Noise Level On The Side

ENHANCED MATERIALS

By utilizing an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades, the entire fan assembly is extremely consistent and has a quieter overall sound profile.

REDUCED VIBRATIONS

Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.
