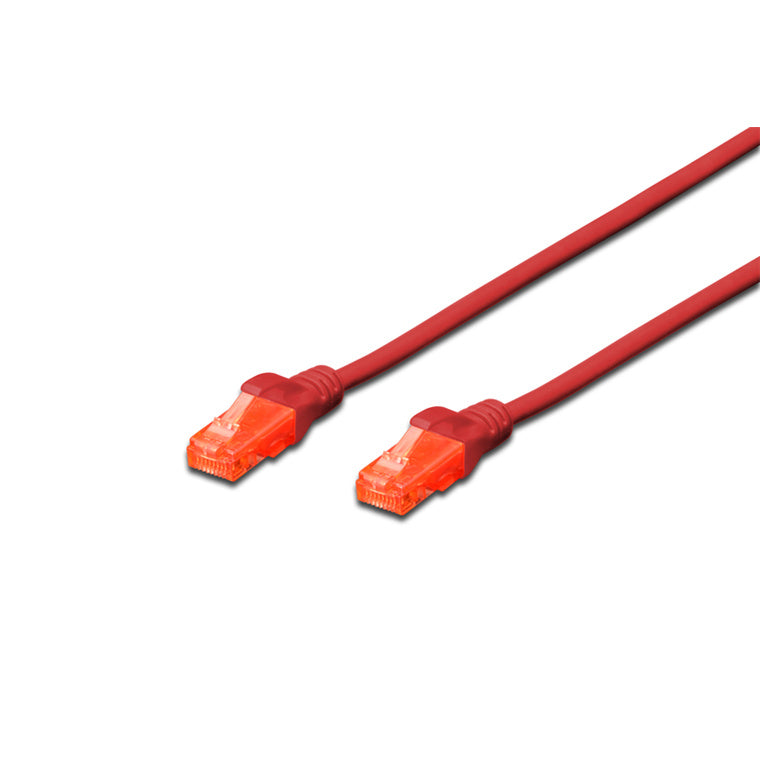

Digitus DK-1617-050/R Cat6 UTP Patch Lead - 5m - Red
Features
CAT 6 U-UTP patch cable, Cu, LSZH AWG 26/7, length 5 m, color red
Future-oriented standards and high-end quality for your network.
- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.
- Transparent red colored plug for easy identification of Category 6 (250 MHz)
- Conductor: Copper (Cu)
- PoE+ ready
The DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk ("NEXT"). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.
Specifications
Technical Specifications
| Special: | 2x RJ45 (8P8C) connectorsBoots with kink protection, strain relief and latch protectionLength marking on boot |
|---|---|
| Conductor: | Copper (Cu) |
| Cable type: | U/UTP |
| Category: | 6 |
| Length: | 5 m |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| Colour outer sheath: | Red |
| Anti-kink sleeve: | Moulded-on |
| Locking lever: | yes |
| Colour anti-kink sleeve: | Red |
| Fire retardant version: | yes |
| Halogen free: | yes |
| Oil resistant (acc. EN 60811-404): | no |
| Cable construction: | 4x2 |
| AWG-size: | 26 |
| Pin assignment: | 1:1 |
| NVP value: | 69 % |
| Brand | Digitus |
|---|---|
| Product Type | PC Peripherals |
