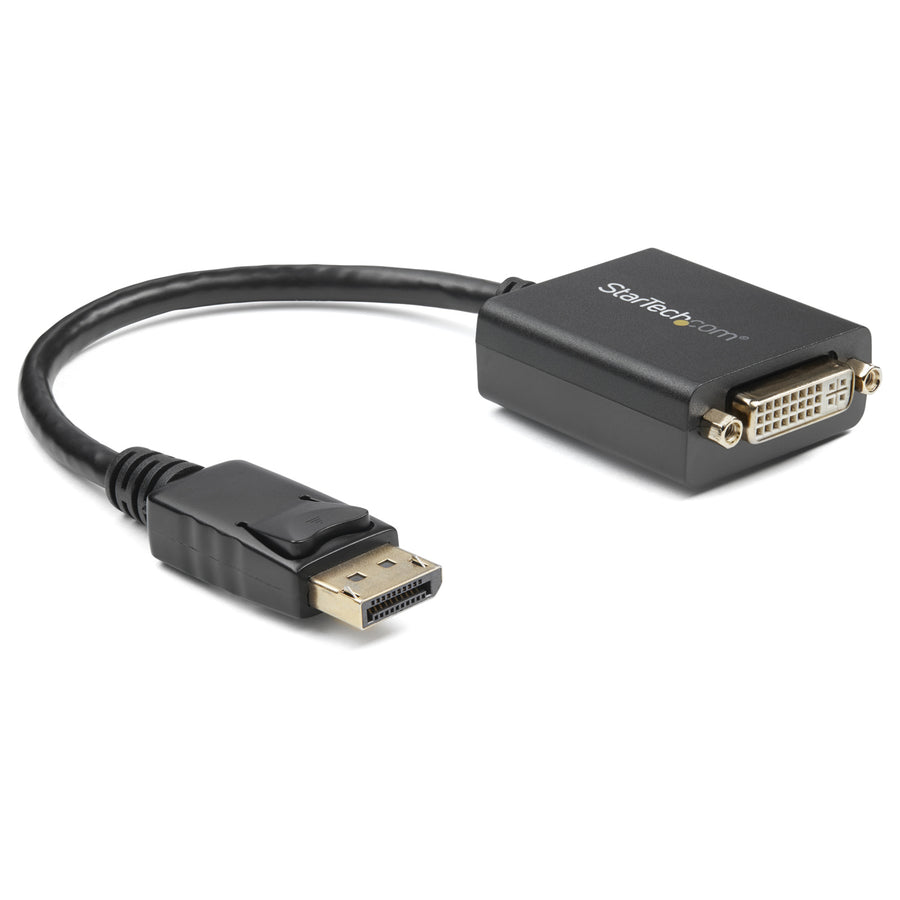

StarTech.com DP2DVI2 1920x1080 DisplayPort to DVI Adapter
Features

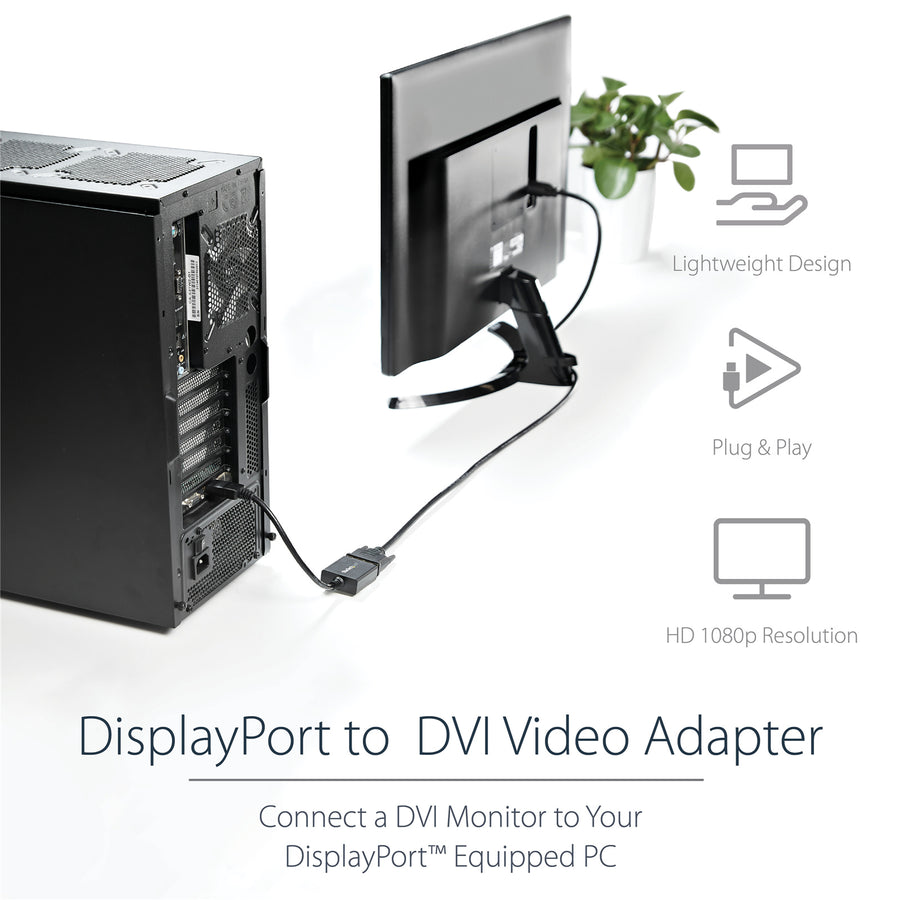

Connect your DVI monitor to a DisplayPort equipped computer
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector | 1920x1200/1080p 60Hz; HDCP 1.4 | 6" (15cm) attached cable | DisplayPort Certified
- COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter | Tested w/ DVI cables up to 25ft | EDID & DDC pass-through ensure compatibility between source & display
- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection | Compact design
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS | DisplayPort male to DVI female adapter dongle | Connector is DVI-I, however only a digital signal (DVI-D) passes through
The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.
Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Applications
- Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
- Keep your existing DVI monitor to be used with your new DisplayPort device
- Ideal for using your DVI monitor as a secondary display
Specifications
Technical Specifications
| Connector A | 1 - DisplayPort (20 pin) |
|---|---|
| Connector B | 1 - DVI-I (29 pin) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
| Humidity | 10%-85%RH |
| Active or Passive Adapter | Passive |
| AV Input | DisplayPort - 1.2 |
| AV Output | DVI-I (Digital Only) - Single-Link |
| Audio | No |
| Package Height | 1.0 in [2.5 cm] |
| Package Length | 7.8 in [19.7 cm] |
| Shipping (Package) Weight | 1.8 oz [50.0 g] |
| Package Width | 7.7 in [19.6 cm] |
| Package Quantity | 1 |
| Audio Specifications | DVI - No Audio Support |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Supported Resolutions | 1920x1080 (1080p)1680x1050 (WSXGA+)1600x12001600x9001440x9001400x1050 (SXGA+)1366x7681360x7681280x10241280x9601280x8001280x768 (WXGA)1280x720p (720p)1280x6001152x8641024x768800x600 (SVGA)640x480 (480p) |
| Wide Screen Supported | Yes |
| Weight of Product | 1.5 oz [43.0 g] |
| Color | Black |
| Cable Length | 6.0 in [152.4 mm] |

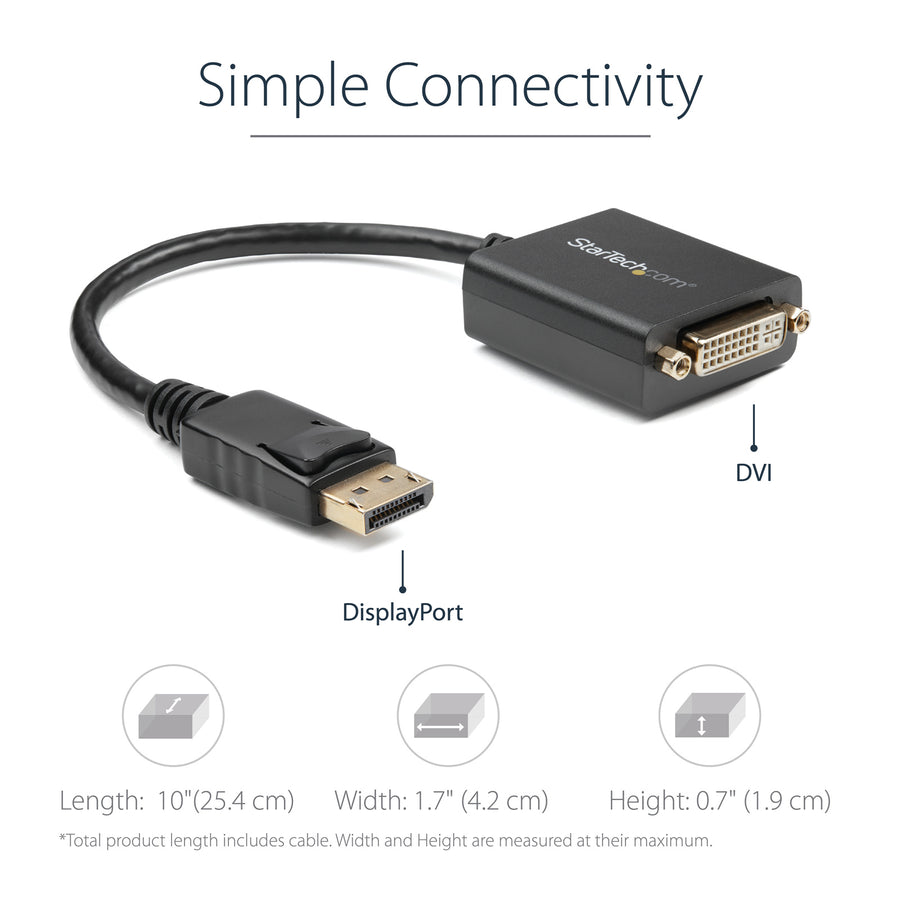

| Product Length | 10.0 in [25.4 cm] |
| Product Width | 1.7 in [4.2 cm] |
| Product Height | 0.7 in [1.7 cm] |
| System and Cable Requirements | DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) |
| Included in Package | 1 - DisplayPort to DVI Converter |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 0.042 kg |
