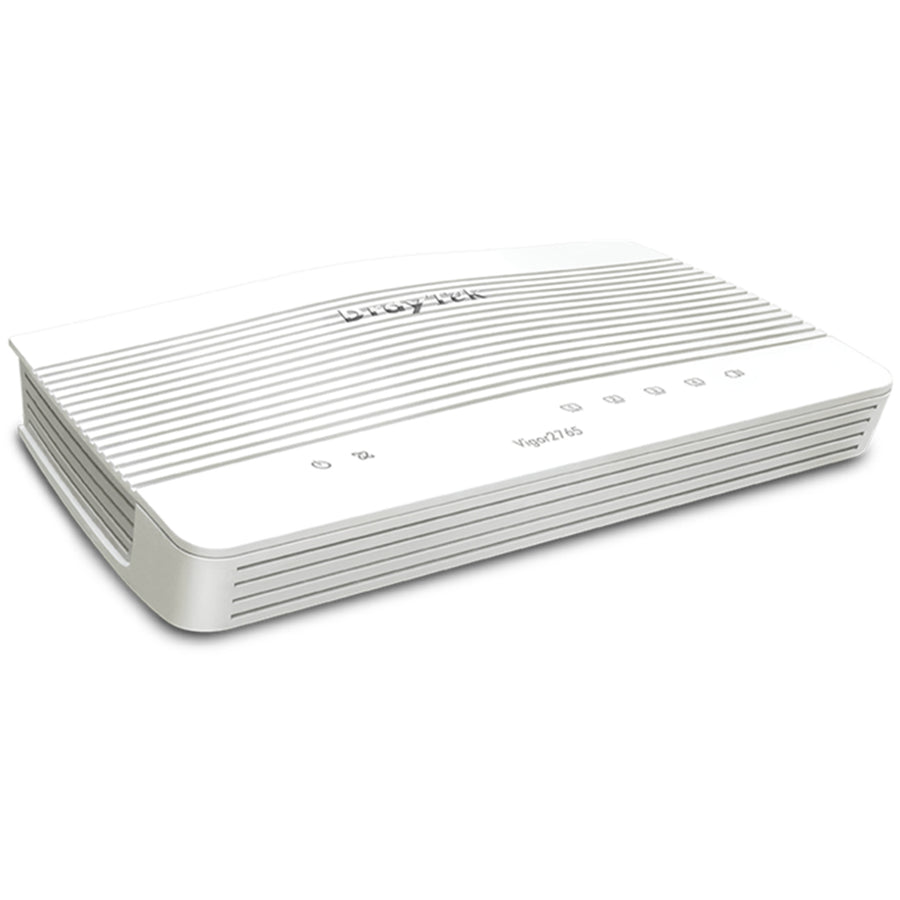

DrayTek DV2765 - VDSL/ADSL/UFB Router Firewall VPN
DrayTek DV2765 - VDSL/ADSL/UFB Router Firewall VPN
Features
The DrayTek Vigor2765 Series is a VDSL2 35b supervectoring modem, a firewall, and a VPN router. The router has 4x GbE LAN ports, one of which is switchable to be a backup WAN interface. It's highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more, perfect for professional users who would like to take full control of the network. This series of routers includes models with built-in 11ac Wave 2 Wi-Fi and VoIP gateway.
- Fixed WAN Port : 1x RJ-11 for VDSL2 35b or ADSL2/2+
- LAN/WAN Switchable Port : 1x 10/100/1000Base-T, RJ-45 (P4)
- Fixed LAN Port : 3x 10/100/1000Base-T, RJ-45
- USB Port : 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
- VDSL2 35b Download speed up to 300 Mbps
- 600 Mbps Max. NAT Throughput
- 2 VPN - Support IKEv2, SSL VPN, and OpenVPN
- 50k Sessions - Recommended for a network of 30 hosts
Specifications
Technical Specifications
| Fixed WAN Port | 1x RJ-11 for VDSL2 35b or ADSL2/2+ |
|---|---|
| LAN/WAN Switchable Port | 1x 10/100/1000Base-T, RJ-45 (P4) |
| Fixed LAN Port | 3x 10/100/1000Base-T, RJ-45 |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| VDSL Standards | ITU-T G.993.2 Annex A/B/M/Q (up to Profile 35b but excluding 30a) T1.424, ITU-T G.993.5 (Vectoring) |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (not G.Fast) |
| ADSL Standards | ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2 |
| Other Standards | ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission) |
| Band Plan | 998, 997 |
| Power Supply | DC 12V @ 1.5A-2A |
| Max. Power Consumption | 21.6 watts |
| Dimension | 207mm x 131mm x 42mm |
| Weight | 500g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
