-18%
DYNAMIX

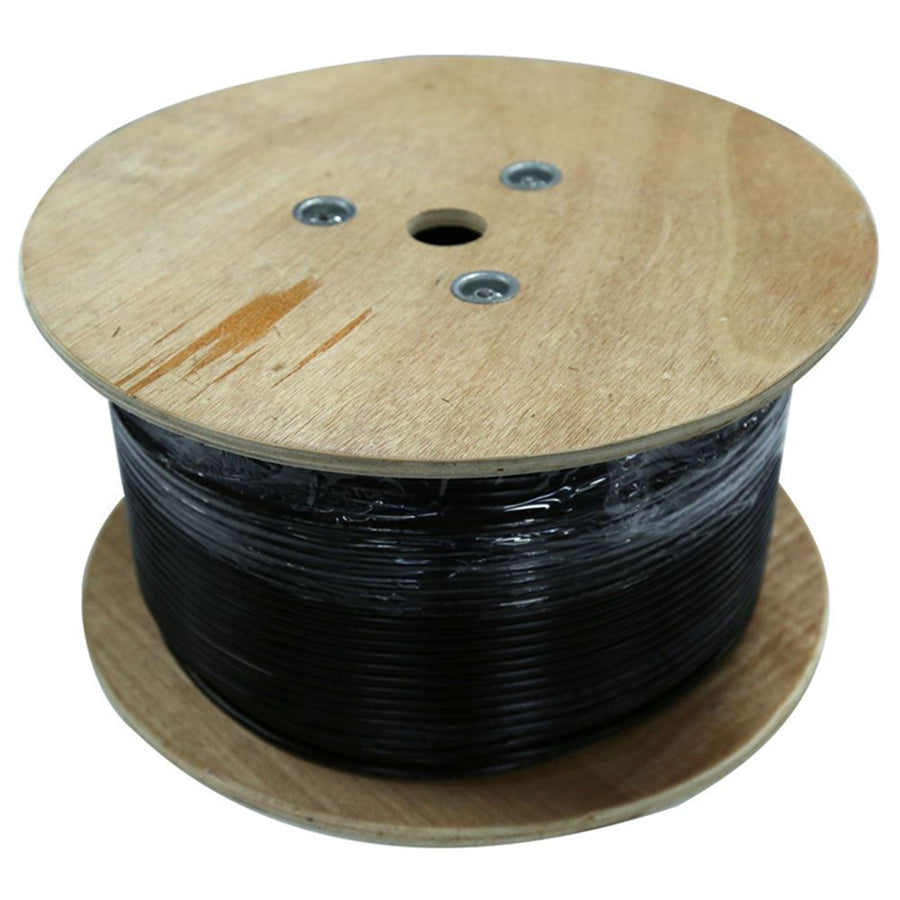

Dynamix C-C6-SLDGEL500 Cat6 UTP Solid GEL Filled Outdoor Cable - 500m - Black
$634.36$775.65
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
DYNAMIX 500m Cat6 Black SOLID GEL Filled Outdoor cable, 23AWGx4P, 250Mhz, UV Stabilised Black PE Jacket, Supplied on a Wooden Reel. *** BELOW GROUND INSTALLATION
NVP: 69%
Specifications
Technical Specifications
| Category | U/UTP-ZST CAT6-4P-PE |
|---|---|
| Test Standard | ISO/IEC11801, TIA-568C.2 |
| Conductor | Material - SOLID Bare CopperNom. O.D. (mm) - 0.565Up +0.005Down - 0.005 |
| Insulation | Material HDPEDiameter 1.09±0.03mm |
| Colour | A.Blue, White-BlueB.Orange, White-OrangeC.Green, White-GreenD.Brown, White-Brown |
| Sheath | Thickness - 0.60±0.05 mmExternal O.D. - 6.8±0.8 mmSurface - Clean, Frap, SatiationMaterial - LDPEColour - Black |
| Surface Printing | Letter Height 3.0±0.3mmColour WhitePrint Error & Space =±0.5% 1m |
| Sheath Physical Properties | Before Aging Tensile Strength (Mpa) =10.0Elongation(%) =350Aging Period (°C×hrs) 100°C×24h×10dAfter Aging Elongation(%) =300Cold bend(-20±2°C×4h) 8×Cable O.D. No visible cracks |
| Electrical Characteristics (20°C) | 1.0-250.0MHz, Characteristic impedance (O) 100±151.0-250.0MHz, Delay Shew 20°C (ns/100m) =45DC Resistance 20°C (O/100m) max 9.38DC Conductor Resistance Unbalance (%)max 5.0 |
| Brand | DYNAMIX |
|---|---|
| Product Type | PC Peripherals |
| Weight | 11.066 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
You May Also Like
DYNAMIX

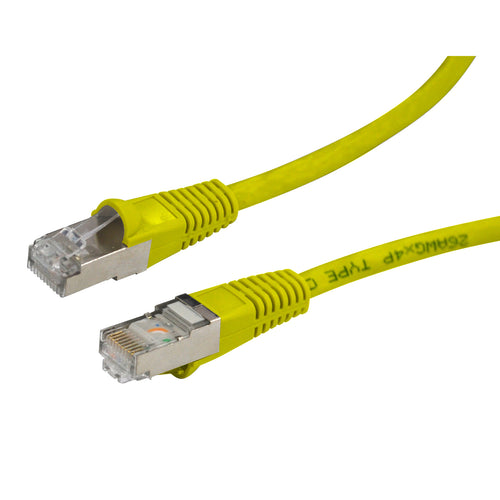

Dynamix PLY-AUGS-TQ Cat6A RJ45 Patch Lead - 75cm - Yellow
Network CablingEthernet10G
$5.08
inc GST ▲
+GST
Alogic

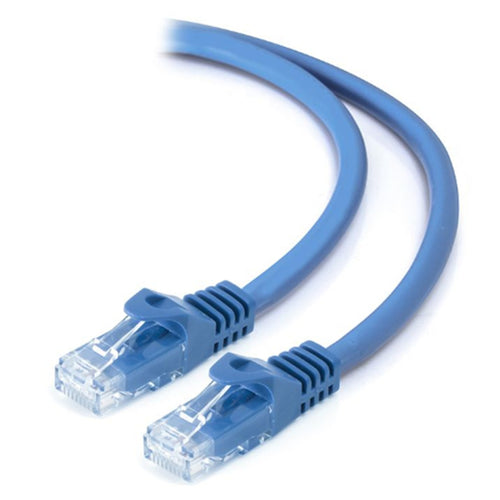

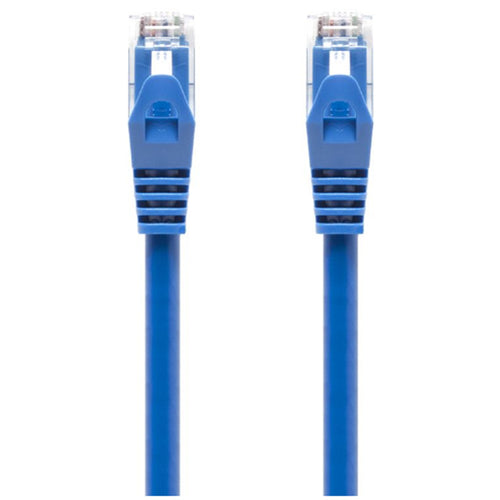

Alogic C6-1.5-Blue Cat6 Ethernet Cable - 1.5m - Blue
