-26%

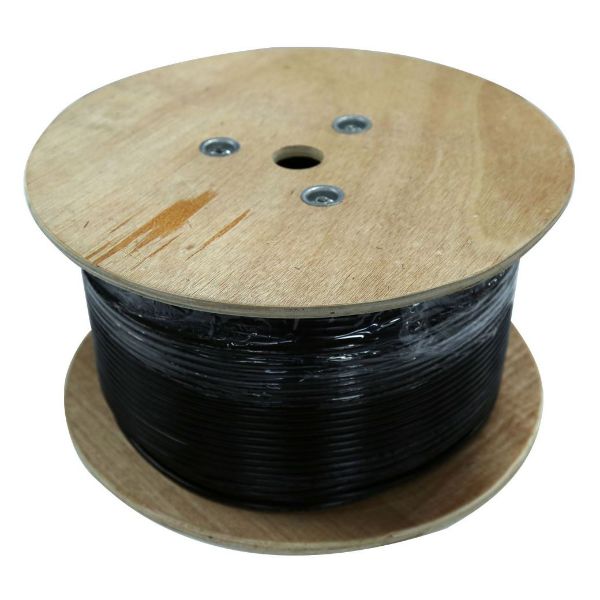

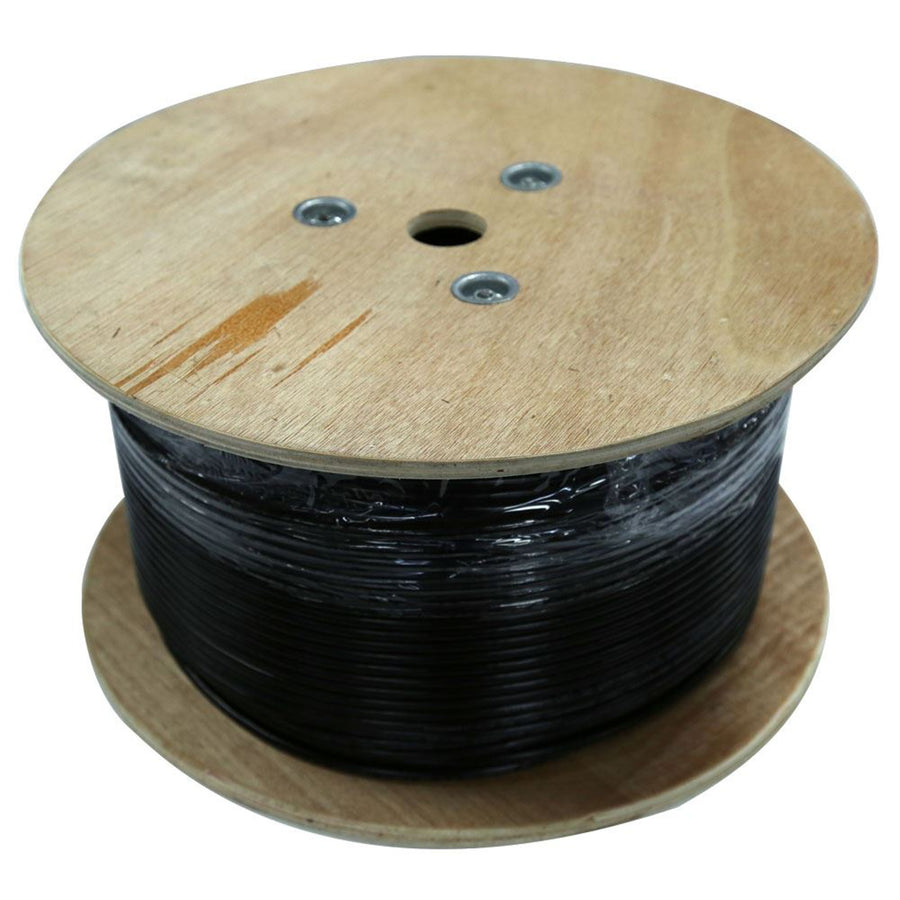

Dynamix C-STPC6EXT-SLD S/FTP Cat6 Shielded Solid Cable Roll - 305m
DYNAMIX

Dynamix C-STPC6EXT-SLD S/FTP Cat6 Shielded Solid Cable Roll - 305m

SKU: C-STPC6EXT-SLD ● In Stock
$531.30$714.98
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

DYNAMIX 305m S/FTP Cat6 23 AWG, 30%TC braid+PE jacket for outdoor cable

Specifications

Technical Specifications

Category F/UTP CAT6-4P-PE
Test Standard ISO/IEC11801, TIA- 568-C.2, YD/T 1019
Conductor Material: SOLID-Bare CopperNom. O.D. (mm): 0.570; Up: +0.005; Down: -0.005
Insulation Material: HDPEDiameter: 1.09±0.03mmColour A. Blue, White-GreenB. Orange, White-OrangeC. Green, White-GreenD. Brown, White-Brown
Sheath Thickness: 0.60±0.05mmExternal O.D.: 7.4±0.4mmSurface: Clean, Frap, SatiationMaterial: PE
Surface Printing Letter Height: 3.0±0.3mmColour: BlackPrint Error & Space: =±0.5%, 1m
Packing Wooden Tray and Carton
Packing Length 305±1.5m
Rip Cord Yes
Drain Wire Yes
Sheath Physical Properties Before Aging Tensile Strength (Mpa): =10.0Elongation(%): =150Aging Period (°C x hrs): 100°C x 24h x 10dAfter Aging Elongation(%): =300Cold bend (-20±2°C×4h): 8×Cable O.D. No visible cracks
Electrical Characteristics (20°C) 1.0-250.0MHz, Characteristic impedance (O): 100±151.0-250.0MHz, Delay Shew 20°C (ns/100m): =45DC Resistance 20°C (O/100m): Max. 9.38DC Conductor Resistance Unbalance (%): Max. 5.0
