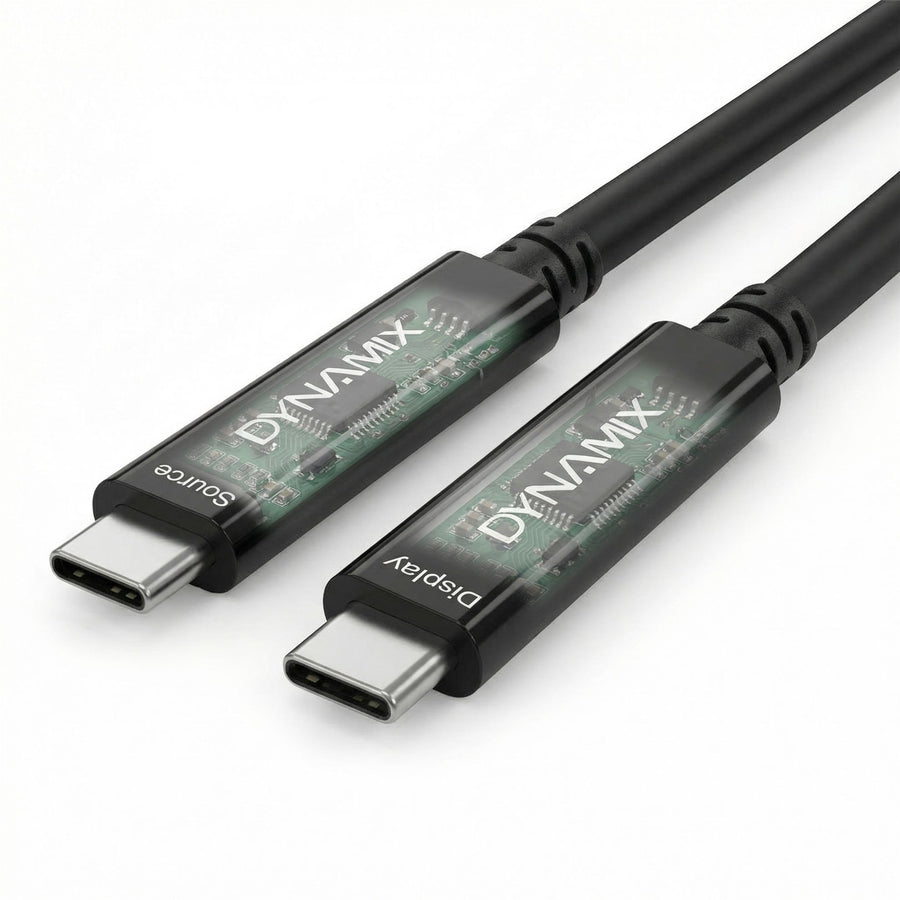

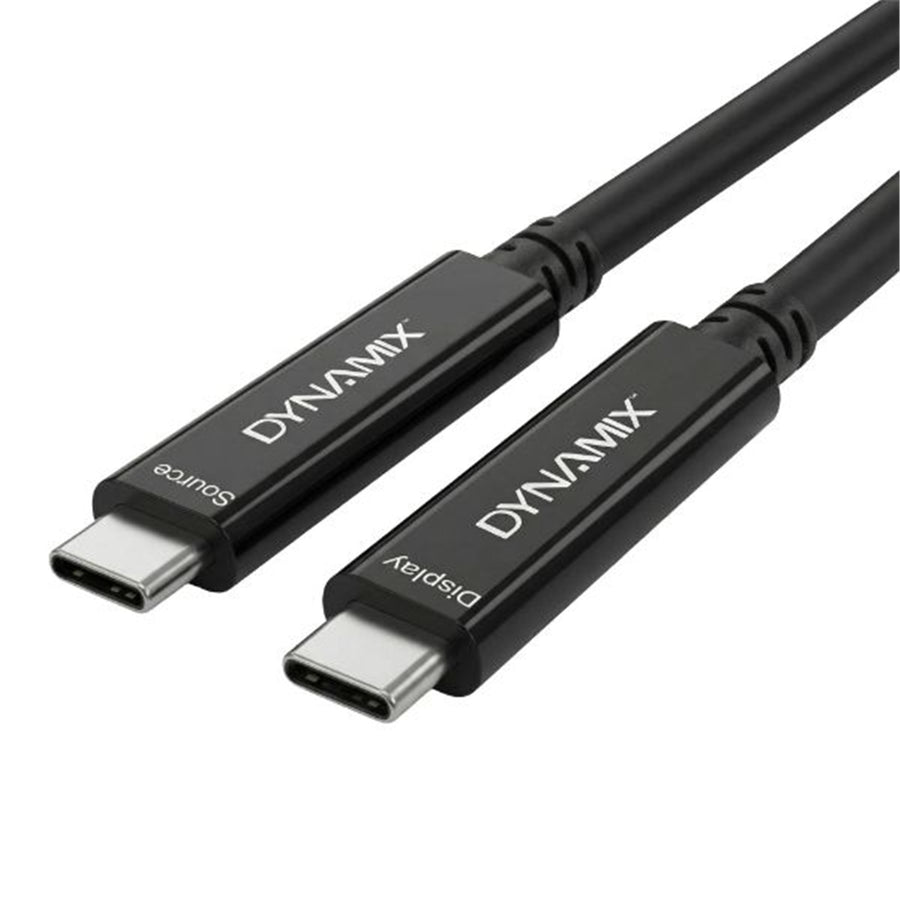

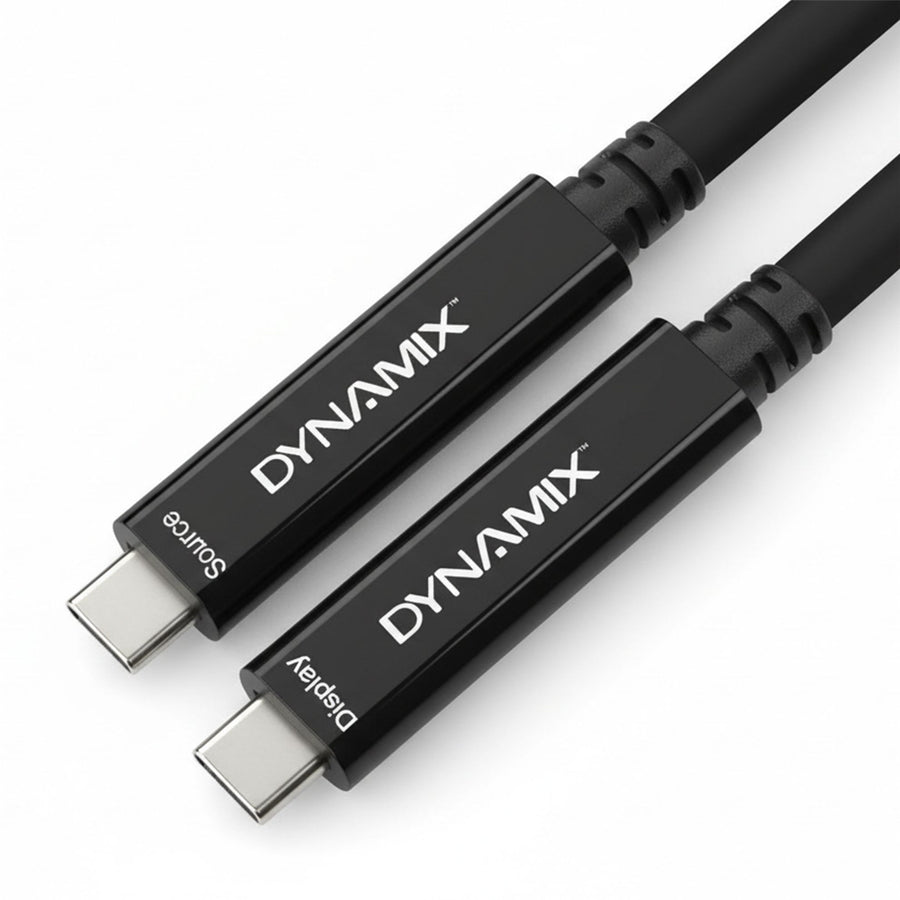

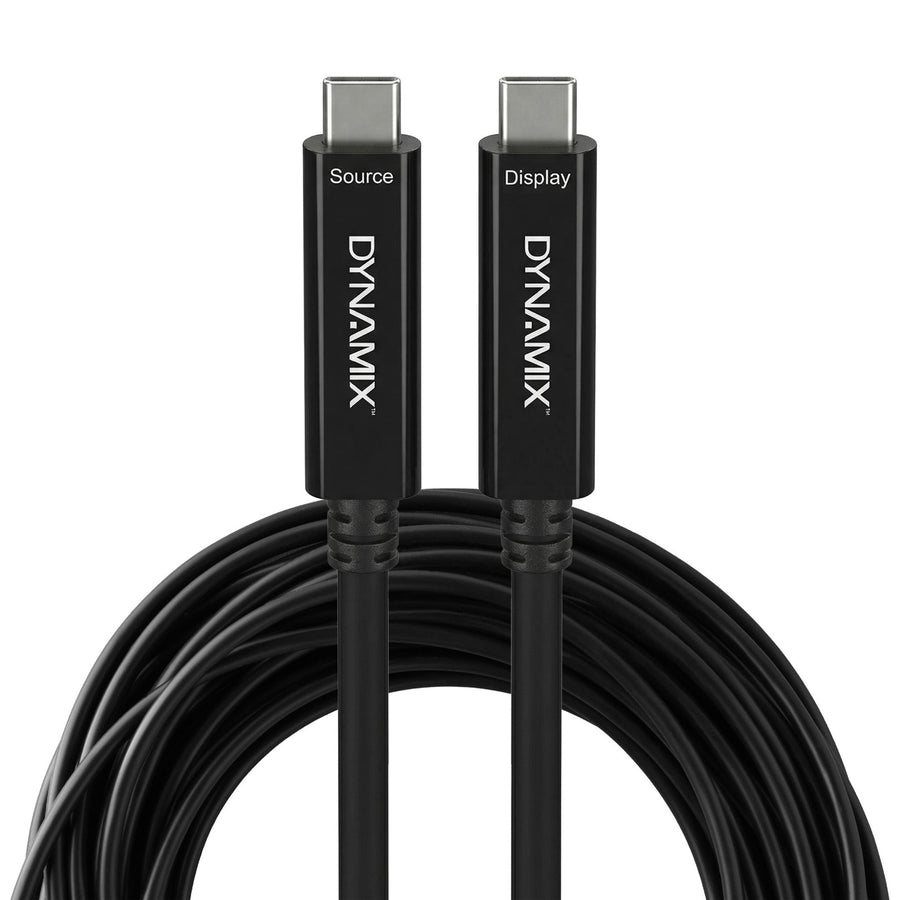

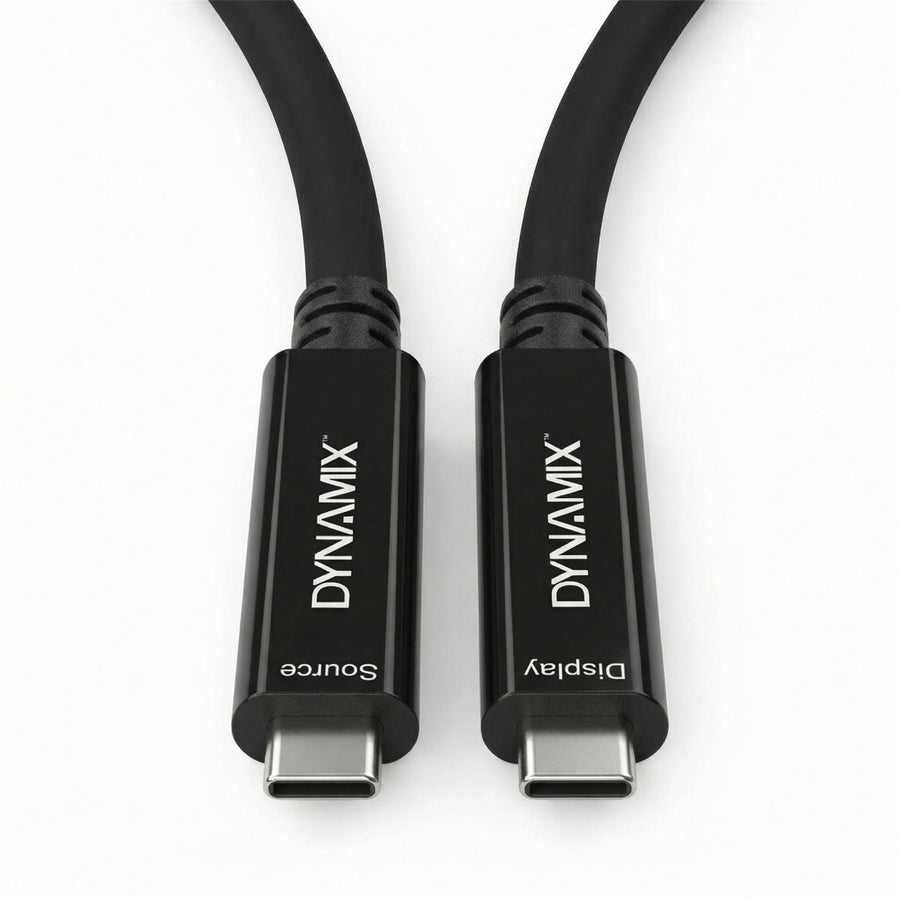

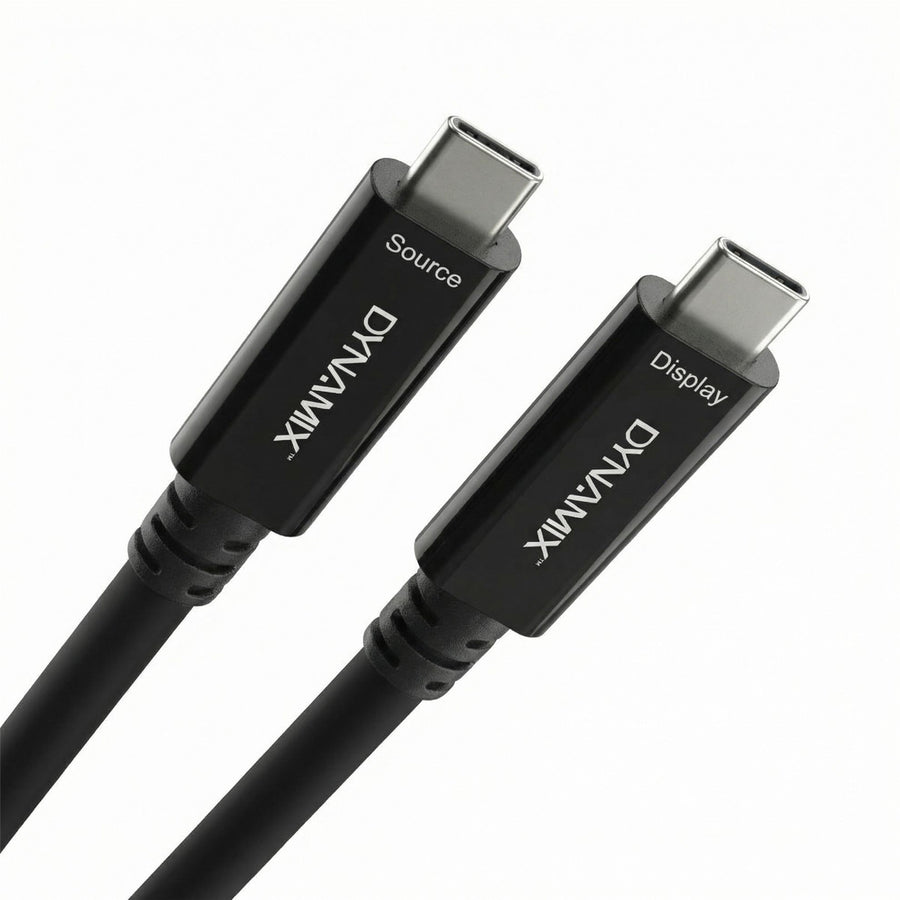

DYNAMIX C-U32-LLF-CC-10 - 10M USB 3.2 Full Featured Type C to C Hybrid Active Opti Cable
Features
The DYNAMIX C-U32-LLF-CC is a full-featured hybrid USB Type-C Active Optical Cable (AOC) designed to deliver high-speed data, DisplayPort video, & Power Delivery through a single USB-C connection. By utilizing optical fiber for high-speed signal transmission & copper conductors for power delivery, it overcomes the bandwidth & distance limitations of traditional copper cables while maintaining excellent signal integrity.
Supporting USB 3.2 Gen2 (10gbps) & DisplayPort 1.4 Alt Mode, the cable enables simultaneous video output, USB data transmission, & up to 60W PD charging. It operates in either 2-lane DP1.4 + USB 3.2 Gen2 mode or 4-lane DP + USB 2.0 mode, making it ideal for professional AV systems, medical imaging, broadcasting, machine vision, & high-performance computing applications.
- Supports USB 3.2 Gen2 data up to 10gbps
- Supports DisplayPort 1.4 video (DP Alt Mode over USB-C)
- Supported modes: 2-lane DP1.4 + USB 3.2 Gen2 (10gbps), 4-lane DP + USB 2.0 (480mbps)
- Enables simultaneous video, data, & power transmission
- Power Delivery up to 60W (PD 3.0, 20V/3A)
- Backward compatible with USB 2.0 / 1.1
- Plug & Play
- Hybrid optical fiber + copper construction
- Thin, more flexible design
- Highly resistant to EMI & RFI
- Resolution: 8K 60Hz (7680 x 4320)
Specifications
Technical Specifications
| Connector Type | USB-C Male/USB-C Male |
|---|---|
| Power Delivery | 10m = 60W, 20V/3A 15m = 40W, 20V/2A |
| Functionality | Data + Video + Power |
| Video Support | DisplayPort 1.4 |
| Resolution | 8K@60Hz |
| Configuration Modes | 4-lane DP + USB 2.0 OR 2-lane DP1.4 + USB 3.2 Gen2 |
| USB Data Rate | Up to 10gbps (USB 3.2 Gen2) |
| DP Bandwidth | 8.1gbps per lane (DP1.4) |
| Cable Length | 10m |
| Power Delivery | PD 3.0, up to 60W |
| Power Supply | 3.0~5.5V |
| Cable Outer Diameter | 6.5mm |
| Cable Structure | 5-core optical fiber + 12 copper wires |
| Jacket Material | TPE (Black) |
| Cable Filler | Kevlar |
| Cable Colour | Black |
| Minimum Bend Radius | 20mm (dynamic) / 10mm (static) |
| Cable Pressure Resistance | 200N (long term) / 400N (short term) |
| EMI / RFI Resistance | High immunity to electromagnetic interference |
| Operating Tempreture | -20°C ~ 80°C |
| Brand | DYNAMIX |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 0.454 kg |
| Warranty |
|---|
