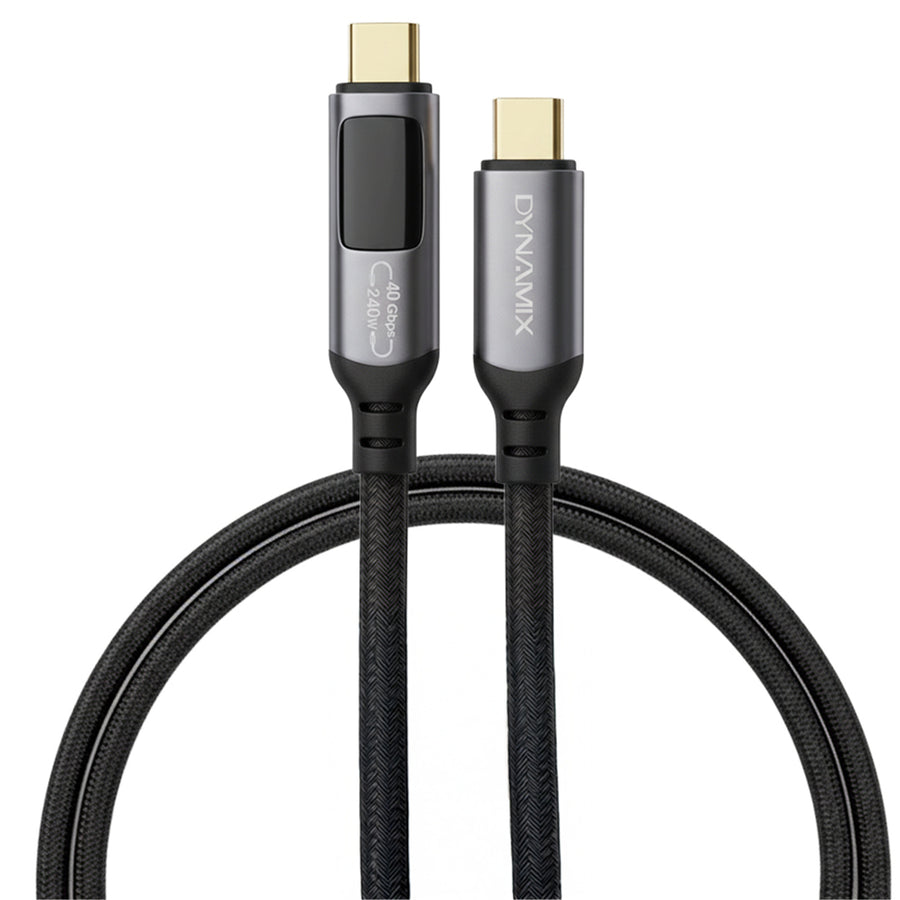

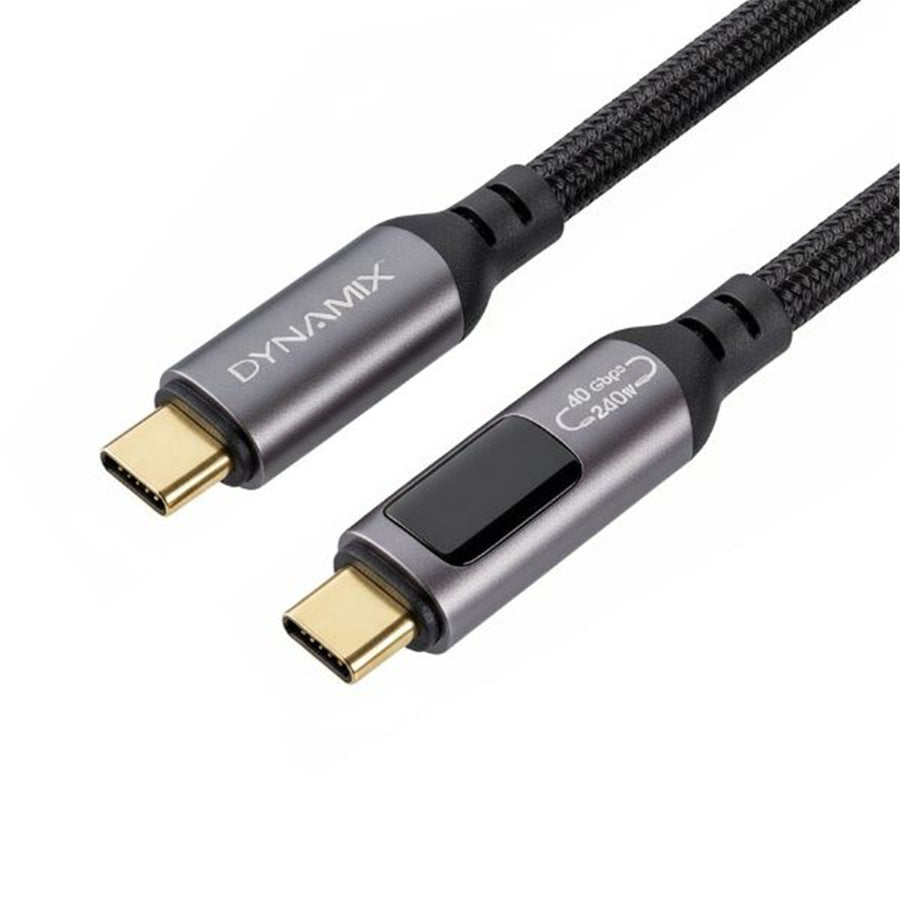

DYNAMIX C-U4-CCPR-1 - 1M 240W (5A/48V) USB4 USB-C 40Gbps, LCD Display, Up to 8K@120Hz
Features
The Dynamix 240W USB-C Fast Charging Cable is a premium USB 4.0 Type-C to Type-C cable engineered for high-power delivery, ultra-fast data transfer, & advanced display connectivity. Supporting the latest Power Delivery 3.1 standard, making it suitable for charging high-performance laptops, workstations, & other demanding USB-C devices. An integrated E-Marker chip ensures safe power negotiation & compliance with USB-C standards, while the cable's robust multi-layer construction provides durability & signal integrity.
The Dynamix cable supports data transfer speeds up to 40gbps & video output up to 8K at 60Hz. A built-in LCD digital display module provides real-time monitoring of charging power & performance, enhancing user visibility & control.
- 240W power delivery (PD 3.1) Supports up to 48V/5A for high-speed charging
- USB 4.0 ultra-fast data transfer speeds up to 40gbps
- USB-C to USB-C (20-pin male connectors) e-marker chip ensures safe power negotiation & compliance with USB-C standards
- 8K video output supports up to 7680 × 4320 resolution at 60Hz
- Built-in LCD module for real-time charging voltage, current, & power monitoring
- Simultaneous charging & data transfer
- Advanced shielding dual conductive copper foil for signal stability & EMI reduction
- Durable braided jacket
- Space gray premium aluminum alloy connectors plug-&-play operation
- Compatible with a wide variety of devices
Specifications
Technical Specifications
| Connector Type | USB Type C Male USB Type C Male |
|---|---|
| Connector Pins | 20 |
| Power Delivery | Up to 240W |
| Voltage / Current | Up to 48V / 5A |
| PD Standard | USB Power Delivery 3.1 |
| E-Marker Chip | Yes (integrated) |
| Data Transfer Speed | Up to 40gbps |
| USB Standard | USB 4.0 (backward compatible with USB 3.2/3.1/3.0/2.0) |
| Video Output Support | Up to 8K@60Hz (7680 × 4320) |
| Display Feature | Built-in LCD digital power display (Charging Speed & Transfer Rate) |
| Charging + Data | Simultaneous support |
| Wiring Configuration | Full-featured USB-C pin assignment (VBUS, GND, differential pairs, control lines) |
| Shielding | Dual conductive copper foil shielding |
| Outer Jacket | Cotton braided jacket (black) |
| Inner Jacket | PVC jacket + inner molded insulation |
| Connector Housing | Aluminum alloy |
| Internal Construction | Multi-layer molded design with reinforced strain relief |
| Electrical Testing | 100% open, short, & intermittence tested |
| Conductive Resistance | ≤ 5Ω |
| Insulation Resistance | ≥ 10MΩ (DC 300V / 10ms) |
| Compliance | RoHS, REACH, TSCA, Prop65 |
| Colour | Black cable with space gray connectors |
| Application | Charging, high-speed data transfer, & video output |
| Plug & Play | Yes |
| Brand | DYNAMIX |
|---|---|
| Product Type | PC Peripherals > Monitors |
| Weight | 0.33 kg |
| Warranty |
|---|
