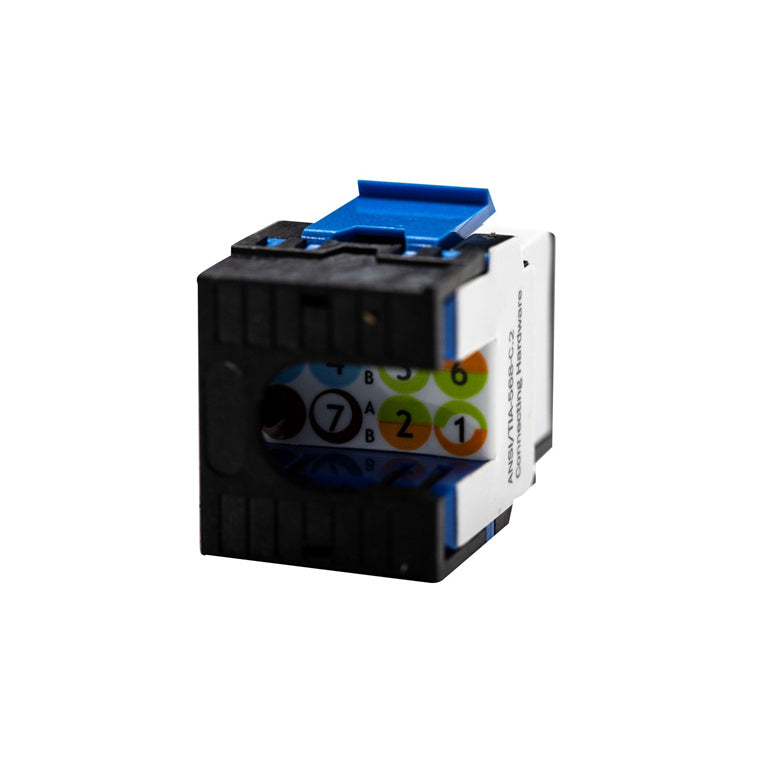

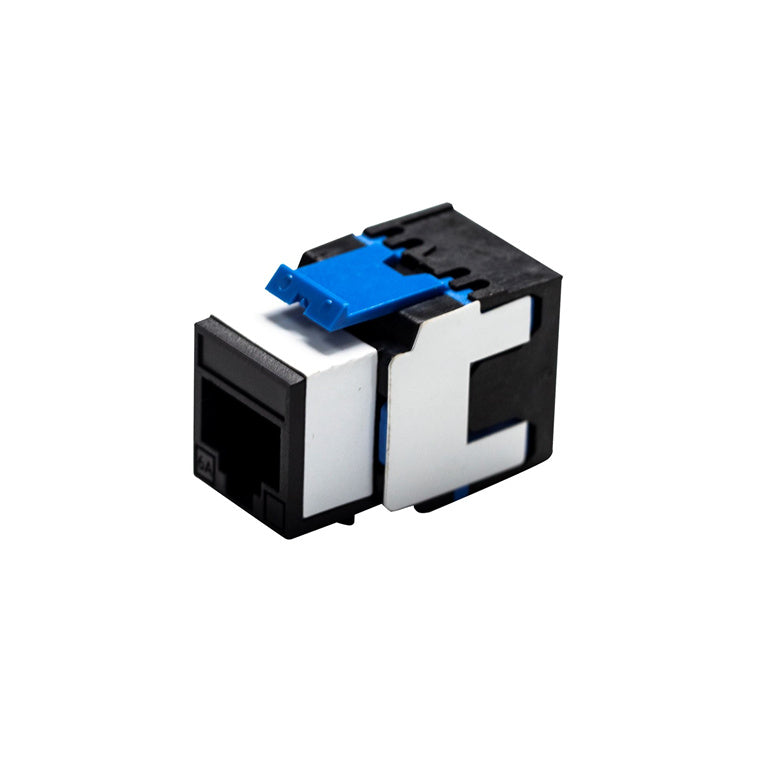

DYNAMIX FP-C6A-180BK - Cat6A 180 Unshielded Keystone Jack Dual IDC Colour Black

DYNAMIX FP-C6A-180BK - Cat6A 180 Unshielded Keystone Jack Dual IDC Colour Black

Name: DYNAMIX FP-C6A-180BK - B2B - Networking & Routing | KW Tech NZ
Brand: DYNAMIX
SKU: FP-C6A-180BK
Price: 7.35 NZD
Availability: InStock

SKU: FP-C6A-180BK ● In Stock

$6.39

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

DYNAMIX Cat6A 180 Unshielded Keystone Jack, Dual IDC. Colour Black

Specifications

Technical Specifications

Housing	ABS UL94V-0 flame retardancy
Spring Wire	Phosphor bronze 0.35t, plated with 50u" gold at contact area over 60u" nickel undercoat
PCB	FR4
IDC Terminals	Phosphor bronze 0.5t, plated with 100u" nickel
IDC Block	High-impact Polycarbonate UL94V-2 flame retardancy
Conductor Diameter	24AWG - 22AWG
Insulation Diameter	0.8mm - 1.1mm
Cable Diameter	5mm - 9mm
Plug Insertion Life (Mating)	750 cycles with FCC compliant plug
Plug and Jack Contact Force	min. 100g using FCC approved plug
Plug Retention Force	min. 30lbs
Storage Temperature	-40° ~ 68°
Operating Temperature	-10° ~ 60°
Operating Humidity	10% ~ -90%RH
Current Rating	1.5A
Insulation Resistance	min. 500mO
Contact Resistance	max. 20mO
Transmission Performance	10GBase-T
FCC	Part 68
TIA/EIA	568-C.2
UL	1863ETL CertifiedSupports POE+US PATENT

Warranty	60 months

Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
