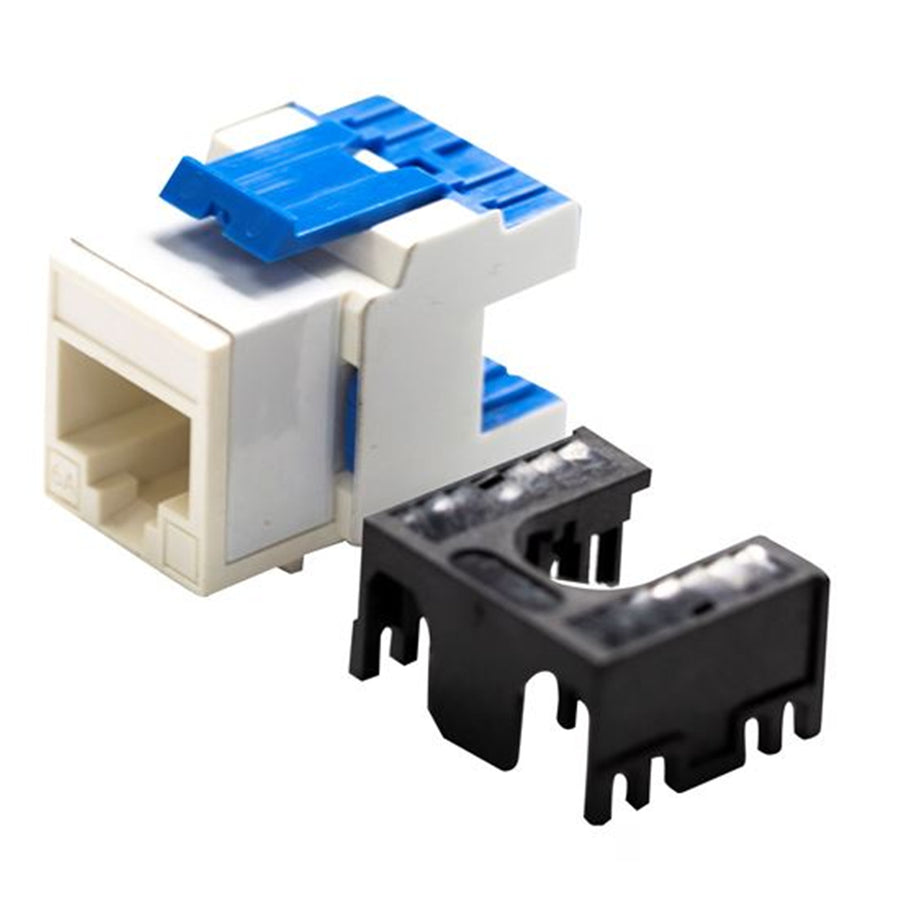

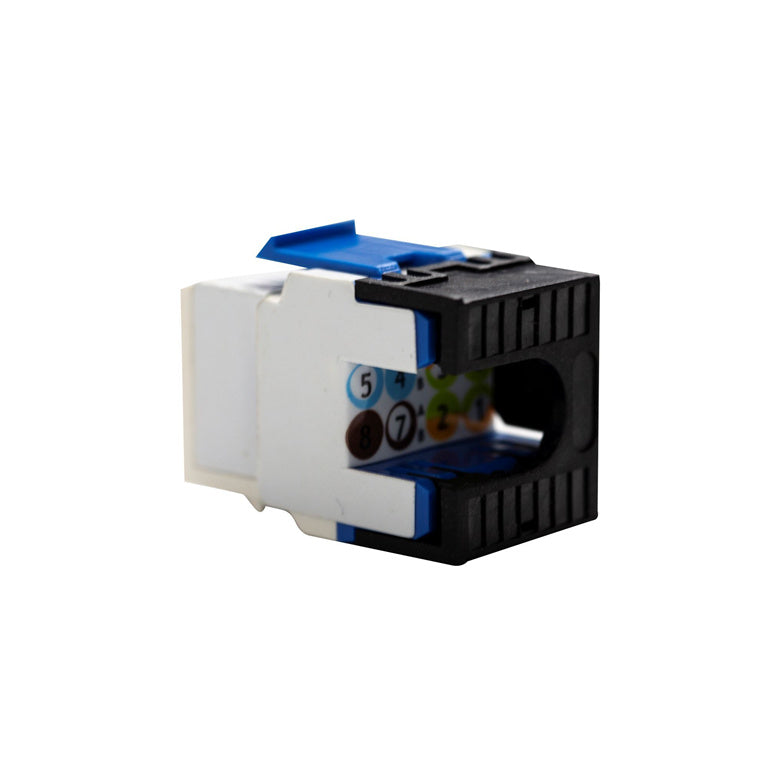

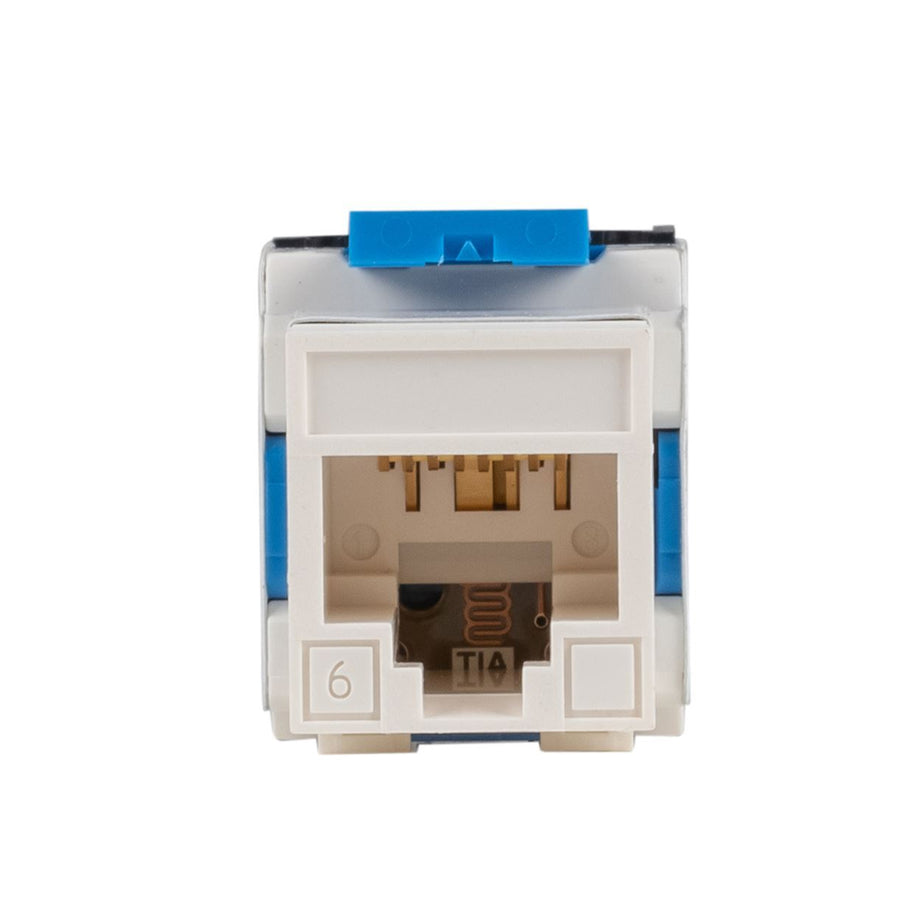

Dynamix FP-C6A-180WH Cat6A 180 Unshielded Keystone Jack, Dual IDC. Colour White
Features
The DYNAMIX Cat6A component compliant RJ45 180° unshielded keystone jacks are designed to easily snap in and out of the wall outlet, patch panel and surface mount box. The jacks are individually terminated using Insulation Displacement Connectors (IDC) with a rapid punch down tool available for quick installation. The unique design provides an efficient and effective method of reducing alien crosstalk from neighbouring connectors for superior performance.
- DYNAMIX keystone jacks meet and exceed performance levels for Cat6A
- Rapid Termination tool available (Purchased separately)

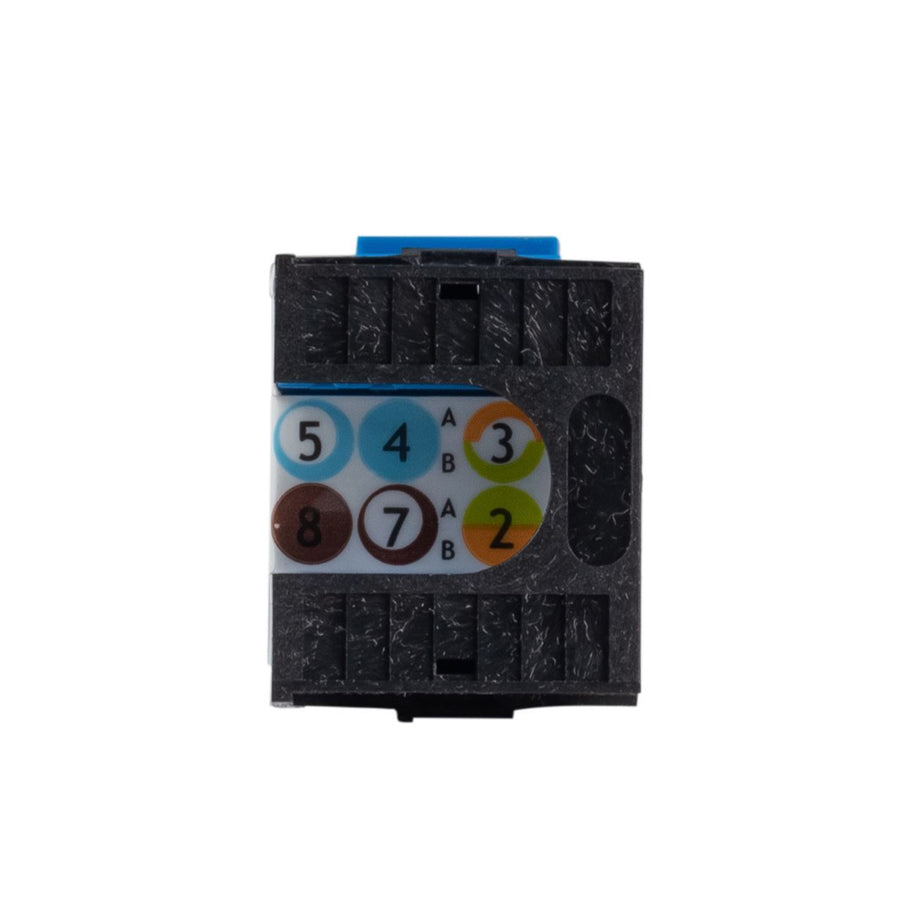

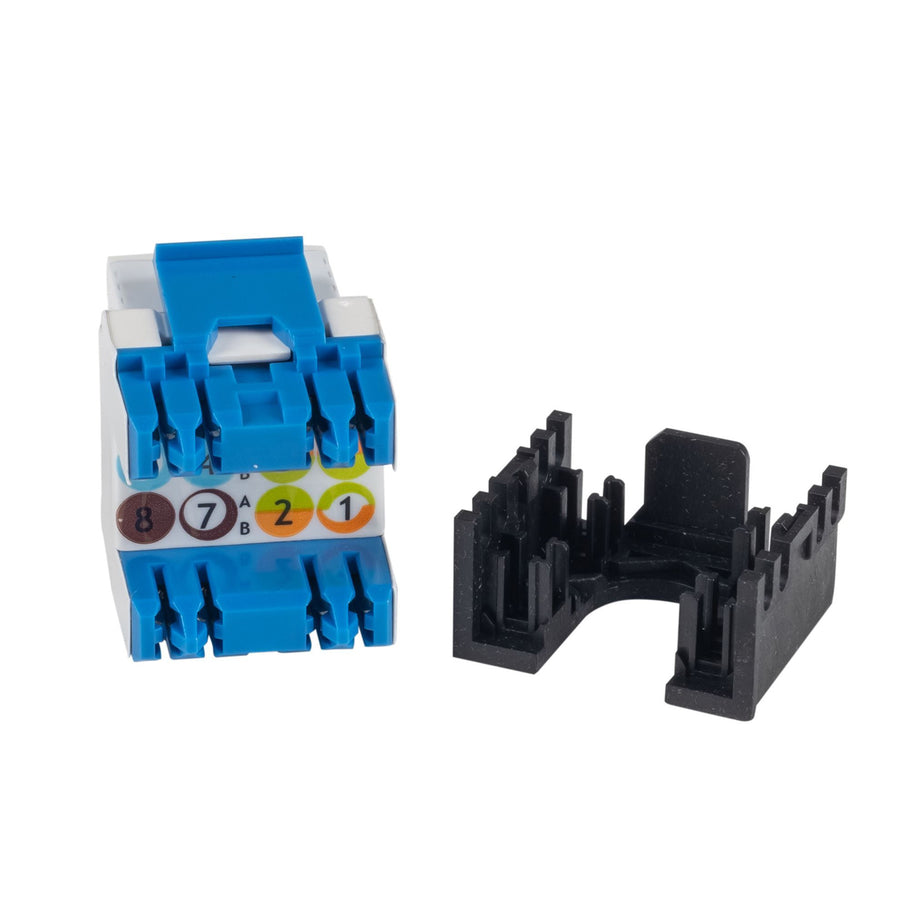

- Comes with T568A/T568B colour labelling
- Press-Fit Technology makes the product more reliable
- Hardware transmission performance edition 2.2 of ISO/IEC 11801, CENELEC 50173-1, and ANSI/TIA-568-C.2 for Return loss, Insertion loss, NEXT loss, FEXT loss, TCL, TCTL, PSANEXT loss, and PSAFEXT loss up to 500MHz
- More stable transmission performance is guaranteed since there is no other medium that takes effect in between PCB and contacts
Specifications
Technical Specifications
| Housing | ABS UL94V-0 flame retardancy |
|---|---|
| Spring Wire | Phosphor bronze 0.35t, plated with 50u" gold at contact area over 60u" nickel undercoat |
| PCB | FR4 |
| IDC Terminals | Phosphor bronze 0.5t, plated with 100u" nickel |
| IDC Block | High-impact Polycarbonate UL94V-2 flame retardancy |
| Conductor Diameter | 24AWG - 22AWG |
| Insulation Diameter | 0.8mm - 1.1mm |
| Cable Diameter | 5mm - 9mm |
| Plug Insertion Life (Mating) | 750 cycles with FCC compliant plug |
| Plug and Jack Contact Force | min. 100g using FCC approved plug |
| Plug Retention Force | min. 30lbs |
| Storage Temperature | -40° ~ 68° |
| Operating Temperature | -10° ~ 60° |
| Operating Humidity | 10% ~ -90%RH |
| Current Rating | 1.5A |
| Insulation Resistance | min. 500mO |
| Contact Resistance | max. 20mO |
| Transmission Performance | 10GBase-T |
| FCC | Part 68 |
| TIA/EIA | 568-C.2 |
| UL | 1863ETL CertifiedSupports POE+US PATENT |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Structured Cabling |
| Weight | 2.812 kg |
| Warranty |
|---|
