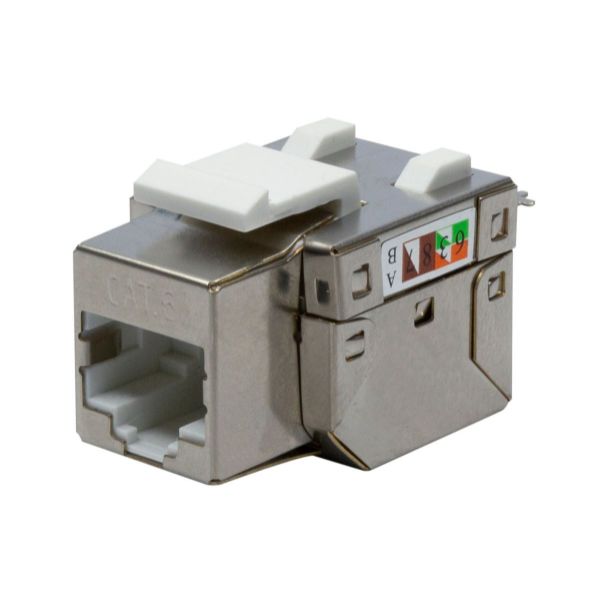

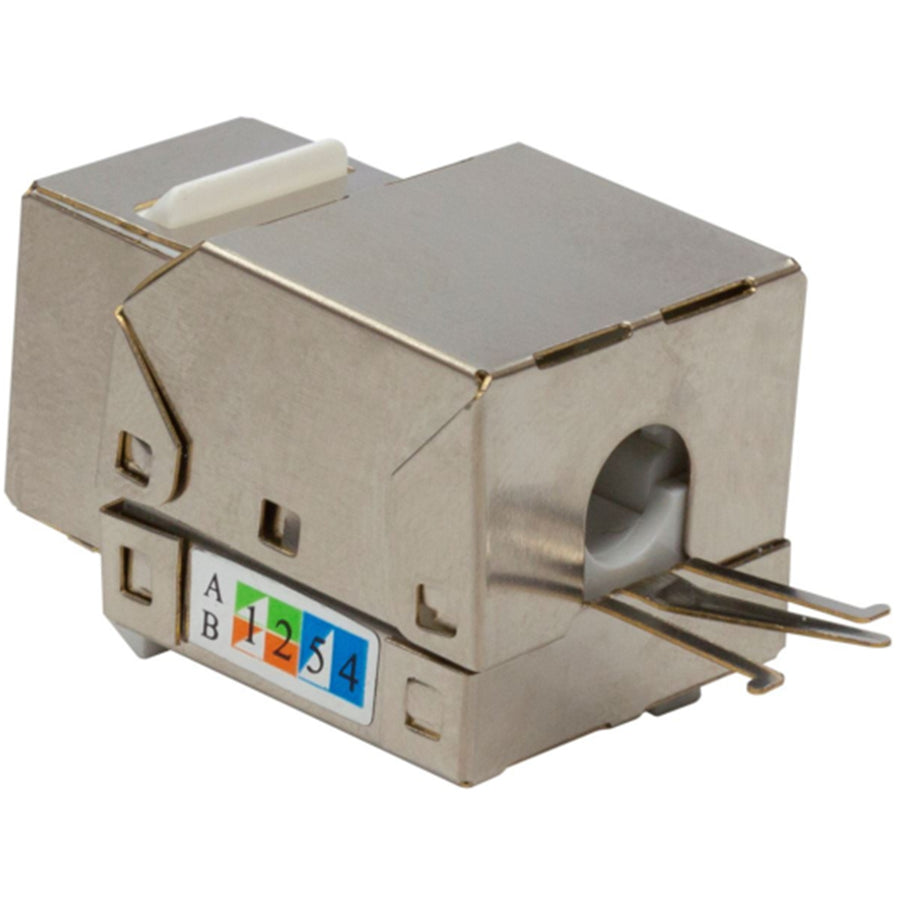

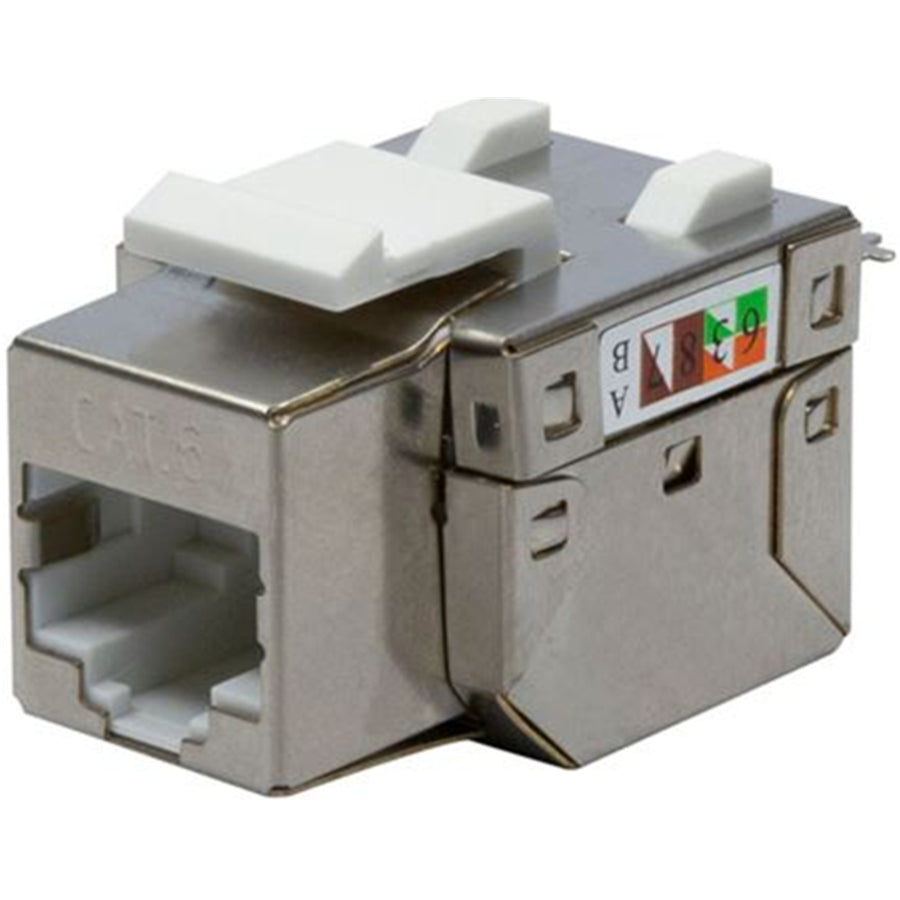

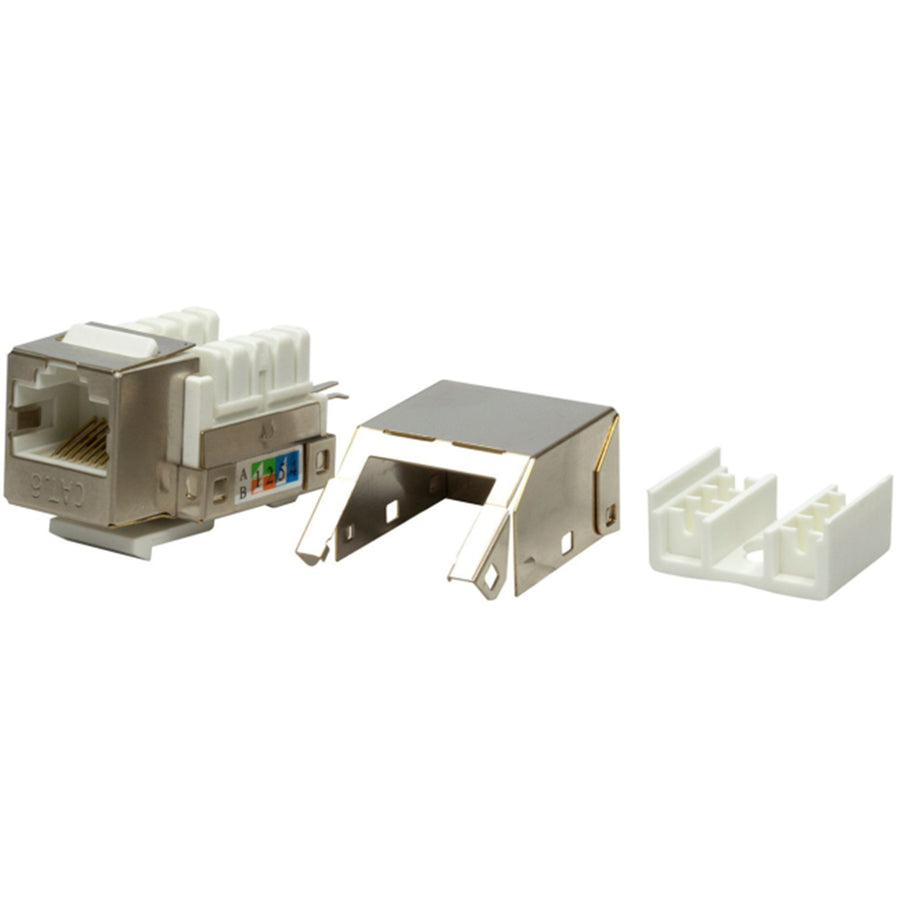

Dynamix FP-C6S-011 Cat6 Shielded Keystone Jack Termination 110/Krone
Features
DYNAMIX Cat6 Shielded Keystone Jack Termination 110/Krone
Our DYNAMIX 90° Cat6 Keystone Jack has a fully shielded design to protect from EMI. Dual IDC connectors can accept 22-26 AWG solid cables and supports T568 A&B wiring, plus it uses 110 or Krone tools for termination.
FP-C6S-011 is made to an extremely high standard and superior construction ensures that our Cat6 shielded Keystone Jack conform to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specifications, and supports channel link bandwidth up to 250MHz.
FEATURES
- Shielded Cat6 keystone jack
- RJ45 Female connector
- 90° Angle termination design
- Supports gauge wire 22-26AWG cable
- Compatible with shielded or unshielded patch cables
- Use with a wall-plate for network wiring installs
- Designed for high-speed network applications
- Excellent crosstalk suppression
- Corrosion-resistant construction
- Operating temperature -10°C to 60°C (-14°F to 140°F)
- Category 6 ANSI/TIA/EIA 568-C.2 performance
Specifications
Technical Specifications
| Shielded Shell | Brass, Nickel plated |
|---|---|
| Jack Terminal | Phosphor Bronze, 3U gold plated over Nickel plated in contact area |
| IDC Housing | ABS Plastic |
| IDC Terminal | Phosphor Bronze, nickel plated 50~60, micro inch |
| P.C. Board | FR-4, T=1.6mm |
| Operating Temperature | -10°C~60°C |
| Insertion Force | 900gms for 8 Contacts |
| Retention | 7.7kgs between jack and plug |
| Durability | 750 Cycles contact resistance test check with 10mm/s |
| Supports | T568A & T568B wiring compatible with Cat6 requirements |
| Tool | Dual Type |
| Current Rating | 1.5 Amps |
| Insulation Resistance | 500MO |
| Contact Resistance | 20MO |
| DC Resistance | 0.1O |
| Rated Voltage | 500V |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking |
| Weight | 3.805 kg |
| Warranty |
|---|
