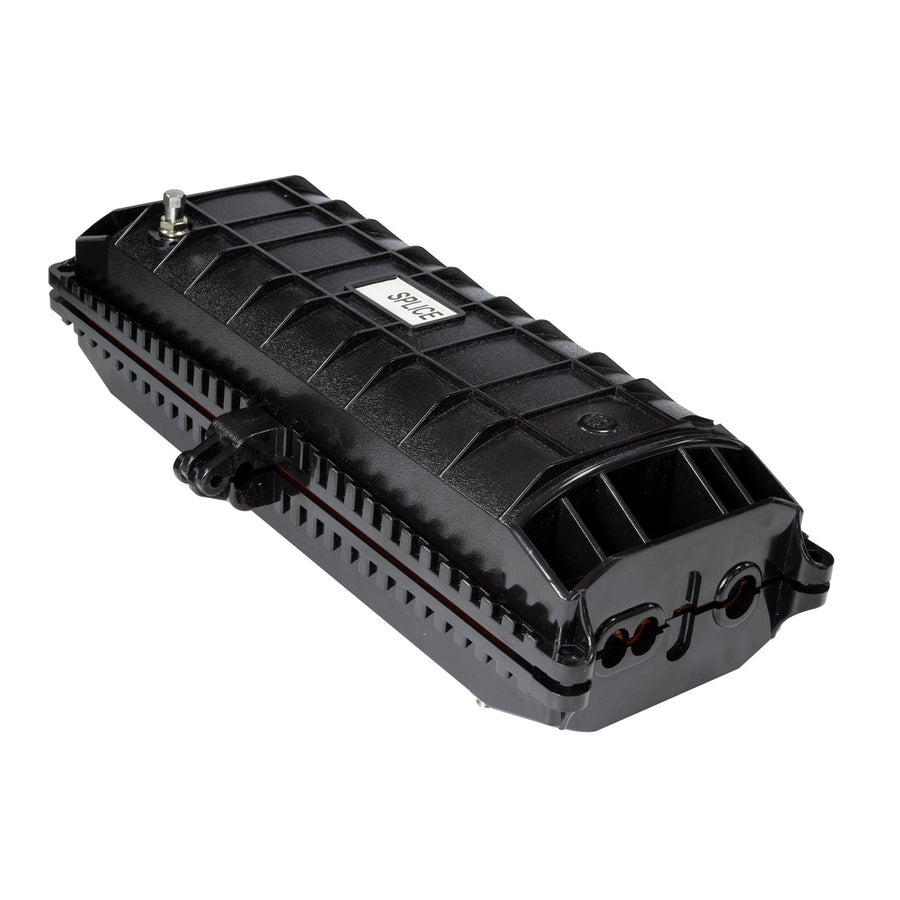

DYNAMIX INLINE05 - 144 Fibre Inline Enclosure. IP68 Integrated Airtight & Waterproof Seal
Features
DYNAMIX Fibre Inline Enclosure. Holds up to 144x fibres. IP68. Integrated airtight & waterproof seal. Protection in temperatures from -45C~65C.
The inline enclosure is suitable for protecting fibre cable splices in straight through and branching applications. Its well-engineered, injection molded outer body makes it impenetrable to the elements. It can protect splices and ensure reliability with usage in ambient temperatures from -40°C to +65 °C. It can be placed in aerial, underground, or duct mounted locations.
Features
- Holds 114 splices
- Easy to re-enter
- 3 cable entrys at each end
- Termination and splice kit included
- Airtight and waterproof integrated seal
- Ideal for cable repair
- RoHS compliant
- Can be used in through, branch or mid span splice locations
- Suitable for aerial, underground duct or direct burial applications
- IP68 up to 1.5m water depth
Specifications
Technical Specifications
| Max. Trays | 8 |
|---|---|
| Cable Entry Points | 6 |
| Suitable for Cable Diameter | 8mm ~ 16mmØ |
| Sealing Rating | IP68 |
| Sealing Method for all Entry and Exit | Mechanical (compression) |
| Colour | Black |
| Material | ABS |
| RoHS Compliant | Yes |
| Optimal Operating Temperature | -40°C ~ +65°C |
| Dimensions (w x d x h) | 216 x 450 x 150mm |
| Weight | 3kg |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Fiber Connectivity > Fiber Patch Leads |
| Weight | 10.658 kg |
| Warranty |
|---|
