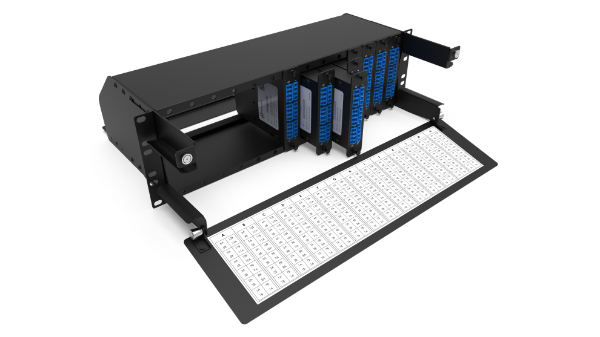

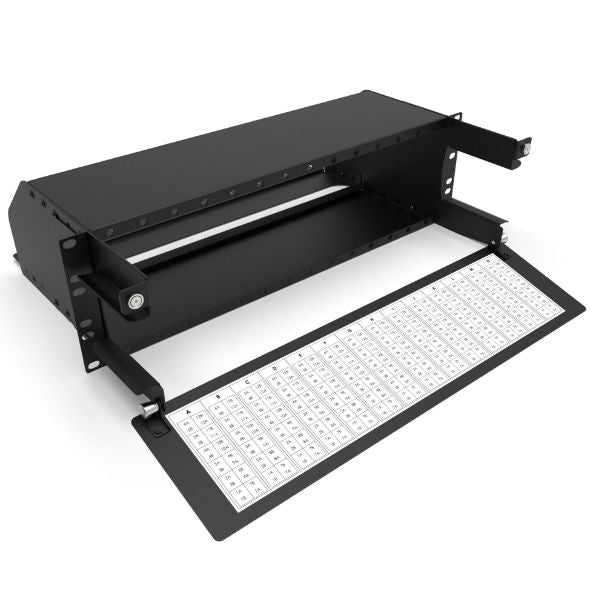

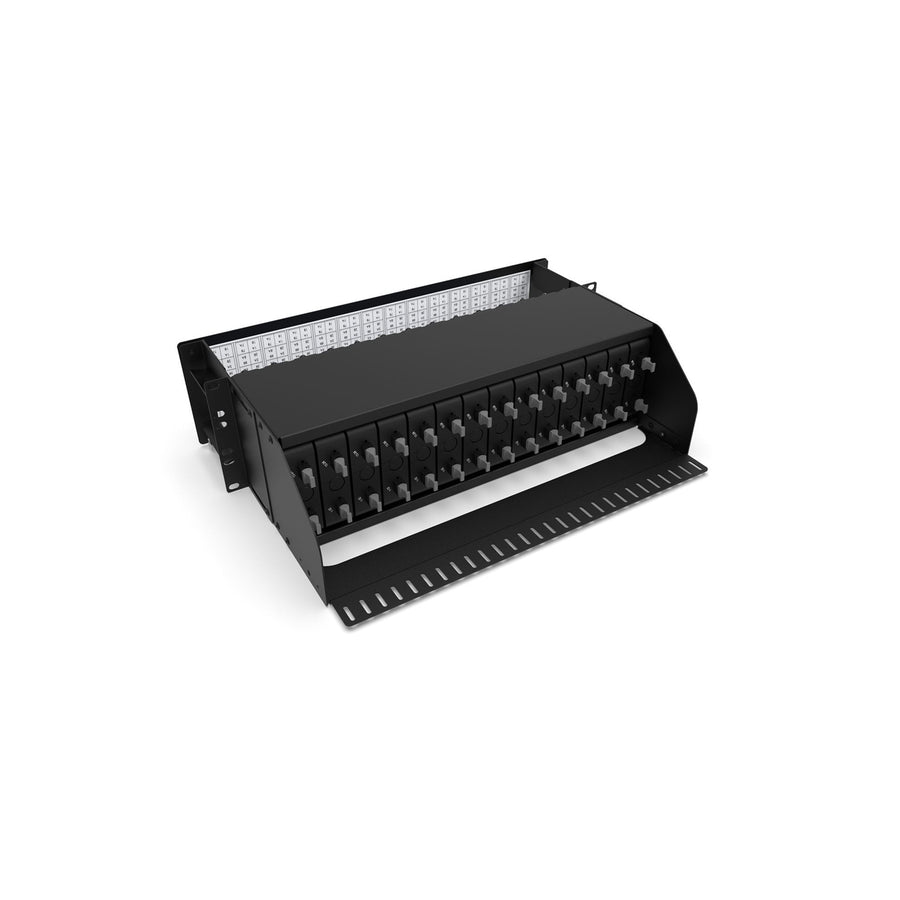

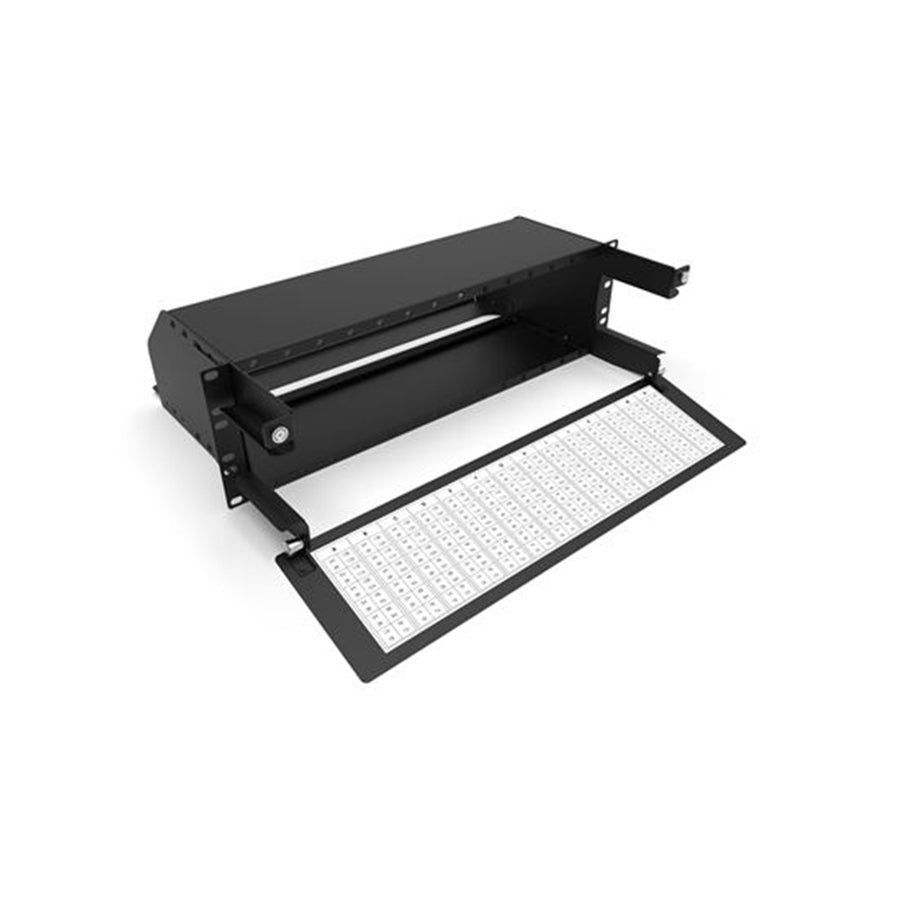

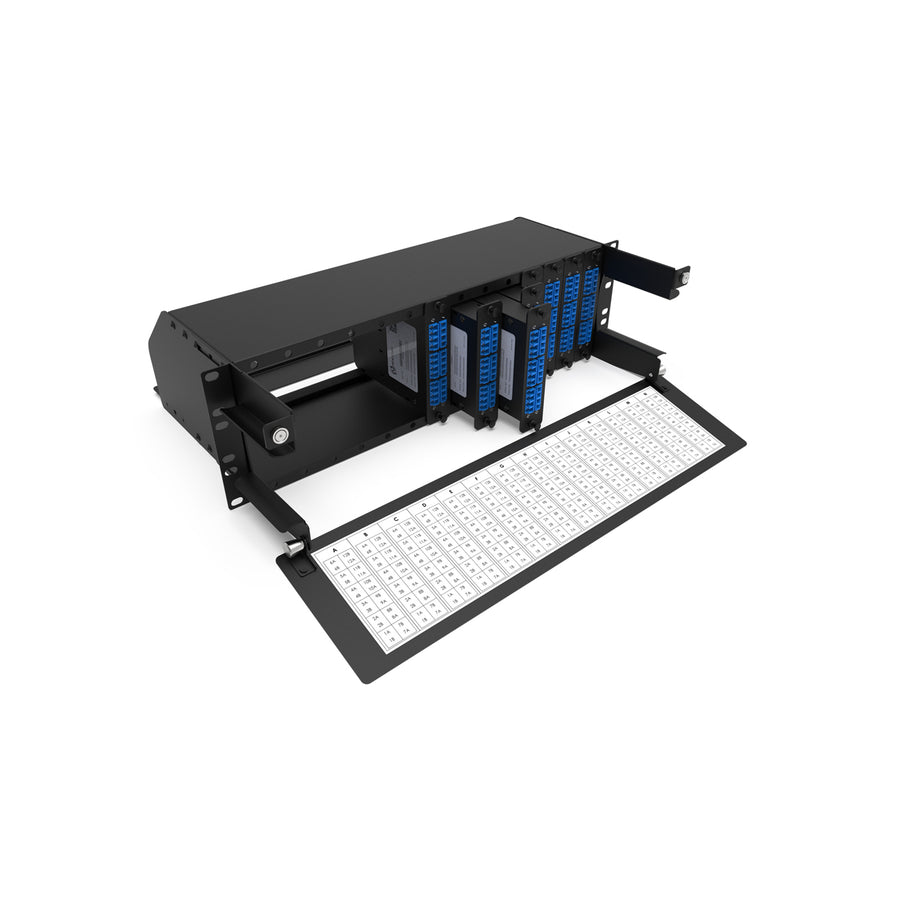

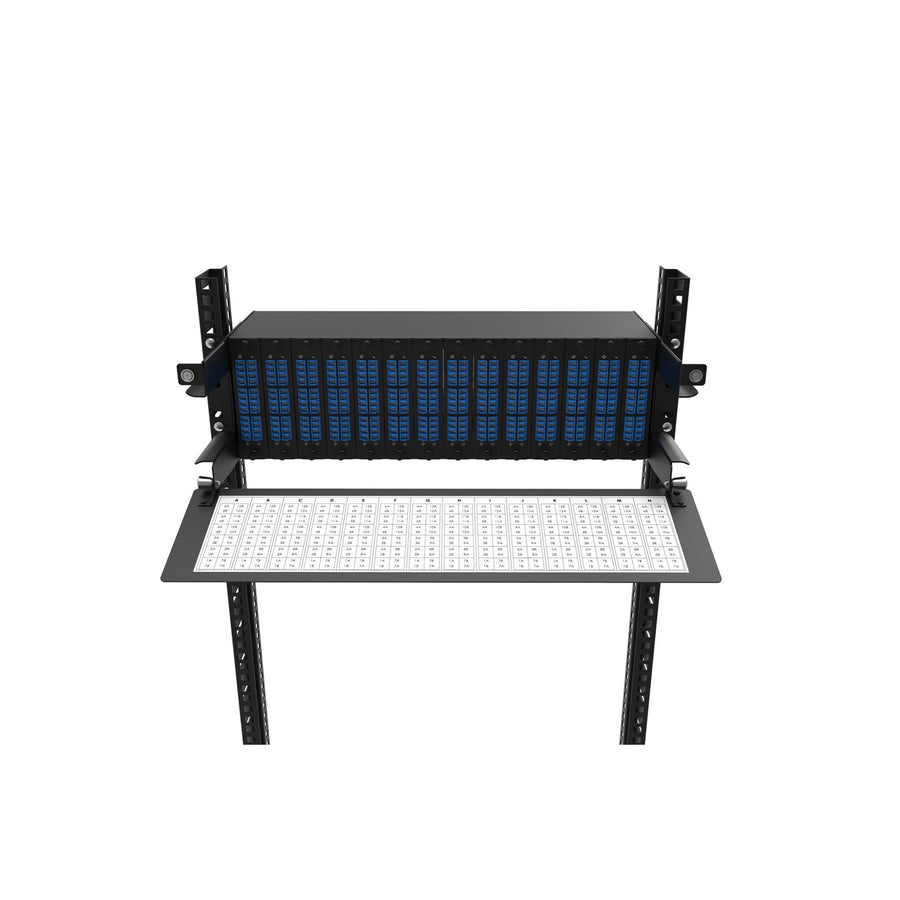

DYNAMIX LGX3U - 3U 19'' 14 Slots LGX Modular Frame Up to 336 Fibre Optic in LC
Features
Dynamix™ 3U LGX High-Density frame allows to scale up to 14 LGX MTP®/MPO and Splicing Modules or adapter plates for a total of 336FO in LC ports in a compact chassis. Multi-functional chassis which allows easy access during installation or re-work with no disturbance of the existing cables or fibres.
- Colour coded for both T568A & T568B installs
- 14x Slots LGX in 3U space
- Up to 336FO in LC
- Fully integrated fibre management
- Individually labelled ports
- MTP®/MPO, Splicing, Patching Cassette
- Datacenter storage area network & Central Office, POP
- Indoor application
- Accepts Indoor and Outdoor cable
Specifications
Technical Specifications
| Mounting Type | Rack 19" |
|---|---|
| Height Unit | 3U |
| Material | Cold rolled steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H mm) | 485 X 348 X 132 |
| Net Weight | 4 KG |
| Opening Type | Fixed chassis |
| Access Type | Front access |
| Front Cable Management | Hinged removable metal door |
| Cable Entry Direction | Rear |
| Rear Cable Management | Yes |
| Slot Type | LGX Modules |
| Number of Slots | 14 |
| Fiber Capacity | 336 IN LC |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Fiber Connectivity > Fiber Patch Leads |
| Weight | 0.009 kg |
| Warranty |
|---|
