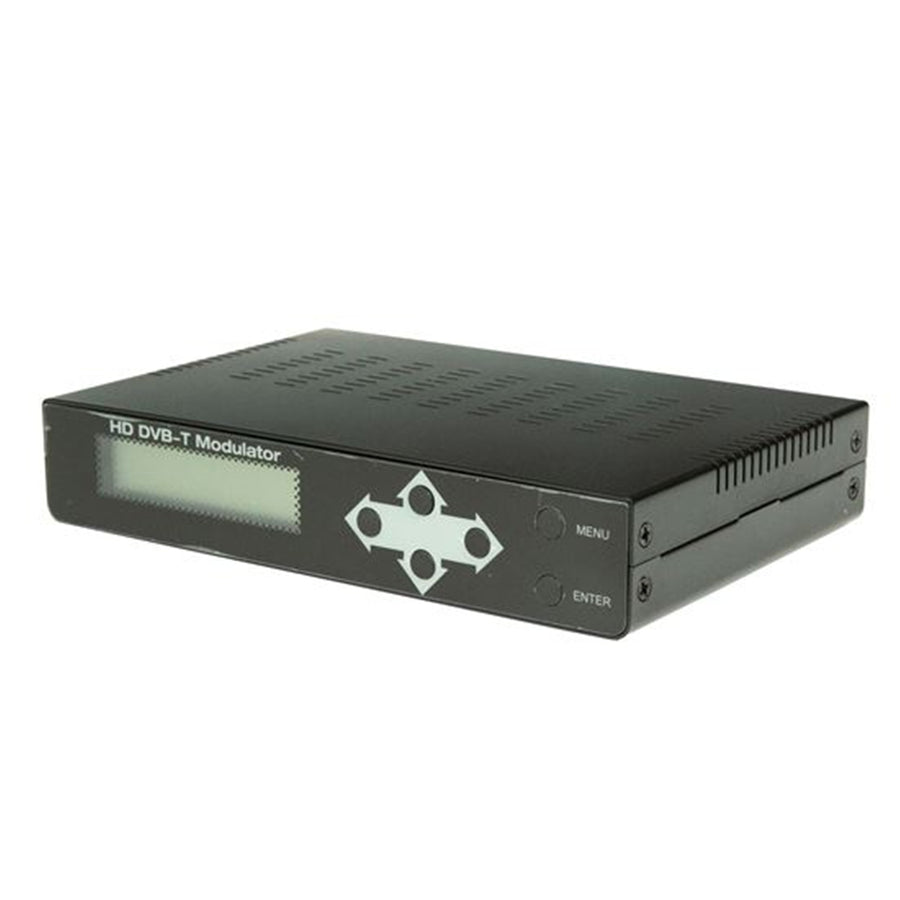

DYNAMIX LKV379P-DVB-TV2 - HDMI to RF Digital Modulator w/ HDMI Loop Out Port
Features

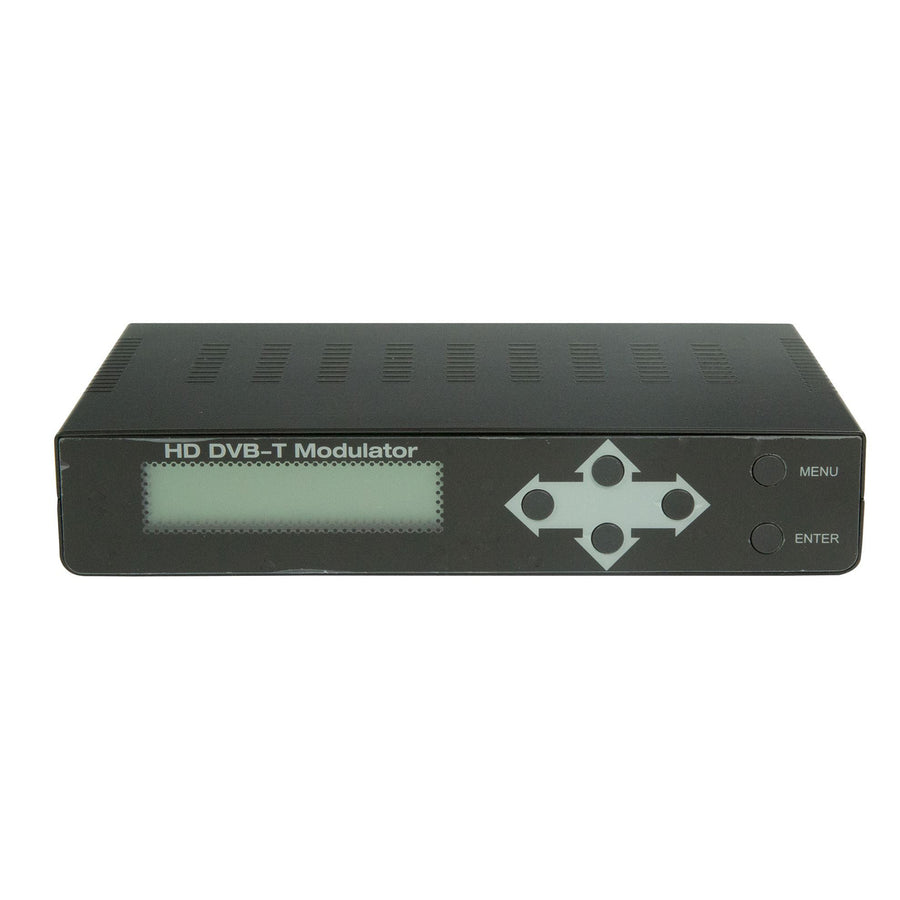

DYNAMIX HDMI to RF Digital Modulator with HDMI Loop Out Port. Supports Full HD 1080p @ 30Hz, LCD Display, Menu Navigation Keys, 12V DC Power Adapter (Included).
This is an HDMI to DVB-T converter, the perfect solution to distribute HDMI signal to DVB-T1 standard digital cable television via coaxial cables. Output can be set as any channel number and distributed to all the TV's in the system directly via CATV splitter, Co-existing with all your current existing channels.
Features
- Distributes 1x HDMI signal to DVB-T1 standard digital cable television via coaxial cables
- Supports source to multiple displays via CATV splitter
- Supports DVB-T1 digital HD RF signal output
- Supports resolution up to FHD 1080p @ 60Hz
- Wall-mountable
- Easy installation
Specifications
Technical Specifications
| HDMI Signal | HDMI1.3, fully compatible HDCP |
|---|---|

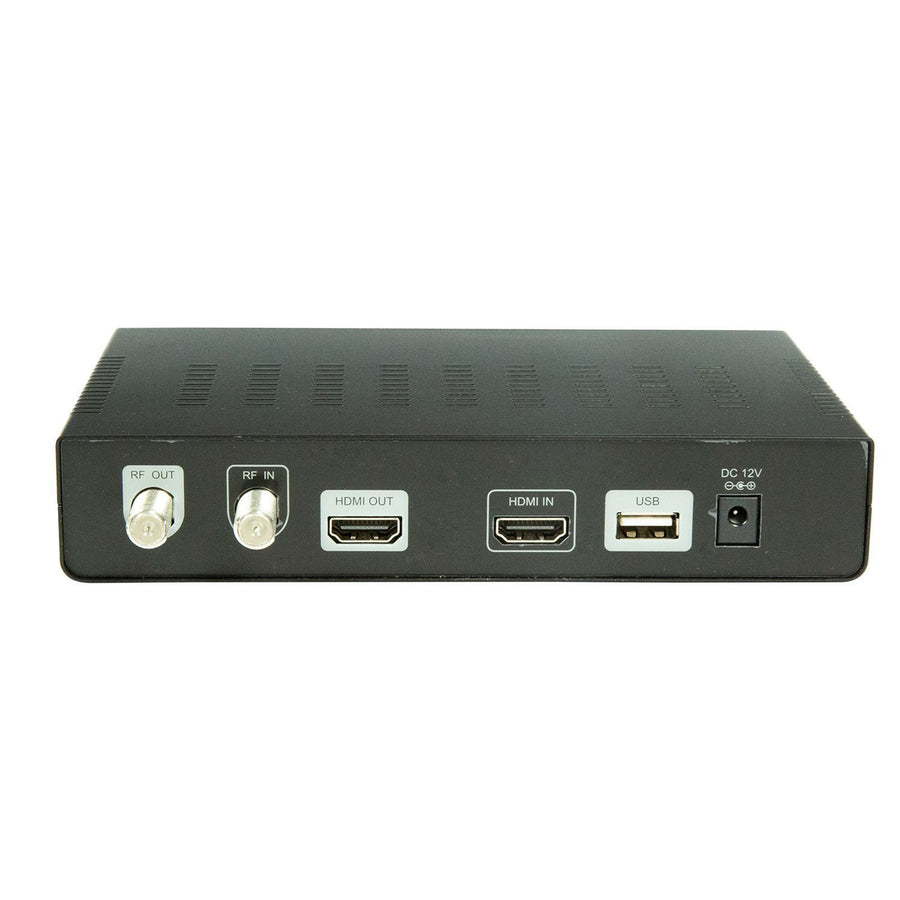

| HDMI Loop Out Port | Yes |
| HDMI DDC Signal | 5Vp-p (TTL) |
| HDMI TMDS Signal | 0.5 ~ 1.5Vp-p (TMDS) |
| Input HDMI Resolution Supported | 480 i@ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 50/60Hz |
| HDMI Graphics Resolution | 1280x720 @ 60Hz, 1920x1080 @ 60Hz |
| Video Encoding | H.264 |
| Audio Encoding | MPEG2 |
| Coaxial Output Standard | DVB-T1 |
| Coaxial Cable Required | RG6, RG7, RG11 |
| Frequency | 177.5 ~ 866MHz |
| Effective Bit Ratio | Max: 24M bits |
| Insert Loss | +2dBm |
| RF output Wattage (TX) | -10dBm ~ -13dBm |
| Delay Time | 200-300ms (Depends on the decoding ability of receivers) |
| Audio Format | Stereo PMC (44.1kbps, 48kbps) |
| Power | DC 12V/1A |
| Product Consumption | <5W |
| Working Temperature | 0°C~50°C |
| Stock Temperature | -10°C~70°C |
| Relative Humidity | 0%~90% |
| Product Dimensions | 158 x 115 x 33mm |
| Weight | 520g |
| Colour | Nero |
| Brand | DYNAMIX |
|---|---|
| Product Type | PC Peripherals > KVM Switches & Cables |
| Weight | 3.955 kg |
| Warranty |
|---|
