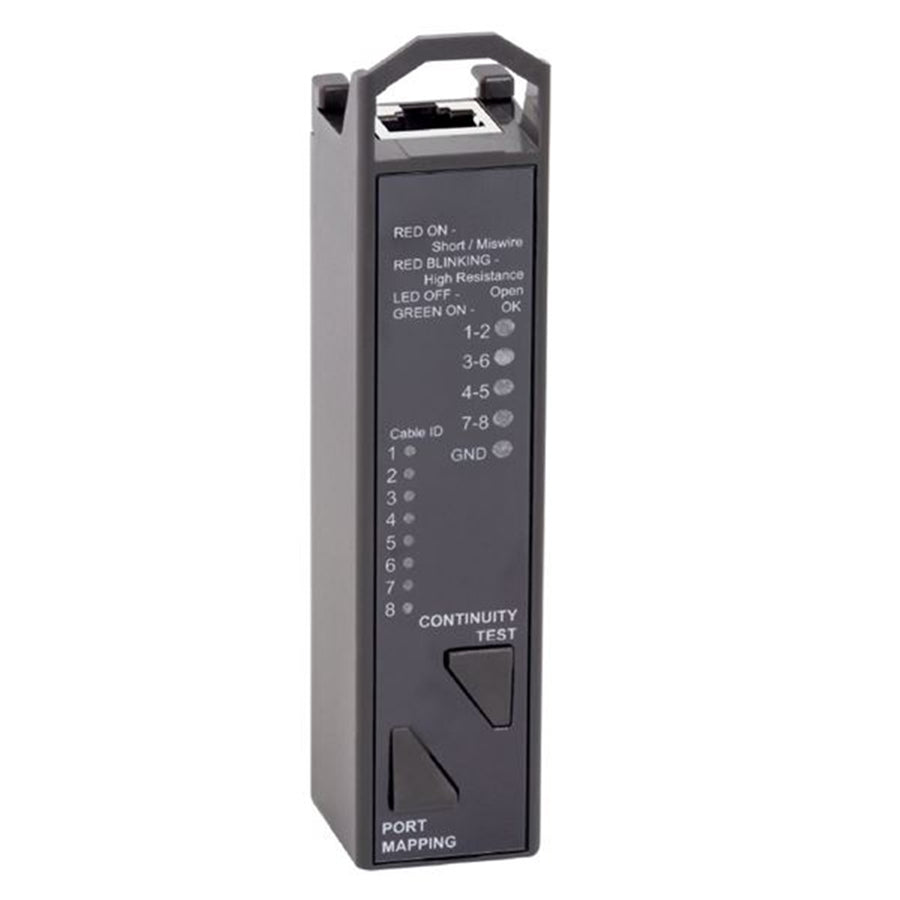

DYNAMIX LTPM-RJ45 - 3-in-1 Continuity Resistance & Port Mapping RJ45 Network Cable Tester
Features
DYNAMIX 3-in-1 Continuity, Resistance and Port Mapping RJ45
The DYNAMIX 3-in-1 Micro RJ45 Network Cable Tester combines resistance testing, continuity testing, & port mapping in a single, portable, & user-friendly device. Engineered for efficiency & precision, this versatile tester supports high-end applications in the communication, financial, & security industries. Offering professional-grade performance at a cost-effective price point, it ensures reliability & accuracy without compromising on quality

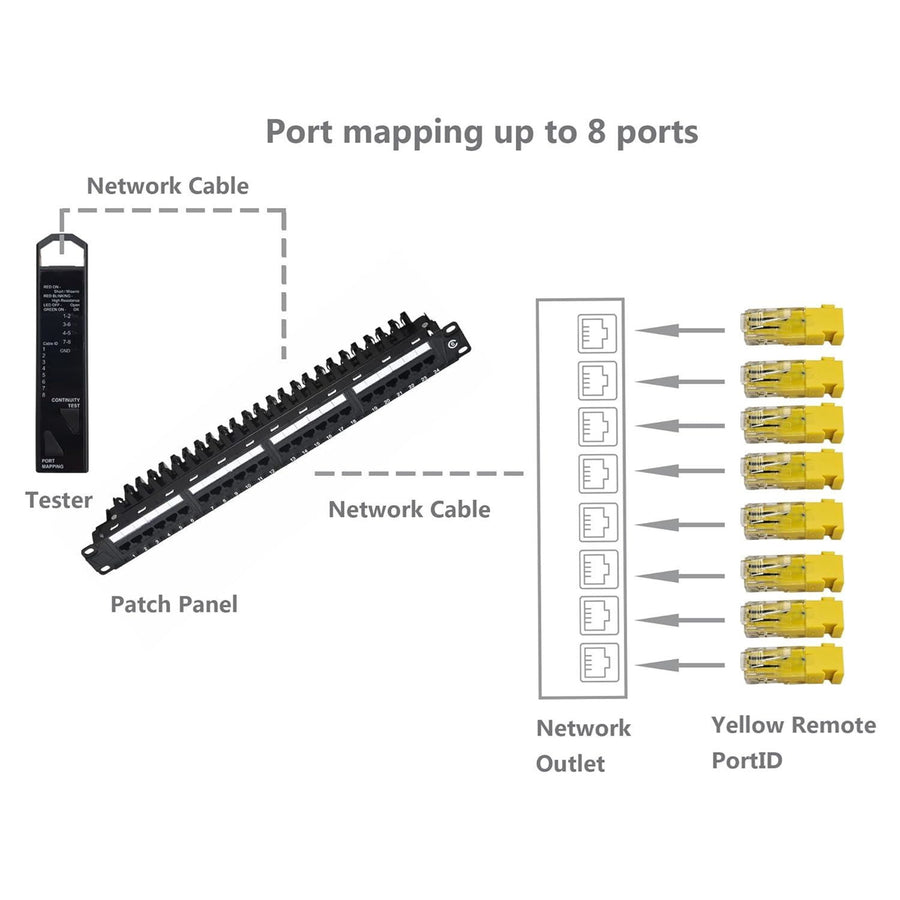

- Comes with remote 8-port mapping function
- Fast 0.5s test cycle
- Slim compact design with simple 2 button design
- Low battery consumption
- Indicates power transmission capability for PoE application
- Supports high resistance testing function
- Easy to read LED display

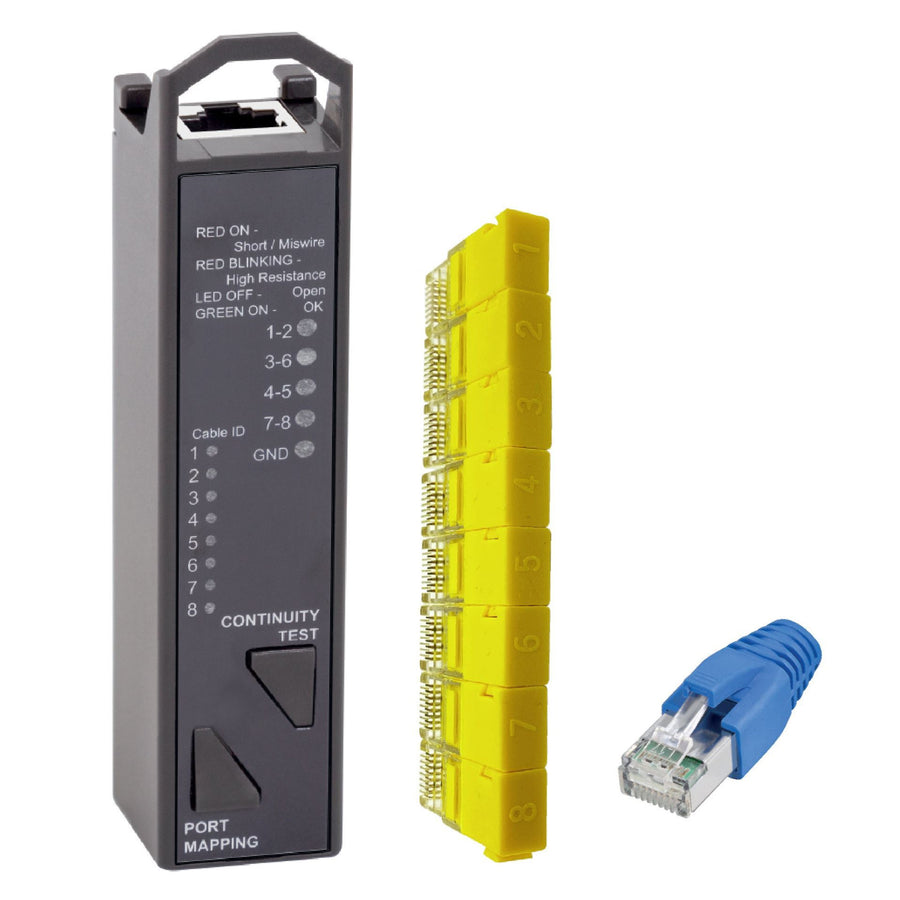

- 8x Yellow stackable cable identification plugs included
- Powered by 1x AA battery (Not included)
Specifications
Technical Specifications
| Application | UTP/STP CAT5e/6/6A/8 Cables |
|---|---|
| Powered | 1x AA Battery (20s Auto Power-Off) |
| Compliance | CE, FCC, ROHS, REACHISO/IEC 11801, EIA/TIA 568 |
| Dimensions (LxWxH) | 25 x 27 x 111mm |
| Main Tester Weight | 35g (Exclude battery) |
| Packaged Weight | 220g |
| Material | ABS Housing, Dark Grey |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Structured Cabling |
| Weight | 0.454 kg |
| Warranty |
|---|
