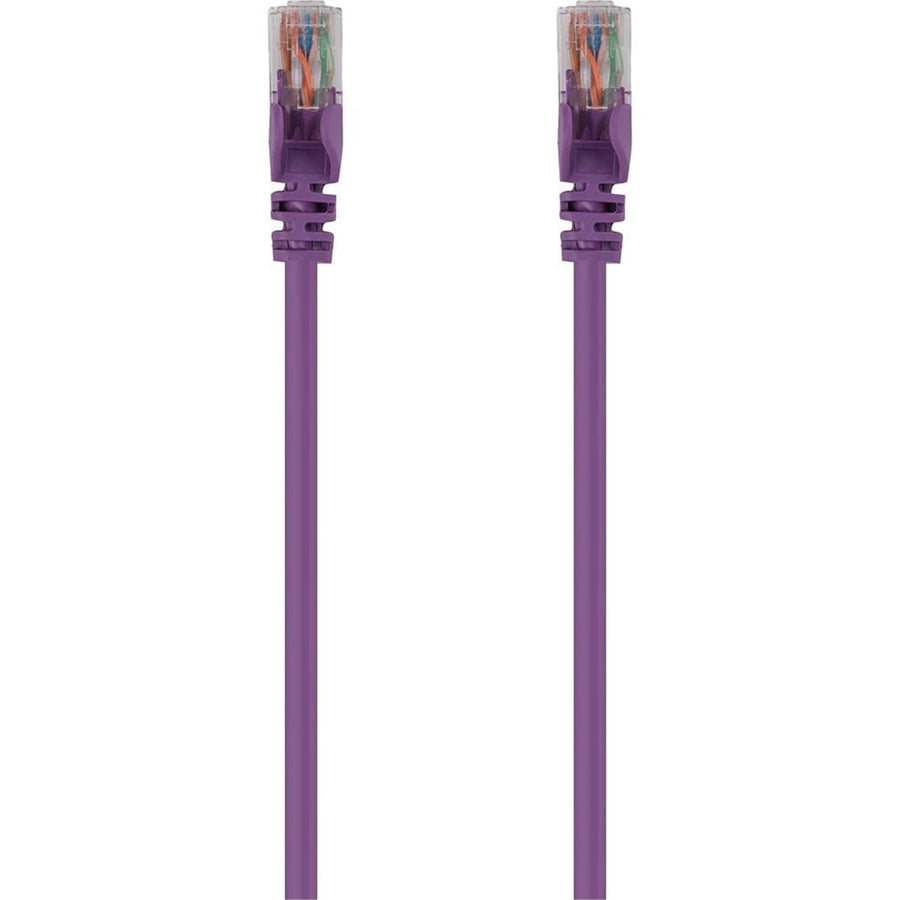

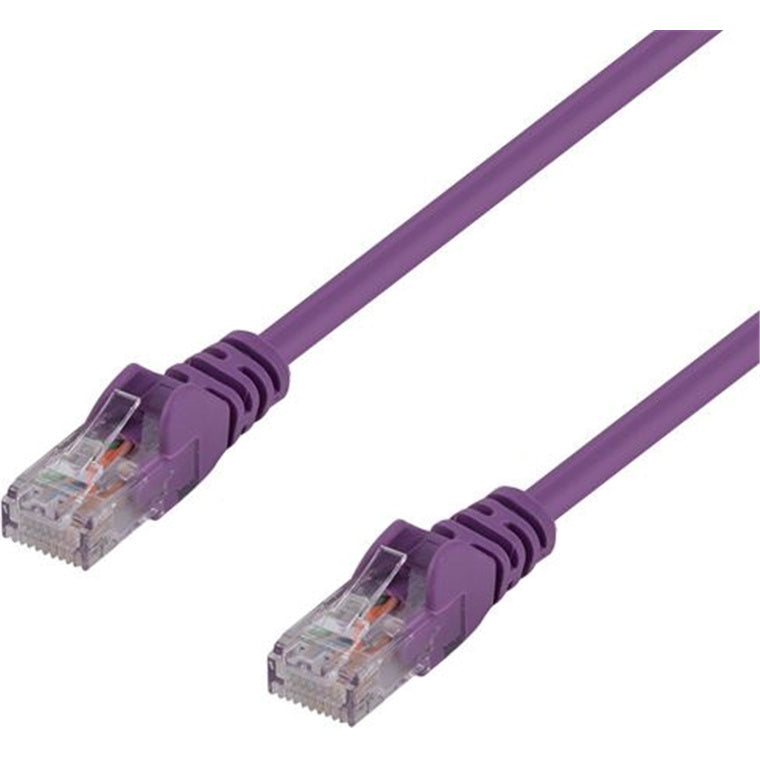

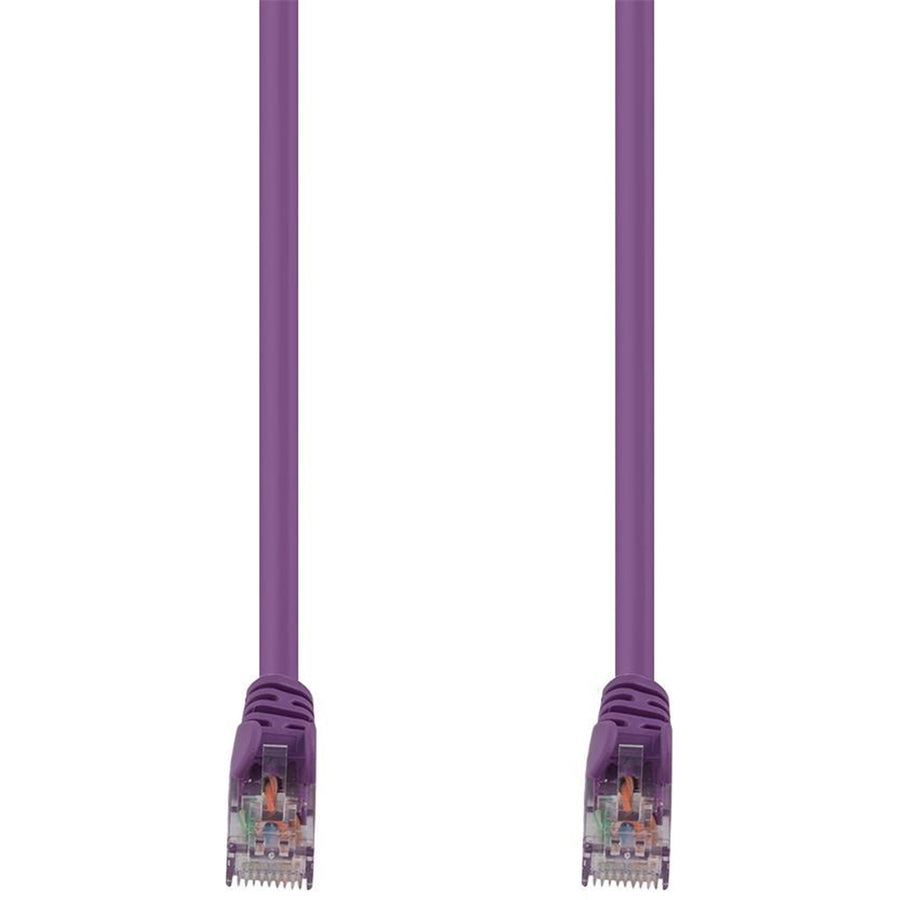

Dynamix PLP-C6A-5 Cat6 RJ45 Patch Lead - 5m - Purple

DYNAMIX Cat6 UTP Patch Lead (T568A Specification) 250MHz 24AWG Slimline Snagless Moulding with Unshielded Gold Plate Connector.

The DYNAMIX Cat6 UTP patch leads conform to the ANSI/TIA-568.2 specification. Patch leads are wired to the T568A pin-out specification. These DYNAMIX patch leads are made of premium quality, long-lasting materials. UTP 24AWG stranded conductors for flexibility. Bandwidth rating of up to 250MHz ensures compatibility with Ethernet 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 1000BASE-Tx, peer-to-peer, & any other applications that utilize networking cables including telephony, home automation and long-distance video transfer technologies like HDMI over Ethernet.

- Produced by an ISO9001 and ISO14001 certified manufacturer
- 100% tested, performance verified by 3P, UL Listed
- Operating temperature range: -20°C~60°C
- RJ45 (8P8C) plug with 50 micro inch gold plated connectors
- 70P PVC moulded boots
- Available in 10 colours

APPLICATIONS:

- 10BASE-T, 100BASE-Tx, 1000BASE-T, 1000BASE-Tx Ethernet
- 100VG (Voice Grade), Any LAN (IEEE802.12), 155/622 Mbps ATM
- 250MHz Broadband Video
- Voice, ISDN

APPROVALS:

- 3P / ETL Certified ANSI/TIA-568.2-D Category 6 Testing Performance Requirements.
- UL/cUL Listed.
