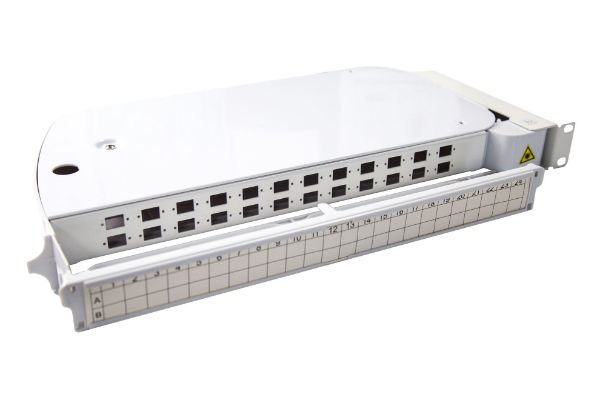

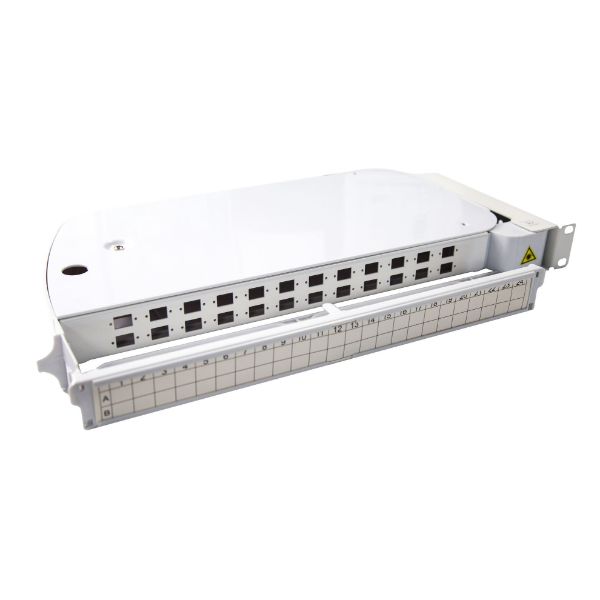

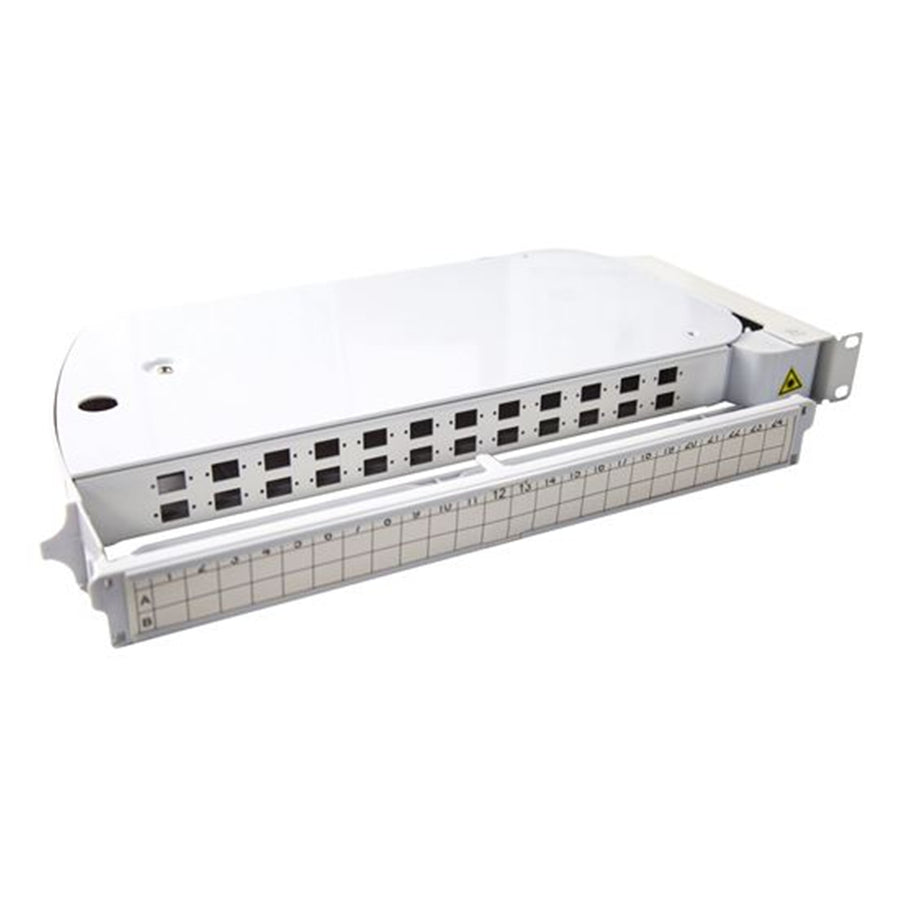

DYNAMIX PPPR24S - 1U Rotary 24 Ports SC Simplex Footprint Unloaded Right Hinge
Features
DYNAMIX 1U Rotary 24 Ports SC Simplex, Footprint Unloaded Right Hinge
ODF Rotary 1U panel is made of plastic ABS material and cold rolled steel pivotal bracket. An innovative high-density pivot panel designed to accept up to 24 SC simplex footprint adapters. The panel can pivot by up to 110° to allow easy access during installation or rework with no disturbance of the existing cable or fibres.
Key Features
- Holds up to 24 SC simplex footprint adapters
- Accepts loose tube, distribution and pre-terminated cables
- Designed for 19" standard distribution frame
- Dimensions: 482 x 280.40 x 44mm
Applications
- Telecommunications subscriber
- Fibre to the home (FTTH)
- LAN/WAN
- CATV
- Indoor Application
Specifications
Technical Specifications
| Mounting Type | Rack 19" |
|---|---|
| Height Unit | 1U |
| Material | Material ABS plastic body and cold rolled steel bracket |
| Housing Colour | White |
| Application Indoor | IP20 |
| Lockable | No |
| Dimensions (W x D x H) | 482 x 280.40 x 44mm |
| Net Weight | 2kg |
| Opening Type | Right or left pivotal panel |
| Access Type | Front access |
| Front Cable Management | Front manager with hinged drop down bar |
| Cable Entry Direction | Sides |
| Rear Cable Management | 6 x cable entries |
| Slot Type | SC Simplex /LC Duplex adapters footprint |
| Number of Slots | 24 |
| Fiber Capacity | 24 in SC and LC |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Fiber Connectivity > Fiber Patch Leads |
| Weight | 4.354 kg |
| Warranty |
|---|
