DYNAMIX PSDCMIN1218 - POWERSHIELD Mini UPS 12V DC/1.5A 18W Output
DYNAMIX PSDCMIN1218 - POWERSHIELD Mini UPS 12V DC/1.5A 18W Output
Features
POWERSHIELD Mini UPS 12V DC/1.5A, 18W Output with Long Life Li-ion Battery. Provides emergency power backup for FTTH ONT, Routers, CCTV, Alarms. Range Power Adapters

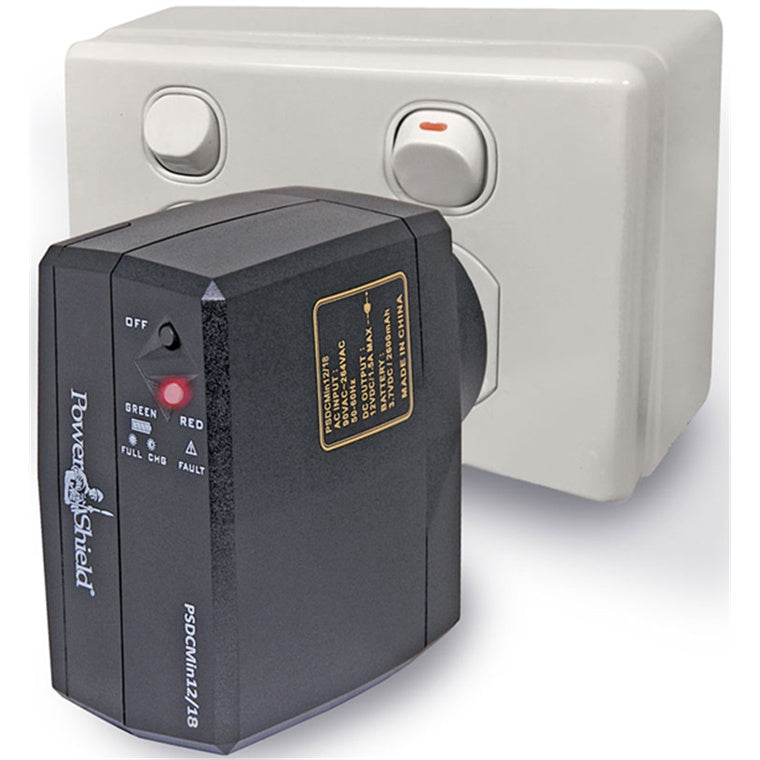

The PowerShield DC Mini is designed to provide emergency power backup to all kinds of DC powered equipment including routers, modems, set-top boxes, VOIP phone systems, surveillance equipment, alarm systems and many critical telecommunications devices. DC Mini can economically provide hours of operation during power failure.
- Built-in Li-ion battery
- Auto start when plugged in
- Multi-colour indicator
- Embedded Microcontroller
- Manual power off the switch port
- Overload, short circuit, overcharge and over-discharge protection
- Packaged with an assortment of power connectors, including a Molex connection for the Chorus ONT
- Provides 150min runtime for Chorus ONT
- Dimensions: 44(W) x 79(H) x 96(D)mm

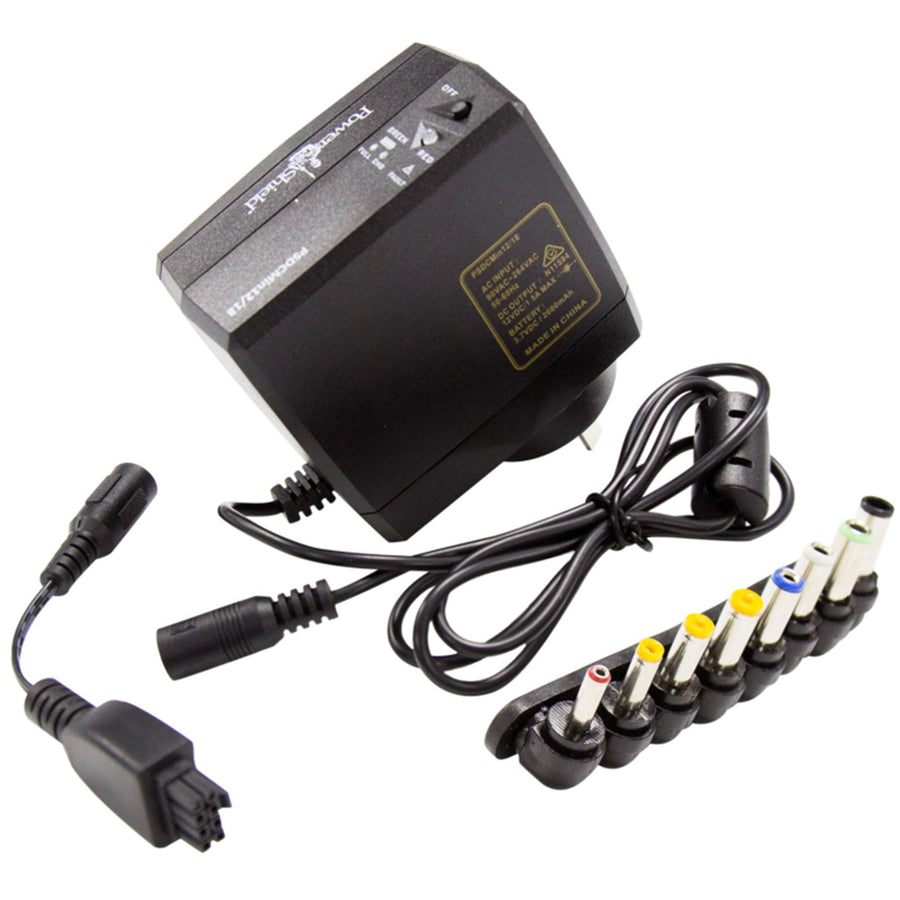

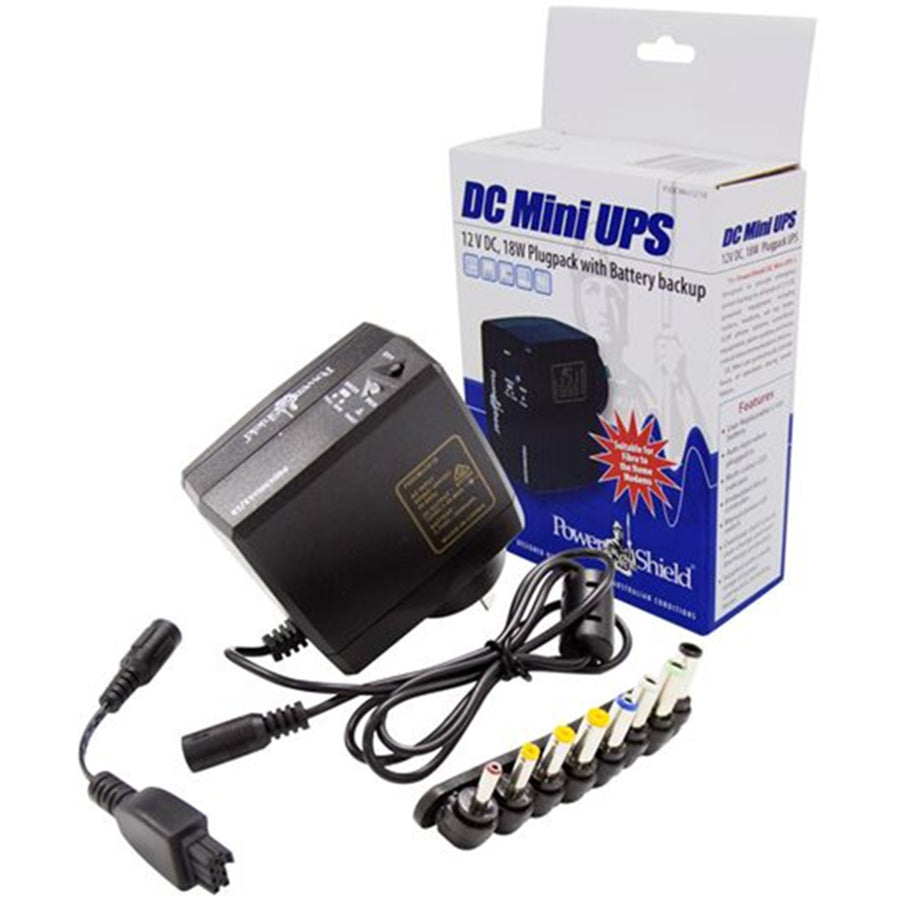

Power Connectors Included:
Complete set of DC Power Jack tip adaptors allowing simple connection to all devices using DC powered jack sockets, such as modems, phones etc.
Molex connector as used by many popular ONT (Optical Network Terminal) devices.
For more information: https://atlasgentech.co.nz/media/wysiwyg/pdf/PowerShield/Powershield_DC_Mini_Brochure.pdf
Specifications
Technical Specifications
| Voltage Range | 90V AC ~ 265V AC |
|---|---|
| Frequency | 50Hz or 60Hz |
| Surge Protection | 125J @ 4500A |
| Voltage | 12V DC ± 5% |
| Maximum Power | 18W (1.5A) |
| Battery Type | Lithium-Ion Battery |
| Voltage | 3.7V DC |
| Capacity | 2600mAh |
| Typical Charging Time | 3 hours recover to 90% capacity |
| Battery | Deep Discharge, Over-Charge and Short Circuit Protection. |
| Input/Output | Fuse for Short Circuit and Overload Protection |
| Full Battery | Green - Solid |
| Battery Charging | Green - Slow Flashing |
| Battery Discharging | Green - Quick Flashing |
| Fault | Red - Solid |
| Dimensions (D x W x H) | 78 x 42 x 74mm |
| Net Weight | 280g |
| Typical Small Router (0.25A/3W) | 150 Minutes |
| Typical Router (0.75A/9W) | 120 Minutes |
