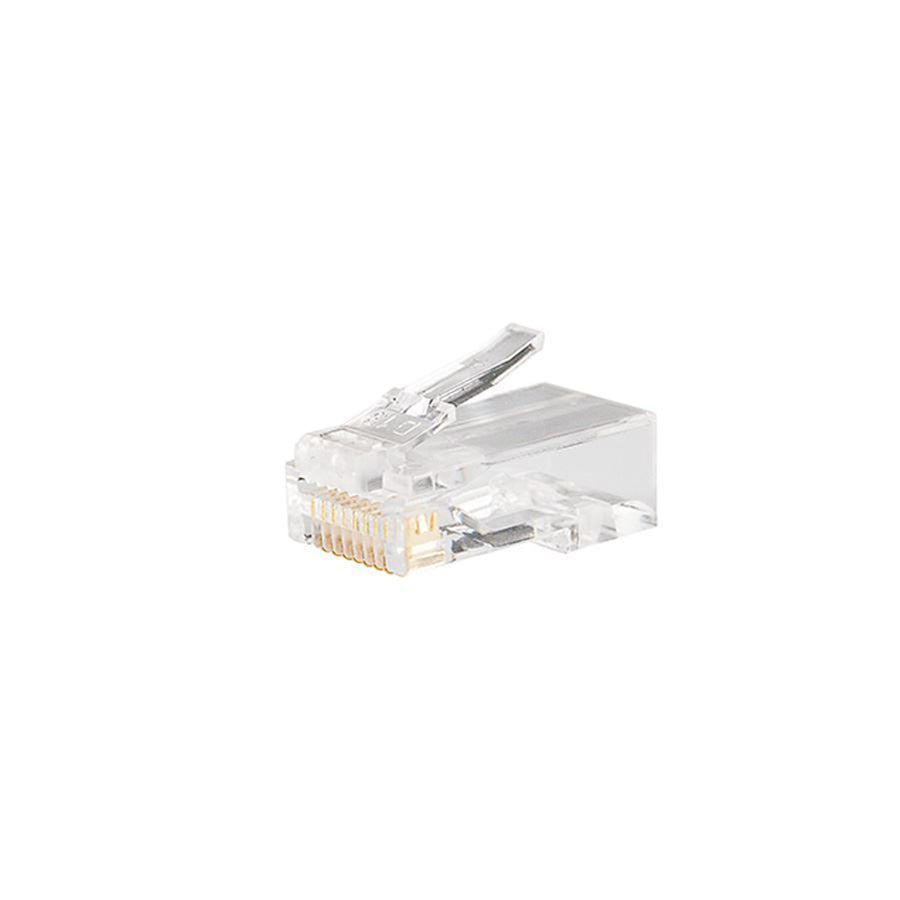

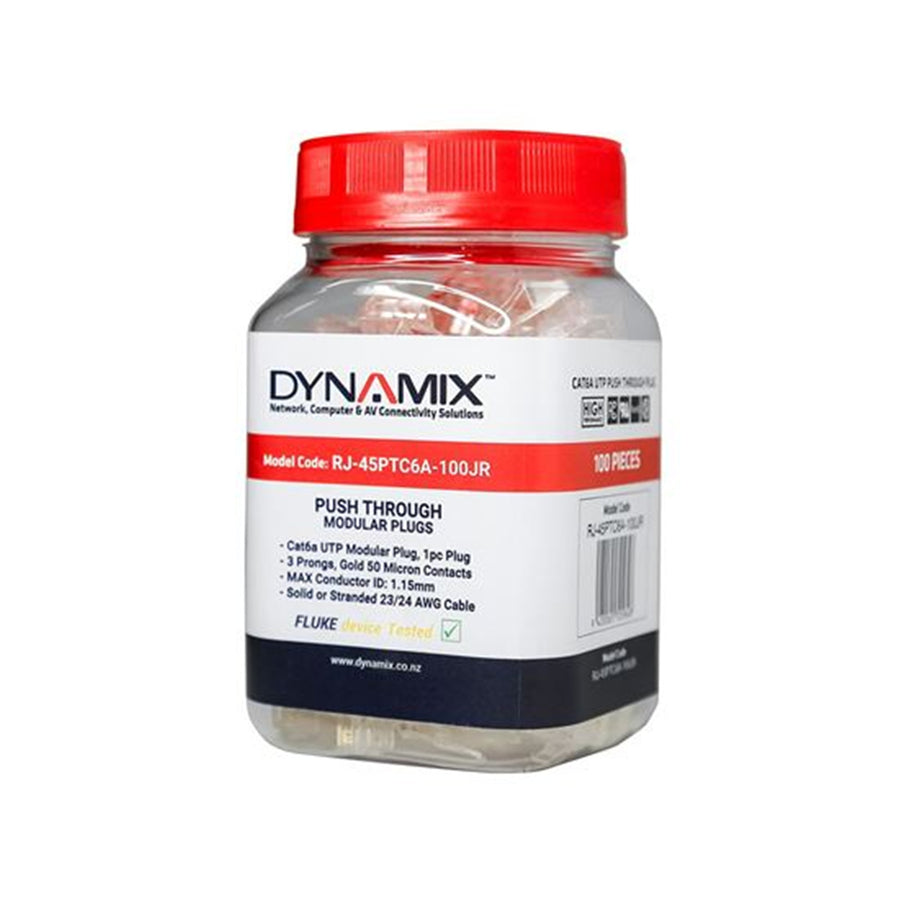

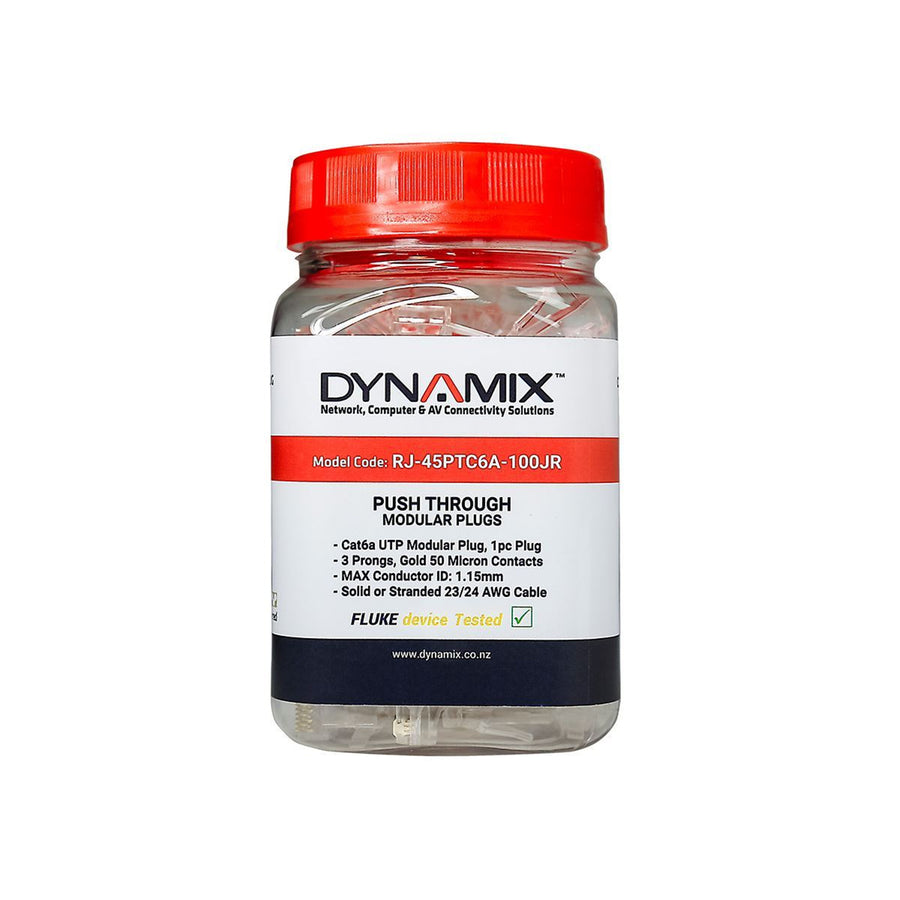

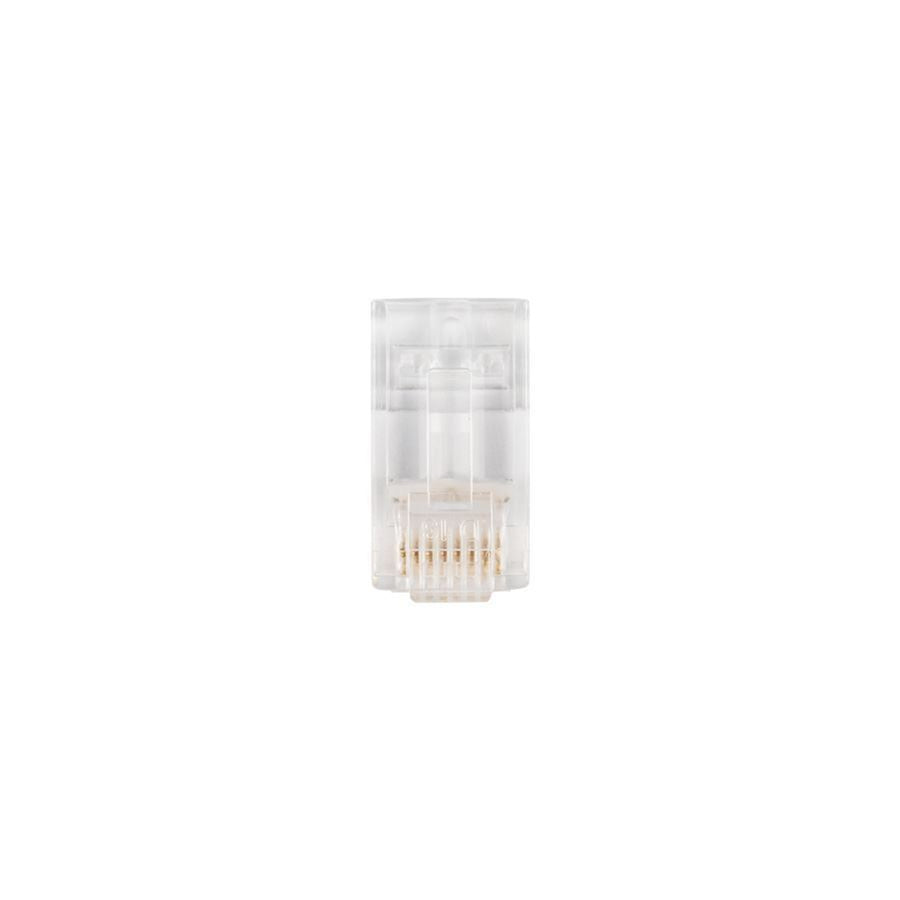

DYNAMIX RJ-45PTC6A-100JR - Cat6/6A UTP Push Through 100pc Jar for Solid/Stranded Cable Conductor size : 1.15mm
Features
Our DYNAMIX RJ45 Pass-through modular plug connectors are designed to simplify the process of terminating RJ45 modular plugs, by allowing the wires to be inserted through the connector and out the front to easily verify the proper wiring order. Pulling the connector down over the cable jacket and seating it tightly in the rear of the connector optimizes the performance of the termination.
- Wire conductor up to 23AWG
- Gold-plated 50 Micron-rated connectors
- Supports Solid and Stranded Cables
- Transparent polycarbonate
- Meets or Exceeds ANSI/TIA568-D.2; ISO/ IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
- Designed to be terminated with the DYNAMIX push-through crimp & cut tools
- Compatible with "Platinum Tools" crimp & cut tools
Specifications
Technical Specifications
| Wire Conductor | 23AWG |
|---|---|
| Flame Auto-extinguish | UL94V-2 |
| Shielded Material | Hard Brass (CAT6/6A STP Plugs Only) |
| Plug Material | Transparent Polycarbonate |
| Insertion Life | 2000 Minimum cycles |
| Certification | ANSI/TIA568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Network Cables |
| Weight | 4.036 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
