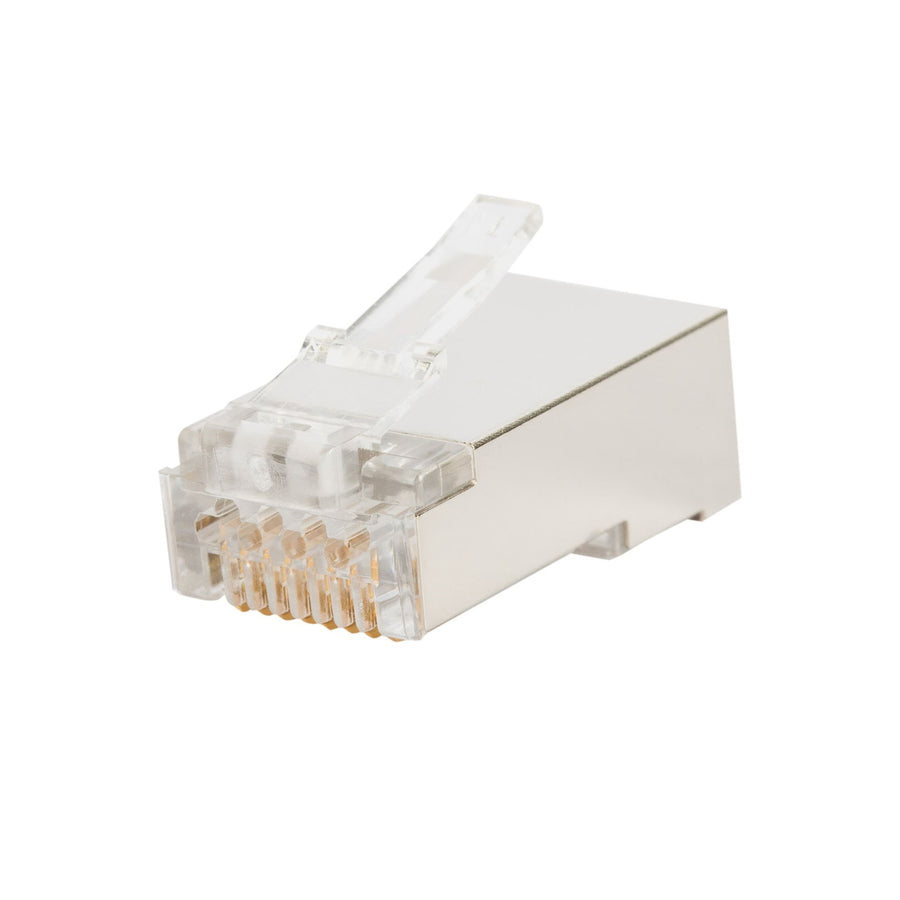

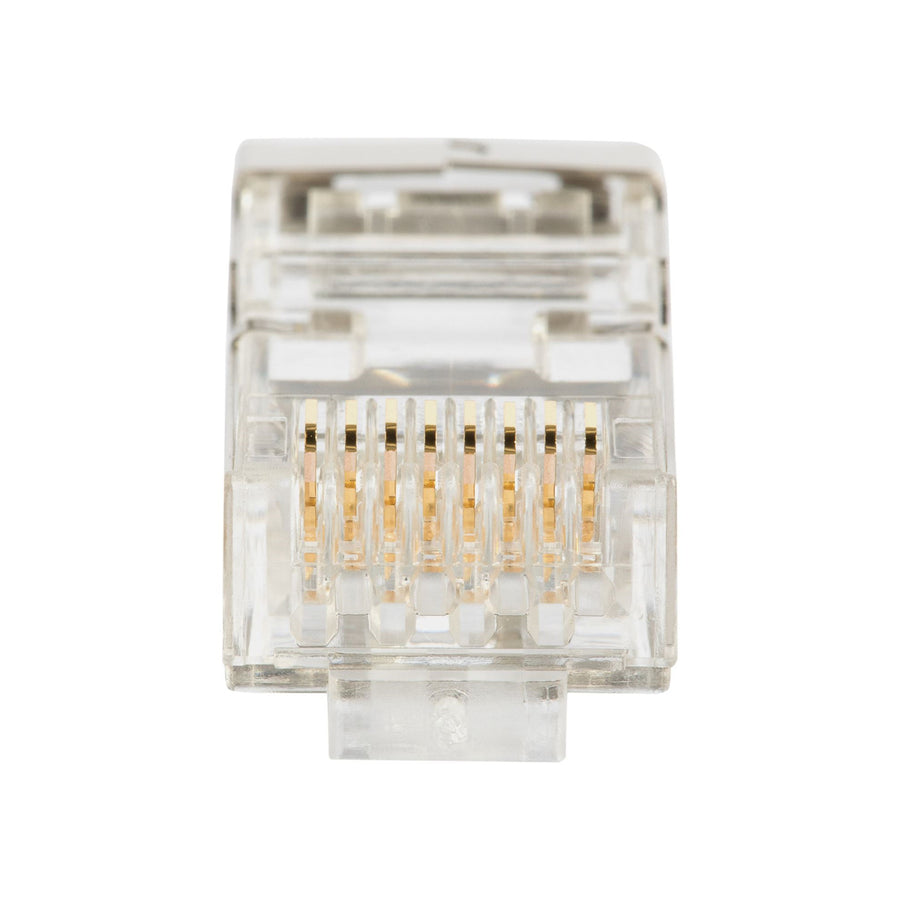

DYNAMIX RJ-45PTC6S-20 - Cat6 STP Internal Ground Push Trough Plug 20pc Pack Solid/Stranded

DYNAMIX RJ-45PTC6S-20 - Cat6 STP Internal Ground Push Trough Plug 20pc Pack Solid/Stranded

Name: DYNAMIX RJ-45PTC6S-20 - B2B - Networking & Routing | KW Tech NZ
Brand: DYNAMIX
SKU: RJ-45PTC6S-20
Price: 59.99 NZD
Availability: InStock

SKU: RJ-45PTC6S-20 ● In Stock

$52.17

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

DYNAMIX Cat6 STP Internal Ground push through plug, 3 prong, 50 u" 20pc pack

For solid & stranded cable

Max conductor size : 1.15mm

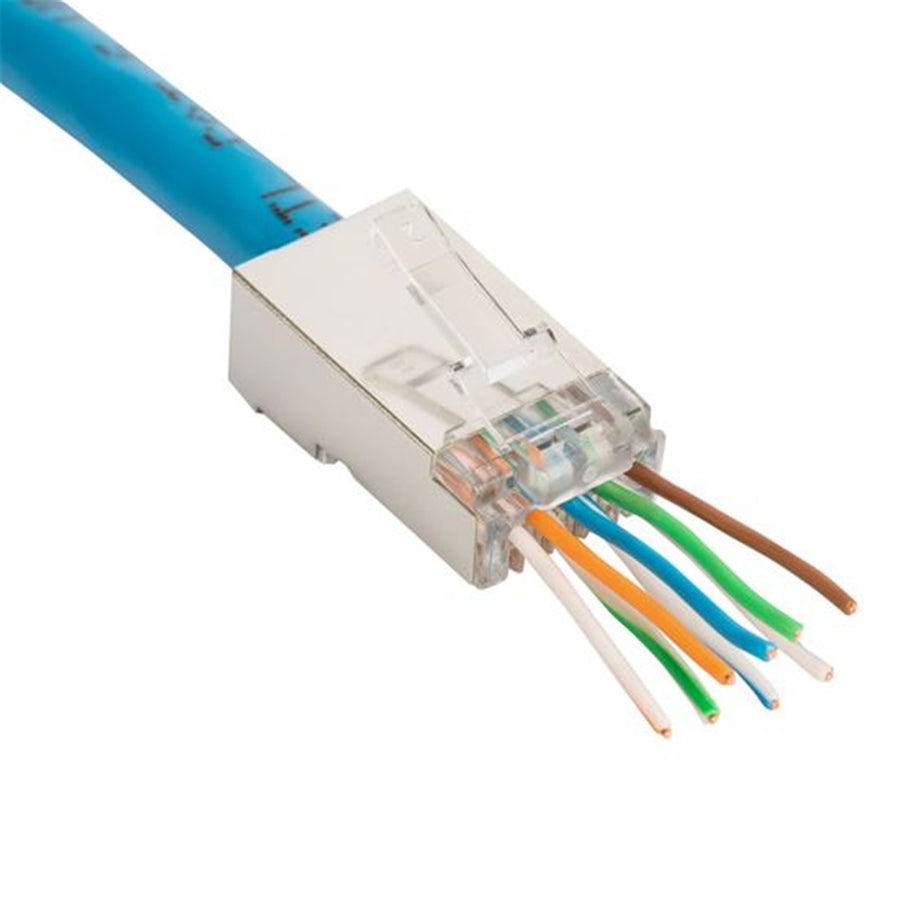

Our DYNAMIX RJ45 Pass-through modular plug connectors are designed to simplify the process of terminating RJ45 modular plugs, by allowing the wires to be inserted through the connector and out the front to easily verify the proper wiring order. Pulling the connector down over the cable jacket and seating it tightly in the rear of the connector this optimizes the performance of the termination

-Wire conductor up to 23AWG

-Gold plated 50 Micron rated connectors

-Supports Solid and Stranded Cables

-Transparent polycarbonate

-Meets or Exceeds ANSI/TIA568-D.2; ISO/ IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7

-Compatible with "Platinum Tools" crimping/cutting tools

Specifications

Technical Specifications

Wire Conductor	23AWG
Flame Auto-extinguish	UL94V-2
Shielded Material	Hard Brass (CAT6/6A STP Plugs Only)
Plug Material	Transparent Polycarbonate
Package Quantity	20
Insertion Life	2000 Minimum cycles
Certification	ANSI/TIA568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7

Warranty	12 months

Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
