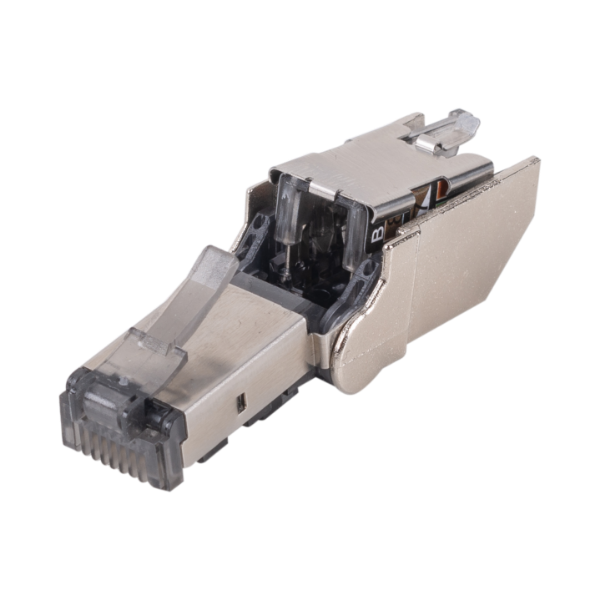

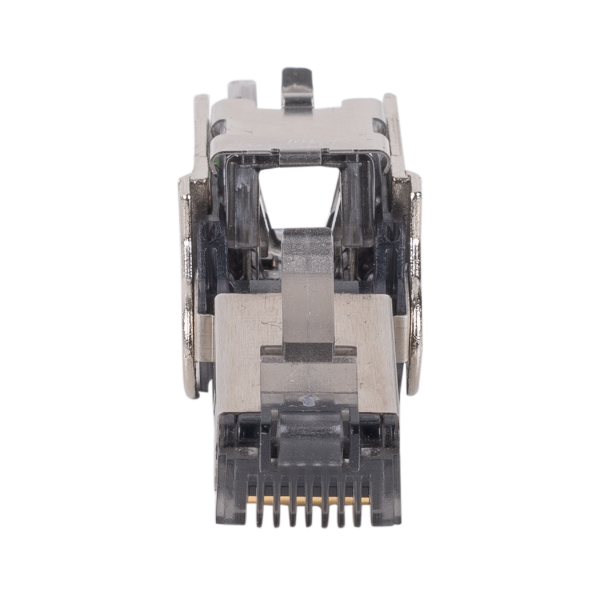

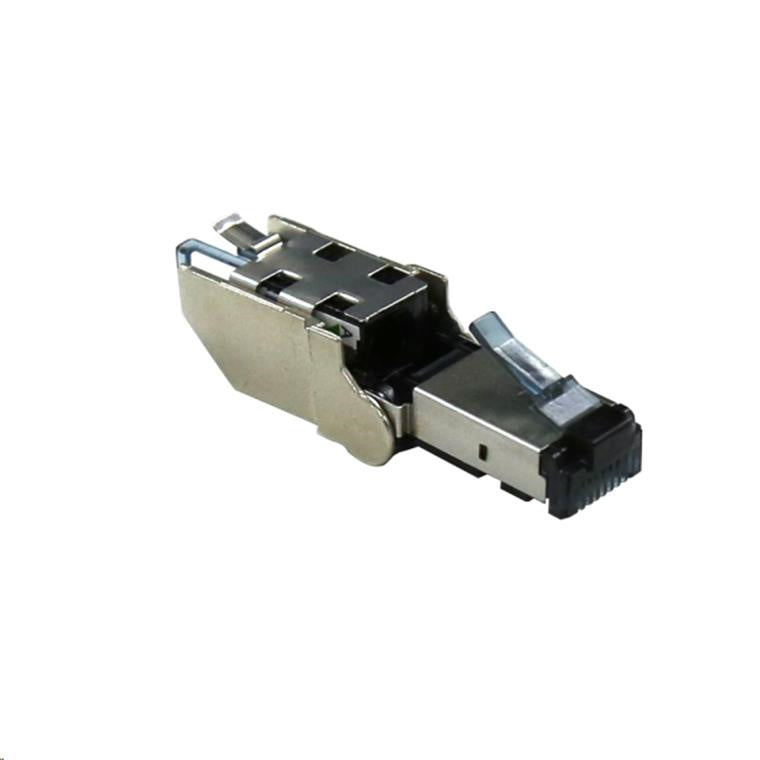

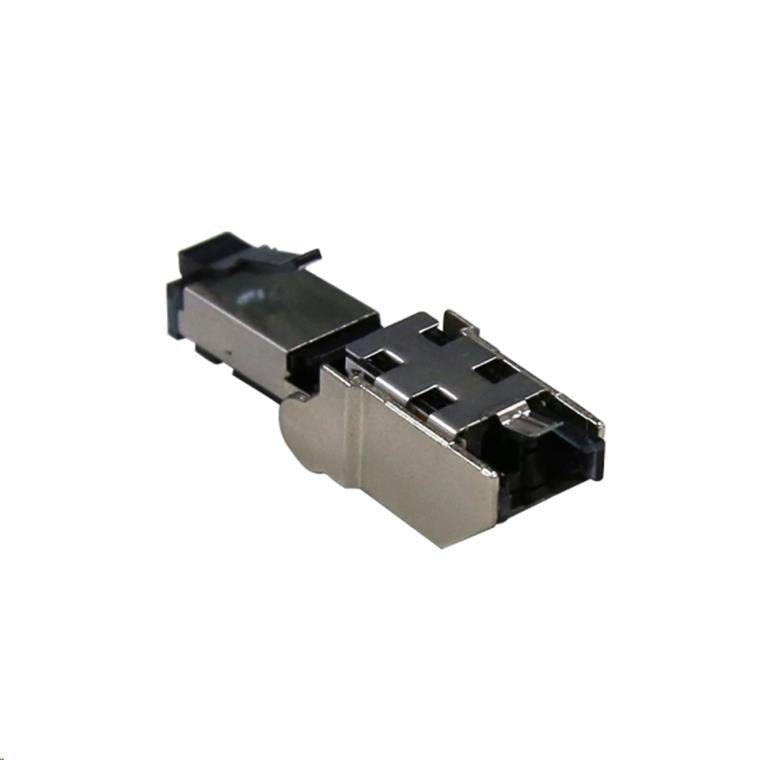

DYNAMIX RJ-TL6ASTP - RJ45 STP Cat6A 10G Tooless Flexible Plug. Works w/ both Solid & Stranded Conductors

DYNAMIX RJ-TL6ASTP - RJ45 STP Cat6A 10G Tooless Flexible Plug. Works w/ both Solid & Stranded Conductors

Name: DYNAMIX RJ-TL6ASTP - Networking > Network Cables | KW Tech NZ
Brand: DYNAMIX
SKU: RJ-TL6ASTP
Price: 17.28 NZD
Availability: InStock

SKU: RJ-TL6ASTP ● In Stock

$15.03

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

DYNAMIX RJ45 STP Cat6A 10G Tooless Flexible Plug. Solid Conductor 22-24 AWG

- Toolless termination
- Increased transmission capacity & bandwidth
- Large cable & conductor acceptance
- Bendable body allowing multi-application in limited space, also reduce stress due to bending of the cable
- Support direct-attach installation, reduce connection points & thus reduce system cost & installation time
- No special crimping tool required
- Crosstalk reduced gold contact arrangement
- Stable contact blade position
- Smart wiring management cap
- Installation within 1 minute

Specifications

Technical Specifications

Contacts	Gold Plating in Localized Area Over Nickel Undercoat
IDC Terminal	Phosphor Bronze with Nickel Plating
Housing	High Impact Thermal Plastic UL94-V0
Shield	Front SUS301, Back Zamac
Plug Interface Dimensions	Confrom to FCC Part 68 Subpart F
Circuit	FPC UL94-V0
Acceptable Cable OD	4 - 8mm
Conductor Acceptance	22 ~ 24 AWG Solid Conductor with Insulation OD 0.9 ~ 1.27mm
Plug Insertion Cycle	750 Times Max.
IDC Re-Termination Cycle	20 Times Max.
Body Bending Cycle	50 Times Max.
Wiring Colour Code	T568A & T568B
Material	Aluminium

Warranty	12 months

Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
