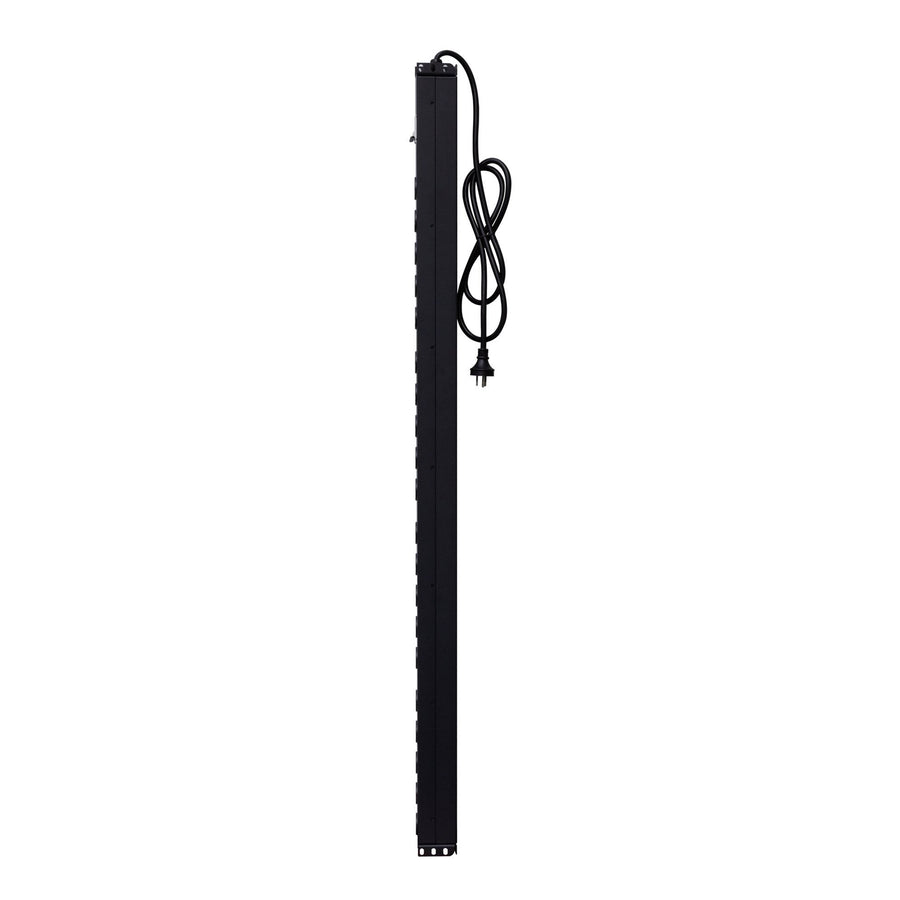

Dynamix RPR-20V15MCB 20 Outlet Vertical Power Rail (10A) with 6kA C-Curve MCB Circuit Breaker, AU/NZ on/off switch & 50mm Recessed Brackets, 15A 3 Pin Plug, Vertical Height 1293mm, Colour Black
Features
DYNAMIX 20 Outlet Vertical Power Rail (10A) with 6kA C-Curve MCB Circuit Breaker, on/off switch & 50mm Recessed Brackets. 15A 3 Pin Plug. Vertical Height 1293mm. Colour Black
Unmanaged 20 Way Vertical 3-Pin 16 Amp Power Distribution Units with 6KA C-Curve Circuit Breaker. This range incorporates a 16 Amp connector, ideal for connecting directly into UPS's to expand power port availability.
- 20 Way Outlet Power Distribution Unit (PDU)
- Unmanaged full metal rack-mount PDU

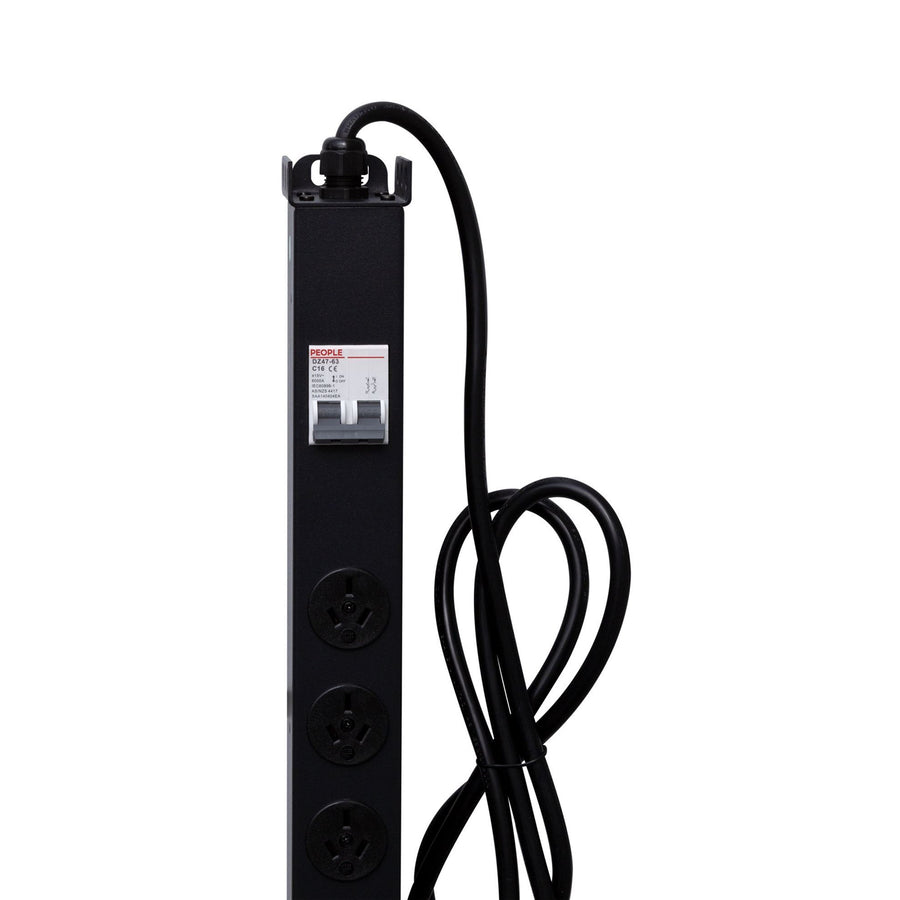

- Built-in 6KA C-Curve circuit breaker
- Rated Voltage: 230V~/60Hz
- Horizontal PDU incorporates recessed brackets for cable management
- Vertical PDU incorporates three-way mounting brackets for ease of installation
*Please note that;
This model is a 15 Amp PDU so the 3pin plug is the 3pin 15amp plug (has a larger earth pin),
If you need a 10amp PDU with the standard 3pin 10amp plug they will need to order this SKU: RPR-20VMCB
Specifications
Technical Specifications
| Material | Steel |
|---|---|
| Operating Temperatures | -10°C~+40°C |
| Storage Temperature | -10°C~+60°C |
| Working Humidity | 5% (0°C)~90% (40°C) |
| Voltage | 230V~/60Hz |
| Input Connector | 16A, 3-Pin |
| Dimensions | 1327.50 x 50 x 67mm |
| RU | 0 |
| Cable Length | 2m |
| Colour | Black powdered coated |
| Brand | Dynamix |
|---|---|
| Product Type | Power & Lighting |
