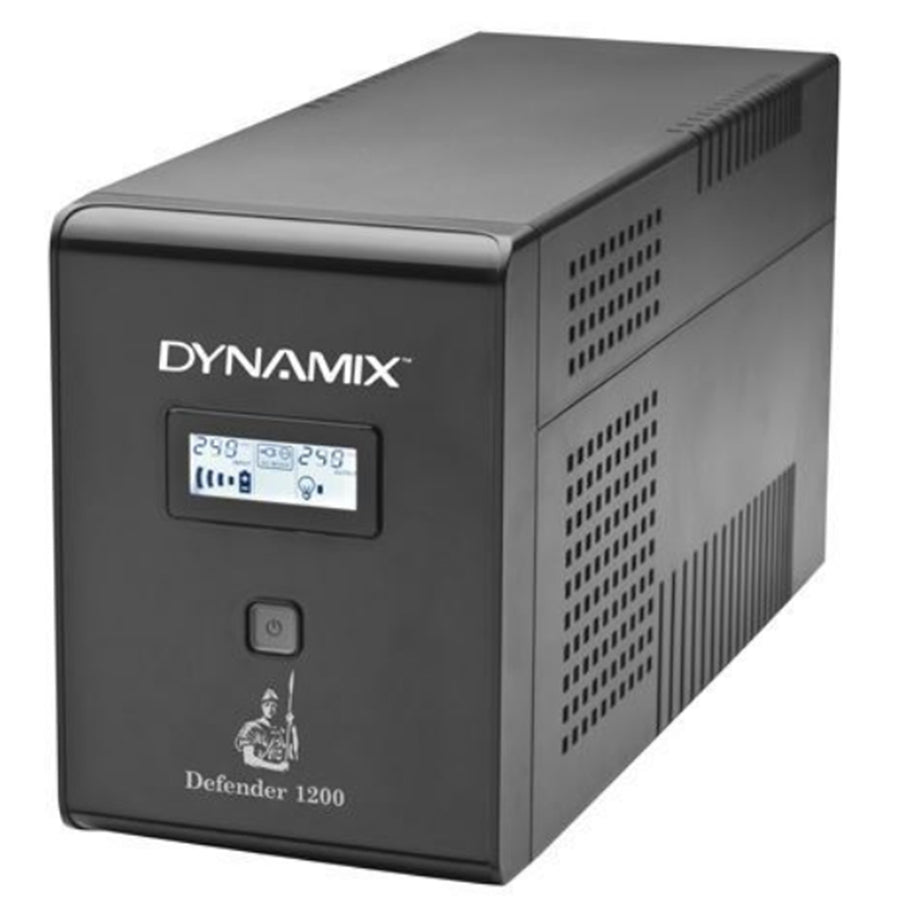

Dynamix UPSD1200 Defender 1200VA (720W) Line Interactive UPS, 3x NZ Power Sockets with Surge+Battery Backup, 3x NZ Power Sockets with Surge 936J Netguard Smart Monitoring, USB Cable Included
Features
DYNAMIX Defender 1200VA (720W) Line Interactive UPS, 3x NZ Power Sockets with Surge+Battery Backup, 3x NZ Power Sockets with Surge 936J LCD Status Display.
The Defender range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user-replaceable battery and two Australia/NZ sockets make the Defender the complete package at this level. The Defender USB communication port is compatible with Synology NAS products. NetGuard™ UPS management software included.

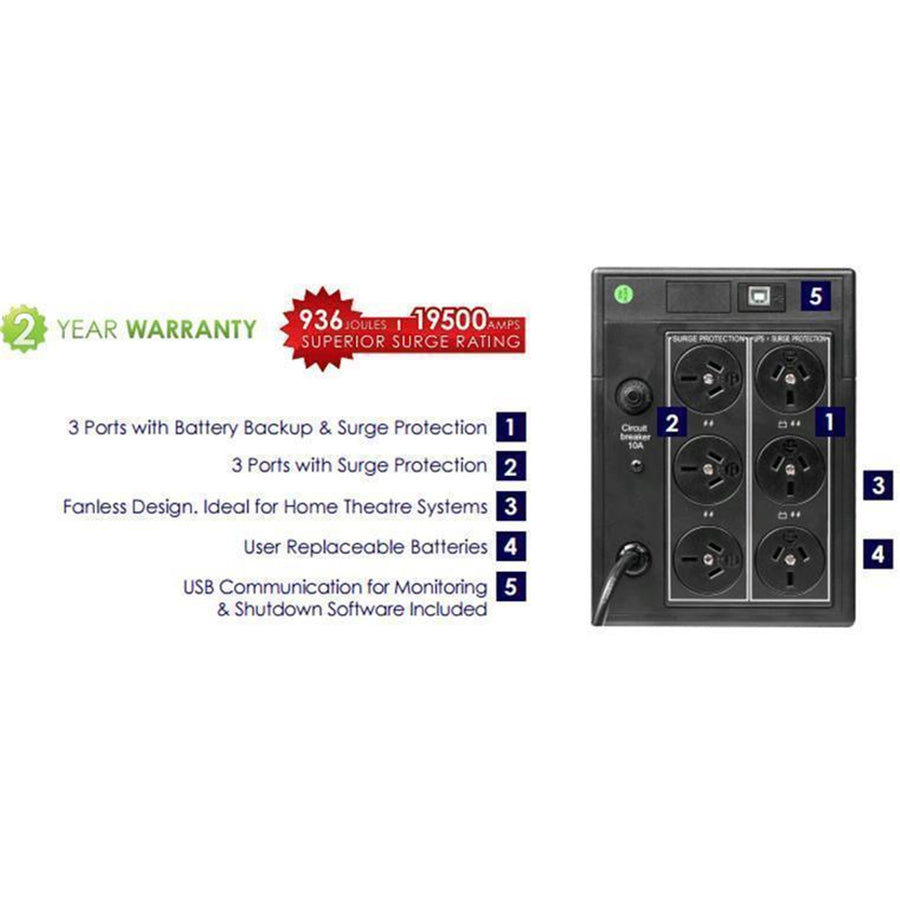

- Surge Protection, Best in its Class

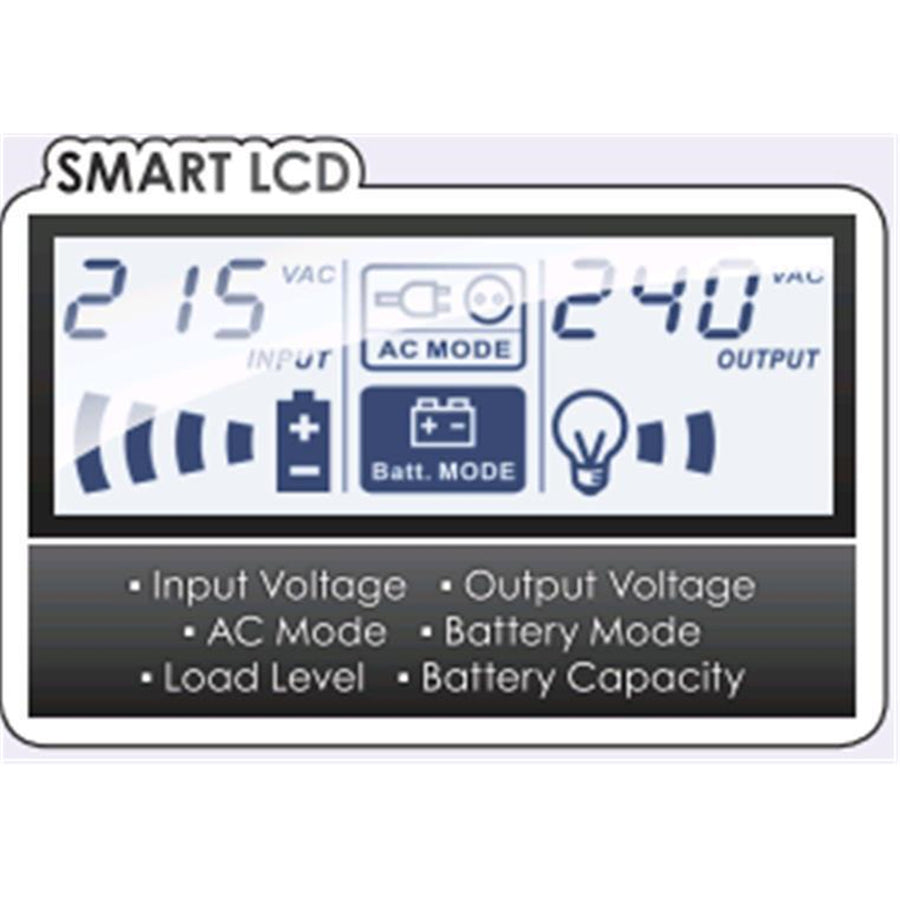

- LCD Status Display
- Australian/NZ outlets for UPS and Surge protection (x2)
- Buck and boost AVR for voltage stabilisation
- User-replaceable battery
- Silent Operation (No fans included)
- Auto-restart when AC returns
- Off-mode charging
- Cold start function
- USB communication with sophisticated NetGuard® software
- LCD Status Display
*Please note: as the software is always being updated, the CD had been removed form the package in case it is causing problem, please download the latest NetGuard software from www.powershield.com.au/index.php/download refer to user manual for password
*Driver link http://powershield.com.au/downloads-2/
Manufactured by Panasonic Storage Battery (Shenyang) Co., Ltd
MSDS (Material Safety Data Sheet) is available on request.
aka
| PowerShield PSD1200 Defender UPS 1200VA 720W |
Specifications
Technical Specifications
| Capacity | 1200VA / 720W |
|---|---|
| Topology | Line Interactive |
| Voltage | 230Vac (Nominal) |
| Voltage Range | 177-290Vac |
| Frequency Range | 50/60Hz±5Hz (Auto sensing) |
| Output Voltage | 230Vac±10% |
| Frequency | AC mode tracks utility.Battery mode 50Hz±1% |
| Frequency Range | 50Hz or 60Hz±1Hz |
| Transfer Time | 6ms (Typical) |
| Waveform (Battery Mode) | Simulated Sine Wave |

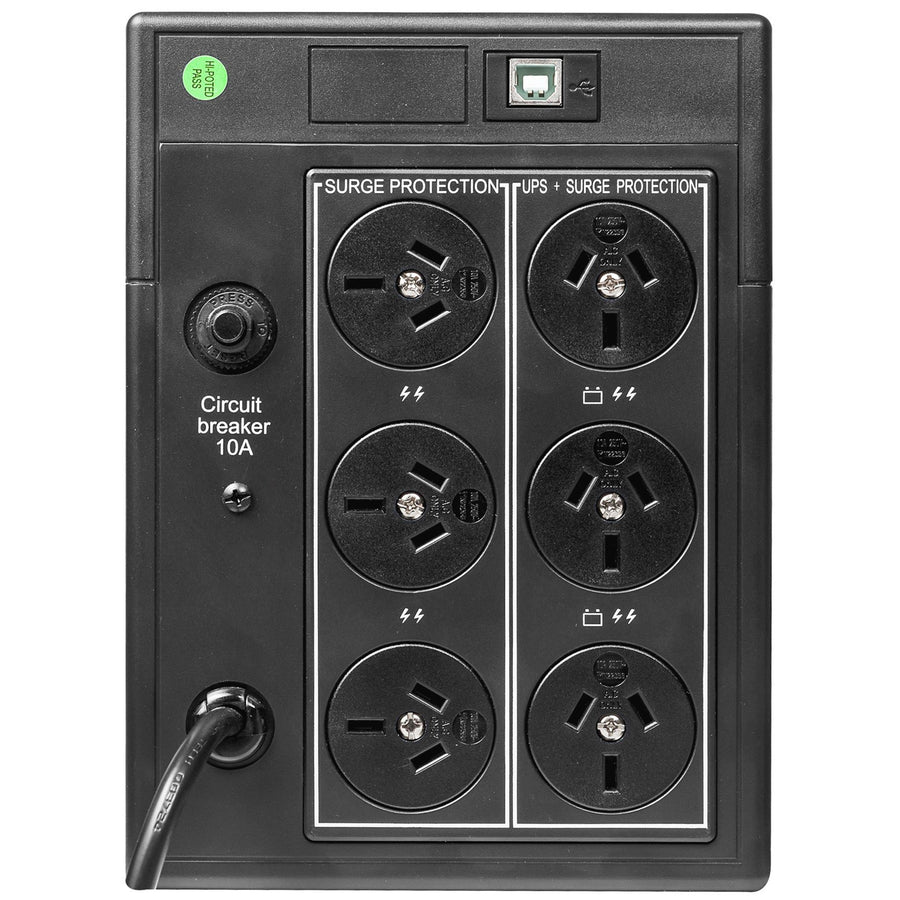

| Outlets | 3x Surge Protection and 3x Surge Protection + UPS |
| Battery Type & Number | 12Vx9AH (x2) |
| Typical Recharge Time | 6 hours recovery to 90% capacity |
| Backup Time (50% Load) | 13min |
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
| Surge Protection | 936Joules / 19500Amps |
| Interface | USB Interface |
| Software | NetGuard® supports Windows®, Linux, Unix & MAC |
| LCD Alarm | AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
| Audible Alarm | Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
| Dimensions (D x W x H) | 397 x 146 x 205mm |
| Net Weight | 11.1kg |
| Temperature | 0 - 40°C |
| Humidity | 0 - 90% (RH Non-condensing) |
| Noise Level | <5dB (no fan) |
| Safety | EN62040-1-1 2003. IEC60950-1 : 2001 |
| EMC | EN62040-2 2006 |
| RoHS | Directive 2011 / 65 / EU |
| Brand | Dynamix |
|---|---|
| Product Type | Power & Lighting |
