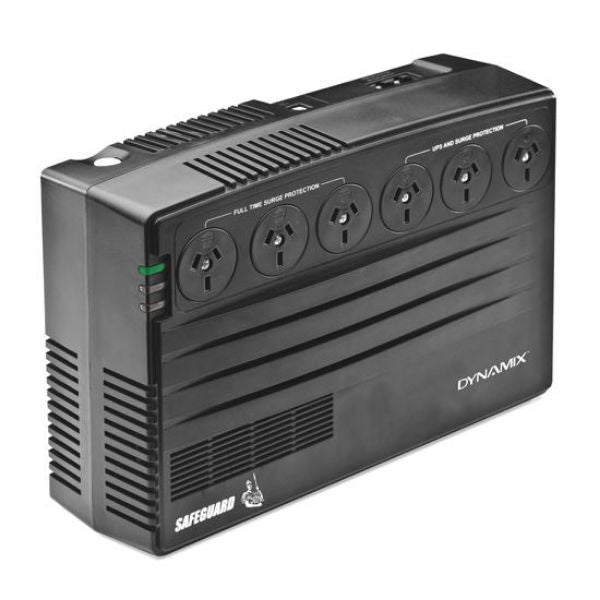

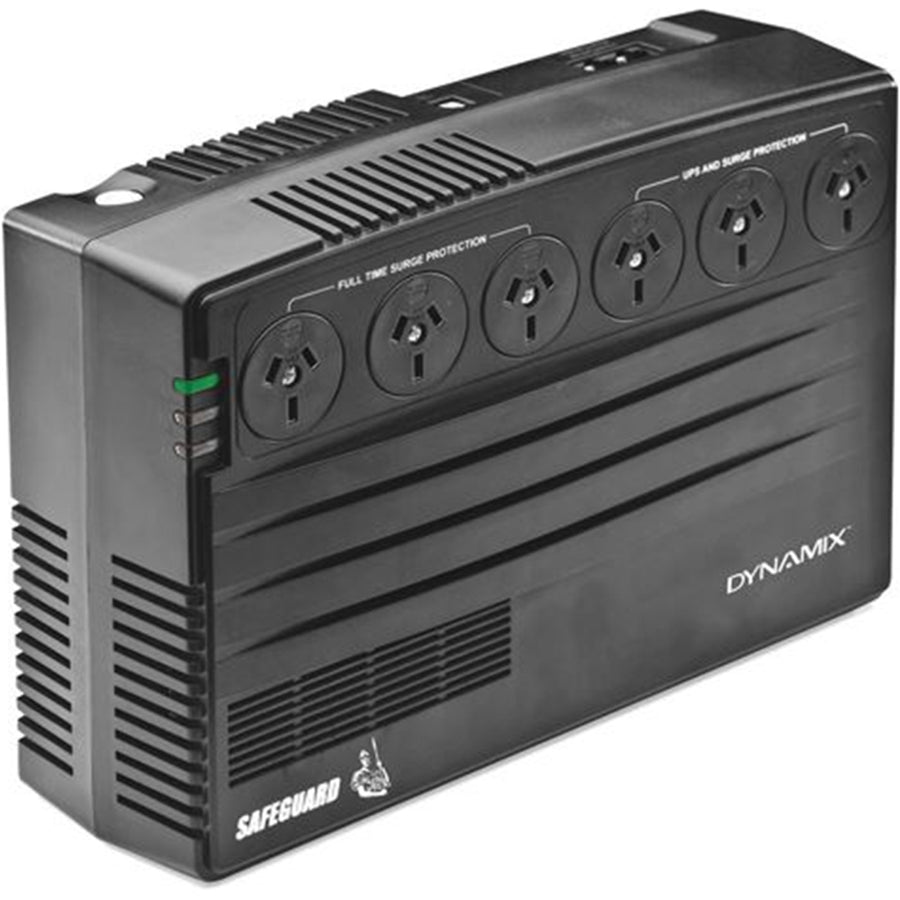

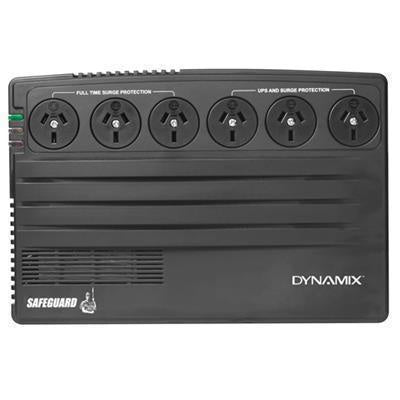

Dynamix UPSG750 SafeGuard 750VA (450W) Line Interactive UPS, 3xNZ Power Sockets with Surge + Battery Backup, 3xNZ Power Sockets with Surge 936J, Fax / Modem / LAN Protection Ports, Netguard Software, 2 Year Warranty
Features
DYNAMIX SafeGuard 750VA (450W) Line Interactive UPS, 3x NZ Power Sockets with Surge+Battery Backup, 3x NZ Power Sockets with Surge
The SafeGuard UPS provides a buffer between your equipment and inconsistent mains power supply. This cost-effective, compact device constantly stands guard beside your sensitive equipment. This UPS is one of the only powerboard style with AVR (Automatic Voltage Regulation). Anytime a power fluctuation occurs, this UPS will buck or boost the power within a ten percent variance of 230V AC. The SafeGuard provides three NZ outlets of surge protected battery backup to keep essential systems running through power outages. It also provides three surge protected NZ sockets for non-essential equipment. The SafeGuard case design allows for easy user-replaceable batteries. NetGuard™ UPS management software included.

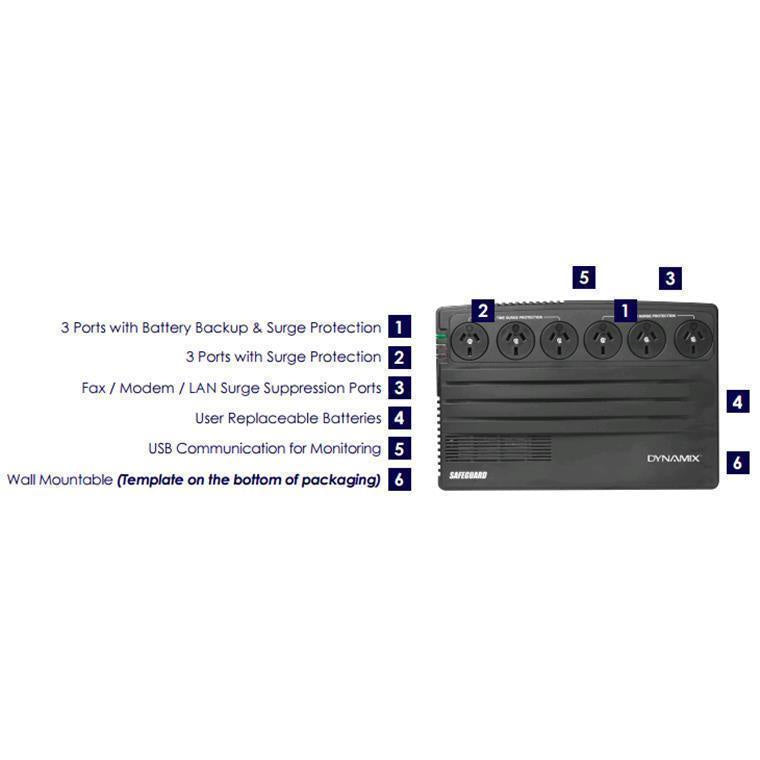

- Surge Protection, Best in its Class
- Automatic Voltage Regulation (Buck and Boost)
- Light-weight compact and elegantly designed
- Intelligent microprocessor control
- Monitoring and shutdown software included
- Fax/modem/LAN surge suppression port
- Overload protection and alarm
- Output short circuit protection
- Start on battery function (cold start)
- USB communication
- Easy user replaceable battery
- Australian/NZ approved sockets
- Wall mountable
- Fast charging - 90% in 4 hours
(please note: as the software is always being updated, the CD had been removed from the package in case it is causing problem, please download the latest NetGuard software from https://powershield.com.au/ refer to user manual for password)
Specifications
Technical Specifications
| Capacity | 750VA / 450W |
|---|---|
| Topology | Line Interactive |
| Voltage | 230Vac (Nominal) |
| Voltage Range | 177-290Vac |
| Frequency Range | 50/60Hz±5Hz (Auto Sensing) |
| Output Voltage | 230Vac±10% |
| Frequency Range | Battery Mode 50Hz - 60Hz±1% |
| Transfer Time | 6ms (Typical) |
| Waveform (Battery Mode) | Simulated Sine Wave |
| Outlets | 3 Surge Prot. and 3 Surge Prot. & UPS |
| Battery Type & Number | 12V*9AH |
| Typical Recharge Time | 8 hours recovery to 90% capacity |
| Backup Time | 25 Mins. (1 PC load at 100w) |
| Full Protection | Overcharge, discharge,short circuit & thermal protection |
| Surge Protection | 468 Joules / 11000Amps |
| Data Protection | Tel / Modem / LAN, RJ45 Connector |
| Interface | USB Interface |
| Software | NetGuard® supports Windows®,Linux, Unix & MAC |
| LED Alarm | AC Mode, Battery Mode,Low Battery (Batt. Mode), Fault |
| Audible Alarm | Battery Mode, Low Battery(Batt. Mode), Fault |
| Dimensions (D x W x H) | (199 x 292 x 91)mm |
| Net Weight | 7kg |
| Temperature | 0 - 40°C |
| Humidity | 0 - 90% (RH non-condensing) |
| Noise Level | <5dB (no fan) |
| Safety | EN62040-1-1 2003. IEC60950-1 : 2001 |
| EMC | EN62040-2 2006 |
| RoHS | Directive 2011 / 65 / EU |
| Brand | DYNAMIX |
|---|---|
| Product Type | Power & Lighting |
| Weight | 7.14 kg |
| Warranty |
|---|
