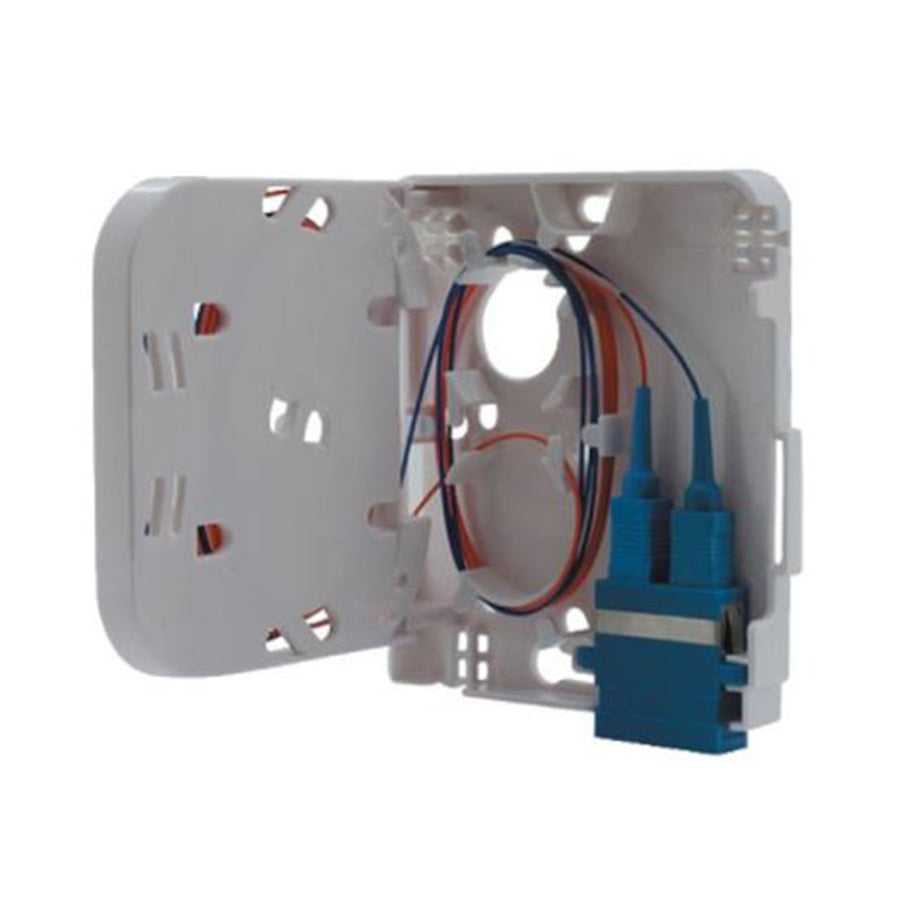

Dynamix WO002 FTTH Compact Wall Outlet 1 Port SC Duplex / LC Quad, Up to 4 fibres, Unloaded

DYNAMIX FTTH Compact Wall Outlet 1 Port SC Duplex / LC Quad, Up to 4 fibres, Unloaded

The compact termination box supplied by DYNAMIX is designed to use in residential and business applications for the termination of up to 4x fibres. This wall box enables the installation of either a single Sirocco Blown Tube cable using up to a 2x fibres blown unit or two 2x fibres rugged cables to be spliced to 2x SC pigtails (PC or APC), which connect to adapters at the base of the unit. This box is supplied with a transparent plastic cover on the front adaptor side, providing major protection to the installed fibres. The unit can be quickly installed within an office, house or communication room environment.

FEATURES

- SC Simplex Adapter type.
- Ergonomic Design.
- Flip tray to allow access to pigtails and Cable entry.
- Removable cover for easy access.
- Unit manufactured with fire resistant
- UL94-VD Rated Material.
- Transparent lid cover for shutter

APPLICATION

- FTTH / FTTx Networks.
- Data communication Networks.
- Indoor Application
