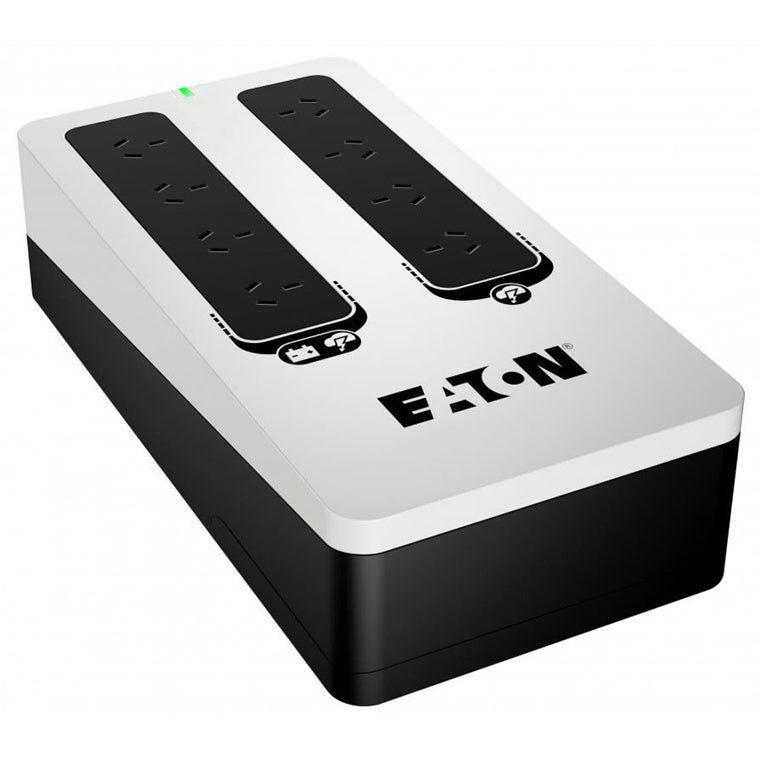

EATON 3S600AU - 3S 600VA / 360W Standby Power Board UPS
Features
Eaton 3S provides power and surge protection for desktop computers, wireless networks, gaming consoles, and other critical equipment in your home or business.
Eaton 3S supplies battery backup power during outage and advanced surge protection to prevent damage from lightning strikes or accidental grid surge.
If power outage lasts longer than expected, Eaton software will gracefully shutdown your computer without losing any data.
Eaton 3S also integrates RJ11/xDSL connection to protect Internet gateways from perturbation through data line ( 850VA models).
Modern usage and easy integration
Compact and appealing design with glossy finish will perfectly fit in any modern residential or office environment.
Eaton 3S UPS VA offer two 2A USB ports to charge any mobile devices (mobile phone, tablet, etc..).
To facilitate installation, wall mounting system is implemented on all models.
Peace of mind
Surge protection circuits are compliant with IEC 61643-11 international standard
10A circuit breaker protects your equipment from overload (all models).
Features:
- 4 AU outlets with surge protection
- 4 AU outlets with battery backup & surge protection
- On / Off button
- LED interface
- USB commmunication
- Replaceable battery
- Reset button (circuit breaker)
- Wall-mounting system
Specifications
Technical Specifications
| Output connection | 4 outlets with battery backup and surge protection + 4 outlets with surge protection |
|---|---|
| Nominal input voltage | 220 - 240 V |
| Input voltage range | Up to 168-295 V (adjustable) |
| Output voltage | 240V (adjustable to 220V/230V/240V) |
| Input frequency range | 50 / 60 Hz (46 - 65 Hz working range) |
| Input protection | 10A resettable circuit breaker |
| Battery type | Compact, sealed lead acid battery (replaceable) |
| Battery test | Yes |
| Cold start (no mains power) | Yes |
| Deep-discharge protection | Yes |
| Battery replacement indicator | LED |
| Desktop PC | 16 min |
| Gaming PC / Workstation | 6 min |
| Communication | USB port (HID-compliant) for automatic integration with most common operating systems (Windows & Mac OS) |
| Operating temperature | 0 to 40°C |
| Operationg elevation | 0 to 3000m |
| Compliances | IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11 |
| Conformity | CE / RCM |
| UPS Dimensions (mm) | 325x86x140 |
| UPS Weight (kg) | 3.2 |
| Brand | EATON |
|---|---|
| Product Type | Power & Charging > Power Boards, Plugs & Adapters |
| Weight | 1.85 kg |
| Warranty |
|---|
